Sayfa 2-36B - Isuzu EPC

2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#4833) — 209 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-081-0	01	1	9611-9903	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9904-9904	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9905-0001	●	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-	●	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-0	01	1	9611-9904	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	9905-	●	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9611-9611	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-9904	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9905-	●	●
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0002-	●	●
496	FASTENER ELECTRONIC GOV RED3(KG5) ID=6X6 OD=8	1-09987-194-0	02	1	9610-9610	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9611-9904	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9905-	●	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-1	01	1	9611-9904	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9905-	●	●

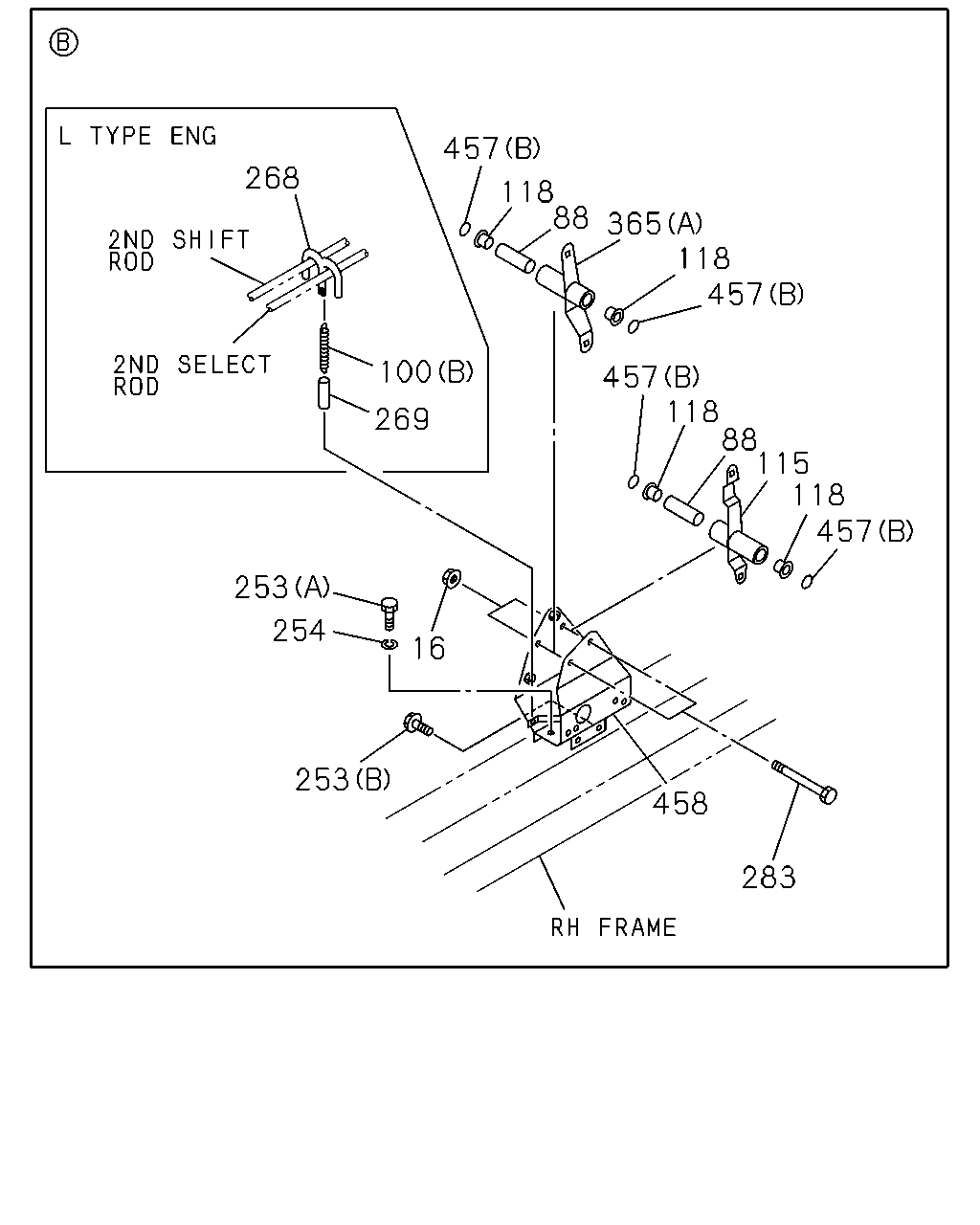

457 268 118 88 365 118 457 100 457 118 88 115 118 457 269 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9601-9904	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9601-9904	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9601-9904	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9601-9904	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9601-9904	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-9904	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9905-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9601-9904	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9905-	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L)	1-33657-216-0	01	1	9601-9904	●
268	BRACKET; LINK ROD L TYPE ENG<90L>	1-33657-216-0	01	1	9905-	●	●
269	COVER; SPR 6WA1 TC-S(56L)	1-15669-002-0	01	1	9601-9904	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9601-9904	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9601-9904	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9601-9904	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9601-9904	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9601-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●
457	GASKET (B)	1-09623-594-0	04	1	9601-9904	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●
458	BRACKET; 2ND RELAY LEVER 10PE1S(60L)	1-33657-572-2	01	1	9601-9904	●
458	BRACKET; 2ND RELAY LEVER V TYPE ENG<91L>	1-33657-572-2	01	1	9905-	●	●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9601-9904	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L>	1-33657-583-1	01	1	9905-	●	●

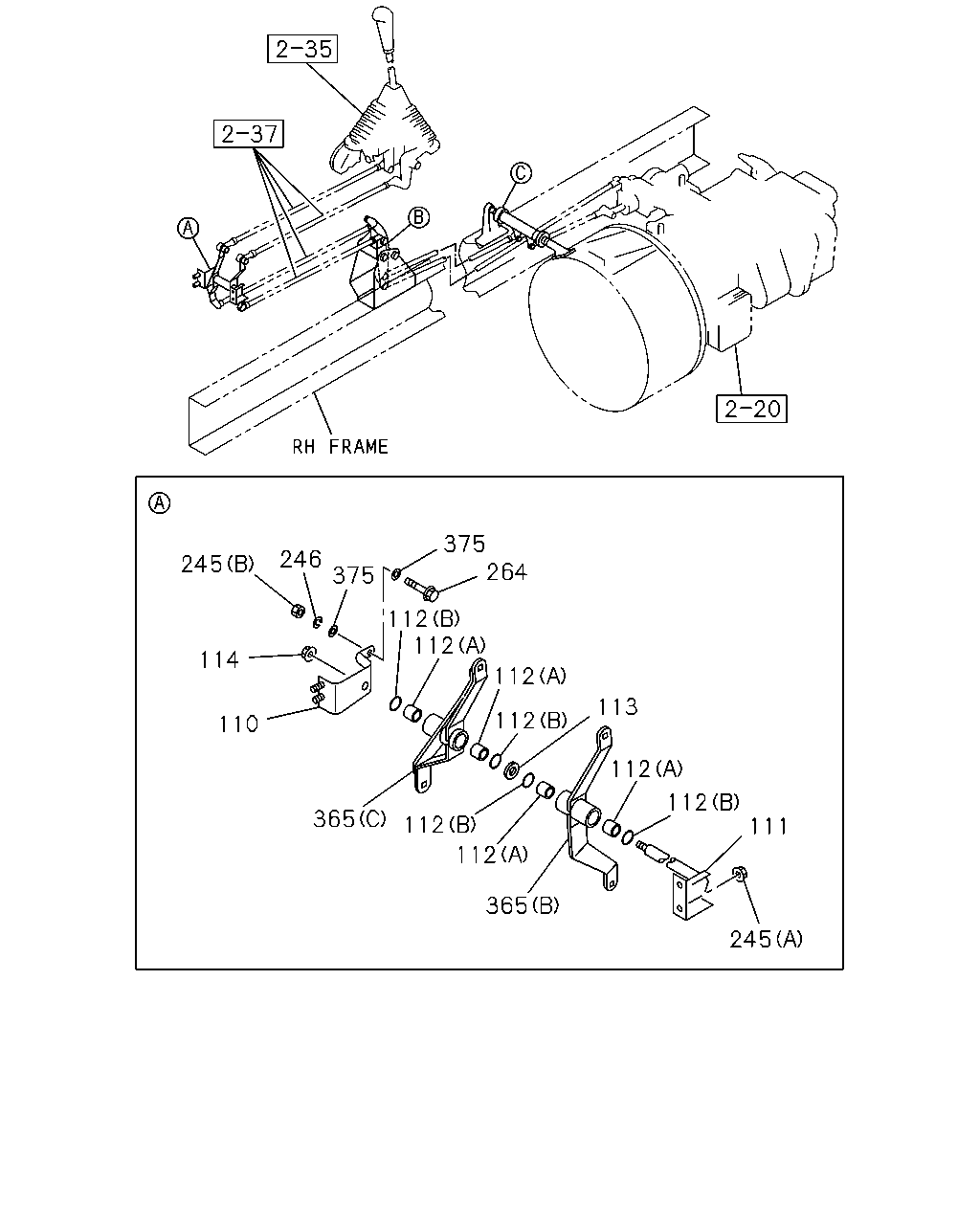

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9601-9904	●
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9905-	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9601-9904	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9905-	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9601-9904	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9905-	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9601-9904	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9905-	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9601-9904	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9905-	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9601-9904	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9601-9904	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9601-9904	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9905-	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9601-9904	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9601-9904	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9601-9904	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9601-9904	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9601-9904	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9601-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9601-9904	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9905-	●	●

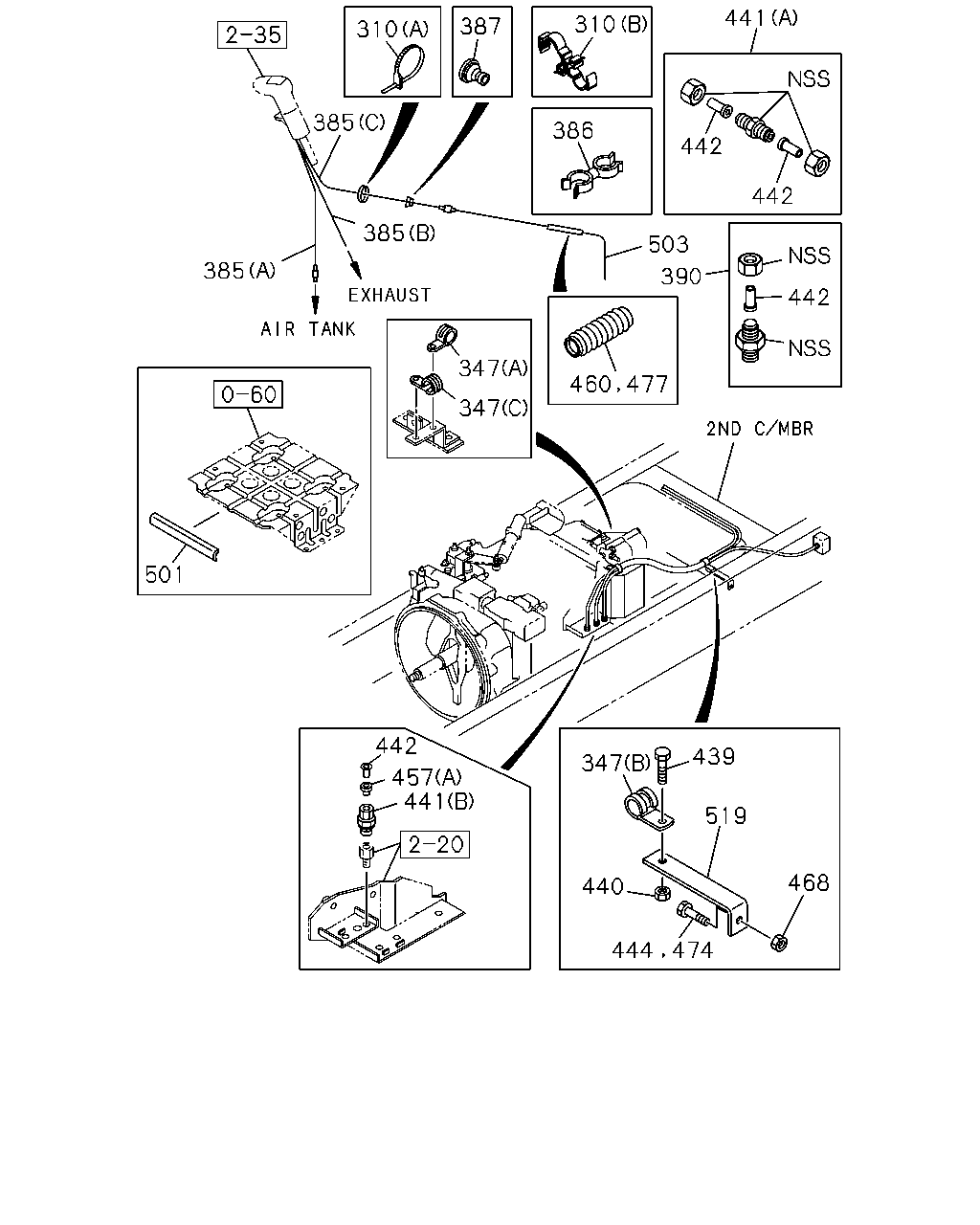

441 310 387 310 385 386 442 442 385 503 385 390 442 347 347 501 442 439 347 457 441 519 468 440 444 474 460 477

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
310	CLIP; TUBE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	0106-	●
310	CLIP; TUBE (A) L=140	5-09707-031-0	17	1	9601-9602	●
310	CLIP; TUBE (A) L=250	5-09707-030-1	02	1	9603-9904	●
310	CLIP; TUBE (A) L=250	5-09707-030-1	02	1	9905-9910	●	●
310	CLIP; TUBE (A) L=250	5-09707-030-1	02	1	9911-	●
310	CLIP; TUBE 10PE1S(60L) (A) L=250	1-09707-126-0	05	1	9603-9904	●
310	CLIP; TUBE V TYPE ENG<91L> (A) L=250	1-09707-126-0	05	1	9905-9910	●	●
310	CLIP; TUBE 10PE1S(60L) (A) L=140	5-09707-031-0	09	1	9603-9608	●
310	CLIP; TUBE 10PE1S(60L) (A) L=140	5-09707-031-1	10	1	9609-9904	●
310	CLIP; TUBE V TYPE ENG<91L> (A) L=140	5-09707-031-1	10	1	9905-9910	●	●
310	CLIP; TUBE 6WA1 TC-S(56L) (A) L=140	5-09707-031-1	07	1	9603-9904	●
310	CLIP; TUBE L TYPE ENG<90L> (A) L=140	5-09707-031-1	07	1	9905-9910	●	●
310	CLIP; TUBE (A) L=140	5-09707-031-1	01	1	9911-0105	●
310	CLIP; TUBE (A) L=140	5-09707-031-1	02	1	0106-	●
310	CLIP; TUBE L TYPE ENG<90L> (A) L=250	1-09707-126-0	07	1	9603-9910	●	●
310	CLIP; TUBE (A) L=250	1-09707-126-0	16	1	9911-	●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	02	1	9905-9905	●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	01	1	9906-	●	●
347	CLIP; AIR PIPE EXC. PTO ZF TRANS RR(BDM) (C) ID=24 L=27	1-09700-809-0	01	1	9906-	●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	01	1	9906-		●
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) (B) ID=28 L=40	1-09701-261-0	01	1	9906-	●
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9906-	●	●
385	TUBE; NYLON (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	9601-	●
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9601-	●
385	TUBE; NYLON (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	9601-	●
386	CLIP; CONT CABLE & TUBE L=140	5-09707-031-1	01	1	9601-	●
386	CLIP; CONT CABLE & TUBE L=250	5-09707-030-1	02	1	9602-	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9601-	●
390	CONNECTOR; STRAIGHT,TRANS SIDE DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9601-	●
439	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	9905-9905	●
439	BOLT; CLIP,AIR PIPE PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●
439	BOLT; CLIP,AIR PIPE EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9905-9905	●
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9906-	●
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	9601-	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9905-	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	9601-9602	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	04	1	9603-9904	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9905-9910	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9905-9910	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	9911-	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9601-9904	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	04	1	9905-9910	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9911-	●
444	BOLT; BRKT,NIPPLE M8X30 FLANGE	0-28680-830-0	01	1	9905-0001	●
457	GASKET (B)	1-09623-594-0	04	1	9601-9904	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9601-9904	●
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9905-	●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9601-9904	●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9905-	●
460	TUBE; CORRUGATE L=340 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9601-9603	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9611-9611	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-9904	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9905-	●	●
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0002-	●	●
474	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0002-	●	●
477	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9601-9608	●
477	TUBE; CORRUGATE 6WA1 TC-S(56L) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9609-9904	●
477	TUBE; CORRUGATE L TYPE ENG<90L> SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9905-9910	●	●
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9905-9910	●
477	TUBE; CORRUGATE SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9911-0105	●
477	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0106-	●
477	TUBE; CORRUGATE 10PE1S(60L) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9609-9904	●
477	TUBE; CORRUGATE V TYPE ENG<91L> SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9905-9910	●	●
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9911-	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9601-9610	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9611-9903	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9904-9904	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9905-	●
503	TUBE; NYLON SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9601-9608	●
503	TUBE; NYLON 6WA1 TC-S(56L) SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9609-9904	●
503	TUBE; NYLON L TYPE ENG<90L> SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	9905-9910	●	●
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9905-9910	●
503	TUBE; NYLON SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9911-0105	●
503	TUBE; NYLON SERVICED BY L=4000 OD=4	1-87410-078-0	01	1	0106-	●
503	TUBE; NYLON 10PE1S(60L) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9609-9904	●
503	TUBE; NYLON V TYPE ENG<91L> SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	9905-9910	●	●
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9911-	●
519	BRACKET; FRAME L=125	1-47475-897-0	01	1	9905-0001	●
519	BRACKET; FRAME L=125	1-47475-897-0	01	1	0002-	●	●

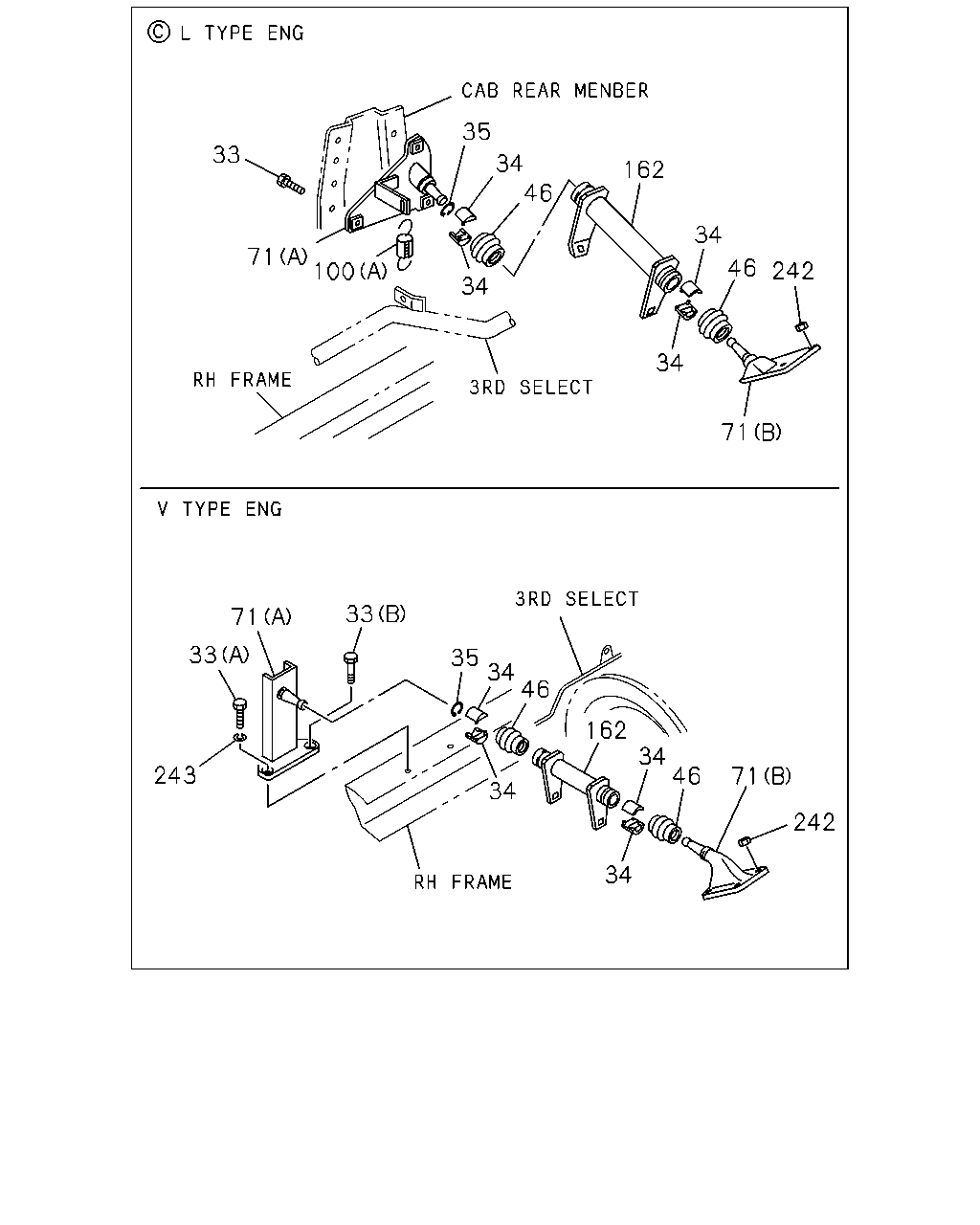

35 33 34 16 46 34 71 100 46 242 34 34 71 33 71 33 35 34 46 162 34 46 243 71 34 242 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9601-9904	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (A) M14X45	0-20801-445-0	01	1	9601-9904	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (A) M14X45	0-20801-445-0	01	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9601-9904	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9601-9606	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	03	1	9607-9610	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	03	1	9611-9904	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	03	1	9905-	●	●
34	SEAT; BALL,RELAY LEVER 10PE1S(60L)	1-33659-118-0	04	1	9601-9904	●
34	SEAT; BALL,RELAY LEVER V TYPE ENG<91L>	1-33659-118-0	04	1	9905-	●	●
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9601-9904	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9905-	●	●
35	RING; SNAP,RELAY LEVER 10PE1S(60L)	9-09180-122-0	01	1	9601-9904	●
35	RING; SNAP,RELAY LEVER V TYPE ENG<91L> OD=23.5	9-09180-122-0	01	1	9905-	●	●
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L)	9-09180-132-0	01	1	9601-9904	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9905-	●	●
46	SEAL; DUST,RELAY LEVER 10PE1S(60L)	1-33659-172-0	02	1	9601-9904	●
46	SEAL; DUST,RELAY LEVER V TYPE ENG<91L>	1-33659-172-0	02	1	9905-	●	●
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9601-9904	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9601-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9601-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (A)	1-33657-512-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) (B)	1-33657-478-0	01	1	9601-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> (B)	1-33657-478-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) (A)	1-33657-569-0	01	1	9601-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> (A)	1-33657-569-0	01	1	9905-	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●
162	LEVER; RELAY 10PE1S(60L)	1-33651-678-1	01	1	9601-9904	●
162	LEVER; RELAY V TYPE ENG<91L>	1-33651-678-1	01	1	9905-	●	●
162	LEVER; RELAY 6WA1 TC-S(56L)	1-33651-679-0	01	1	9601-9904	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-679-0	01	1	9905-	●	●
242	NUT; FLANGE 3RD RELAY LEVER 10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9601-9904	●
242	NUT; FLANGE 3RD RELAY LEVER V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	04	1	9905-	●	●
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9601-9904	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9905-	●	●
243	WASHER; LK,BRKT 10PE1S(60L) ID=14.2	9-09150-614-0	01	1	9601-9904	●
243	WASHER; LK,BRKT V TYPE ENG<91L> ID=14.2	9-09150-614-0	01	1	9905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
