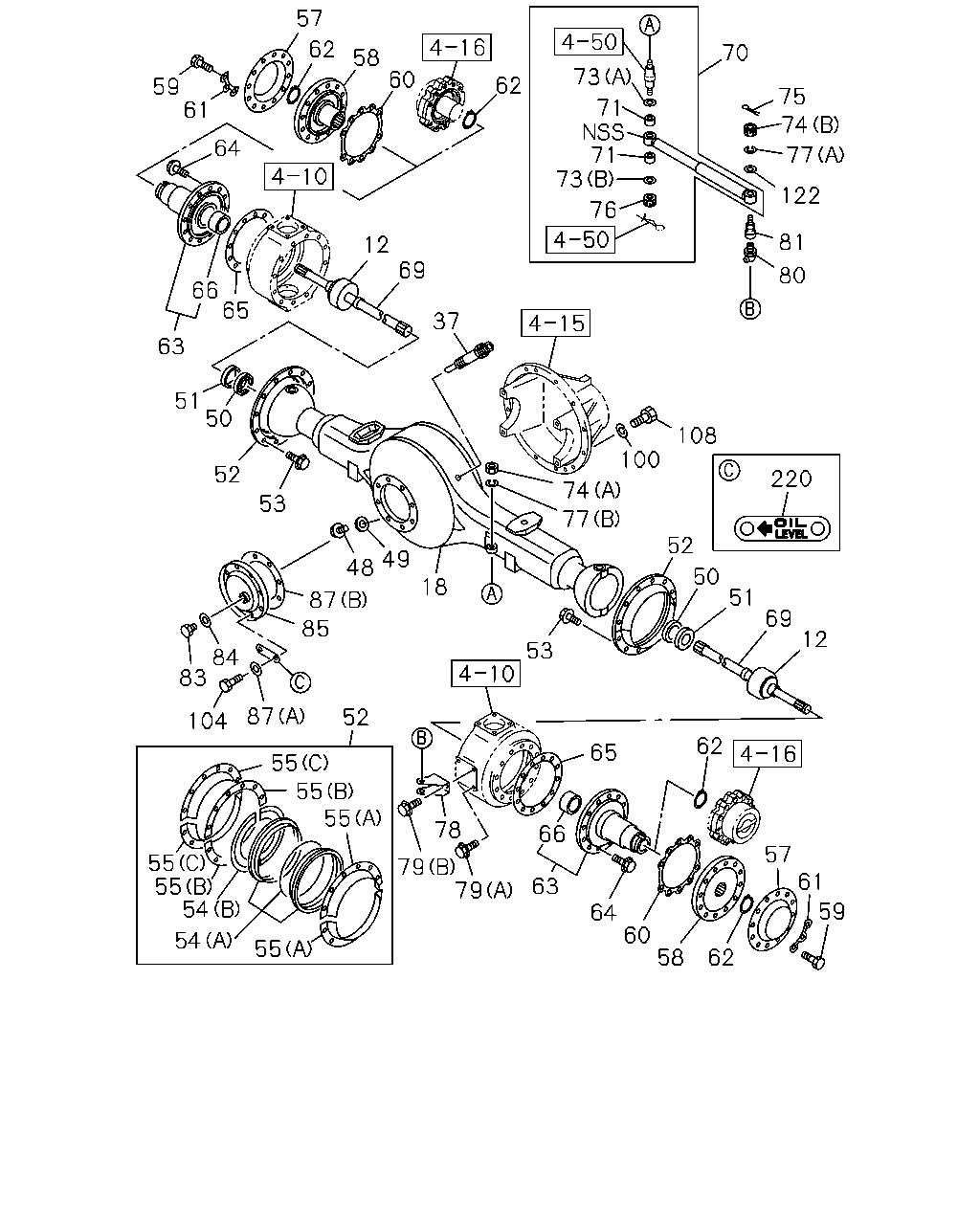

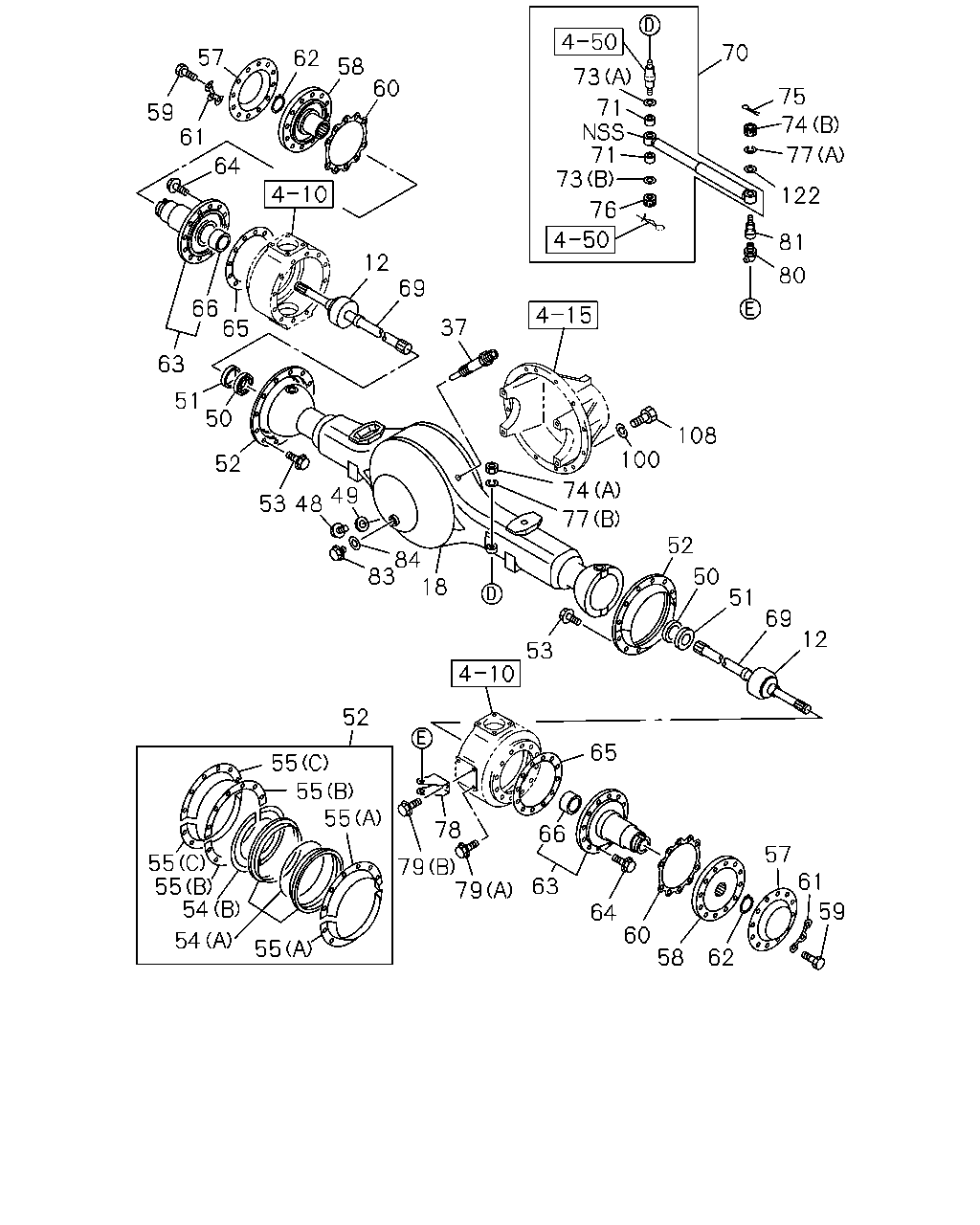

4-12 — FRONT DRIVE SHAFT (#48329) — 131 parça

57 62 70 58 73 60 62 59 61 75 71 71 73 74 64 77 122 76 81 12 69 80 66 65 37 63 51 50 108 74 100 52 220 53 77 52 49 48 50 18 51 87 69 85 12 53 84 83 87 52 104 62 65 55 55 55 78 66 55 55 54 57 61 79 79 63 59 64 60 58 54 55 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0812-1001
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0812-1001
12	JOINT ASM	1-43330-018-0	02	1	1002-
18	CASE; FRT AXLE	8-98011-801-2	01	1	0812-1109
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-
37	BREATHER; FRT AXLE CASE	9-36122-015-1	01	1	0812-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0812-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0812-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0812-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0812-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0812-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	0812-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	0812-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0812-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0812-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0812-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0812-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0812-
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0812-1001
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1002-
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0812-1001
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1002-
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0812-1001
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1002-
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0812-1001
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1002-
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0812-1001
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1002-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0812-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0812-0902
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-
64	BOLT; SPINDLE M12X30 FLANGE	0-28661-230-0	08	1	0812-0912
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1001-
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	0812-0912
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1001-1003
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	1004-1005
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1006-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0812-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0812-0902
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	0812-
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	0812-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0812-
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0812-
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0812-
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0812-
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0812-
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0812-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0812-
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	0812-
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0812-
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0812-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0812-
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	0812-
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0812-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0812-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0812-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0812-
85	COVER; AXLE CASE	9-42141-059-0	01	1	0812-1109
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	0812-1109
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	0812-1109
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0812-
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	0812-1109
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0812-
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0812-
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0812-
220	PLATE	9-83996-444-1	01	1	0812-1109

70 57 62 58 73 60 75 71 71 73 59 61 74 77 64 122 76 81 12 80 69 66 65 37 63 51 50 108 74 100 52 49 77 52 84 83 18 50 51 69 12 53 52 65 55 55 55 78 66 55 55 54 57 61 79 79 63 59 64 60 58 54 55 62 53 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0812-1001
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0812-1001
12	JOINT ASM	1-43330-018-0	02	1	1002-
18	CASE; FRT AXLE	8-98011-801-2	01	1	0812-1109
18	CASE; FRT AXLE	8-98200-146-0	01	1	1110-
37	BREATHER; FRT AXLE CASE	9-36122-015-1	01	1	0812-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0812-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0812-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0812-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0812-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0812-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	0812-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	0812-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0812-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0812-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0812-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0812-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0812-
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0812-1001
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1002-
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0812-1001
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1002-
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0812-1001
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1002-
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0812-1001
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1002-
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0812-1001
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1002-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0812-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0812-0902
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-
64	BOLT; SPINDLE M12X30 FLANGE	0-28661-230-0	08	1	0812-0912
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1001-
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	0812-0912
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1001-1003
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	1004-1005
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1006-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0812-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0812-0902
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-
69	SHAFT; AXLE,FRT INNER	1-43311-063-0	01	1	0812-
69	SHAFT; AXLE,FRT INNER	1-43311-064-0	01	1	0812-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	0812-
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	0812-
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	0812-
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	0812-
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	0812-
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	0812-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0812-
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	0812-
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	0812-
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	0812-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0812-
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	0812-
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0812-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0812-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0812-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0812-
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	0812-
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	0812-
108	BOLT; FRT FINAL DRIVE M12X45	9-92061-245-0	04	1	0812-
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	0812-
