Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶

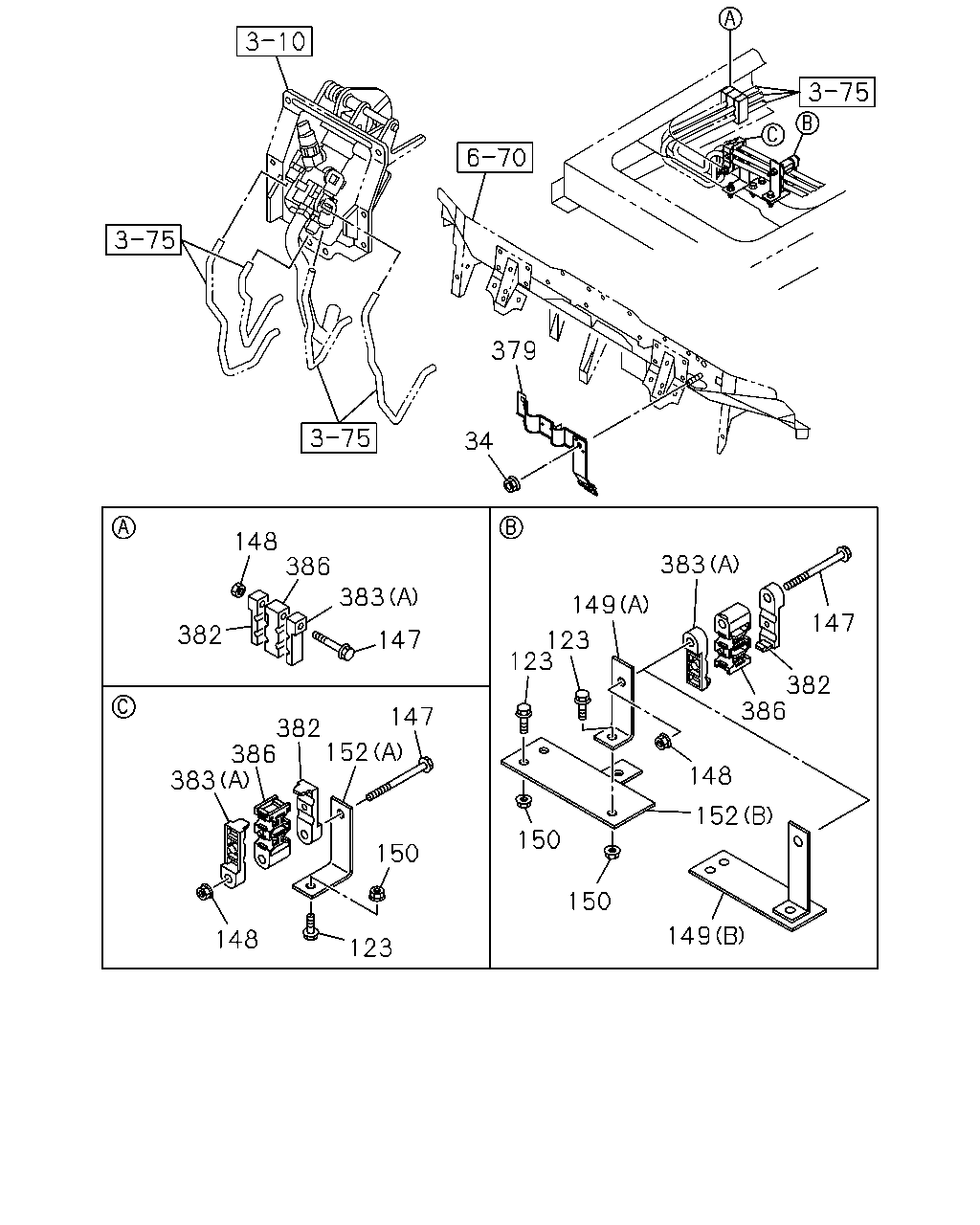

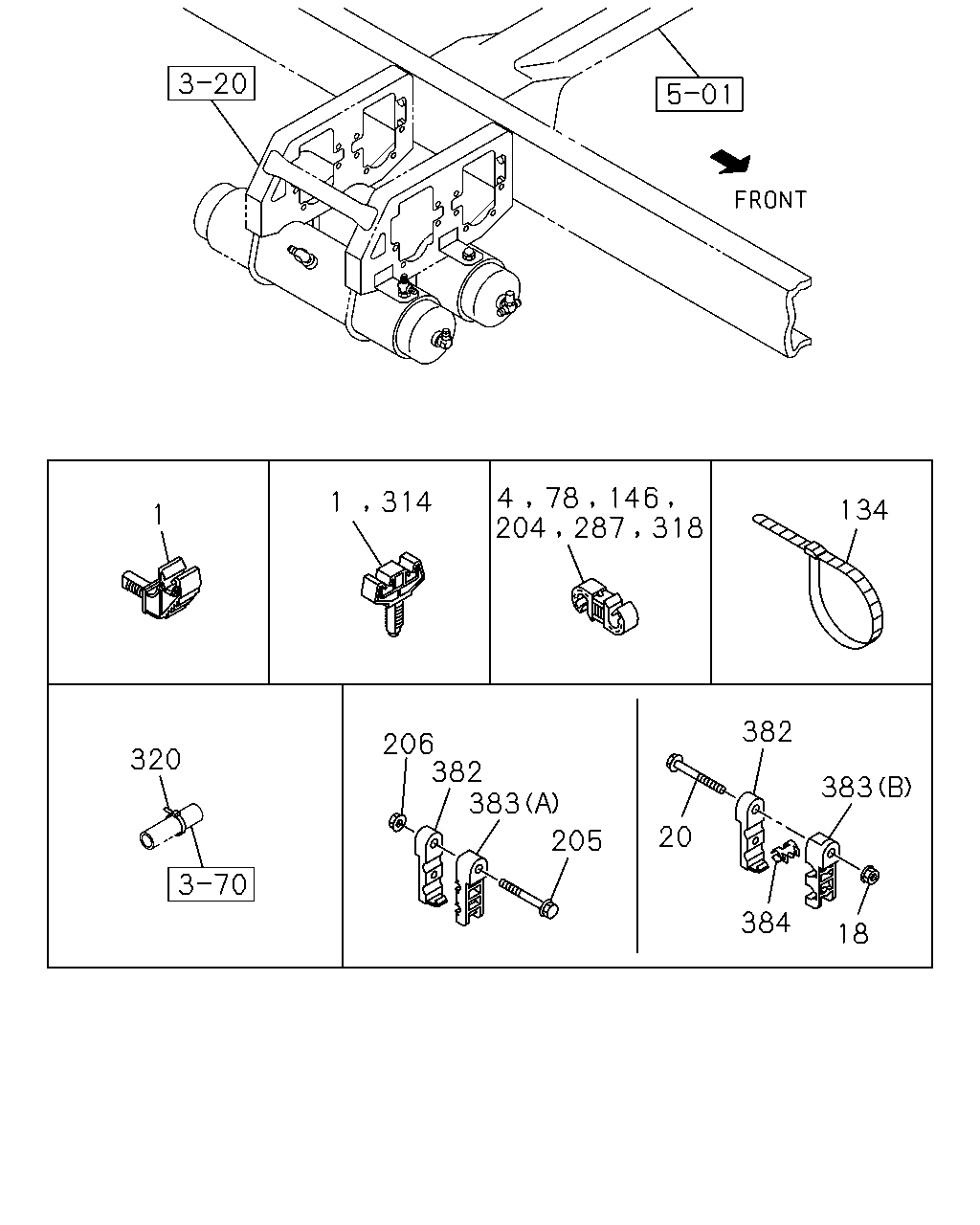

3-78 — FIXING PARTS; AIR PIPING
(#48325) — 57 parça
◀
[378A] NO.2 (40 parça)
[378A] NO.1 (17 parça)
▶
146
314
1
134
1
382
206
382
383
320
383
20
205
384
18
4
78
204
287
318
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; AIR PIPE
8-98012-254-1
01
1
0812-
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
06
1
0812-0812
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
02
1
0812-0812
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
04
1
0812-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0812-0812
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
0812-
4
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
02
1
0812-0812
4
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0812-
18
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0812-
20
BOLT; CLIP
M8X50 FLANGE
0-28050-850-0
02
1
0812-
78
CLIP; AIR PIPE
AIR DRYER<PS7> ID=10 & 12
1-09709-278-1
02
1
0812-0812
78
CLIP; AIR PIPE
AIR DRYER<PS7> ID=10 & 12
1-09709-278-1
01
1
0812-1011
78
CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=10 & 12
1-09709-278-1
01
1
1012-
78
CLIP; AIR PIPE
EURO3 SPECIFICATION<NT3> ID=10 & 12
1-09709-278-1
01
1
1012-
78
CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=10 & 15
1-09709-279-1
01
1
0812-0812
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
0812-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
07
1
0812-
204
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
01
1
0909-
205
BOLT; PIPE CLIP
M8X50 FLANGE
0-28050-850-0
01
1
0812-
206
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
0812-
287
CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 12
1-09709-275-1
01
1
0812-0908
287
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
01
1
0909-1011
287
CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=6.35 & 10.0
1-09709-274-1
01
1
1012-
287
CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15
1-09709-276-1
01
1
0812-0908
314
CLIP; AIR PIPE
8-98012-254-1
02
1
0812-1001
314
CLIP; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ>
8-98012-254-1
06
1
0812-
318
CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 12
1-09709-275-1
02
1
0812-0812
318
CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 12
1-09709-275-1
01
1
0812-1011
318
CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 12
1-09709-275-1
01
1
1012-
318
CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15
1-09709-276-1
02
1
0812-0812
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
02
1
0812-1011
318
CLIP; AIR PIPE
EURO2 SPECIFICATION<NT2> ID=6.35 & 15
1-09709-276-1
02
1
1012-
318
CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15
1-09709-276-1
03
1
0812-0812
320
CLIP; BAND,FLEX FIX
L=250
5-09707-030-1
01
1
0812-1011
320
CLIP; BAND,FLEX FIX
EURO2 SPECIFICATION<NT2> L=250
5-09707-030-1
01
1
1012-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
0812-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
05
1
0812-
383
CLIP; LWR
(A) ID=10 & 10
1-09709-241-0
05
1
0812-
383
CLIP; LWR
(B) ID=10 & 10
1-09709-243-0
02
1
0812-
384
COLLAR
ID=6
1-47459-010-0
02
1
0812-
379
34
148
386
383
383
149
147
382
147
123
123
382
386
147
382
386
152
383
148
152
150
150
150
149
148
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0812-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
04
1
0812-0905
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
03
1
0906-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
05
1
0812-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
05
1
0812-
149
BRACKET; PIPE CLIP
(A) L=75
1-47478-323-0
01
1
0812-0905
149
BRACKET; PIPE CLIP
(B)
8-98149-978-0
01
1
0906-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
04
1
0812-0905
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
03
1
0906-
152
BRACKET; PIPE CLIP
(A)
8-98116-193-0
01
1
0812-
152
BRACKET; PIPE CLIP
(B)
8-98130-912-0
01
1
0812-0905
379
BRACKET; NYLON TUBE
8-98112-515-1
01
1
0812-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
0812-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
05
1
0812-
383
CLIP; LWR
(A) ID=10 & 10
1-09709-241-0
05
1
0812-
383
CLIP; LWR
(B) ID=10 & 10
1-09709-243-0
02
1
0812-
386
CLIP; CENTER
ID=10
1-09709-242-0
05
1
0812-
