Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#48324) — 13 parça
◀
[377A] NO.1 (5 parça)

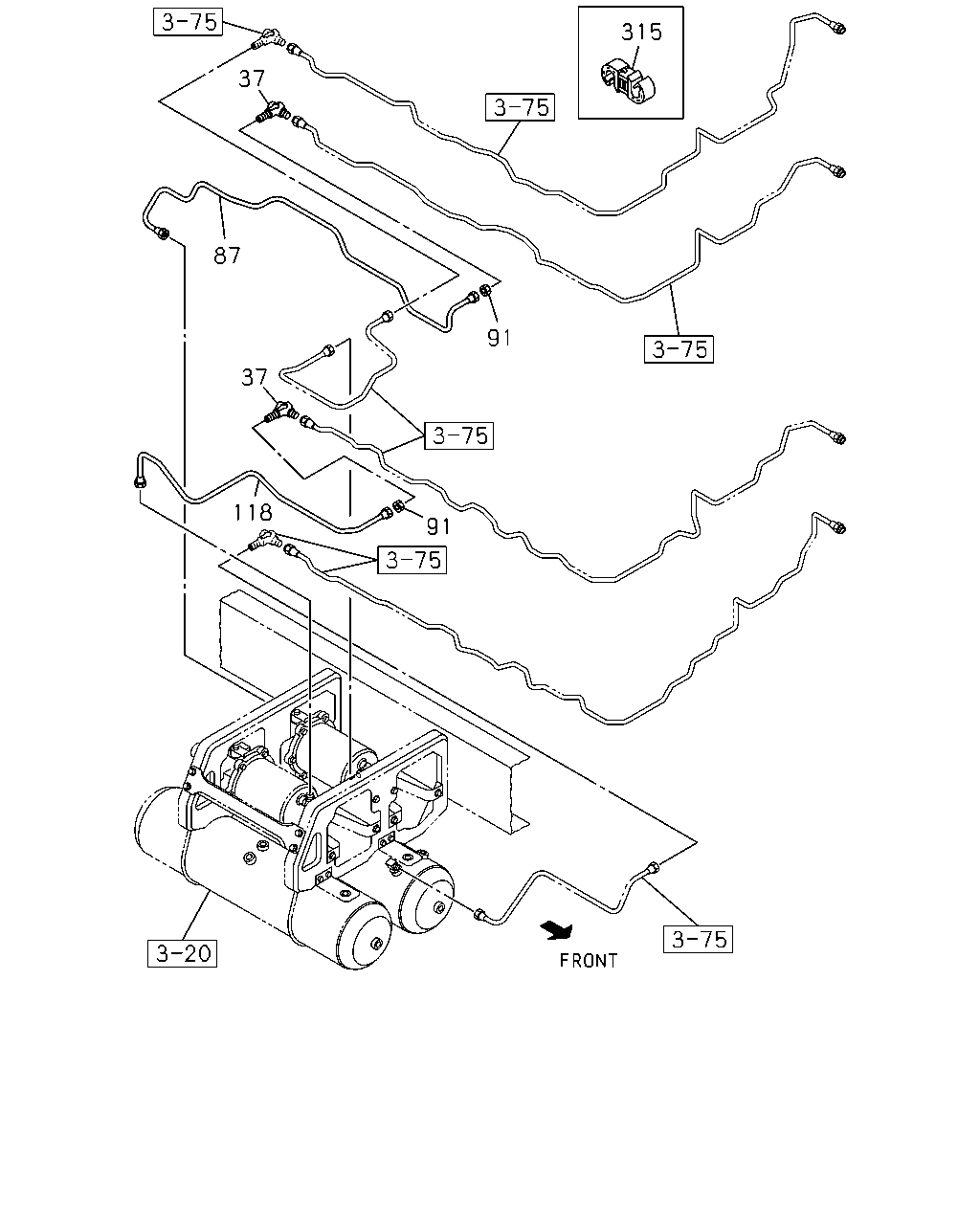

[377A] NO.2 (8 parça)
▶
178
50
471
163
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
0812-
163
BRACKET; FLEX HOSE
8-98093-260-0
01
1
0812-
163
BRACKET; FLEX HOSE
8-98106-706-0
01
1
0812-
178
BRACKET; UNION
8-98017-052-1
01
1
0812-
471
SEAL; BRKT
1-79738-832-0
01
1
0812-
315
37
87
91
37
118
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
0812-0812
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0901-
37
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
01
1
0901-
87
PIPE; AIR,AIR TANK TO UNION
L=954 SERVICED BY L=1000
1-47428-874-0
01
1
0812-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
0812-
118
PIPE; AIR,UNION TO AIR MASTER
L=706 SERVICED BY L=730
1-47428-871-0
01
1
0812-0908
118
PIPE; AIR,UNION TO AIR MASTER
L=688 SERVICED BY L=700
1-47428-870-0
01
1
0909-
315
CLIP
ID=10 & 10
1-09709-277-1
01
1
0812-0812
