Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#48323) — 34 parça
◀

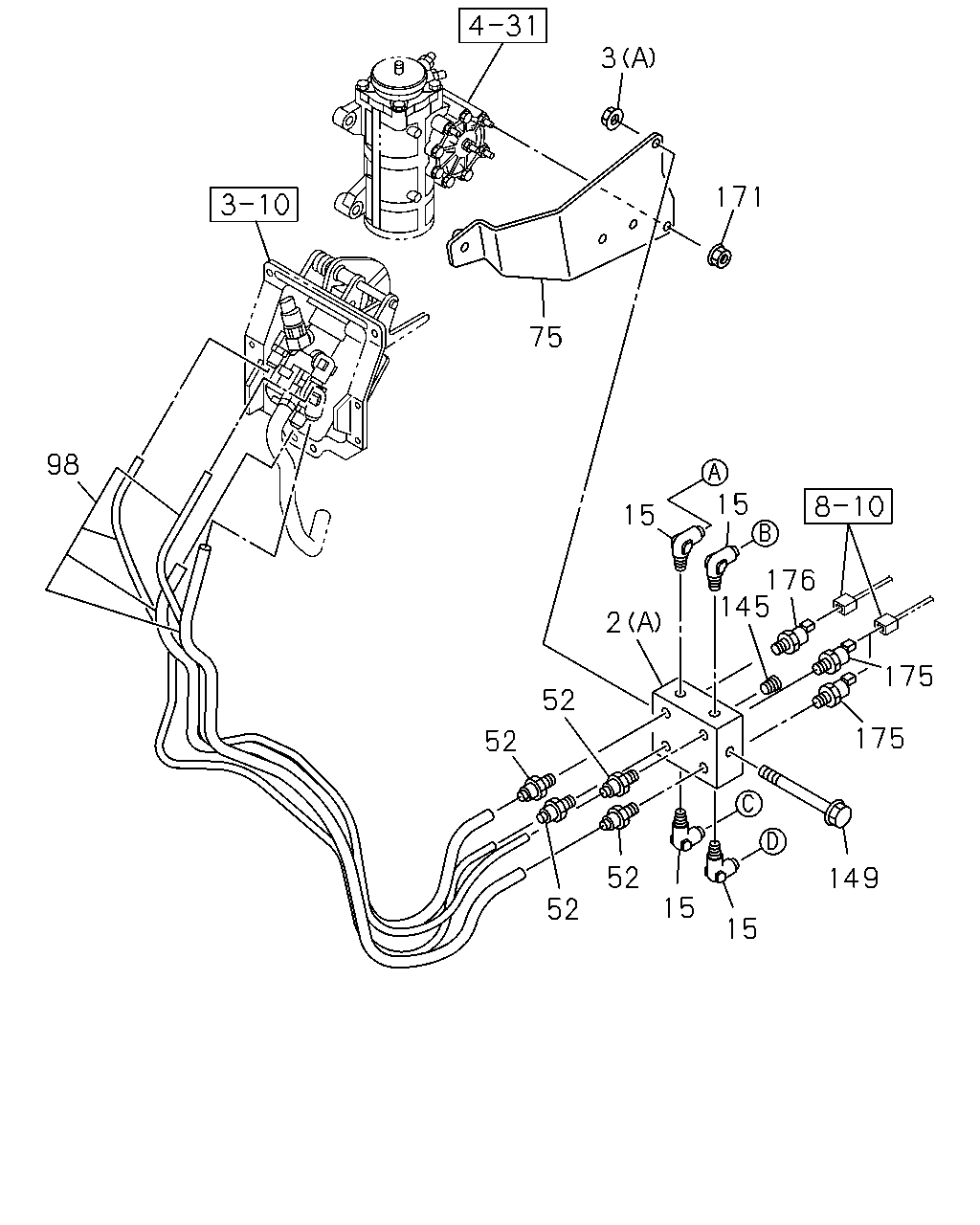

[375A] CAB UNDER (17 parça)

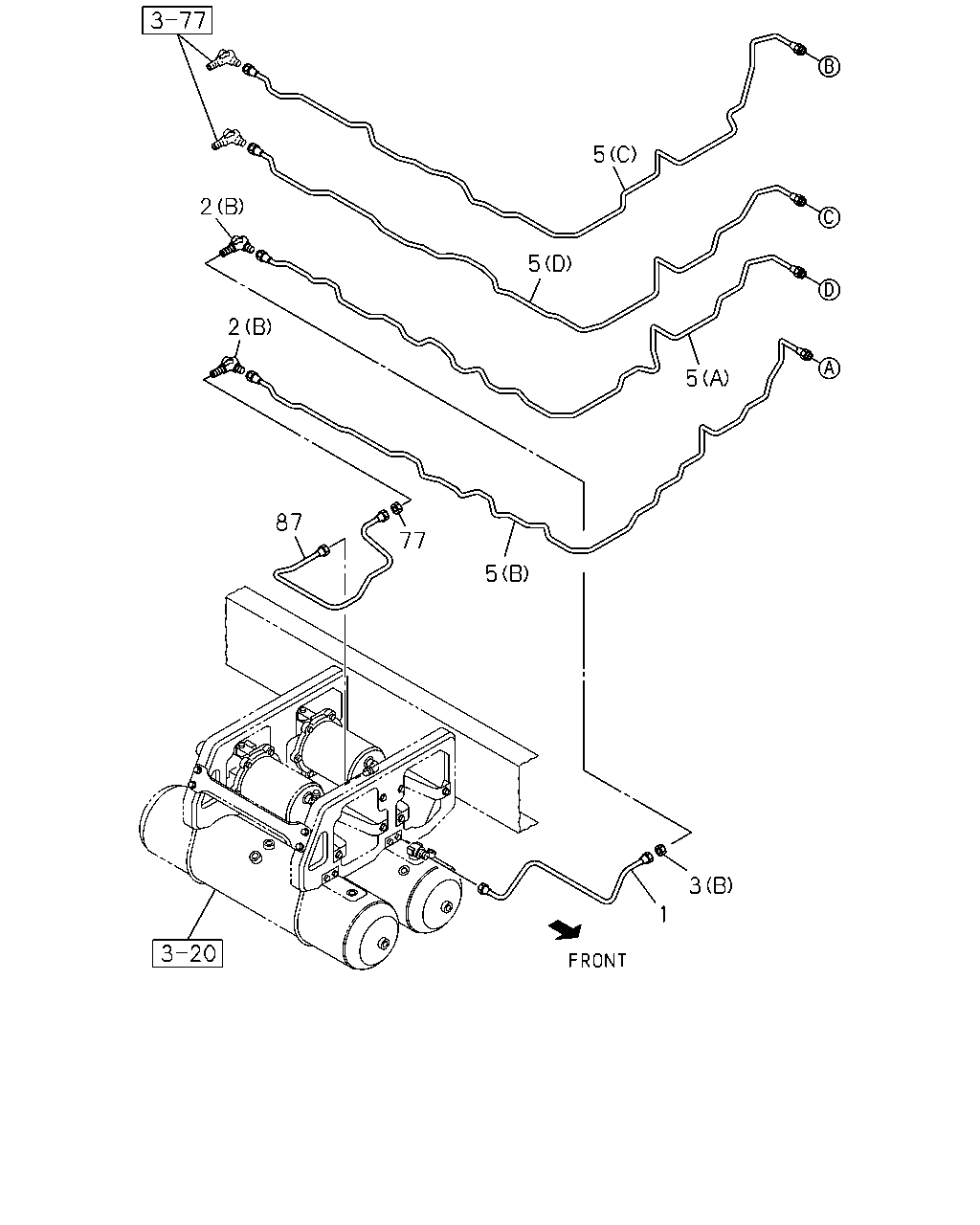

[375A] FRAME SIDE (17 parça)
▶
3
171
75
98
15
15
176
145
2
175
52
175
52
52
149
15
52
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
0812-0812
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0901-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0901-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
0812-
3
NUT; PIPE UNION
(B) M16
0-91111-516-0
01
1
0812-
3
NUT; PIPE UNION
(A) M8 FLANGE
0-91180-108-0
01
1
0812-
15
CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW
0-92134-310-0
04
1
0812-
52
CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT
1-09660-967-0
04
1
0812-
75
BRACKET; UNION
8-98126-944-0
01
1
0812-
98
TUBE; NYLON
8-98123-961-0
01
1
0812-0905
98
TUBE; NYLON
8-98144-914-0
01
1
0906-0911
98
TUBE; NYLON
8-98158-188-0
01
1
0912-
145
PLUG
PT1/4
9-99204-513-0
01
1
0812-
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
0812-
171
NUT; BRACKET
M10 FLANGE
0-91180-210-0
02
1
0812-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
0812-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
0812-
5
2
5
2
5
87
77
5
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
L=568 SERVICED BY L=600
1-47428-868-0
01
1
0812-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
02
1
0812-0812
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0901-
2
UNION; AIR PIPE
(B) M16 ELBOW
0-92135-210-0
01
1
0901-
2
UNION; AIR PIPE
(A)
8-98057-394-1
01
1
0812-
3
NUT; PIPE UNION
(B) M16
0-91111-516-0
01
1
0812-
3
NUT; PIPE UNION
(A) M8 FLANGE
0-91180-108-0
01
1
0812-
5
PIPE; AIR,UNION TO UNION
(A) L=3503
8-98111-230-0
01
1
0812-0905
5
PIPE; AIR,UNION TO UNION
(A) L=3517
8-98145-010-0
01
1
0906-
5
PIPE; AIR,UNION TO UNION
(B) L=3612
8-98111-238-0
01
1
0812-0905
5
PIPE; AIR,UNION TO UNION
(B) L=3660
8-98145-012-0
01
1
0906-
5
PIPE; AIR,UNION TO UNION
(C) L=3837
8-98130-892-0
01
1
0812-0905
5
PIPE; AIR,UNION TO UNION
(C) L=3907
8-98145-013-0
01
1
0906-
5
PIPE; AIR,UNION TO UNION
(D) L=3701
8-98130-893-0
01
1
0812-0905
5
PIPE; AIR,UNION TO UNION
(D) L=3825
8-98145-014-0
01
1
0906-
77
NUT; PIPE UNION
M16
0-91111-516-0
01
1
0812-
87
PIPE; AIR,UNION TO AIR MASTER
L=661 SERVICED BY L=700
1-47428-870-0
01
1
0812-
