3-70 — BRAKE PIPING; AIR,AIR MASTER (#48322) — 175 parça

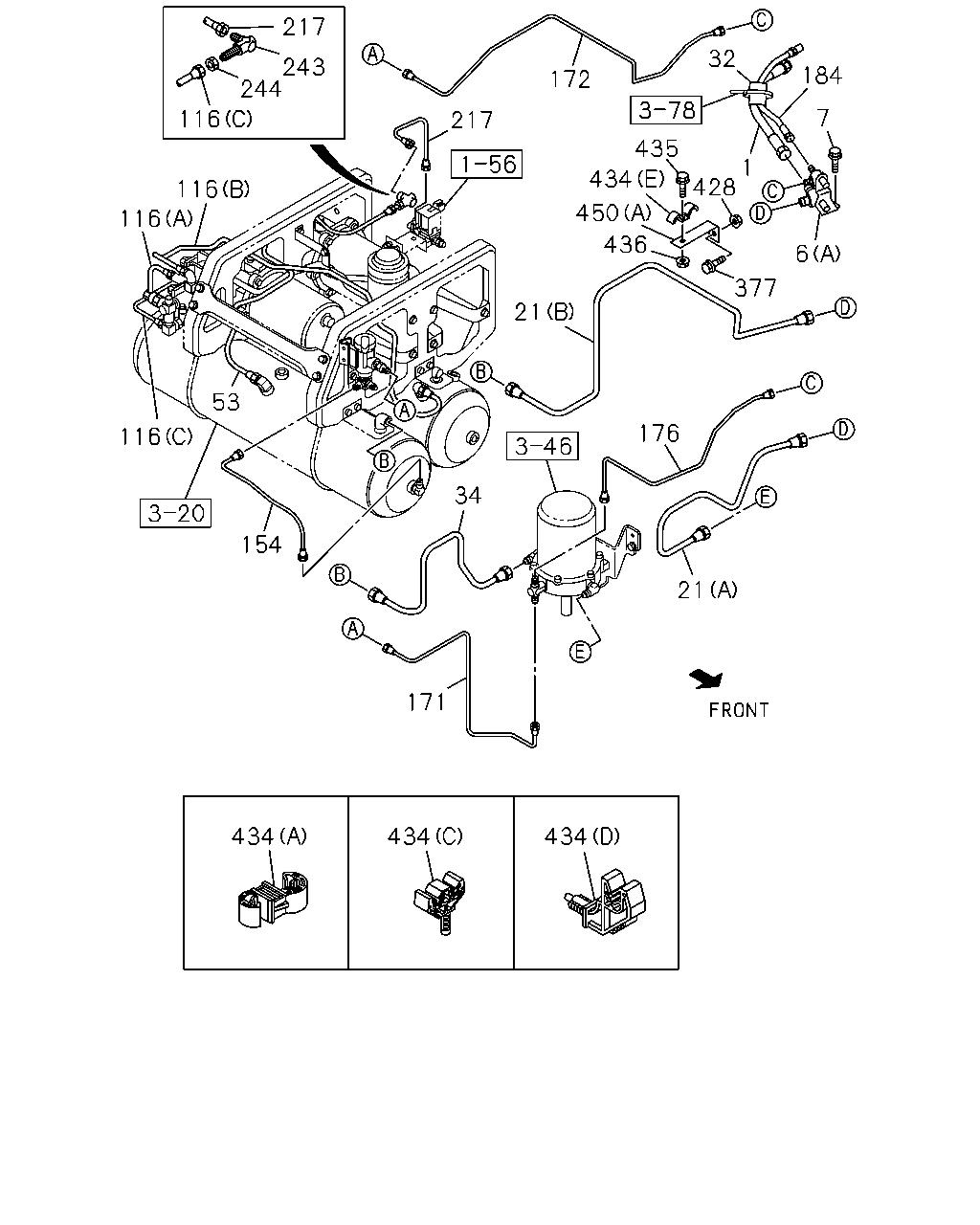

217 32 243 244 184 172 7 116 217 435 1 428 434 116 450 116 436 6 377 21 53 176 116 34 154 21 171 434 434 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-910-0	01	1	0812-0812
1	HOSE; FLEX,AIR TANK	8-98140-111-0	01	1	0812-1011
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	8-98140-111-0	01	1	1012-
1	HOSE; FLEX,AIR TANK EURO3 SPECIFICATION<NT3>	8-97607-418-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98120-436-0	01	1	0812-0903
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98133-392-0	01	1	0904-1011
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (A)	8-98133-392-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> (B)	8-98076-344-0	01	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0812-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A) L=751	8-98111-626-0	01	1	0812-1011
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=751	8-98111-626-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1345	8-98130-957-0	01	1	0812-1003
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1004-1011
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER EURO3 SPECIFICATION<NT3> (C) L=1748	8-98126-086-0	01	1	1012-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0812-1011
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	1012-
34	PIPE; AIR AIR DRYER<PS7> L=639 SERVICED BY L=660	1-49115-480-0	01	1	0812-
53	PIPE; AIR,AIR TANK TO VALVE L=732	8-98108-559-0	01	1	0812-
116	PIPE; AIR,PROTECTION VLV (C) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0812-
116	PIPE; AIR,PROTECTION VLV (A)	8-98108-561-0	01	1	0812-
116	PIPE; AIR,PROTECTION VLV (B)	8-98108-563-0	01	1	0812-
154	PIPE; AIR,AIR TANK TO AIR GOV	8-98131-480-0	01	1	0812-0908
154	PIPE; AIR,AIR TANK TO AIR GOV	8-98152-813-0	01	1	0909-1011
154	PIPE; AIR,AIR TANK TO AIR GOV EURO2 SPECIFICATION<NT2>	8-98152-813-0	01	1	1012-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=762 SERVICED BY L=800	1-47428-812-0	01	1	0812-1011
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=762 SERVICED BY L=800	1-47428-812-0	01	1	1012-
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98131-481-0	01	1	0812-1003
172	PIPE; AIR,GOV TO UNION EXC. AIR DRYER<PS7>	8-98164-600-0	01	1	1004-1011
172	PIPE; AIR,GOV TO UNION EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98164-600-0	01	1	1012-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=695 SERVICED BY L=700	1-47428-811-0	01	1	0812-1011
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=695 SERVICED BY L=700	1-47428-811-0	01	1	1012-
184	HOSE; FLEX,AIR GOV L=340	1-09363-622-0	01	1	0812-1011
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=340	1-09363-622-0	01	1	1012-
217	PIPE; VAC,UNION TO MAG VLV L=268	8-98111-589-0	01	1	0812-
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0902-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0812-
377	BOLT; BRKT FIX EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0812-1011
377	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	1012-
377	BOLT; BRKT FIX EURO3 SPECIFICATION<NT3> M8X25 FLANGE	0-28650-825-0	01	1	1012-
377	BOLT; BRKT FIX EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0812-
428	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-1011
428	NUT; BRKT EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	1012-
428	NUT; BRKT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	1012-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0812-
434	CLIP (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0812-0812
434	CLIP EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-1011
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (A) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP (A) ID=12 & 15	1-09709-281-1	01	1	0812-0812
434	CLIP (C)	8-98012-254-1	01	1	0812-
434	CLIP (C)	8-98012-254-1	01	1	0812-
434	CLIP (F) L=600	1-09707-107-1	01	1	0906-
434	CLIP (F) L=250	5-09707-030-1	01	1	0906-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-1011
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (G) ID=16 L=20	0-95235-536-0	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (A) ID=12 & 15	1-09709-281-1	01	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0812-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (F) L=350	1-09707-183-0	01	1	0901-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-1011
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0812-1011
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1012-
435	BOLT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1012-
435	BOLT; CLIP EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28650-820-0	01	1	1012-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-1011
436	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-1011
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1012-
436	NUT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	1012-
450	BRACKET; CLIP EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	0812-1011
450	BRACKET; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	1012-
450	BRACKET; CLIP EURO3 SPECIFICATION<NT3> (A) L=115 B=25	1-47476-758-0	01	1	1012-
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0812-1107
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1108-

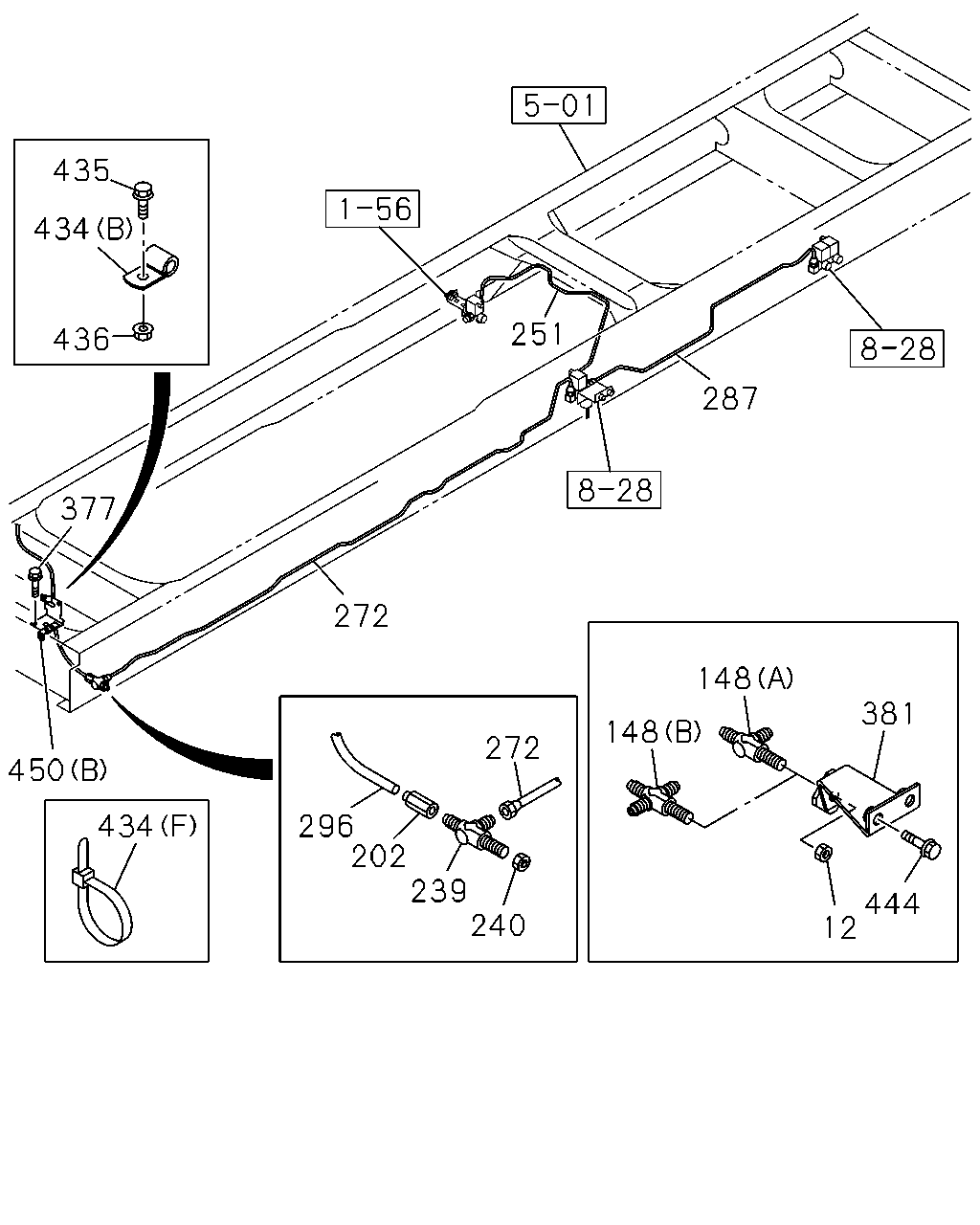

435 434 251 436 287 377 272 148 381 148 272 450 296 202 239 240 434 444 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	0812-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12	0-92138-306-0	01	1	0812-
148	CONNECTOR; UNION RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 2WAY	1-09654-059-2	01	1	0812-
202	ADAPTER EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0812-
239	UNION; AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12 2WAY	1-09654-059-2	01	1	0812-
240	NUT; UNION,AIR PIPE EXC. RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	0812-
251	PIPE; AIR,UNION TO MAG VLV L=1154 SERVICED BY L=1200	1-47428-816-0	01	1	0812-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2580 SERVICED BY L=2650	1-47428-827-0	01	1	0812-
272	PIPE; AIR,MAG VLV TO UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2646 SERVICED BY L=2650	1-47428-827-0	01	1	0812-
287	PIPE; AIR,MAG VLV L=1212 SERVICED BY L=1250	1-47428-817-0	01	1	0812-
296	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0812-
377	BOLT; BRKT FIX EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	0812-1011
377	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28650-825-0	01	1	1012-
377	BOLT; BRKT FIX EURO3 SPECIFICATION<NT3> M8X25 FLANGE	0-28650-825-0	01	1	1012-
377	BOLT; BRKT FIX EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0812-
381	BRACKET EXC. PTO CONTROL<SV6>	8-98131-569-0	01	1	0812-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0812-
434	CLIP (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0812-0812
434	CLIP EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-1011
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (A) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP (A) ID=12 & 15	1-09709-281-1	01	1	0812-0812
434	CLIP (C)	8-98012-254-1	01	1	0812-
434	CLIP (C)	8-98012-254-1	01	1	0812-
434	CLIP (F) L=600	1-09707-107-1	01	1	0906-
434	CLIP (F) L=250	5-09707-030-1	01	1	0906-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-1011
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (G) ID=16 L=20	0-95235-536-0	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (A) ID=12 & 15	1-09709-281-1	01	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0812-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (F) L=350	1-09707-183-0	01	1	0901-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-1011
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0812-1011
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1012-
435	BOLT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1012-
435	BOLT; CLIP EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28650-820-0	01	1	1012-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-1011
436	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-1011
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1012-
436	NUT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	1012-
444	BOLT; UNION EXC. PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	0812-
450	BRACKET; CLIP EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	0812-1011
450	BRACKET; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) L=115 B=25	1-47476-758-0	01	1	1012-
450	BRACKET; CLIP EURO3 SPECIFICATION<NT3> (A) L=115 B=25	1-47476-758-0	01	1	1012-
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	0812-1107
450	BRACKET; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1108-

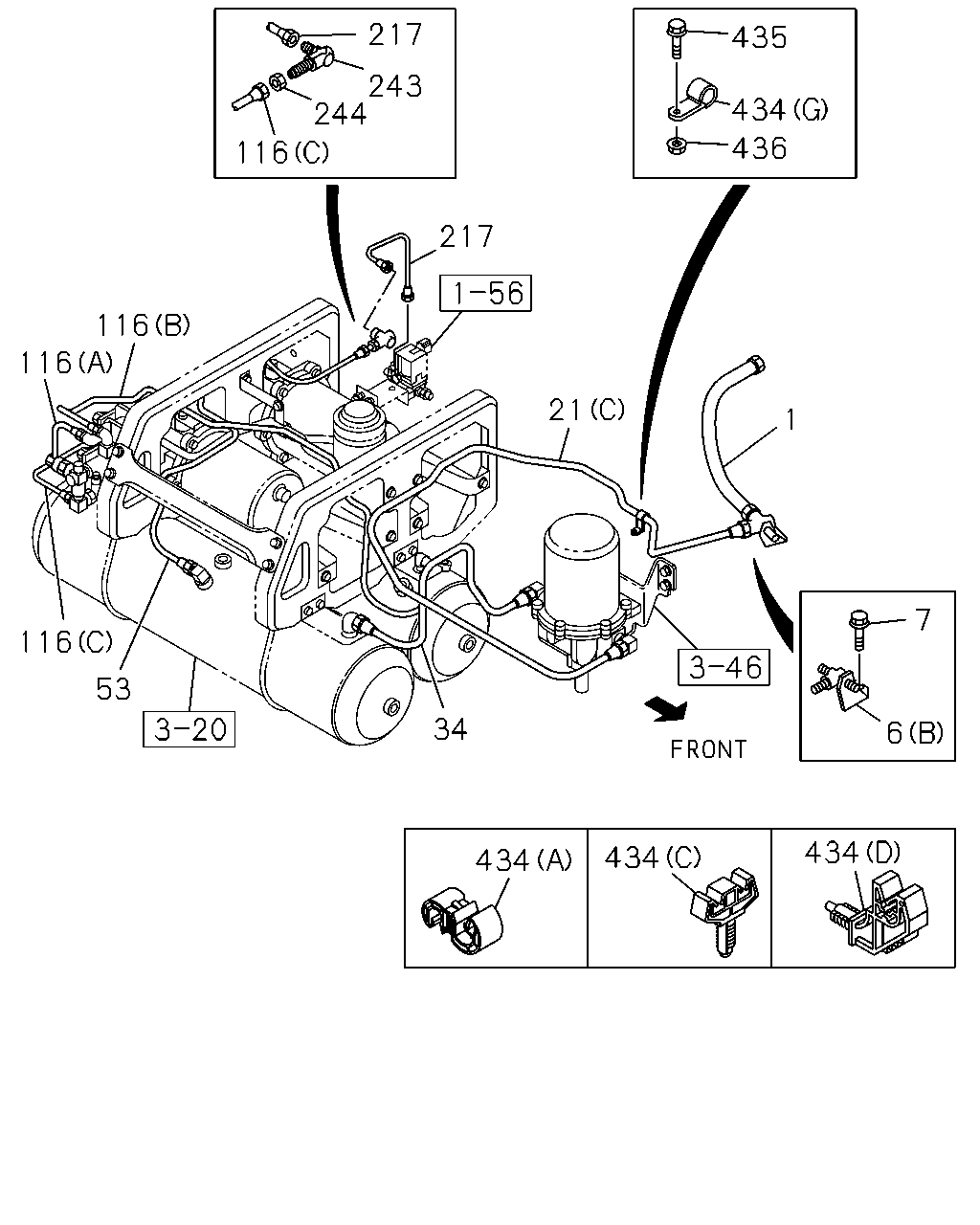

217 435 243 244 434 436 116 217 116 116 21 1 7 116 53 34 6 434 434 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-910-0	01	1	0812-0812
1	HOSE; FLEX,AIR TANK	8-98140-111-0	01	1	0812-1011
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2>	8-98140-111-0	01	1	1012-
1	HOSE; FLEX,AIR TANK EURO3 SPECIFICATION<NT3>	8-97607-418-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98120-436-0	01	1	0812-0903
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98133-392-0	01	1	0904-1011
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (A)	8-98133-392-0	01	1	1012-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> (B)	8-98076-344-0	01	1	1012-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0812-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A) L=751	8-98111-626-0	01	1	0812-1011
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) L=751	8-98111-626-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1345	8-98130-957-0	01	1	0812-1003
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1004-1011
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (B) L=1511	8-98164-599-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER EURO3 SPECIFICATION<NT3> (C) L=1748	8-98126-086-0	01	1	1012-
34	PIPE; AIR AIR DRYER<PS7> L=639 SERVICED BY L=660	1-49115-480-0	01	1	0812-
53	PIPE; AIR,AIR TANK TO VALVE L=732	8-98108-559-0	01	1	0812-
116	PIPE; AIR,PROTECTION VLV (C) L=973 SERVICED BY L=1000	1-47428-814-0	01	1	0812-
116	PIPE; AIR,PROTECTION VLV (A)	8-98108-561-0	01	1	0812-
116	PIPE; AIR,PROTECTION VLV (B)	8-98108-563-0	01	1	0812-
217	PIPE; VAC,UNION TO MAG VLV L=268	8-98111-589-0	01	1	0812-
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0902-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0812-
434	CLIP (D) ID=6.35	1-09701-247-1	01	1	0812-
434	CLIP (D) ID=6.35	1-09701-247-1	02	1	0812-
434	CLIP (A) ID=6.35 & 6.35	1-09709-273-1	01	1	0812-
434	CLIP (A) ID=10 & 15	1-09709-279-1	01	1	0812-0812
434	CLIP EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	0812-1011
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (A) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (A) ID=10 & 15	1-09709-279-1	01	1	1012-
434	CLIP (A) ID=12 & 15	1-09709-281-1	01	1	0812-0812
434	CLIP (C)	8-98012-254-1	01	1	0812-
434	CLIP (C)	8-98012-254-1	01	1	0812-
434	CLIP (F) L=600	1-09707-107-1	01	1	0906-
434	CLIP (F) L=250	5-09707-030-1	01	1	0906-
434	CLIP EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0812-1011
434	CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (E) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (G) ID=16 L=20	0-95235-536-0	01	1	1012-
434	CLIP EURO3 SPECIFICATION<NT3> (A) ID=12 & 15	1-09709-281-1	01	1	1012-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0812-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (F) L=350	1-09707-183-0	01	1	0901-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0812-1011
435	BOLT; CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	0812-1011
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1012-
435	BOLT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	01	1	1012-
435	BOLT; CLIP EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28650-820-0	01	1	1012-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0812-1011
436	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0812-1011
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1012-
436	NUT; CLIP EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
