Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

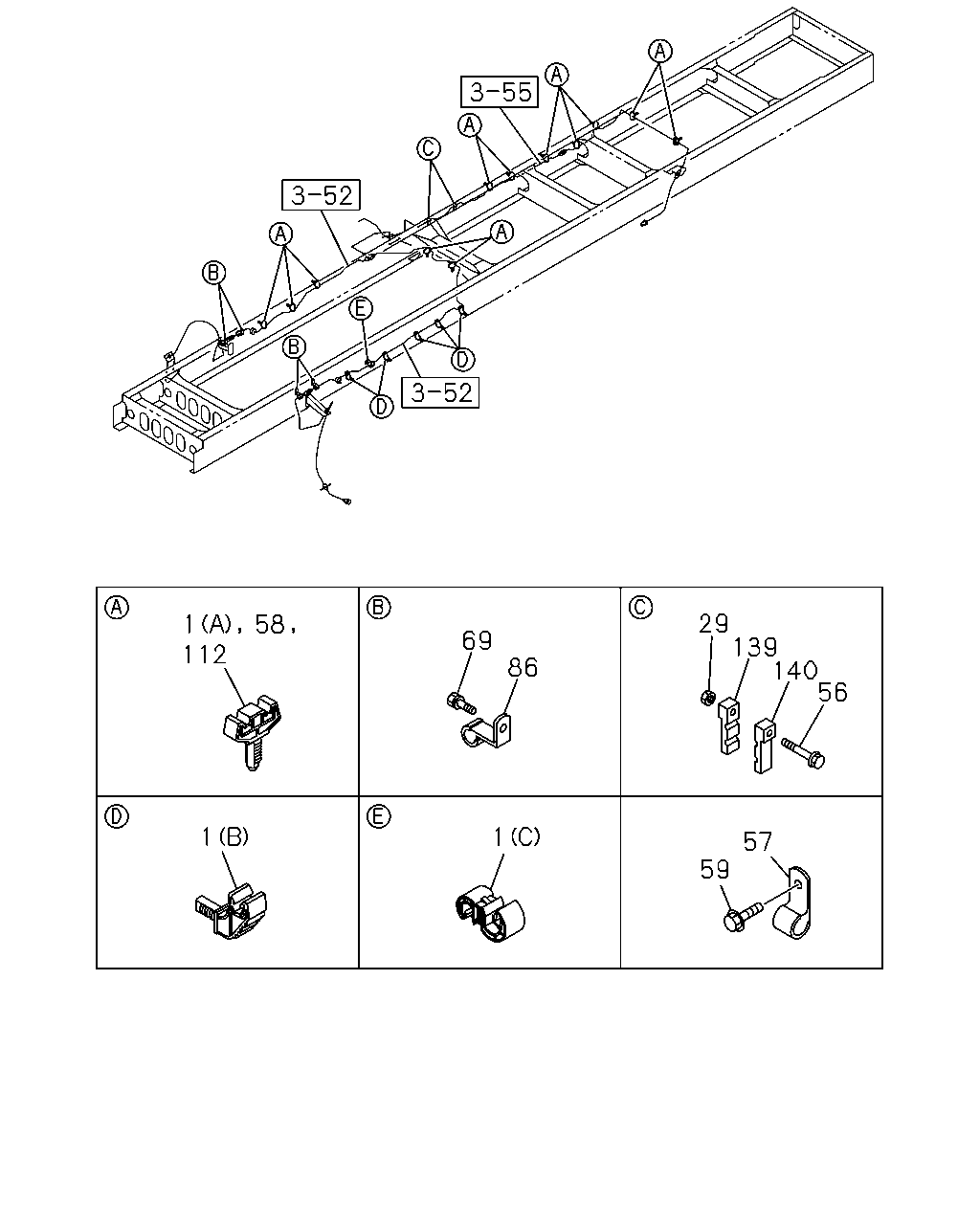

3-58 — FIXING PARTS; OIL PIPING
(#48321) — 14 parça
29
139
140
56
58
1
112
69
86
1
1
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(B) ID=6.35
1-09701-247-1
05
1
0812-
1
CLIP; OIL PIPE TO BODY
(C) ID=6.35 & 6.35
1-09709-273-1
01
1
0812-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
02
1
0812-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
0812-
29
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0812-
56
BOLT; CLIP
M8X50 FLANGE
0-28050-850-0
02
1
0812-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
04
1
0812-
58
CLIP; OIL PIPE
8-98012-254-1
03
1
0812-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
04
1
0812-
69
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
0812-
86
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
04
1
0812-
112
CLIP; OIL PIPE
8-98012-254-1
03
1
0812-
139
CLIP; UPR
ID=10 & 10
1-09709-241-0
02
1
0812-
140
CLIP; LWR
ID=6 & 6
1-09709-244-0
02
1
0812-
