Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#48320) — 16 parça
◀

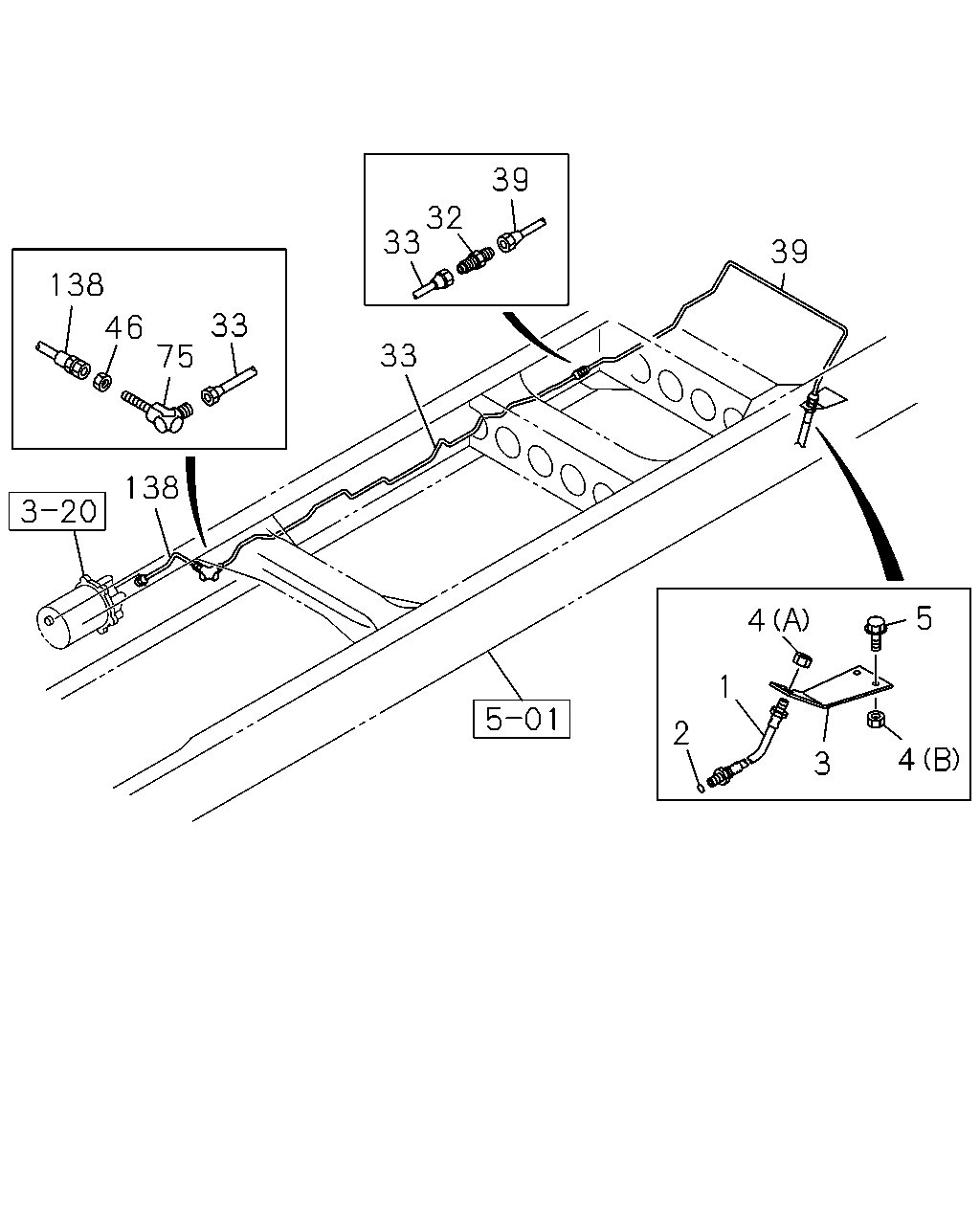

[355A] FRAME SIDE (14 parça)

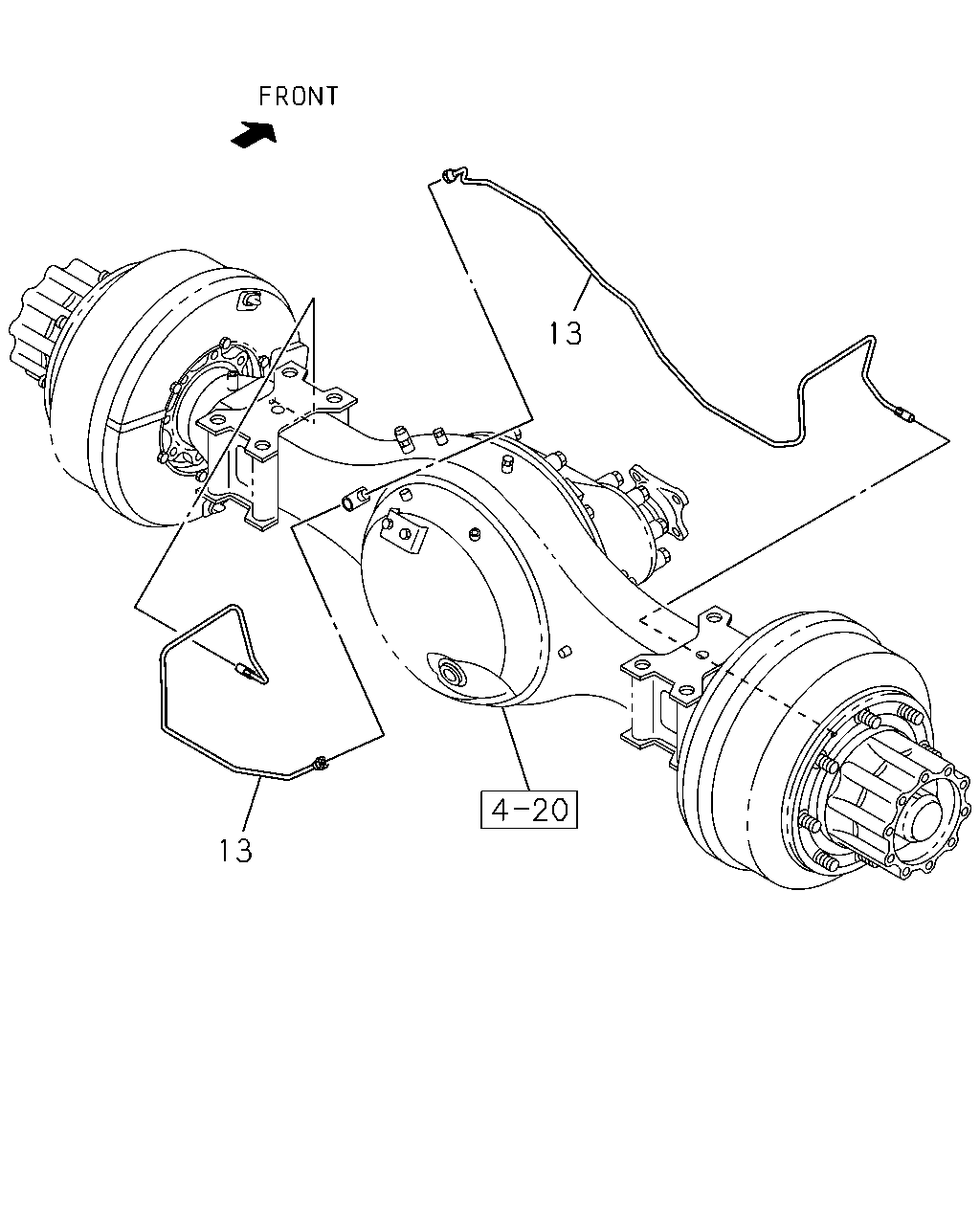

[355A] REAR AXLE SIDE (2 parça)
▶
39
32
33
39
138
33
46
75
33
138
5
4
1
4
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=730
0-05312-730-0
01
1
0812-0901
1
HOSE; FLEX,RR BRK
L=730
0-05212-730-0
01
1
0902-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0812-
3
BRACKET; FLEX HOSE,RR BRK
1-47465-251-0
01
1
0812-
4
NUT; BRKT,FLEX HOSE,RR BRK
(B) M8 FLANGE
0-91180-108-0
02
1
0812-
4
NUT; BRKT,FLEX HOSE,RR BRK
(A) M12
9-09840-280-0
01
1
0812-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
0812-
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
01
1
0812-
33
PIPE; OIL,UNION TO UNION
L=2044 SERVICED BY L=2200
1-47428-740-0
01
1
0812-1003
33
PIPE; OIL,UNION TO UNION
L=2052
8-98167-793-1
01
1
1004-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1416 SERVICED BY L=1500
1-47428-735-0
01
1
0812-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0812-
75
UNION; OIL PIPE
M12 ELBOW
0-92125-206-0
01
1
0812-
138
PIPE; HYDRAULIC UNIT
L=531 SERVICED BY L=550
1-47428-724-0
01
1
0812-
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; BRK,RR AXLE
8-98134-989-0
01
1
0812-
13
PIPE; BRK,RR AXLE
8-98134-990-0
01
1
0812-
