2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#4832) — 124 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-081-0	01	1	9611-9903	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9904-9904	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9905-0001	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-0	01	1	9611-9904	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	9905-	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9611-9611	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-9904	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9905-	●
496	FASTENER ELECTRONIC GOV RED3(KG5) ID=6X6 OD=8	1-09987-194-0	02	1	9610-9610	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9611-9904	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9905-	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-1	01	1	9611-9904	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9905-	●

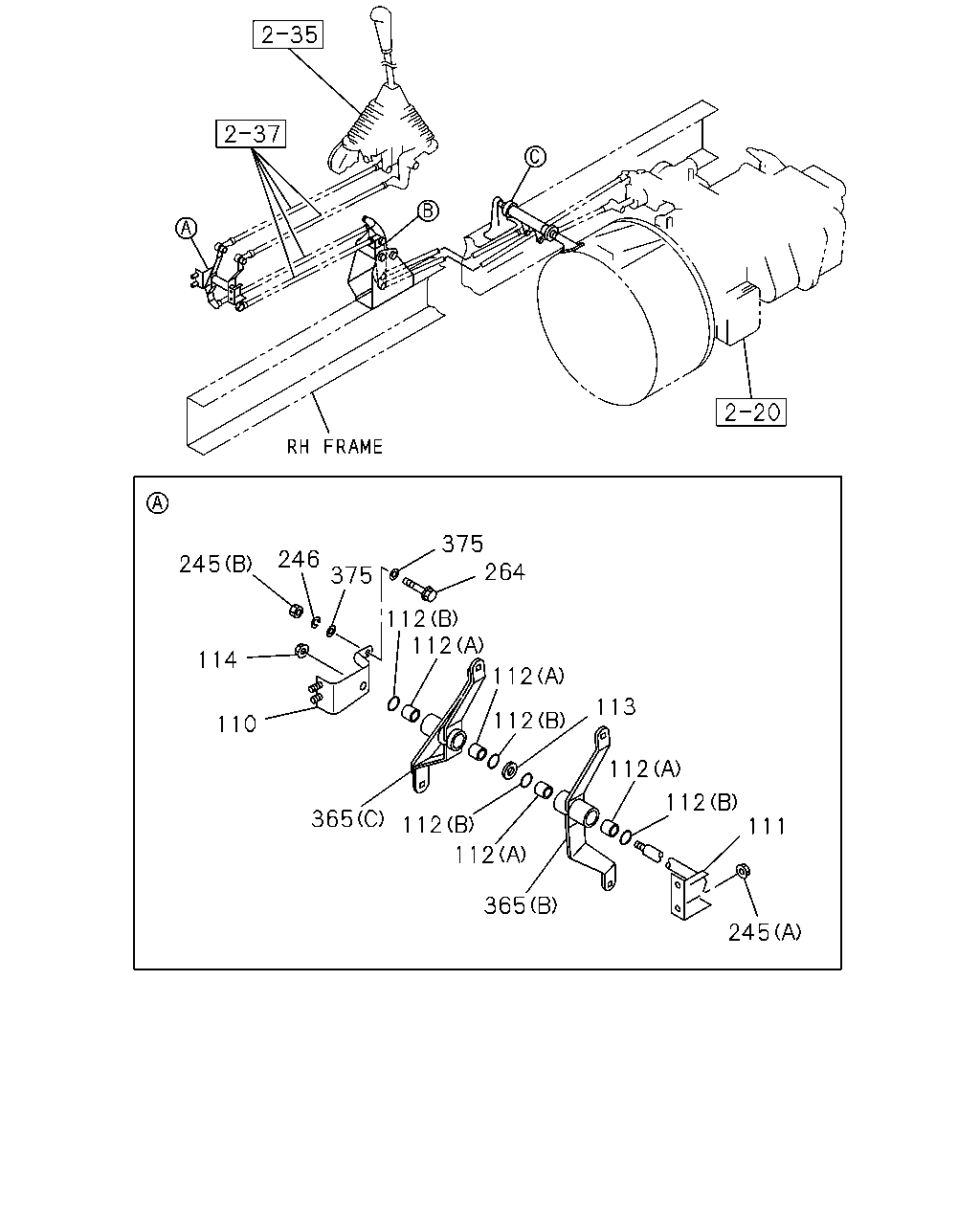

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9601-9904	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9905-	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9601-9904	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9905-	●	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9601-9904	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9905-	●	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9601-9904	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9905-	●	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9601-9904	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9905-	●	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9601-9904	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9905-	●	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9601-9904	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9601-9904	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9905-	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9601-9904	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9905-	●	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9601-9904	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9601-9904	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9601-9904	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9601-9904	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9601-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9601-9904	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9905-	●	●	●

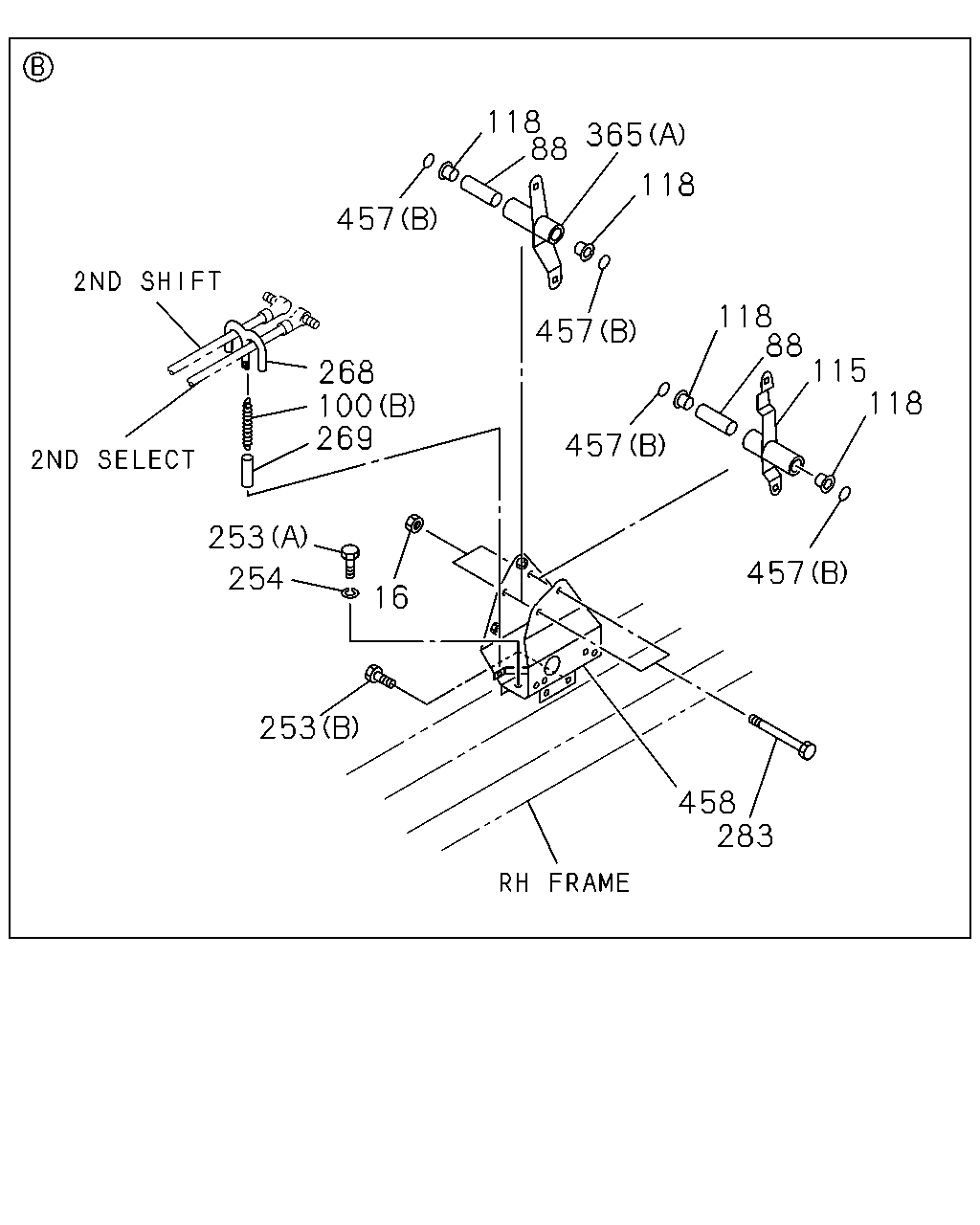

118 88 365 118 457 118 88 115 118 457 268 100 269 457 253 457 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9601-9904	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9601-9904	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9601-9904	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9601-9904	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9601-9904	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-9904	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9905-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9601-9904	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9905-	●	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L)	1-33657-216-0	01	1	9601-9904	●
268	BRACKET; LINK ROD L TYPE ENG<90L>	1-33657-216-0	01	1	9905-	●
269	COVER; SPR 6WA1 TC-S(56L)	1-15669-002-0	01	1	9601-9904	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9601-9904	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9601-9904	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9601-9904	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-	●	●	●
365	LEVER; RELAY,SELECT 10PE1S(60L) (A)	1-33651-627-1	01	1	9601-9904	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9601-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●	●
457	GASKET (B)	1-09623-594-0	04	1	9601-9904	●	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●	●
458	BRACKET; 2ND RELAY LEVER 10PE1S(60L)	1-33657-572-2	01	1	9601-9904	●	●
458	BRACKET; 2ND RELAY LEVER V TYPE ENG<91L>	1-33657-572-2	01	1	9905-	●	●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9601-9904	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L>	1-33657-583-1	01	1	9905-	●	●	●

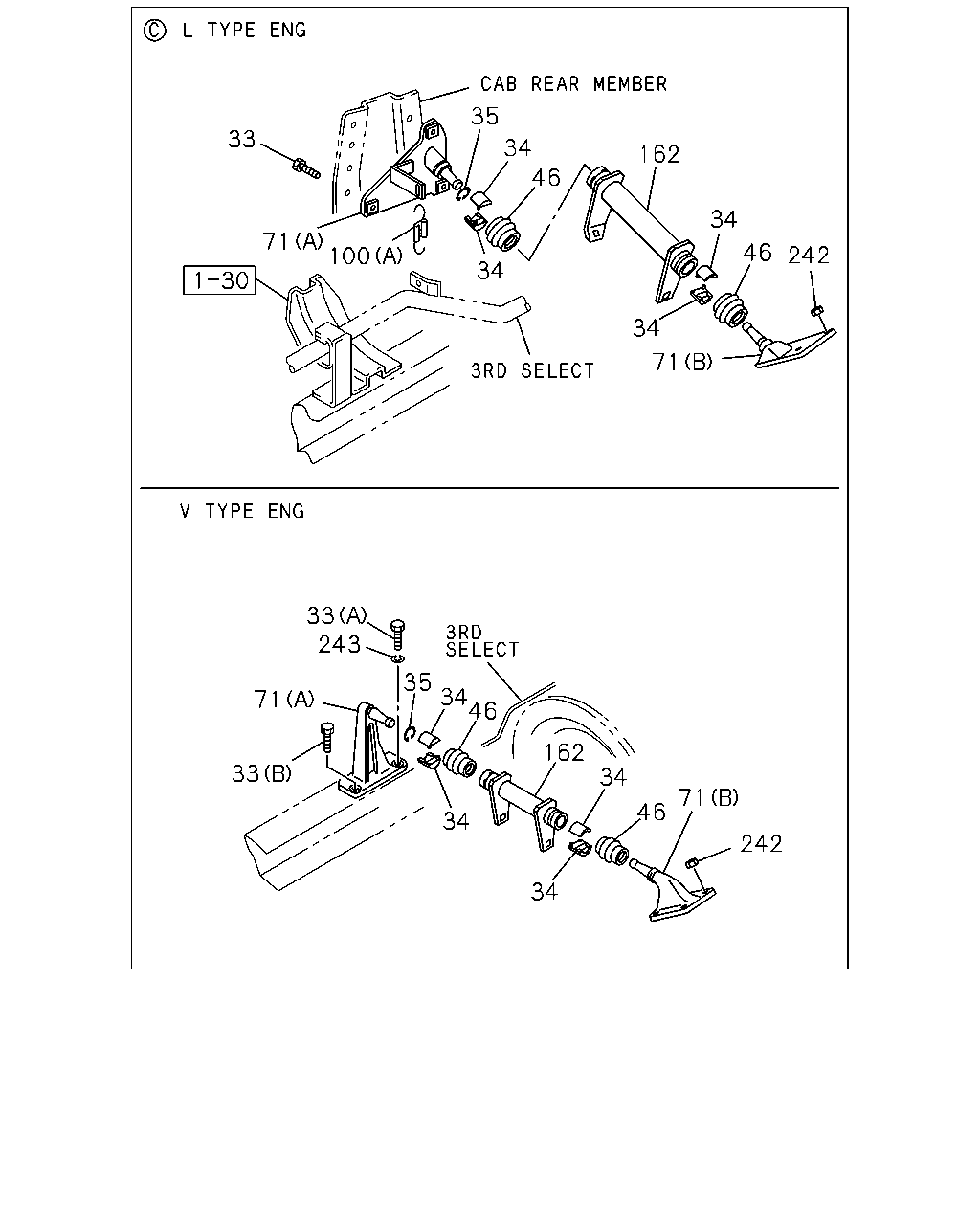

35 33 34 162 46 34 71 100 46 242 34 34 71 33 243 35 34 46 71 34 162 33 71 46 34 242 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (A) M14X45	0-20801-445-0	01	1	9601-9904	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (A) M14X45	0-20801-445-0	01	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9601-9904	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	9905-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9601-9606	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	03	1	9607-9610	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	03	1	9611-9904	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	03	1	9905-	●	●	●
34	SEAT; BALL,RELAY LEVER 10PE1S(60L)	1-33659-118-0	04	1	9601-9904	●	●
34	SEAT; BALL,RELAY LEVER V TYPE ENG<91L>	1-33659-118-0	04	1	9905-	●	●
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9601-9904	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9905-	●	●	●
35	RING; SNAP,RELAY LEVER 10PE1S(60L)	9-09180-122-0	01	1	9601-9904	●	●
35	RING; SNAP,RELAY LEVER V TYPE ENG<91L> OD=23.5	9-09180-122-0	01	1	9905-	●	●
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L)	9-09180-132-0	01	1	9601-9904	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9905-	●	●	●
46	SEAL; DUST,RELAY LEVER 10PE1S(60L)	1-33659-172-0	02	1	9601-9904	●	●
46	SEAL; DUST,RELAY LEVER V TYPE ENG<91L>	1-33659-172-0	02	1	9905-	●	●
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9601-9904	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9905-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) (B)	1-33657-188-0	01	1	9601-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> (B)	1-33657-188-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L) (A)	1-33657-568-0	01	1	9601-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> (A)	1-33657-568-0	01	1	9905-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9601-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9905-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9601-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (A)	1-33657-512-0	01	1	9905-	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (B)	1-09583-351-0	01	1	9905-	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9601-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●	●
162	LEVER; RELAY 10PE1S(60L)	1-33651-622-1	01	1	9601-9904	●	●
162	LEVER; RELAY V TYPE ENG<91L>	1-33651-622-1	01	1	9905-0103	●	●
162	LEVER; RELAY V TYPE ENG<91L>	1-33651-806-0	01	1	0104-	●	●
162	LEVER; RELAY 6WA1 TC-S(56L)	1-33651-625-0	01	1	9601-9904	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-625-0	01	1	9905-	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER 10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9601-9904	●	●
242	NUT; FLANGE 3RD RELAY LEVER V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	04	1	9905-	●	●
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9601-9904	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9905-	●	●	●
243	WASHER; LK,BRKT 10PE1S(60L) ID=14.2	9-09150-614-0	01	1	9601-9904	●	●
243	WASHER; LK,BRKT V TYPE ENG<91L> ID=14.2	9-09150-614-0	01	1	9905-	●	●
