Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#48313) — 37 parça
◀
[311A] NO.2 (21 parça)
[311A] NO.1 (16 parça)
▶
228
236
228
227
227
87
87
237
235
236
227
235
236
227
235
237
237
336
228
236
228
235
227
228
227
87
351
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
0812-
87
NUT
M8 FLANGE
0-91180-108-0
04
1
0812-
227
CLIP; RAD
(C) ID=13 L=20
0-95235-235-0
02
1
0812-1001
227
CLIP; RAD
(C) ID=13 L=20
0-95235-235-0
03
1
1002-
227
CLIP; RAD
(D) ID=13 H=50 L=25
1-09700-529-0
02
1
0812-
227
CLIP; RAD
(D) ID=16 H=30 L=30
1-09701-080-0
01
1
0812-
227
CLIP; RAD
(B) ID=9.5
5-09709-020-0
04
1
0812-
227
CLIP; RAD
(A) ID=14.5 L=40
8-98119-885-0
01
1
0812-0908
227
CLIP; RAD
(A) ID=12 L=70
1-09700-097-1
01
1
0909-
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28050-816-0
01
1
0812-1001
228
BOLT; CLIP RAD MTG
M8X16 FLANGE
0-28050-816-0
02
1
1002-
228
BOLT; CLIP RAD MTG
M8X25 FLANGE
0-28650-825-0
05
1
0812-
228
BOLT; CLIP RAD MTG
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0812-
235
BRACKET; CONT CABLE TO FRAME
(C)
8-98099-142-0
01
1
0812-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98105-194-0
02
1
0812-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98123-954-1
01
1
0812-
235
BRACKET; CONT CABLE TO FRAME
(D)
8-98123-955-0
01
1
0812-
236
BOLT; BRKT TO FRAME
M8X25 FLANGE
0-28650-825-0
06
1
0812-
237
NUT; BRKT TO FRAME
M8 FLANGE
0-91180-108-0
05
1
0812-
336
BRACKET; RADIATOR
8-98123-953-2
01
1
0812-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
0812-

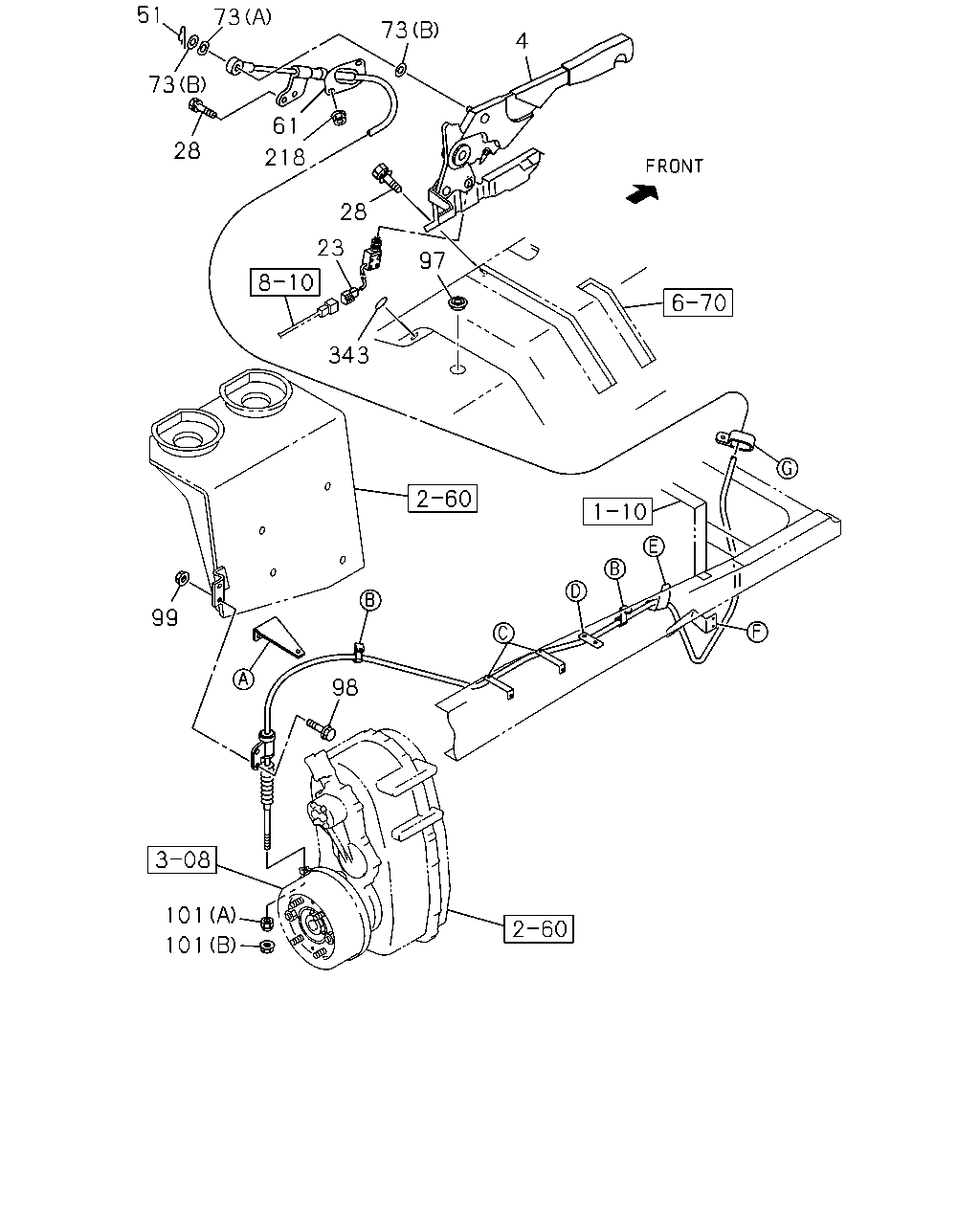

51
73
73
4
73
61
28
218
28
23
97
343
99
98
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-697-0
01
1
0812-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
0812-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0812-0904
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
0812-
61
CABLE; PARKING BRK
L=6080
8-98074-268-8
01
1
0812-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
0812-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
0812-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
0812-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
0812-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
0909-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
0812-
101
NUT; CABLE TO LEVER
(A)
1-46259-007-0
01
1
0812-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
0812-
343
SEAL
OD=25 BLACK
1-76798-019-0
08
1
0812-1104
343
SEAL
OD=25 BLACK
1-76798-019-0
07
1
1105-
