◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35C - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35C — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#4831) — 74 parça

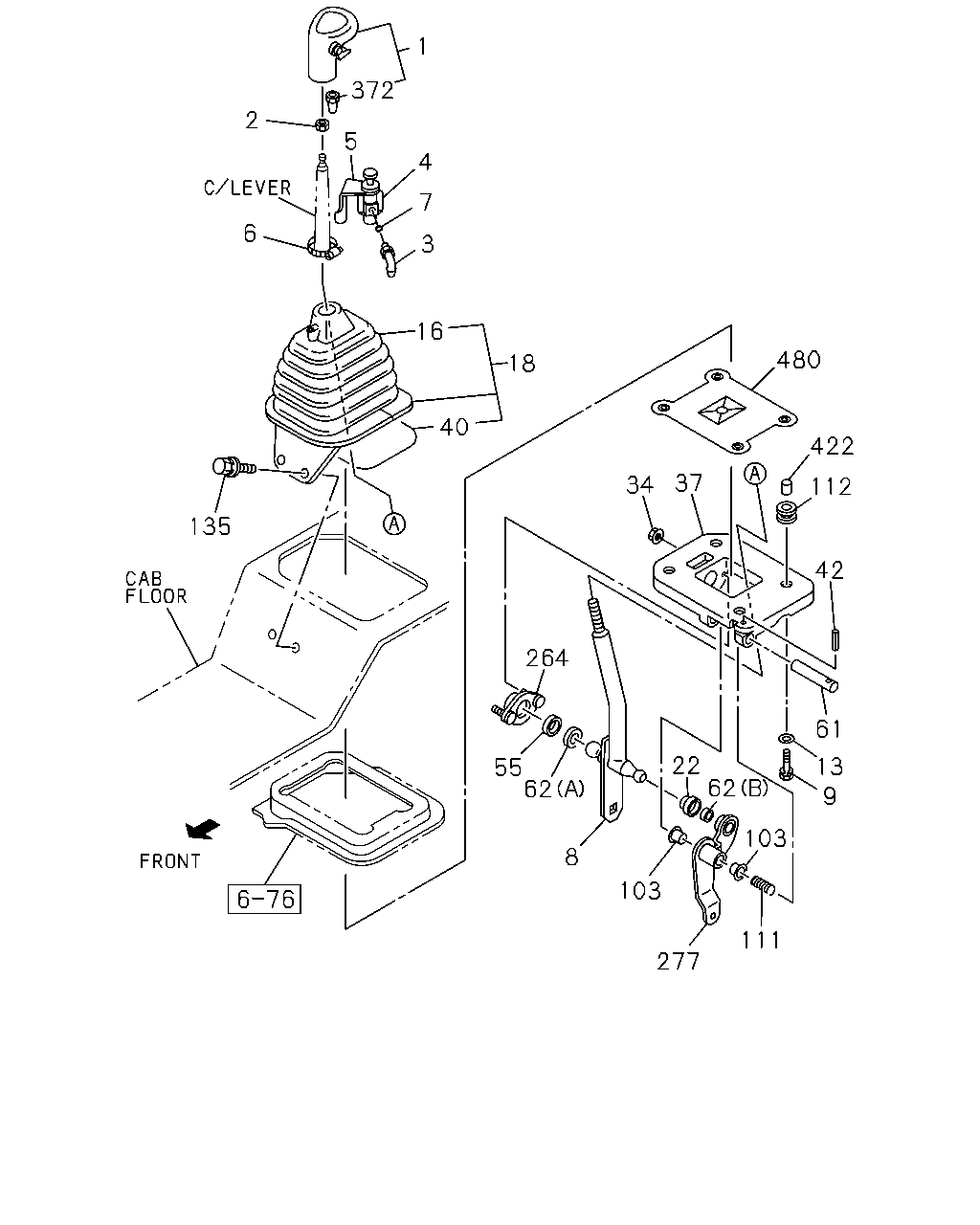

çizim 41502
1 372 2 5 4 7 6 3 16 480 18 40 422 37 34 112 135 42 264 61 22 62 13 55 62 9 103 8 103 111 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-044-0 01 1 9611-9611 ●
1 KNOB; CHANGE LEVER 1-33611-111-0 01 1 9612-9904 ●
1 KNOB; CHANGE LEVER 1-33611-111-0 01 1 9905- ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9611-9904 ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9905- ●
3 CONNECTOR; CONT TUBE 1-33619-533-0 02 1 9611-9904 ●
3 CONNECTOR; CONT TUBE 1-33619-533-0 02 1 9905- ●
4 VALVE; ACTUATOR 1-33712-003-0 01 1 9611-9904 ●
4 VALVE; ACTUATOR 1-33712-003-0 01 1 9905- ●
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 9611-9904 ●
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 9905- ●
6 CLAMP; BRKT 1-33719-079-0 01 1 9611-9904 ●
6 CLAMP; BRKT 1-33719-079-0 01 1 9905- ●
7 GASKET; CONNECTOR 1-33619-034-0 03 1 9611-9904 ●
8 LEVER; CHANGE 1-33613-349-0 01 1 9611-9904 ●
8 LEVER; CHANGE 1-33613-349-0 01 1 9905- ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9905- ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9611-9904 ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9905- ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9611-9904 ●
16 BOOT; CHANGE LEVER 1-79996-367-0 01 1 9703-9904 ●
16 BOOT; CHANGE LEVER 1-79996-367-0 01 1 9905- ●
18 BOOT; CHANGE LEVER 1-79996-298-1 01 1 9611-9702 ●
18 BOOT; CHANGE LEVER 1-79996-364-2 01 1 9703-9904 ●
18 BOOT; CHANGE LEVER 1-79996-435-1 01 1 9905- ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905-0004 ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0005- ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9611-9904 ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905-0004 ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0005- ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9611-9904 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905-0004 ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0005- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9611-9904 ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905- ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905-0004 ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0005- ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9611-9904 ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905-0004 ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0005- ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9611-9904 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905-0004 ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0005- ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9611-9904 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905-0004 ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905-0004 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0005- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9611-9904 ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9611-9904 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905-0004 ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9611-9904 ●
111 SPRING 1-09585-133-1 01 1 9905-0004 ●
111 SPRING 1-09585-133-1 01 1 0005- ●
111 SPRING 1-09585-133-1 01 1 9611-9904 ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905-0004 ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 0005- ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9611-9904 ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905- ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9611-9904 ●
264 PLATE; COVER 1-33619-469-0 01 1 9905-0004 ●
264 PLATE; COVER 1-33619-469-0 01 1 0005- ●
264 PLATE; COVER 1-33619-469-0 01 1 9611-9904 ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905-0004 ●
277 LEVER; RELAY 1-33651-636-0 01 1 0005- ●
277 LEVER; RELAY 1-33651-636-0 01 1 9611-9904 ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9611-9904 ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9905- ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905-0004 ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0005- ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9611-9904 ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905-0004 ●
480 RUBBER; COVER 1-33619-554-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
