Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

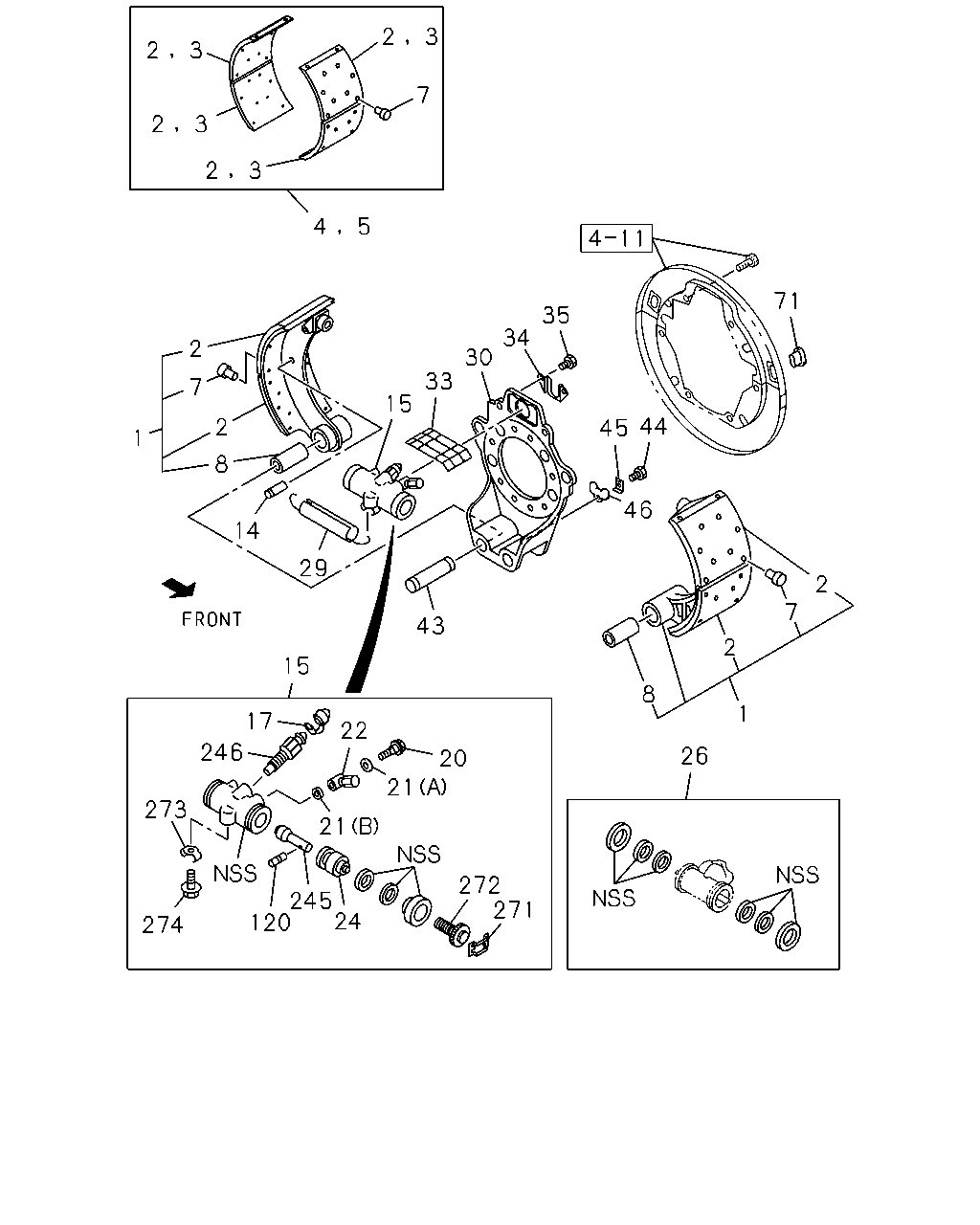

3-01 — FRONT WHEEL BRAKE
(#48309) — 36 parça
2
3
2
3
7
2
3
2
3
5
4
71
35
34
2
30
33
7
15
44
2
45
1
8
46
14
29
2
7
43
2
15
8
1
17
22
246
26
20
21
273
21
272
271
245
120
24
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
LEADING
1-47170-518-0
02
1
0812-
1
SHOE; BRK,FRT
TRAILING
1-47170-519-0
02
1
0812-
2
LINING; FRT BRK SHOE,STANDARD
1-47126-818-0
08
1
0812-
3
LINING; FRT BRK SHOE,OVER SIZE
1-47126-819-0
08
1
0812-
4
LINING SET; FRT BRK,STANDARD
1-88311-402-0
02
1
0812-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-403-0
02
1
0812-
7
RIVET; LINING,FRT BRK
L=18.5
1-09732-034-0
80
1
0812-
8
BUSHING; BRK SHOE
1-47112-011-0
04
1
0812-
14
PIN; SHOE RETURN SPR
1-47119-134-0
04
1
0812-
15
CYLINDER; WHEEL,FRT BRK
1-47601-092-1
01
1
0812-
15
CYLINDER; WHEEL,FRT BRK
1-47601-093-1
01
1
0812-
17
CAP; BLEEDER,FRT WHEEL CYL
OD=12
1-47619-011-0
02
1
0812-
20
BOLT; JOINT
M12X40.5 EYE BOLT
1-47634-006-0
02
1
0812-
21
GASKET; UNION BOLT
(A) ID=15.2
1-09630-019-0
02
1
0812-
21
GASKET; UNION BOLT
(B) ID=12.2
1-09630-020-0
02
1
0812-
22
JOINT; PIPE
1-47631-057-1
02
1
0812-
24
PISTON; FRT WHEEL CYL
1-47624-369-0
04
1
0812-
26
CUP SET; FRT WHEEL CYL
1-87830-930-0
02
1
0812-
29
SPRING; RETURN,FRT BRK SHOE
1-09583-362-0
04
1
0812-
30
BRACKET; ANCHOR,FRT
1-47137-513-0
02
1
0812-
33
COVER; WHEEL CYL
1-47159-197-0
02
1
0812-
34
PLATE; DIRECTION,FRT
1-47159-094-0
02
1
0812-
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50051-235-0
04
1
0812-0906
35
BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER
0-50551-235-0
04
1
0907-
43
PIN; ANCHOR
L=106.5
1-47131-038-0
04
1
0812-
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
0812-
45
WASHER; LK
1-47133-011-0
02
1
0812-
46
PLATE; LOCK
1-47133-005-0
02
1
0812-
71
GROMMET; CHECK HOLE
1-09333-151-0
04
1
0812-
120
SPRING; LK,ADJ,FRT WHEEL CYL
1-09580-544-0
04
1
0812-
245
SHAFT; ADJ
1-47623-027-1
04
1
0812-
246
BLEEDER
1-47615-002-0
02
1
0812-
271
CLIP; ADJ
1-47621-016-0
04
1
0812-
272
ADJUSTER; MANUAL
1-47621-015-0
04
1
0812-
273
HANGER
1-47619-145-0
02
1
0812-
274
BOLT; HANGER
M8X16 W/LK WASHER
0-50540-816-0
02
1
0812-
