2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#48299) — 58 parça

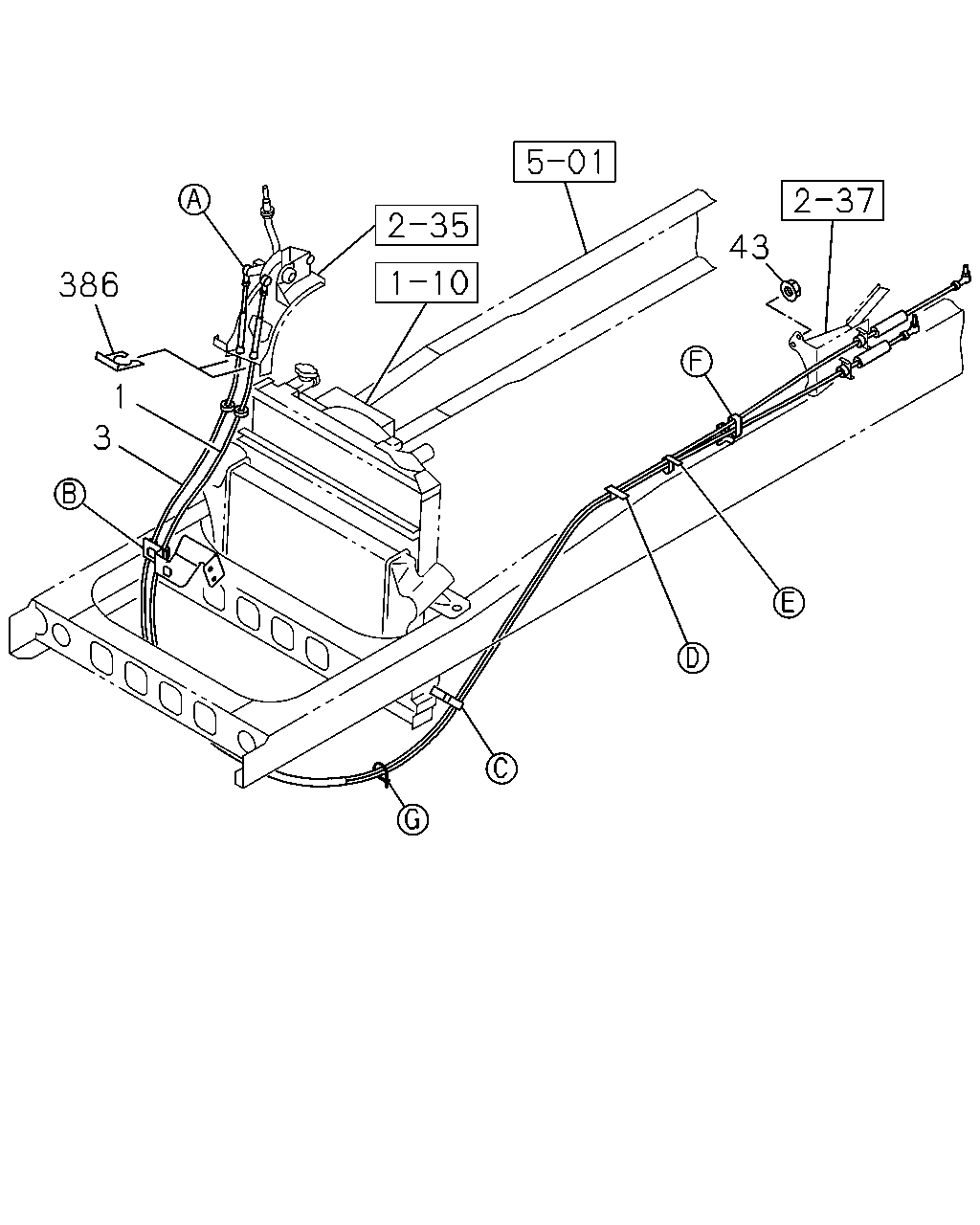

43 386 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3435	8-98122-029-3	01	1	0812-
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3480	8-98122-031-5	01	1	0812-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3395	8-98050-359-5	01	1	0812-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3395	8-98050-359-5	01	1	0907-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3420	8-98050-358-6	01	1	0812-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3420	8-98050-358-6	01	1	0907-
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3530	8-98122-030-2	01	1	0812-
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580	8-98122-032-4	01	1	0812-
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) L=3590	8-98050-362-3	01	1	0812-0906
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3590	8-98050-362-3	01	1	0907-
43	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0812-
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0812-

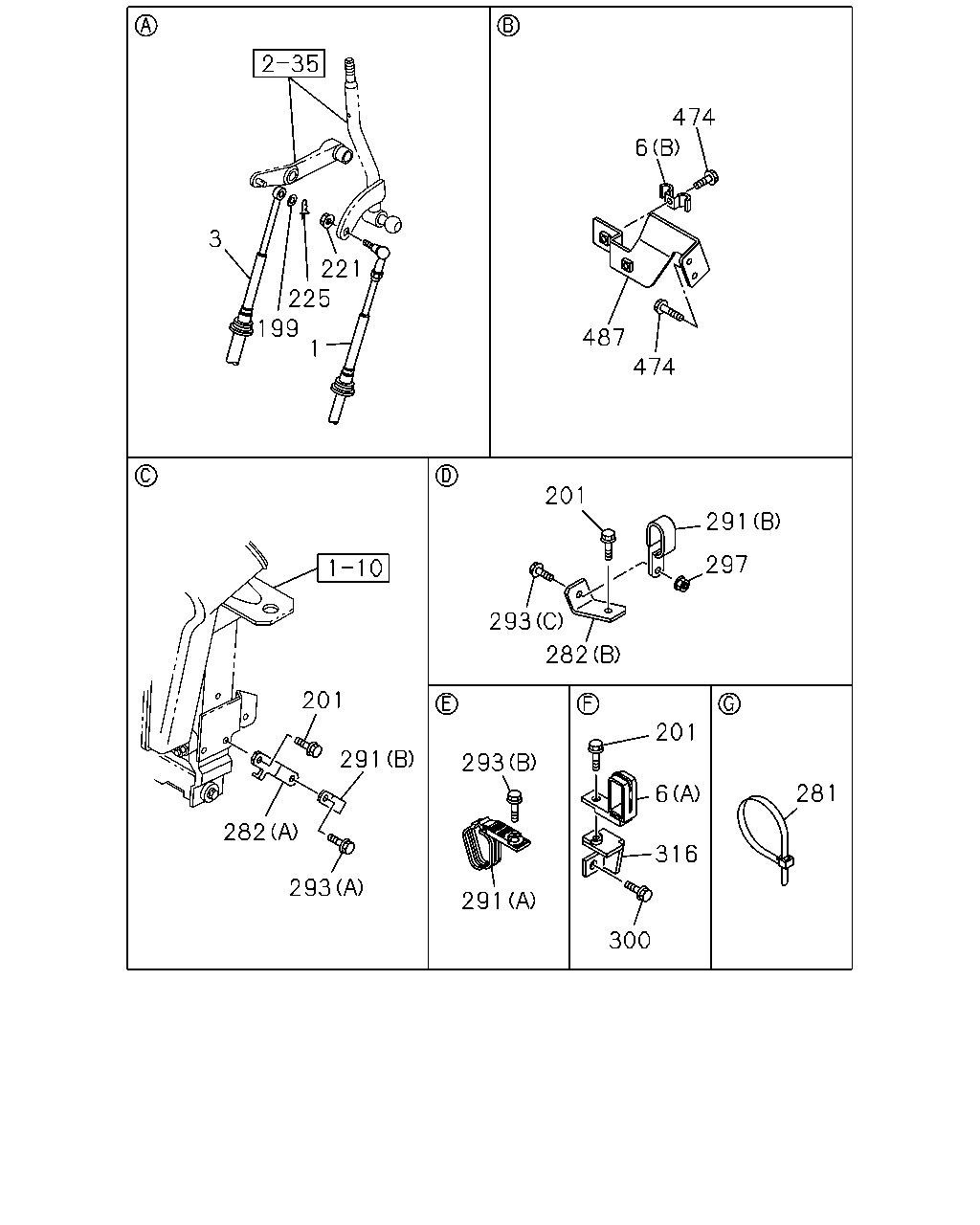

474 6 3 221 225 199 487 1 474 201 291 297 293 282 201 201 291 293 281 6 282 316 293 291 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3435	8-98122-029-3	01	1	0812-
1	CABLE; SHIFT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3480	8-98122-031-5	01	1	0812-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3395	8-98050-359-5	01	1	0812-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3395	8-98050-359-5	01	1	0907-
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3420	8-98050-358-6	01	1	0812-0906
1	CABLE; SHIFT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3420	8-98050-358-6	01	1	0907-
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3530	8-98122-030-2	01	1	0812-
3	CABLE; SELECT,TRANS CONT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3580	8-98122-032-4	01	1	0812-
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW) L=3590	8-98050-362-3	01	1	0812-0906
3	CABLE; SELECT,TRANS CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3590	8-98050-362-3	01	1	0907-
6	CLIP; CABLE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0812-
6	CLIP; CABLE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-0906
6	CLIP; CABLE MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-0906
6	CLIP; CABLE MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0907-
6	CLIP; CABLE MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0907-
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	0812-
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0812-0906
201	BOLT; BRKT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906
201	BOLT; BRKT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0812-0906
201	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	01	1	0907-
201	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0907-
201	BOLT; BRKT MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	01	1	0907-
201	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0812-
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0812-1011
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	0812-
281	CLIP; BAND L=300	1-09707-001-1	01	1	0812-
282	BRACKET; TRANS SIDE (B)	1-82699-199-0	01	1	0812-
282	BRACKET; TRANS SIDE (A)	8-98098-265-2	01	1	0812-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=11X2 L=16	0-95325-026-0	01	1	0812-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=11X2 L=16	0-95325-026-0	01	1	0812-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-
293	BOLT; CLIP,SHIFT TO SELECT (A) M8X16 FLANGE	0-28050-816-0	01	1	0812-
293	BOLT; CLIP,SHIFT TO SELECT (C) M8X20 FLANGE	0-28050-820-0	01	1	0812-
293	BOLT; CLIP,SHIFT TO SELECT (B) M8X20 FLANGE	0-28650-820-0	01	1	0812-
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0812-
300	BOLT; CLIP MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	0812-0906
300	BOLT; CLIP MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0812-0906
300	BOLT; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	0907-
300	BOLT; CLIP MLD6W M/T(Y2C) MANUAL TRANSMISSION<X9C> EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	01	1	0907-
316	BRACKET; CLIP MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98086-439-0	01	1	0812-
316	BRACKET; CLIP MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	0812-0906
316	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8>	8-98073-017-1	01	1	0907-
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	0812-
487	BRACKET; CONT CABLE	8-98021-921-2	01	1	0812-0812
487	BRACKET; CONT CABLE	8-98137-772-0	01	1	0812-
