2-07 — CLUTCH BOOSTER; MINIPACK (#48291) — 115 parça

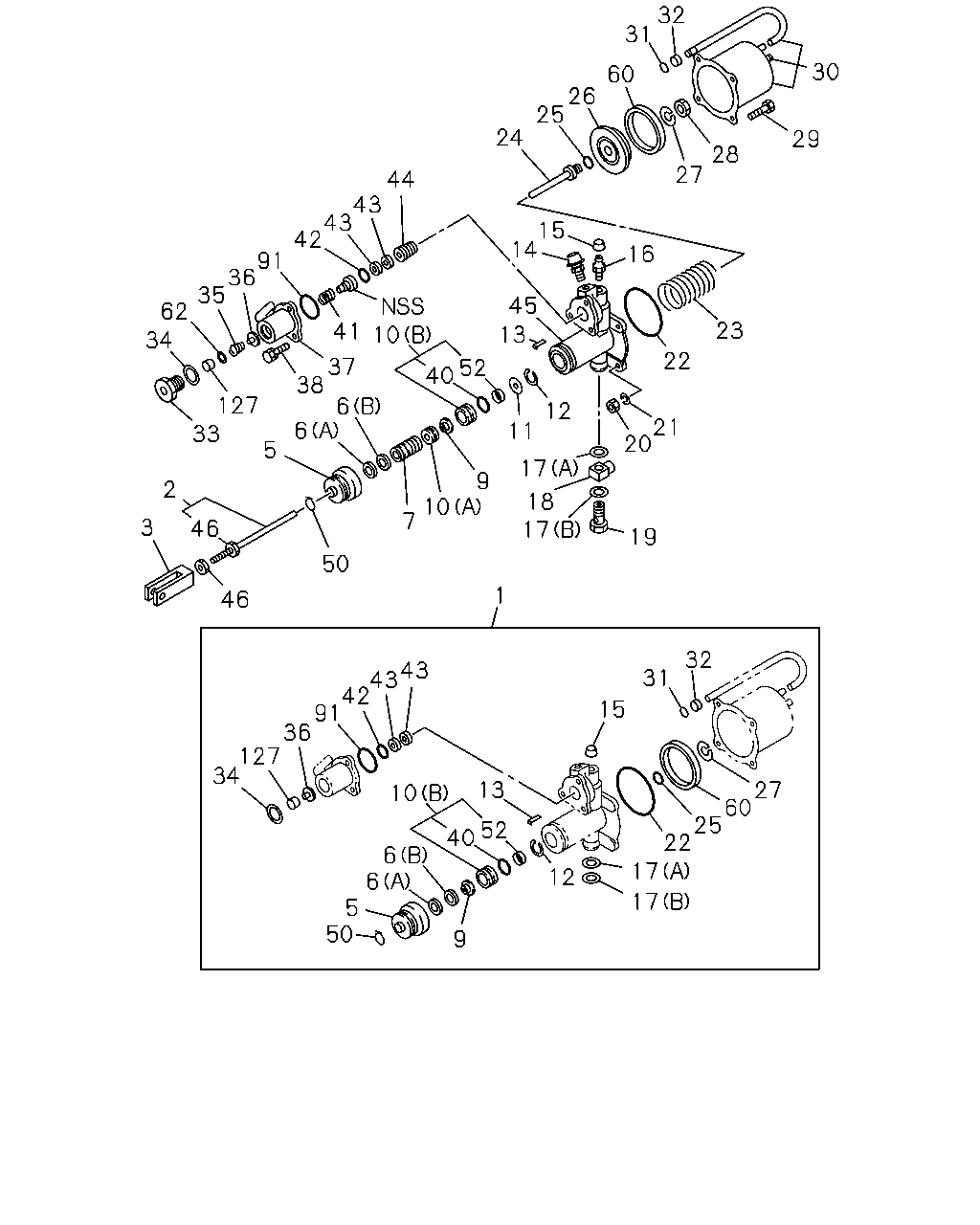

çizim 110739
32 31 30 60 26 25 24 29 28 27 44 43 43 42 15 14 16 91 36 35 62 45 10 23 41 13 34 22 37 38 52 40 127 33 6 12 21 20 6 11 5 17 9 2 18 17 10 7 3 46 19 50 1 46 32 43 43 42 91 36 127 34 31 15 13 27 60 25 22 17 10 52 40 6 6 5 50 12 17 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-611-0 01 1 0812-1412 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-606-0 01 1 1501- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-603-0 01 1 0812-0906 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-603-0 01 1 0907- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-248-0 01 1 0812-1412 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 0812-0906 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 0907-1412 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1501- ● ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0812-0906 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 0907- ● ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0812-0906 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0907- ● ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-032-0 01 1 0812- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-033-0 01 1 0812- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 0812-0906 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 0907- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 0812-0906 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 0907- ● ●
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 0812- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0812-0906 ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0907- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0812-0906 ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0907- ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0812-0906 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0907- ● ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0812-0906 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0907- ● ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0812-0906 ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0907- ● ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0812-0906 ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0907- ● ● ●
13 PIN; SPR 1-31829-109-0 01 1 0812-0906 ● ●
13 PIN; SPR 1-31829-109-0 01 1 0907- ● ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0812-0906 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0907- ● ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0812-0906 ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0907- ● ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0812-0906 ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0907- ● ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0812-0906 ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0907- ● ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0812-0906 ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0907- ● ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0812-0906 ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0907- ● ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0812-0906 ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0907- ● ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0812-0906 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0907- ● ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0812-0906 ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0907- ● ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0812-0906 ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0907- ● ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0812-0906 ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0907- ● ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0812-0906 ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0907- ● ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0812-0906 ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0907- ● ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0812-0906 ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0907- ● ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0812-0906 ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0907- ● ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0812-0906 ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0907- ● ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0812-0906 ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0907- ● ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0812-0906 ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0907- ● ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0812-0906 ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0907- ● ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0812-0906 ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0907- ● ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0812-0906 ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0907- ● ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0812-0906 ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0907- ● ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0812-0906 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0907- ● ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0812-0906 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0907- ● ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0812- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-147-0 01 1 0812-0906 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-147-0 01 1 0907- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0812-0906 ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0907- ● ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0812-0906 ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0907-1412 ● ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0812- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0812-0906 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0907- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0812-0906 ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0907- ● ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0812-0906 ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0907- ● ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0812-0906 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0907- ● ● ●
45 PLATE; END,CLU BOOSTER 1-31811-150-0 01 1 0812-1412 ●
45 PLATE; END,CLU BOOSTER 1-31811-149-0 01 1 1501- ●
45 PLATE; END,CLU BOOSTER 1-31811-143-0 01 1 0812-0906 ●
45 PLATE; END,CLU BOOSTER 1-31811-143-0 01 1 0907- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0812-0906 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0907- ● ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0812-0906 ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0907- ● ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 0812-0906 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 0907-1412 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0812-0906 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0907- ● ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0812-0906 ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0907- ● ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0812-0906 ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0907- ● ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0812-0906 ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0907- ● ● ●
