◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#4829) — 77 parça

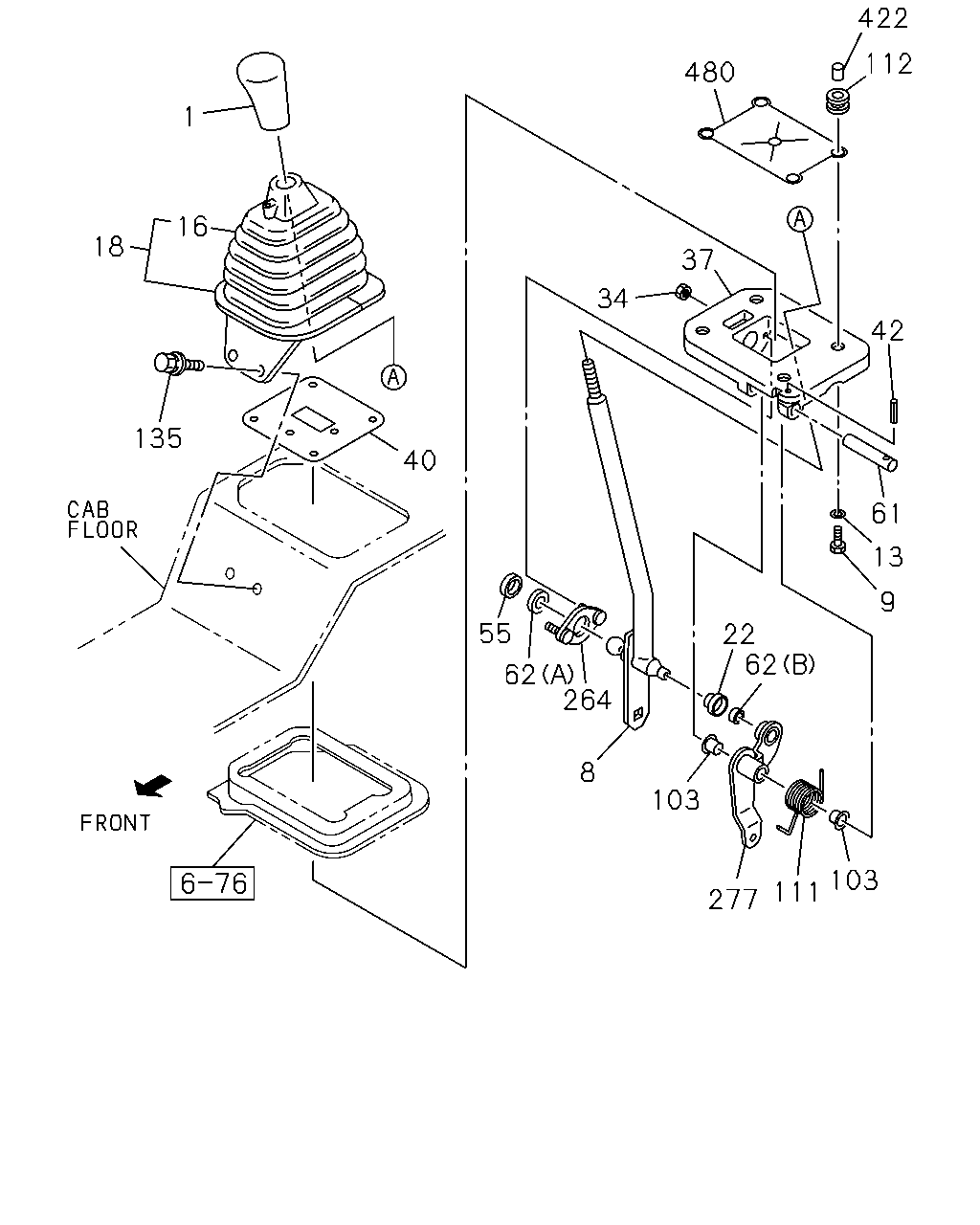

çizim 41127
422 112 480 1 16 18 37 34 42 135 40 61 13 9 55 22 62 62 264 8 103 103 111 277
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER 1-33611-070-0 01 1 9601- ●
1 KNOB; CHANGE LEVER 1-33611-092-0 01 1 9601- ●
1 KNOB; CHANGE LEVER 1-33611-082-0 01 1 0005- ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33613-344-0 01 1 9601-9911 ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> EXC. HONG KONG EQUIPMENT(PQ1) 		1-33613-344-0 01 1 9601-9911 ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33613-344-0 01 1 9912-0004 ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-33613-344-0 01 1 9912-0004 ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33613-344-0 01 1 0005- ● ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-33613-344-0 01 1 0005- ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-348-0 01 1 9601-9911 ●
8 LEVER; CHANGE
EXC. HONG KONG EQUIPMENT(PQ1),ASSISTOR SHIFT CONTROL<WX8> 		1-33613-348-0 01 1 9601-9911 ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-348-0 01 1 9912-0004 ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8>,PARKING BRAKE VALVE LEVER TYPE<W48> 		1-33613-348-0 01 1 9912-0004 ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-348-0 01 1 0005- ● ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8>,PARKING BRAKE VALVE LEVER TYPE<W48> 		1-33613-348-0 01 1 0005- ●
8 LEVER; CHANGE
HONG KONG EQUIPMENT(PQ1) ASSISTOR SHIFT CONTROL<WX8> 		1-33613-351-0 01 1 9601-9911 ●
8 LEVER; CHANGE
PARKING BRAKE VALVE LEVER TYPE<W48> ASSISTOR SHIFT CONTROL<WX8> 		1-33613-351-0 01 1 9912- ●
8 LEVER; CHANGE
HONG KONG EQUIPMENT(PQ1) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-352-0 01 1 9601-9911 ●
8 LEVER; CHANGE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-352-0 01 1 9912- ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9601-9807 ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9808-9904 ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9905- ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9601-9904 ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9905- ● ● ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 9601-9904 ● ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 9905- ● ● ●
18 BOOT; CHANGE LEVER 1-79996-314-0 01 1 9601-9604 ● ●
18 BOOT; CHANGE LEVER 1-79996-299-2 01 1 9605-9702 ● ●
18 BOOT; CHANGE LEVER 1-79996-365-2 01 1 9703-9904 ● ●
18 BOOT; CHANGE LEVER 1-79996-436-2 01 1 9905- ● ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9610-9904 ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905-0004 ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0005- ● ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9601-9904 ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905-0004 ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0005- ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9601-9904 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905-0004 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0005- ● ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905- ● ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9601-9904 ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905-0004 ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0005- ● ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9601-9904 ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905-0004 ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0005- ● ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9601-9904 ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905-0004 ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0005- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9601-9904 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905-0004 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005- ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9601-9904 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905-0004 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0005- ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9601-9904 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905-0004 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005- ● ● ●
111 SPRING 1-09585-133-1 01 1 9601-9904 ● ●
111 SPRING 1-09585-133-1 01 1 9905-0004 ● ●
111 SPRING 1-09585-133-1 01 1 0005- ● ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9601-9904 ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905-0004 ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 0005- ● ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-9904 ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905- ● ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9601-9904 ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9905-0004 ● ●
264 PLATE; COVER 1-33619-469-0 01 1 0005- ● ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9601-9904 ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905-0004 ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 0005- ● ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9601-9904 ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905-0004 ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0005- ● ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905-0004 ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 0005- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
