Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#48288) — 131 parça
Tümü
A - MLD6W M/T
B - MZX6P M/T
C - MZW6P M/T
◀

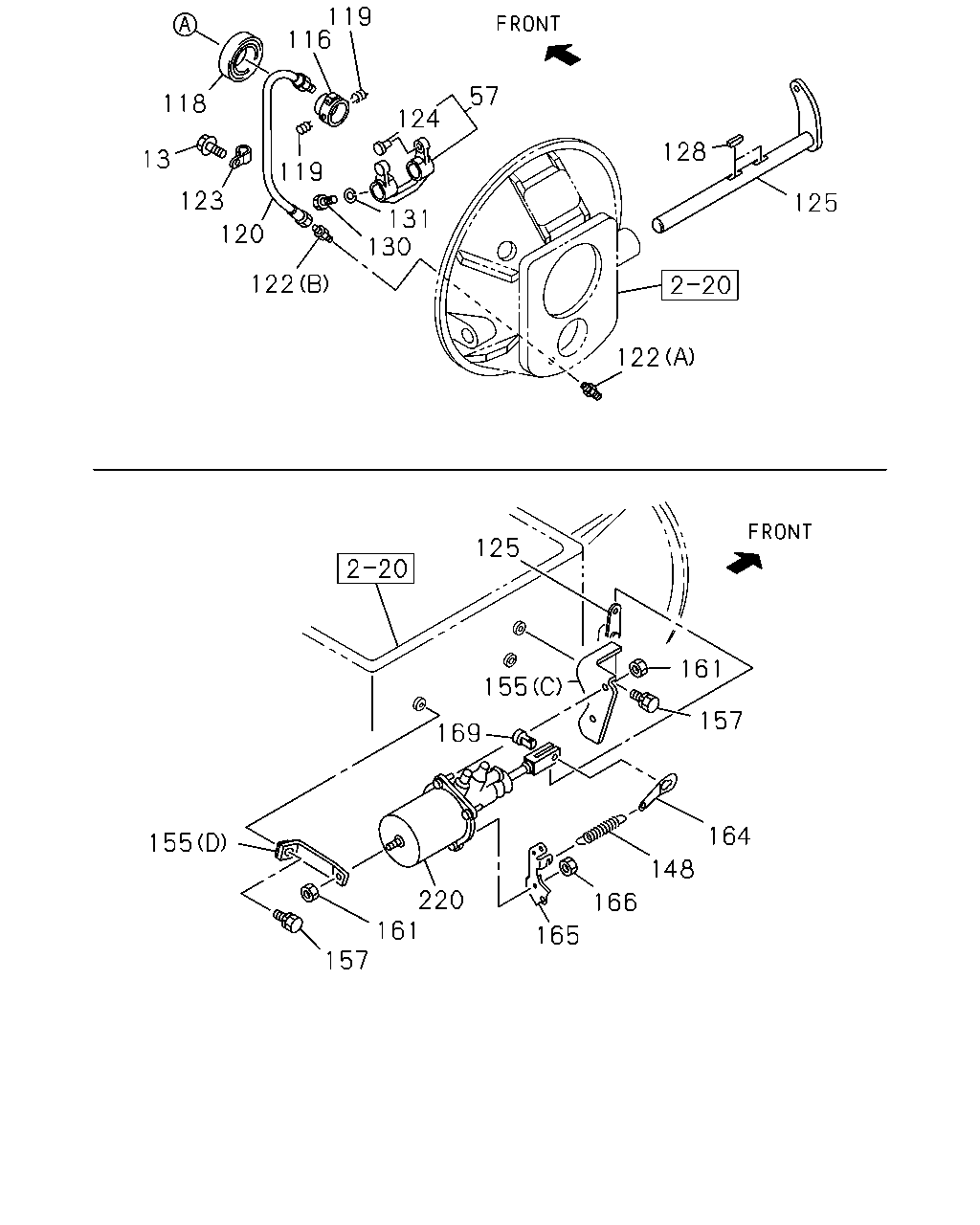

[201A] MZX,MZW;SHAFT AND CLUTCH BOOSTER (47 parça)

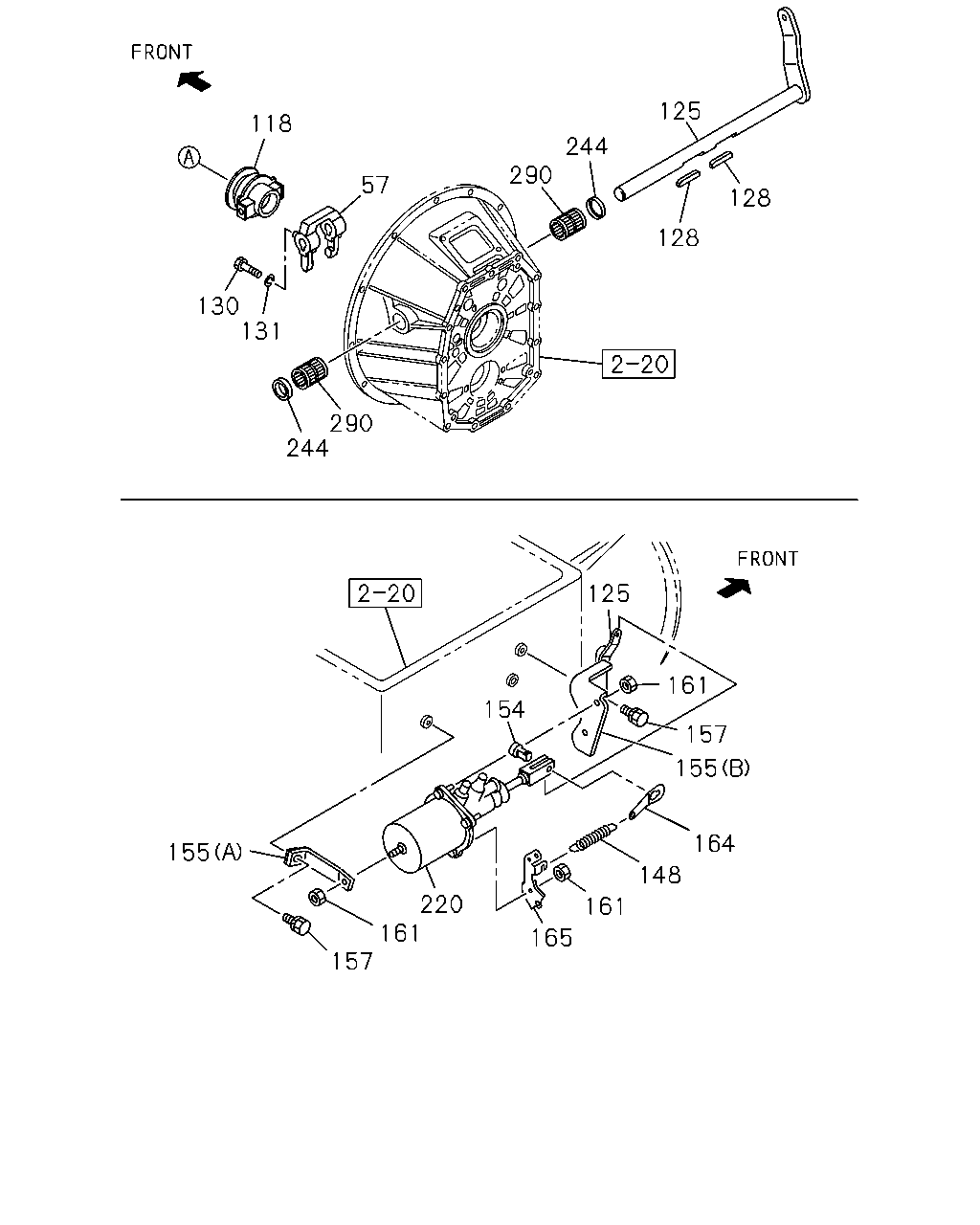

[201A] MLD;SHAFT AND CLUTCH BOOSTER (54 parça)

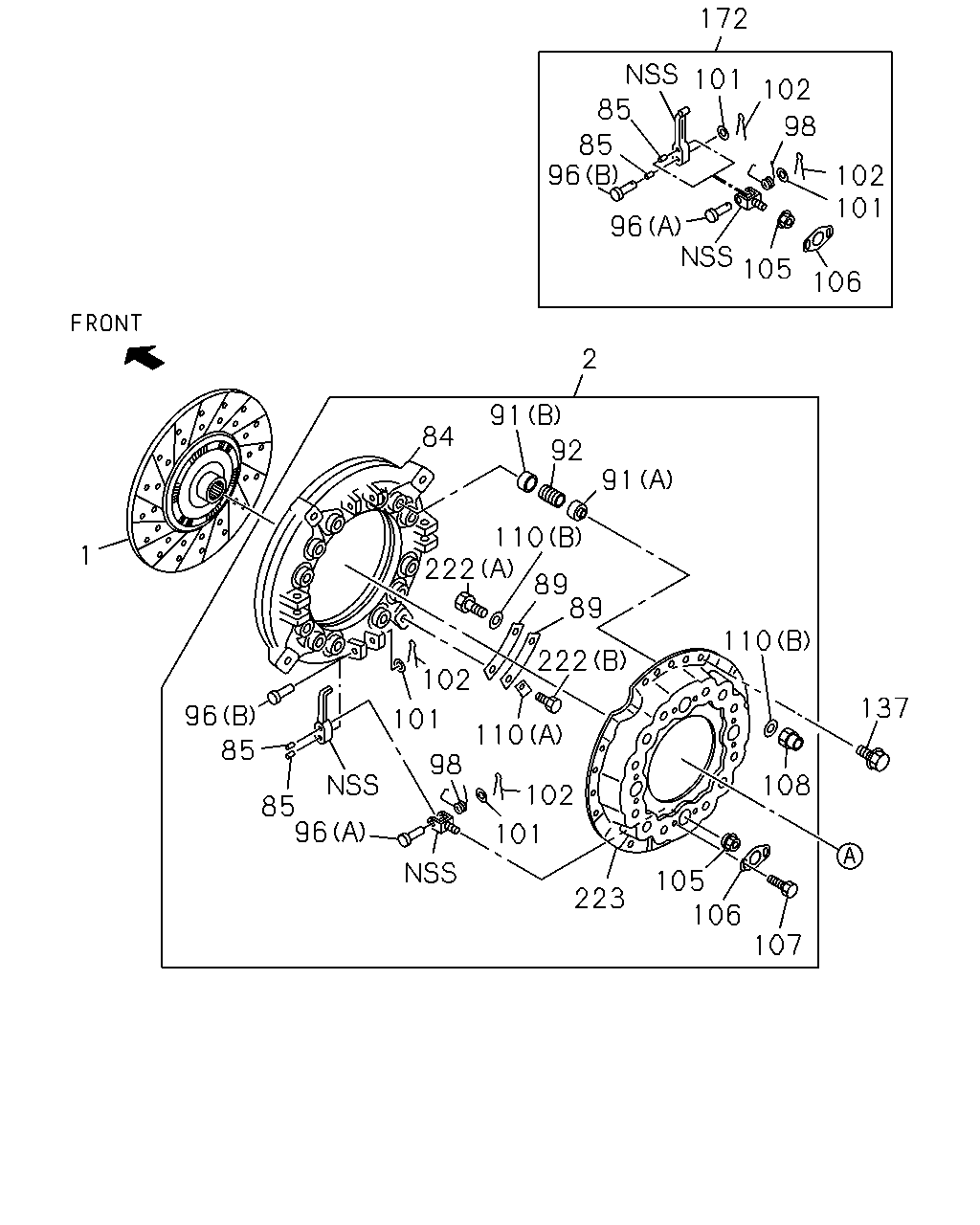

[201A] DISC AND PLATE (30 parça)
▶
125
118
244
290
57
128
128
130
131
290
244
125
161
154
157
155
164
155
148
220
161
157
161
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
57
FORK; SHIFT,CLU
1-31340-060-0
01
1
0812-1306
●
57
FORK; SHIFT,CLU
1-31340-077-0
01
1
1307-
●
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
0812-0906
●
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
0907-
●
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
0812-0906
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
0907-
●
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
0812-
●
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
0812-
●
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
0812-0906
●
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
0907-
●
●
125
SHAFT; CLU
1-31342-343-0
01
1
0812-
●
125
SHAFT; CLU
1-31342-335-0
01
1
0812-0906
●
125
SHAFT; CLU
1-31342-335-0
01
1
0907-
●
●
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0812-0906
●
●
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0907-
●
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0812-0906
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0907-
●
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0812-0906
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0907-
●
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0812-0906
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0907-
●
●
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
0812-0906
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
0907-
●
●
155
BRACKET; MINIPACK
(C)
1-31429-507-0
01
1
0812-
●
155
BRACKET; MINIPACK
(D)
1-31429-508-0
01
1
0812-
●
155
BRACKET; MINIPACK
(A)
1-31429-475-1
01
1
0812-0906
●
155
BRACKET; MINIPACK
(A)
1-31429-475-1
01
1
0907-
●
●
155
BRACKET; MINIPACK
(B)
1-31429-478-0
01
1
0812-0906
●
155
BRACKET; MINIPACK
(B)
1-31429-478-0
01
1
0907-
●
●
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
0812-0906
●
●
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
0907-
●
●
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
0812-
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
0812-0906
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
0907-
●
●
164
EYE; SPRING
1-31426-041-0
01
1
0812-0906
●
●
164
EYE; SPRING
1-31426-041-0
01
1
0907-
●
●
●
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
0812-0906
●
●
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
0907-
●
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
0812-0906
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
0907-
●
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-516-1
01
1
0812-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-511-1
01
1
0812-0906
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-511-2
01
1
0907-
●
●
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
0812-0906
●
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
0907-
●
●
290
BEARING; NEEDLE
NTN
1-09811-002-1
02
1
0812-0906
●
290
BEARING; NEEDLE
NTN
1-09811-002-1
02
1
0907-
●
●
119
116
57
118
124
128
13
119
131
130
123
125
120
122
122
125
155
161
157
169
164
155
148
220
161
157
166
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0812-
●
57
FORK; SHIFT,CLU
1-31340-060-0
01
1
0812-1306
●
57
FORK; SHIFT,CLU
1-31340-077-0
01
1
1307-
●
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
0812-0906
●
57
FORK; SHIFT,CLU
1-31341-048-2
01
1
0907-
●
●
116
BLOCK; SHIFT,CLU
1-31321-075-1
01
1
0812-1204
●
116
BLOCK; SHIFT,CLU
1-31321-113-0
01
1
1205-1306
●
116
BLOCK; SHIFT,CLU
1-31321-114-0
01
1
1307-
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
0812-0906
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-109-0
01
1
0907-
●
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
0812-
●
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
0812-
●
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
0812-0906
●
118
BEARING; CLU RELEASE
1-31310-026-0
01
1
0907-
●
●
119
SPRING; SHIFT FORK
1-09585-053-1
01
1
0812-
●
119
SPRING; SHIFT FORK
1-09585-054-1
01
1
0812-
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0812-
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
0-90301-410-0
01
1
0812-
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
0812-
●
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
0812-
●
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
0812-
●
125
SHAFT; CLU
1-31342-343-0
01
1
0812-
●
125
SHAFT; CLU
1-31342-335-0
01
1
0812-0906
●
125
SHAFT; CLU
1-31342-335-0
01
1
0907-
●
●
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0812-0906
●
●
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0907-
●
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0812-0906
●
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0907-
●
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0812-0906
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0907-
●
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0812-0906
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0907-
●
●
●
155
BRACKET; MINIPACK
(C)
1-31429-507-0
01
1
0812-
●
155
BRACKET; MINIPACK
(D)
1-31429-508-0
01
1
0812-
●
155
BRACKET; MINIPACK
(A)
1-31429-475-1
01
1
0812-0906
●
155
BRACKET; MINIPACK
(A)
1-31429-475-1
01
1
0907-
●
●
155
BRACKET; MINIPACK
(B)
1-31429-478-0
01
1
0812-0906
●
155
BRACKET; MINIPACK
(B)
1-31429-478-0
01
1
0907-
●
●
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
0812-0906
●
●
157
BOLT; BRKT
M10X25 FLANGE
0-28751-025-0
03
1
0907-
●
●
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
0812-
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
0812-0906
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
0907-
●
●
164
EYE; SPRING
1-31426-041-0
01
1
0812-0906
●
●
164
EYE; SPRING
1-31426-041-0
01
1
0907-
●
●
●
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
0812-0906
●
●
165
BRACKET; SPR EYE,MINIPACK,FLEX TUBE
1-47477-789-0
01
1
0907-
●
●
●
166
NUT; SPRING EYE
M10 FLANGE
0-91180-210-0
02
1
0812-
●
169
PIN; JOINT,MINIPACK
1-31424-009-0
01
1
0812-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
0812-0906
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-089-0
01
1
0907-
●
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-516-1
01
1
0812-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-511-1
01
1
0812-0906
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-511-2
01
1
0907-
●
●
172
101
102
85
98
85
96
102
101
96
105
106
2
91
84
92
91
110
222
1
89
89
222
110
102
137
96
85
101
110
98
108
102
85
96
101
105
106
223
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
DISC; CLUTCH
15"
1-31240-851-2
01
1
0812-
●
●
●
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-119-0
01
1
0812-
●
●
●
2
PLATE ASM; PRESSURE,CLU
1-31220-377-2
01
1
0812-1009
●
●
●
2
PLATE ASM; PRESSURE,CLU
1-31220-374-2
01
1
1010-
●
●
●
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-146-0
01
1
0812-1009
●
●
●
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-120-0
01
1
1010-
●
●
●
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
0812-
●
●
●
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0812-
●
●
●
89
PLATE; STRAP
1-31229-050-0
16
1
0812-
●
●
●
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0812-
●
●
●
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0812-
●
●
●
92
SPRING; CLU
1-31214-066-0
12
1
0812-1009
●
●
●
92
SPRING; CLU
1-31214-086-0
12
1
1010-
●
●
●
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
0812-
●
●
●
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
0812-
●
●
●
98
SPRING; RETURN
1-31233-003-0
04
1
0812-
●
●
●
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
0812-
●
●
●
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
0812-
●
●
●
105
NUT; SUPPORT
1-31235-014-0
04
1
0812-
●
●
●
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0812-
●
●
●
107
BOLT; LK PLATE
1-31239-061-0
08
1
0812-
●
●
●
108
NUT; STRAP
1-09449-036-0
04
1
0812-
●
●
●
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
0812-
●
●
●
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
0812-
●
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0812-1011
●
●
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
1012-
●
●
●
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
0812-
●
●
●
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
0812-
●
●
●
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
0812-
●
●
●
223
COVER; CLU
1-31211-019-1
01
1
0812-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
