1-41 — FUEL PIPING; CHASSIS (#48283) — 128 parça

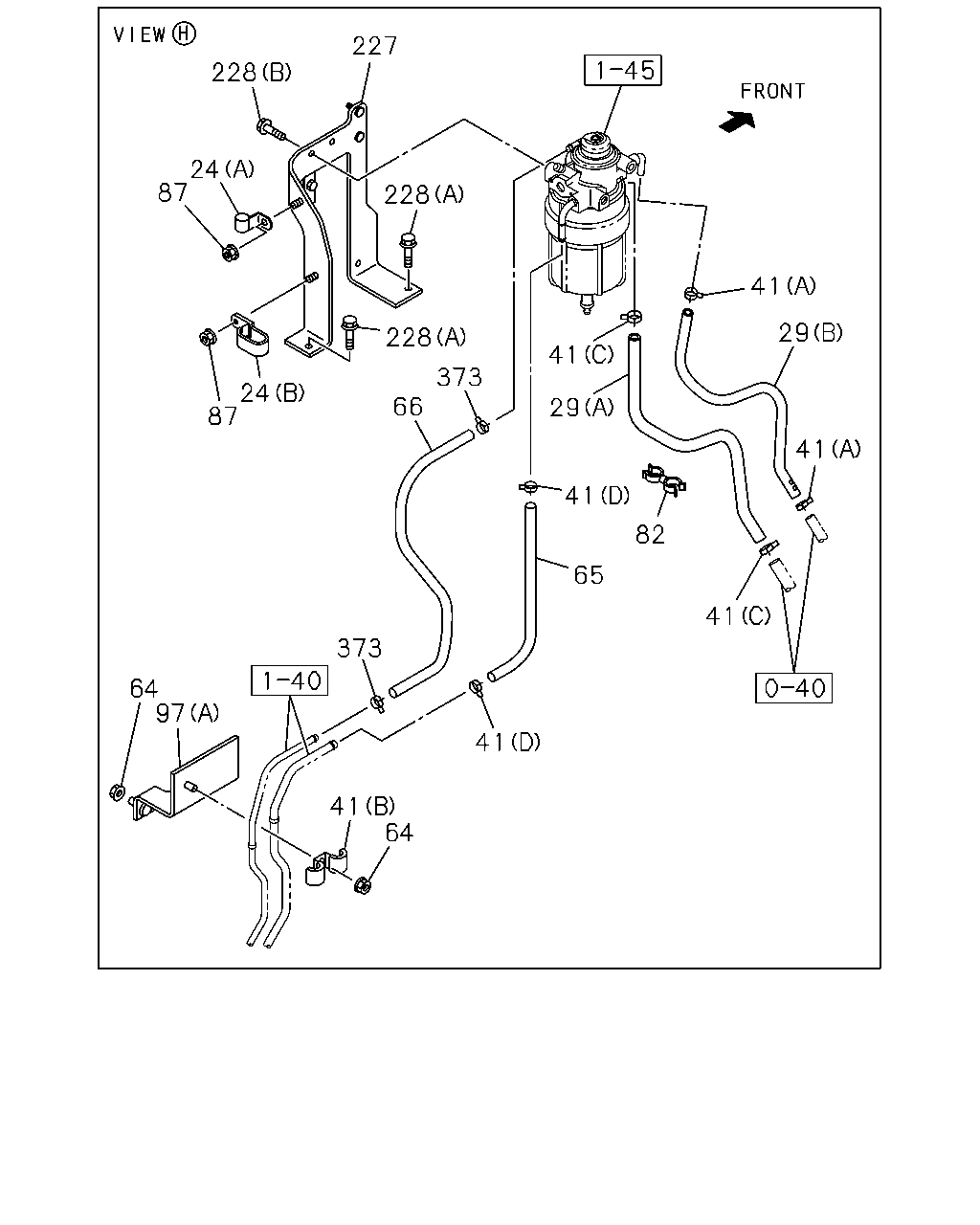

çizim 110720
227 228 24 87 228 41 29 228 41 373 24 87 66 29 41 41 82 65 41 373 64 97 41 41 64
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(D) ID=16X2 L=20 		0-95325-536-0 02 1 0812-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0812-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 0812-0812
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 0901-1302
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 04 1 1303-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0812-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 0812-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0812-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 04 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 0812-1302
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1303-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 0812-
64 NUT; CLIP
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 01 1 1502-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812-1302
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1303-
65 HOSE; FUEL,DELIVERY PIPE
L=260 SERVICED BY L=3000 		0-01260-300-0 01 1 0812-
66 HOSE; FUEL,RETURN PIPE
L=450 SERVICED BY L=3000 		0-01558-300-0 01 1 0812-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 0812-1011
82 CLIP; FUEL HOSE
EURO2 SPECIFICATION<NT2> ID=13 & 16.5 		8-94169-028-0 01 1 1012-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 02 1 0812-
97 BRACKET; CLIP
(E) 		8-98204-698-0 01 1 1304-
97 BRACKET; CLIP
(D) 		1-47478-981-0 01 1 0812-
97 BRACKET; CLIP
(B) 		8-97623-325-0 02 1 0812-
97 BRACKET; CLIP
(C) 		8-98111-711-0 02 1 0812-
97 BRACKET; CLIP
(A) 		8-98115-316-1 01 1 0812-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0812-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0812-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0812-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
373 CLAMP; HOSE,FUEL
ID=13 		8-94238-571-0 02 1 0812-

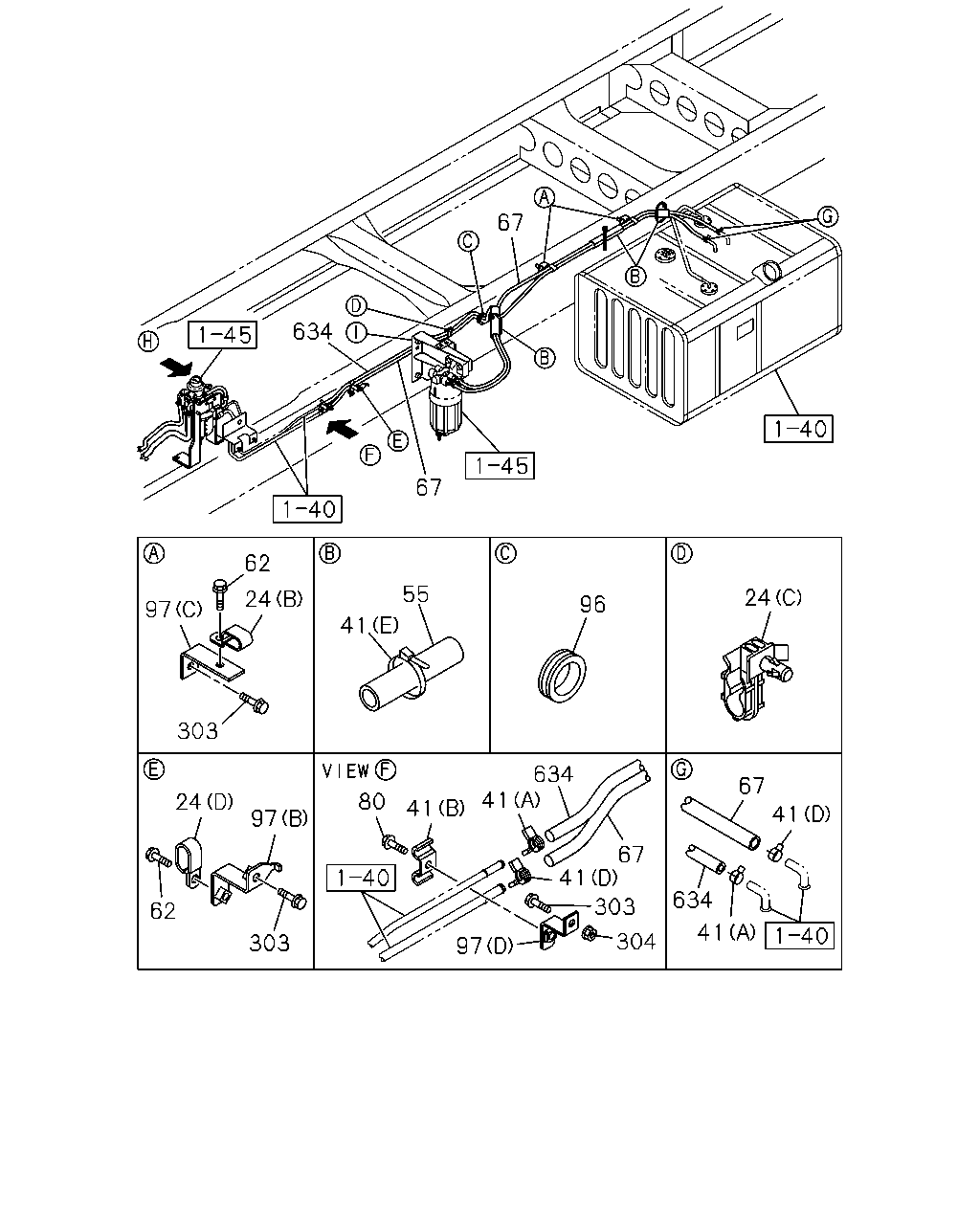

çizim 110722
634 67 62 97 24 303 55 41 96 24 41 67 634 41 304 303 67 41 634 41 41 80 97 303 97 24 62 67
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(D) ID=16X2 L=20 		0-95325-536-0 02 1 0812-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0812-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 0812-0812
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 0901-1302
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 04 1 1303-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0812-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 04 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 0812-1302
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1303-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 0812-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0812-1302
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1303-
62 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0812-0812
62 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 03 1 0901-1302
62 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1303-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0812-
67 HOSE; FUEL,DELIVERY
L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 0812-0812
67 HOSE; FUEL,DELIVERY
L=1700 SERVICED BY L=3000 		0-01260-300-0 01 1 0901-1302
67 HOSE; FUEL,DELIVERY
L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 1303-
67 HOSE; FUEL,DELIVERY
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0812-0812
67 HOSE; FUEL,DELIVERY
L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 0901-1302
67 HOSE; FUEL,DELIVERY
L=1900 SERVICED BY L=3000 		0-01260-300-0 01 1 1303-
80 BOLT; CLIP,FUEL TANK
M8X16 FLANGE 		0-28050-816-0 01 1 0812-
96 GROMMET; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812-
97 BRACKET; CLIP
(E) 		8-98204-698-0 01 1 1304-
97 BRACKET; CLIP
(D) 		1-47478-981-0 01 1 0812-
97 BRACKET; CLIP
(B) 		8-97623-325-0 02 1 0812-
97 BRACKET; CLIP
(C) 		8-98111-711-0 02 1 0812-
97 BRACKET; CLIP
(A) 		8-98115-316-1 01 1 0812-
303 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
303 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0812-1303
303 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0812-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0812-0908
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0909-1011
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 03 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0812-1001
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1002-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1002-
634 HOSE; RUBBER RETURN
L=2000 SERVICED BY L=3000 		0-01558-300-0 01 1 0812-

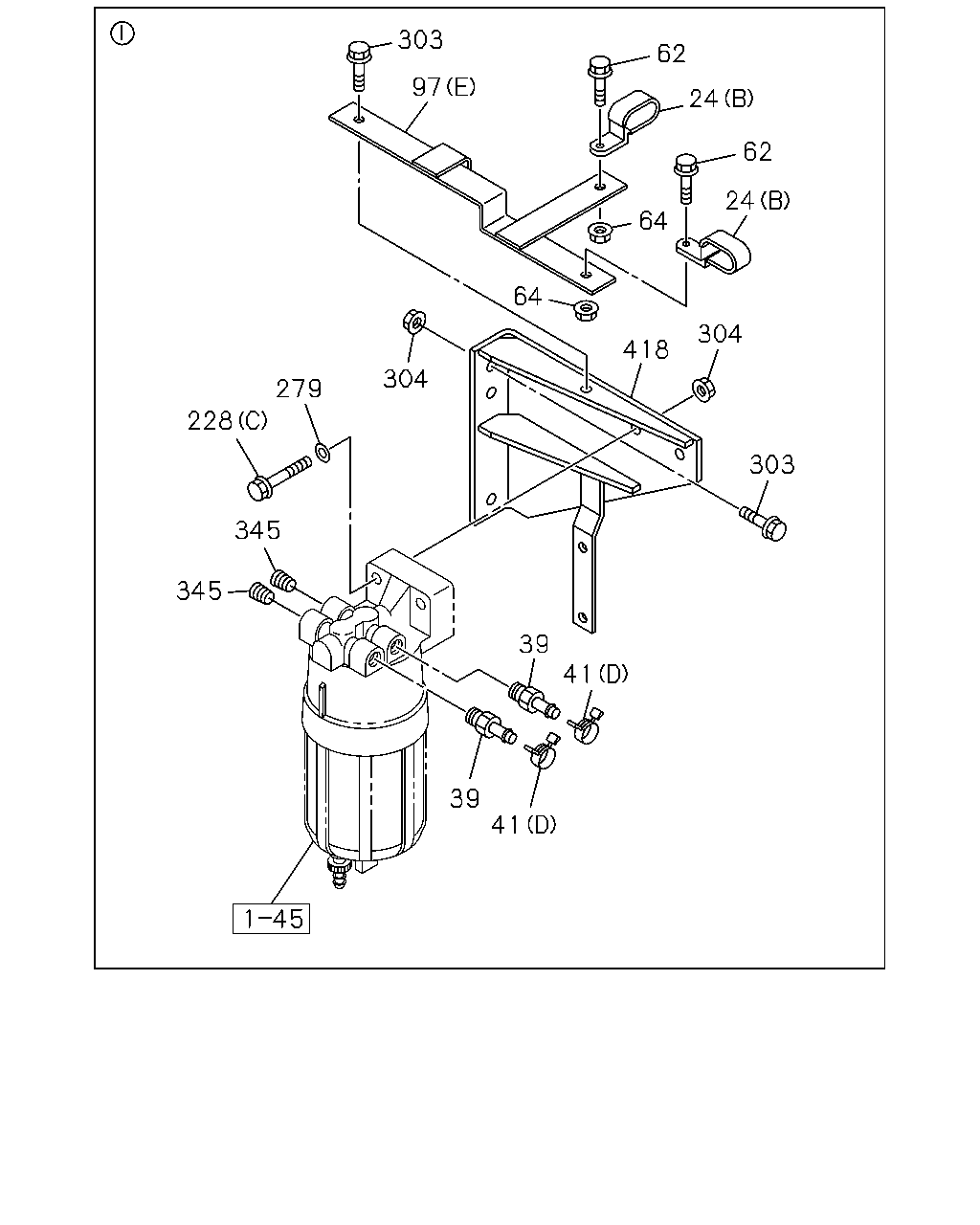

çizim 110723
304 303 41 39 39 41 345 345 228 279 304 97 303 62 24 24 62 64 64 418
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(D) ID=16X2 L=20 		0-95325-536-0 02 1 0812-
24 CLIP; FUEL HOSE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0812-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 0812-0812
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 0901-1302
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 04 1 1303-
24 CLIP; FUEL HOSE
(B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0812-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 0812-
39 PIPE; FUEL 8-97358-699-0 02 1 0812-0903
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=14 		1-09704-102-0 04 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 0812-1302
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1303-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=16 		8-94238-568-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 0812-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 02 1 0812-
62 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0812-0812
62 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 03 1 0901-1302
62 BOLT; CLIP FIX
M8X16 FLANGE 		0-28050-816-0 04 1 1303-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0812-
64 NUT; CLIP
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 01 1 1502-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812-1302
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1303-
97 BRACKET; CLIP
(E) 		8-98204-698-0 01 1 1304-
97 BRACKET; CLIP
(D) 		1-47478-981-0 01 1 0812-
97 BRACKET; CLIP
(B) 		8-97623-325-0 02 1 0812-
97 BRACKET; CLIP
(C) 		8-98111-711-0 02 1 0812-
97 BRACKET; CLIP
(A) 		8-98115-316-1 01 1 0812-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0812-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 0812-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 0812-
303 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
303 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0812-1303
303 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0812-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0812-0908
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0909-1011
304 NUT; BRKT
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-108-0 03 1 1012-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0812-1001
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1002-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1002-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 0812-
418 BRACKET; PRE FUEL FILTER 8-98096-915-0 01 1 0812-0812
418 BRACKET; PRE FUEL FILTER 8-98136-381-0 01 1 0901-
