◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30C - GEAR SHIFTER AND QUADRANT BOX ▶

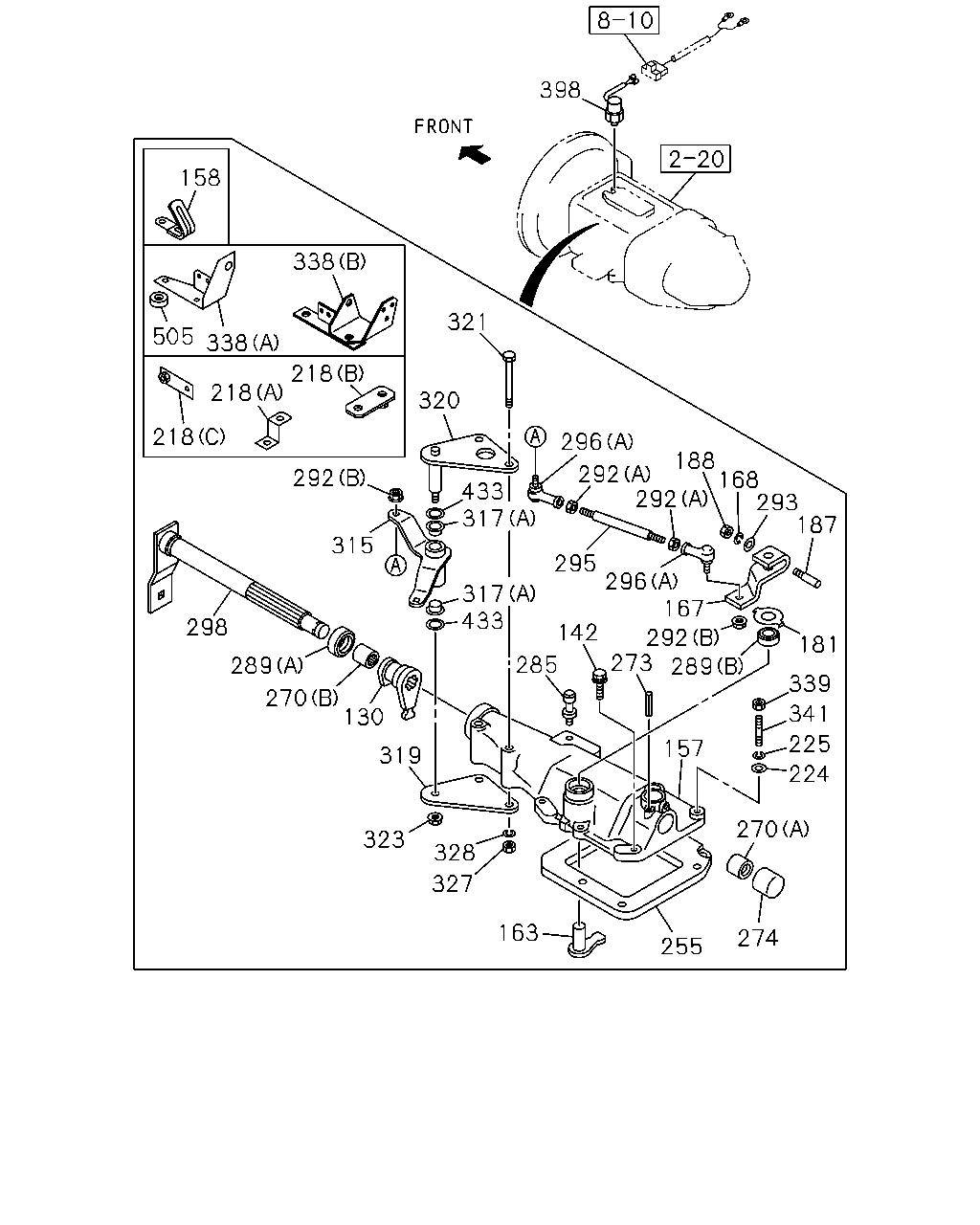

2-30C — GEAR SHIFTER AND QUADRANT BOX (#4828) — 118 parça
çizim 8965
398 158 338 321 505 338 218 218 320 218 296 188 168 293 187 292 292 292 433 317 315 295 296 167 317 433 298 142 292 273 181 285 289 289 339 270 130 341 157 225 319 224 270 323 328 327 163 274 255
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 9611-9904 ●
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 9905- ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9611-9904 ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9905- ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 9611-9904 ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 9905- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 9611-9904 ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 9905- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9611-9904 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9905-0004 ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0005- ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9611-9904 ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9905-0004 ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0005- ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9611-9904 ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9905- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9611-9904 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9905-0004 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0005- ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9611-9904 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9905-0004 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0005- ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9611-9904 ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9905- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) L=65 		1-47476-513-0 01 1 9611-9904 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) L=65 		1-47476-513-0 01 1 9905- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9611-9904 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) L=59 		1-82699-228-0 01 1 9905- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-425-0 03 1 9611-9904 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-425-0 03 1 9905- ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9611-9904 ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9905- ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9611-9904 ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9905- ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9611-9904 ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9905- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9611-9904 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9905- ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9611-9904 ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9905- ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9611-9904 ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9905- ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9611-9708 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9709-9904 ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9905- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9611-9904 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9905-0004 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0005- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9611-9904 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9905-0004 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9611-9904 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9905-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9611-9904 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9905-0004 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005- ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9611-9804 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9905-0004 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005- ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9811-9904 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-0004 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9611-9904 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9905-0004 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0005- ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 9611-9904 ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 9905-0004 ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0005- ●
296 ROD END
(A) 		1-09760-108-0 02 1 9811-9904 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907-0004 ●
296 ROD END
(A) 		1-09760-108-0 02 1 0005- ●
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 9611-9904 ●
298 SHAFT; SHIFT LEVER 1-33522-141-0 01 1 9905- ●
315 LEVER; SELECT 1-33651-675-0 01 1 9611-9807 ●
315 LEVER; SELECT 1-33651-746-0 01 1 9808-9904 ●
315 LEVER; SELECT 1-33651-746-0 01 1 9905- ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ●
317 BUSHING; LEVER
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) 		1-09330-119-0 02 1 9905-9906 ●
317 BUSHING; LEVER
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) 		1-09330-119-0 02 1 9907-0004 ●
317 BUSHING; LEVER
COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) 		1-09330-119-0 02 1 0005- ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 9611-9807 ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 9808-9904 ●
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 9905- ●
320 SHAFT; LEVER 1-33619-526-1 01 1 9611-9807 ●
320 SHAFT; LEVER 1-33619-624-0 01 1 9808-9810 ●
320 SHAFT; LEVER 1-33619-629-0 01 1 9811-9904 ●
320 SHAFT; LEVER 1-33619-629-0 01 1 9905- ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9611-9904 ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9905- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9611-9807 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9808-9904 ●
323 NUT; LK,SELECT LEVER
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33659-219-0 01 1 9905-9906 ●
323 NUT; LK,SELECT LEVER
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33659-219-0 01 1 9907-0004 ●
323 NUT; LK,SELECT LEVER
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33659-219-0 01 1 0005- ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9611-9904 ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9905- ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9611-9904 ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9905- ●
338 BRACKET; FLEX TUBE
(A) 		1-47477-814-0 01 1 9611-9904 ●
338 BRACKET; FLEX TUBE
(A) 		1-47477-814-0 01 1 9905-0003 ●
338 BRACKET; FLEX TUBE
(B) 		1-47478-877-0 01 1 0004- ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9611-9904 ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9905- ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9611-9904 ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9905- ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 9611-9904 ●
398 SWITCH; REV LAMP 1-82440-102-0 01 1 9905- ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9611-9807 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9808-9904 ●
433 GASKET; BUSHING
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-09623-636-0 02 1 9905-9906 ●
433 GASKET; BUSHING
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-09623-636-0 02 1 9907-0004 ●
433 GASKET; BUSHING
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-09623-636-0 02 1 0005- ●
505 SPACER; BRKT 1-53459-587-0 01 1 9611-9904 ●
505 SPACER; BRKT 1-53459-587-0 01 1 9905- ●
