0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#48273) — 61 parça

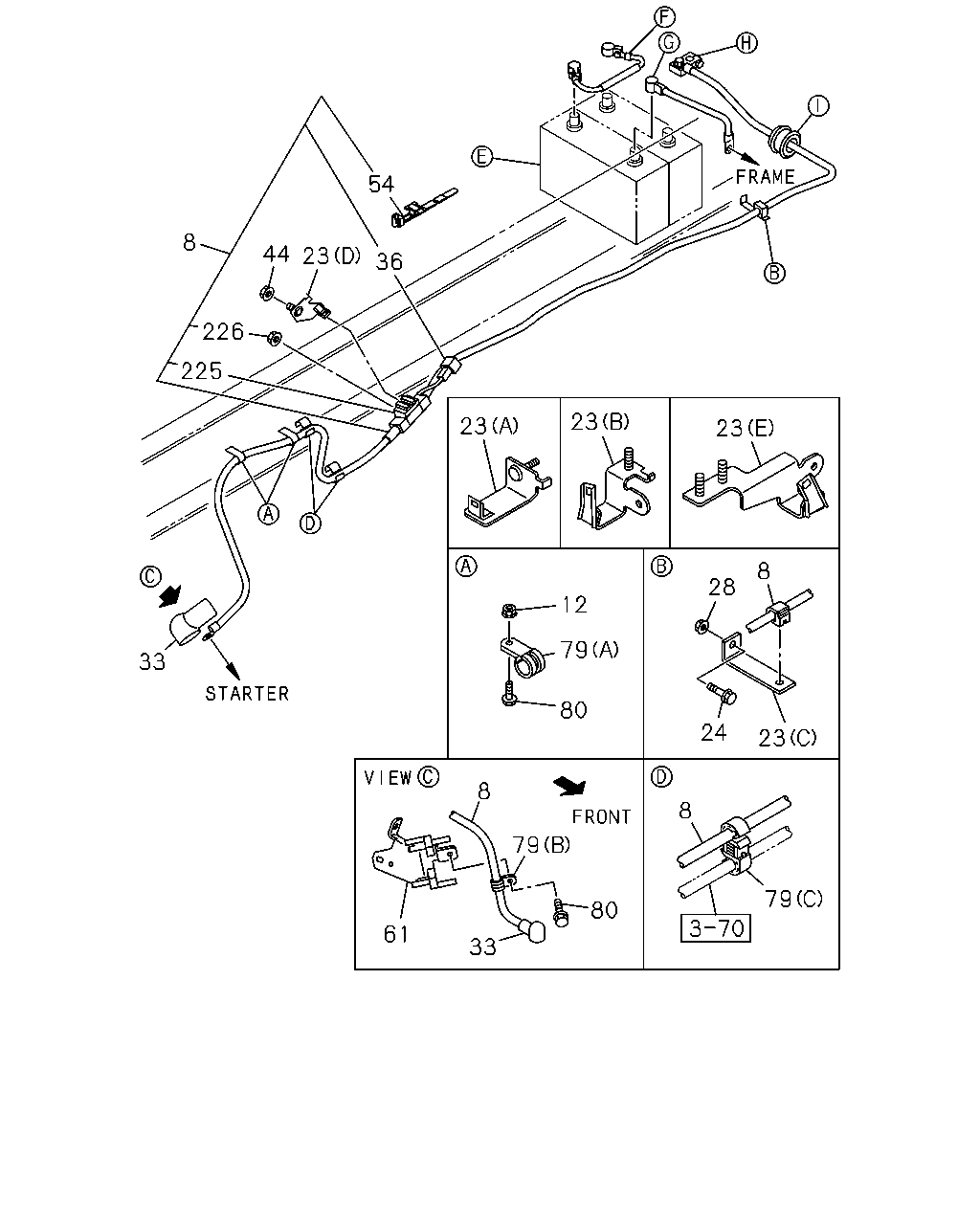

çizim 110705
54 8 44 23 36 226 225 23 23 23 8 28 12 79 33 80 24 23 8 8 79 79 80 61 33
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98126-538-0 01 1 0812-1004
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98159-450-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-549-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98126-537-0 01 1 0812-1004
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-449-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-449-0 01 1 1012-1502
8 CABLE; BATTERY,STARTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-548-0 01 1 1503-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 1503-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 0812-1501
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98091-358-0 01 1 0812-
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-98092-593-0 01 1 0812-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98126-541-0 01 1 0812-1111
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98195-170-0 01 1 1112-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 0812-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0812-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0812-1111
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0812-
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 0812-
33 CAP; INSULATOR 1-82699-431-0 01 1 0812-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0812-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0812-
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 0812-1004
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0812-
79 CLIP; BATTERY CABLE
(B) ID=16 L=28 		1-09700-872-0 01 1 0812-1004
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 01 1 1005-
79 CLIP; BATTERY CABLE
(C) ID=10 & 10 		1-09709-277-1 01 1 0812-
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 01 1 0812-
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 01 1 0812-
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0812-
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0812-
80 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0812-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0812-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0812-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-

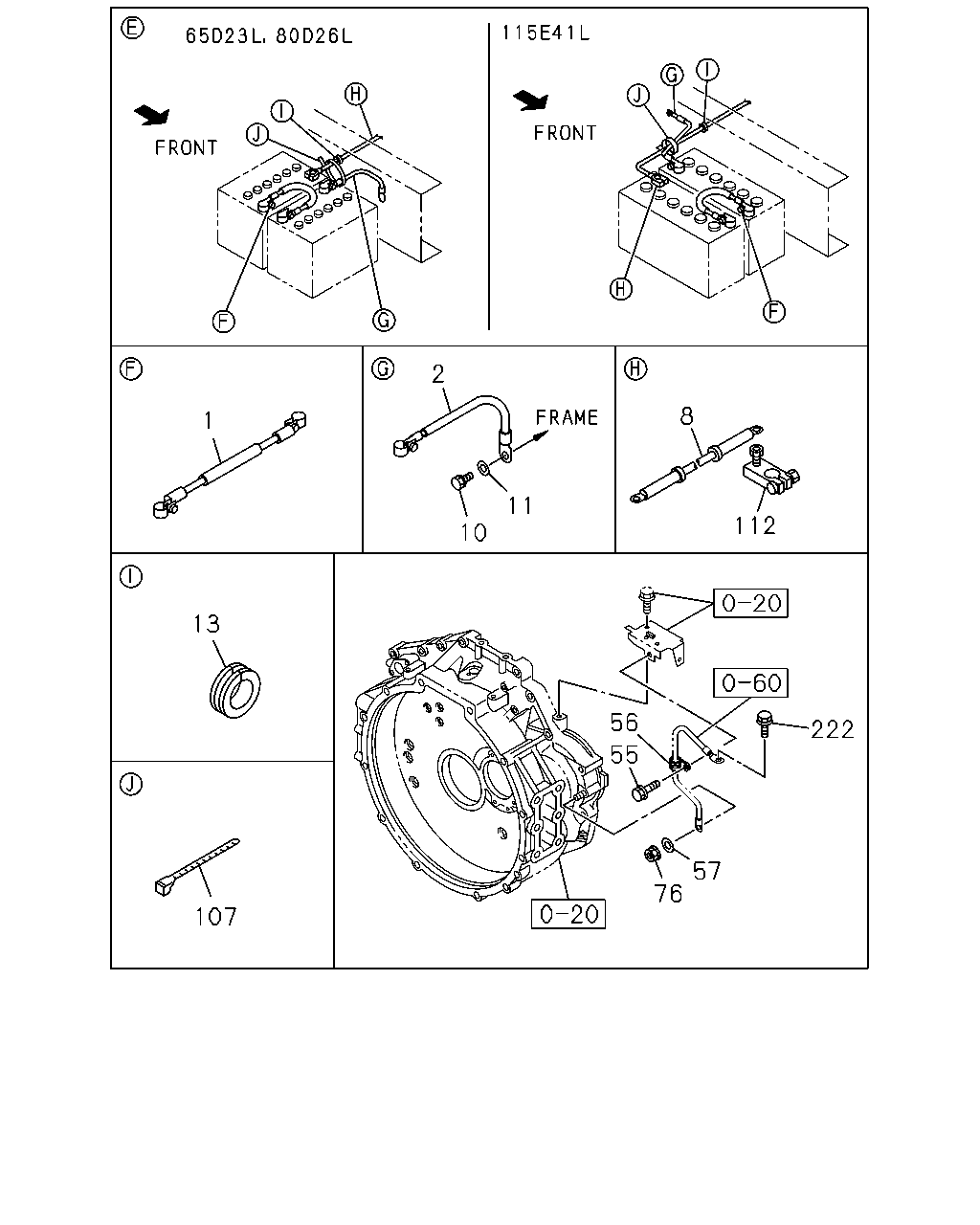

çizim 110707
2 8 1 11 112 10 13 56 222 55 57 76 107
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0812-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 0812-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 0812-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98126-538-0 01 1 0812-1004
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98159-450-0 01 1 1005-1502
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-549-0 01 1 1503-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98126-537-0 01 1 0812-1004
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-449-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98159-449-0 01 1 1012-1502
8 CABLE; BATTERY,STARTER
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-548-0 01 1 1503-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0812-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0812-
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0812-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0812-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0812-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0812-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0812-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0812-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0812-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0812-
