Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#48272) — 62 parça
◀

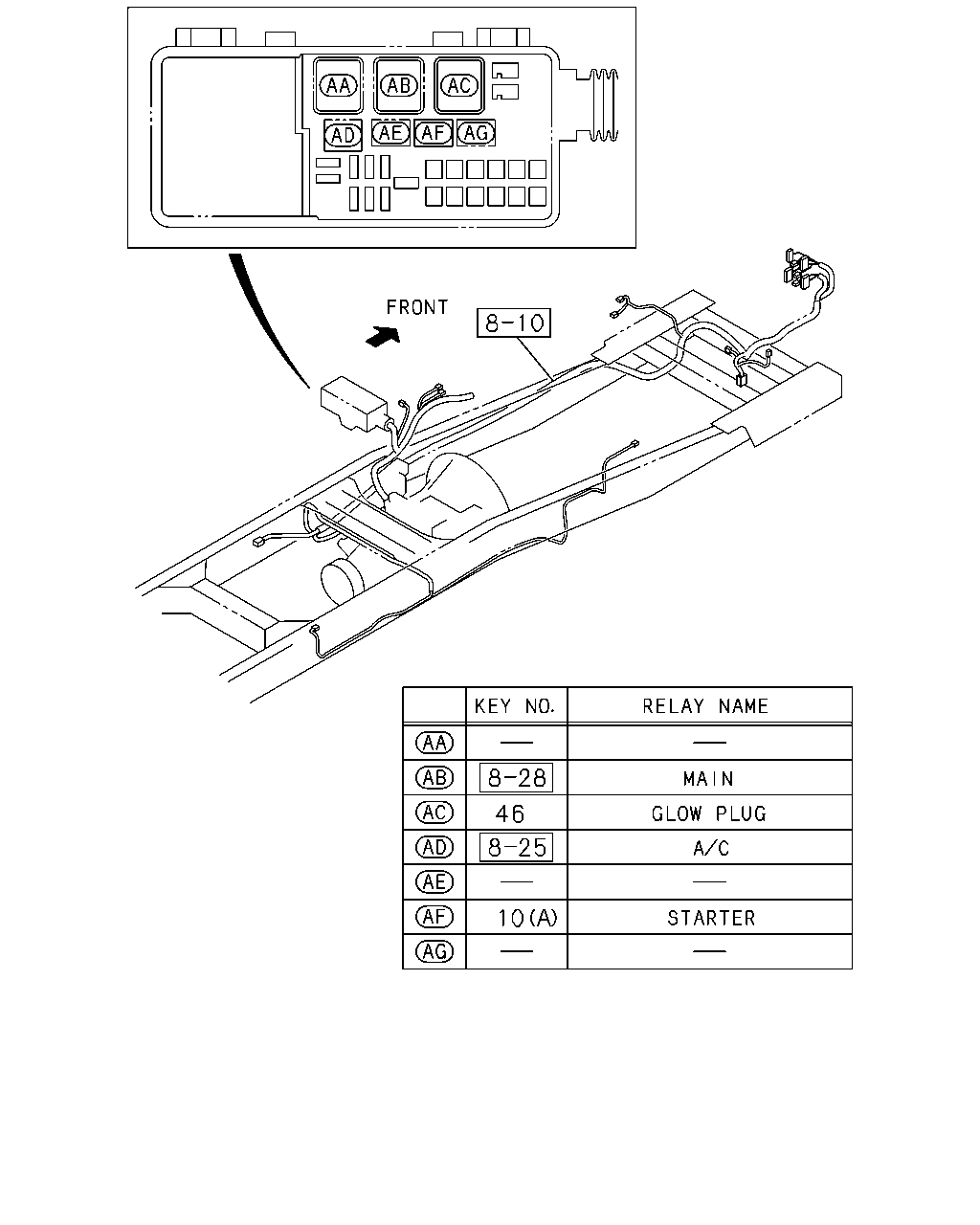

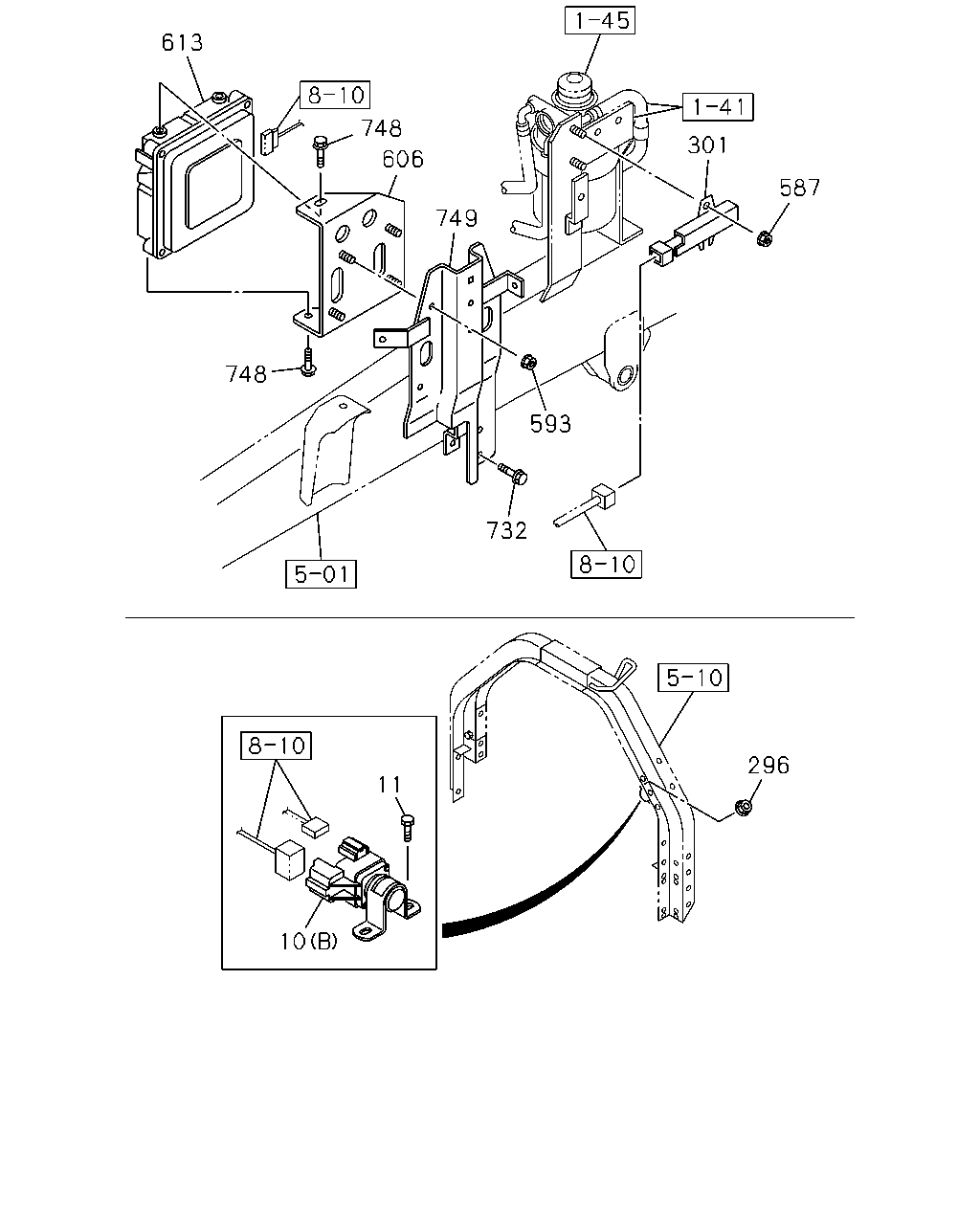

[060A] ENGINE CONTROL UNIT AND OTHER PARTS (16 parça)
[060A] ENGINE SIDE (16 parça)
[060A] FRAME SIDE (6 parça)

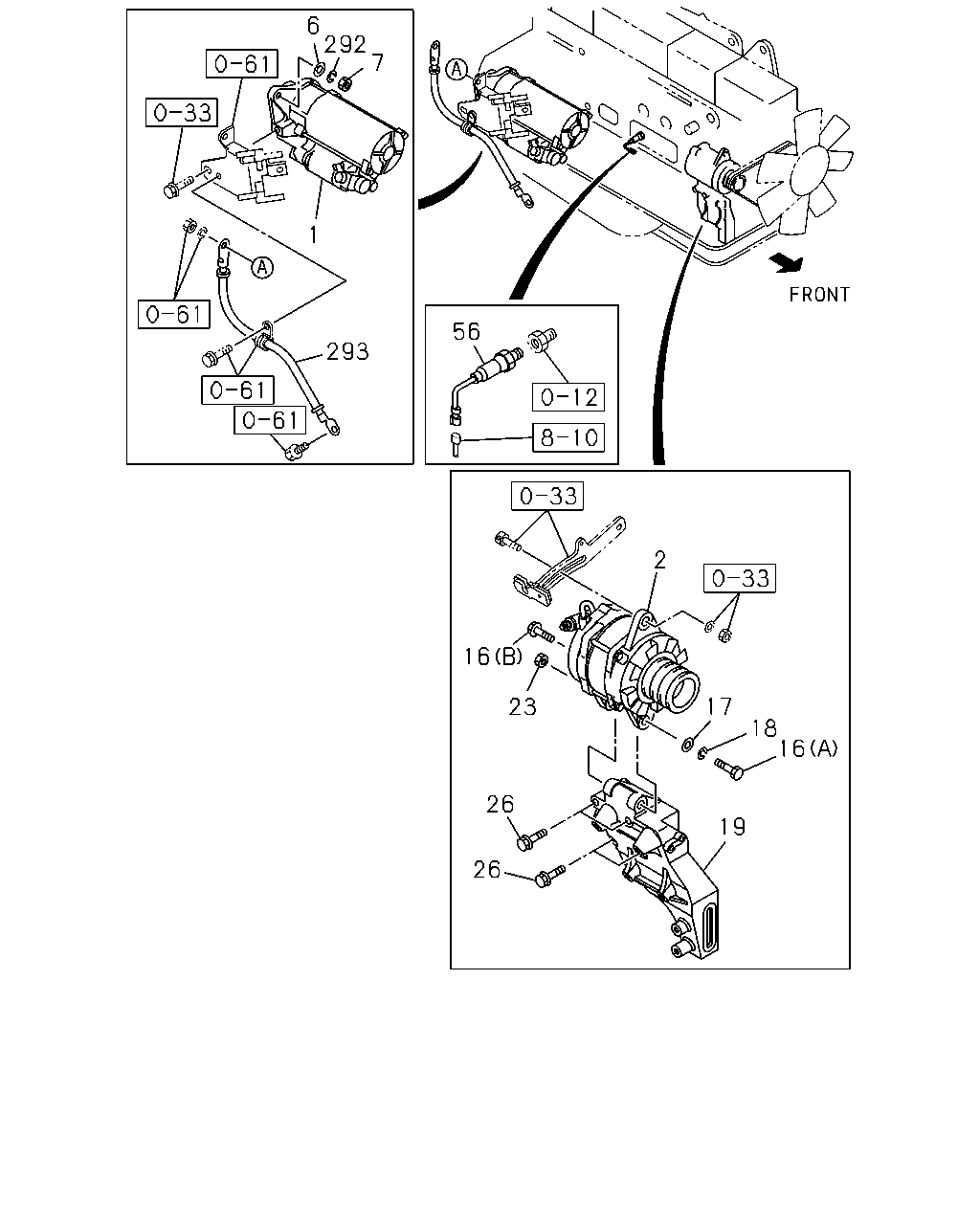

[060A] STARTER AND GENERATOR (24 parça)
▶
613
748
749
606
301
587
593
732
748
11
10
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-97173-035-1
01
1
0812-1005
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1006-
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
0812-
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28650-820-0
02
1
0812-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0812-
301
RESISTOR; DROPPING
EURO3 SPECIFICATION<NT3>
8-97357-613-0
01
1
1012-
587
NUT; RESISTOR & RELAY
EURO3 SPECIFICATION<NT3> M6 FLANGE
0-91180-106-0
02
1
1012-
593
NUT; BRKT
M6 FLANGE
0-91180-106-0
04
1
0812-
606
BRACKET; CONT UNIT
1-53194-675-0
01
1
0812-
613
CONTROL UNIT; ENG
8-98074-888-3
01
1
0812-1009
613
CONTROL UNIT; ENG
8-98181-060-1
01
1
1010-1011
613
CONTROL UNIT; ENG
EURO2 SPECIFICATION<NT2>
8-98181-060-1
01
1
1012-
613
CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3>
8-98163-989-1
01
1
1012-
732
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
03
1
0812-
748
BOLT; CONT UNIT
M6X12 FLANGE
0-28050-612-0
03
1
0812-
749
STAY; CONT UNIT
1-53194-595-3
01
1
0812-
813
101
813
752
690
740
260
898
416
836
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; HARNESS
M8X40 FLANGE
0-28650-840-0
04
1
0812-
260
SENSOR; WATER TEMP
MITSUBISHI
8-98023-883-0
01
1
0812-1503
260
SENSOR; WATER TEMP
NISHIDA
8-98260-257-0
01
1
1504-
416
SLEEVE; RUBBER
EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=17 OD=21 L=40
1-09337-012-0
01
1
1012-
690
CONNECTOR
8-94390-858-1
02
1
0812-
740
NUT
M8 FLANGE
0-91180-108-0
04
1
0812-1011
740
NUT
M8 FLANGE
0-91180-108-0
02
1
1012-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
0812-
813
HARNESS; INJECTOR
(A) FRONT
8-97602-748-2
01
1
0812-1008
813
HARNESS; INJECTOR
(A) FRONT
8-98177-447-0
01
1
1009-1112
813
HARNESS; INJECTOR
(A) FRONT
8-98204-717-0
01
1
1201-
813
HARNESS; INJECTOR
(B) REAR
8-97602-749-2
01
1
0812-1008
813
HARNESS; INJECTOR
(B) REAR
8-98177-448-0
01
1
1009-1112
813
HARNESS; INJECTOR
(B) REAR
8-98204-718-0
01
1
1201-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1012-
898
SENSOR; BOOST
8-98009-418-0
01
1
0812-
46
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-97173-035-1
01
1
0812-1005
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1006-
10
RELAY; STARTER
(B) 24V NIKKO
8-98005-631-1
01
1
0812-
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
0812-1011
46
RELAY; GLOW PLUG
EXC. EURO3 SPECIFICATION<NT3> 24V 50A
8-97173-947-0
01
1
1012-1311
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1312-
56
7
292
6
1
293
16
23
2
17
18
16
19
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98060-854-0
01
1
0812-0909
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98141-206-3
01
1
0910-1409
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98261-669-0
01
1
1410-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO
8-98013-461-5
01
1
0812-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
8-98013-462-5
01
1
0812-
6
WASHER; PL,STARTER
ID=15
0-91610-514-0
01
1
0812-
7
NUT; STARTER
M14
0-91110-514-0
02
1
0812-
16
BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE
0-28050-610-0
01
1
0910-1011
16
BOLT; GEN
EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE
0-28050-610-0
02
1
1012-
16
BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE
0-28050-610-0
01
1
1012-
16
BOLT; GEN
(A) M14X135
1-09000-133-1
01
1
0812-
16
BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE
0-28050-610-0
01
1
0812-0909
16
BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE
0-28050-610-0
03
1
0910-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0812-
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0812-
19
BRACKET; GEN
8-98082-615-1
01
1
0812-
23
NUT; GEN
M14
0-91110-514-0
01
1
0812-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
02
1
0812-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0812-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0812-
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
01
1
0812-
293
CABLE; STARTER EARTH
8-98131-713-0
01
1
0812-1011
293
CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2>
8-98131-713-0
01
1
1012-
293
CABLE; STARTER EARTH
EURO3 SPECIFICATION<NT3> L=410
8-97621-358-0
01
1
1012-
