0-52 — OIL AND VACUUM PIPING; ENGINE (#48270) — 78 parça

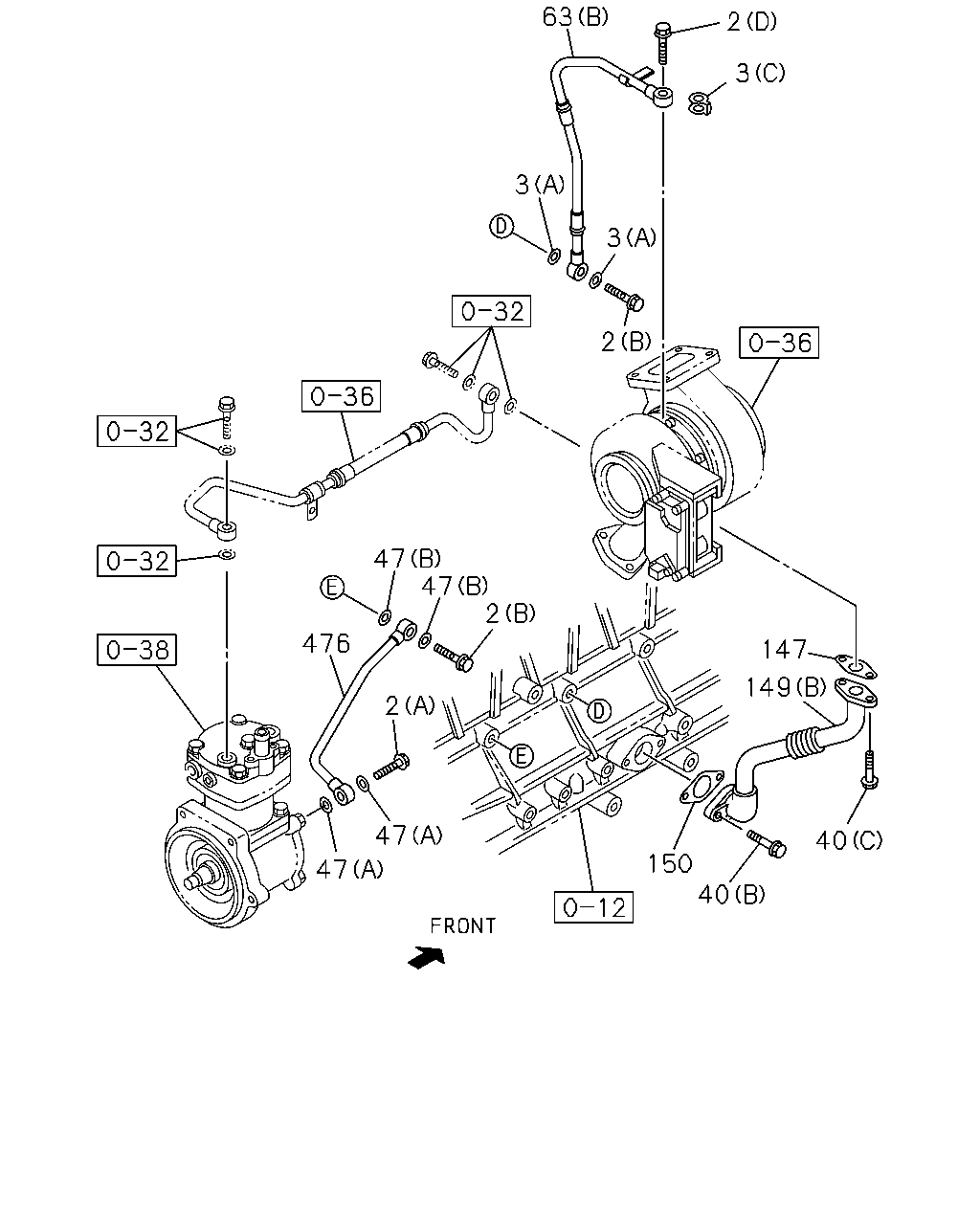

63 2 3 3 3 2 47 47 2 476 147 149 2 47 40 150 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0812-
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	0812-1011
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1012-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1012-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0812-1011
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	1-09630-084-0	02	1	1012-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1011
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C) ID=12.6	8-97331-137-1	01	1	1012-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0812-0906
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-1011
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	02	1	1012-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0812-1011
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1012-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-98074-254-0	01	1	0812-1011
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (A)	8-98074-254-0	01	1	1012-
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> (B)	8-97606-204-0	01	1	1012-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0812-1011
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1012-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>	8-94390-641-1	01	1	1012-
149	PIPE; OIL RETURN,TURBOCHARGER (A)	8-94394-196-1	01	1	0812-0906
149	PIPE; OIL RETURN,TURBOCHARGER (A)	8-98147-092-0	01	1	0907-1011
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	8-98147-092-0	01	1	1012-
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> (B)	8-97606-205-3	01	1	1012-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0812-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0812-

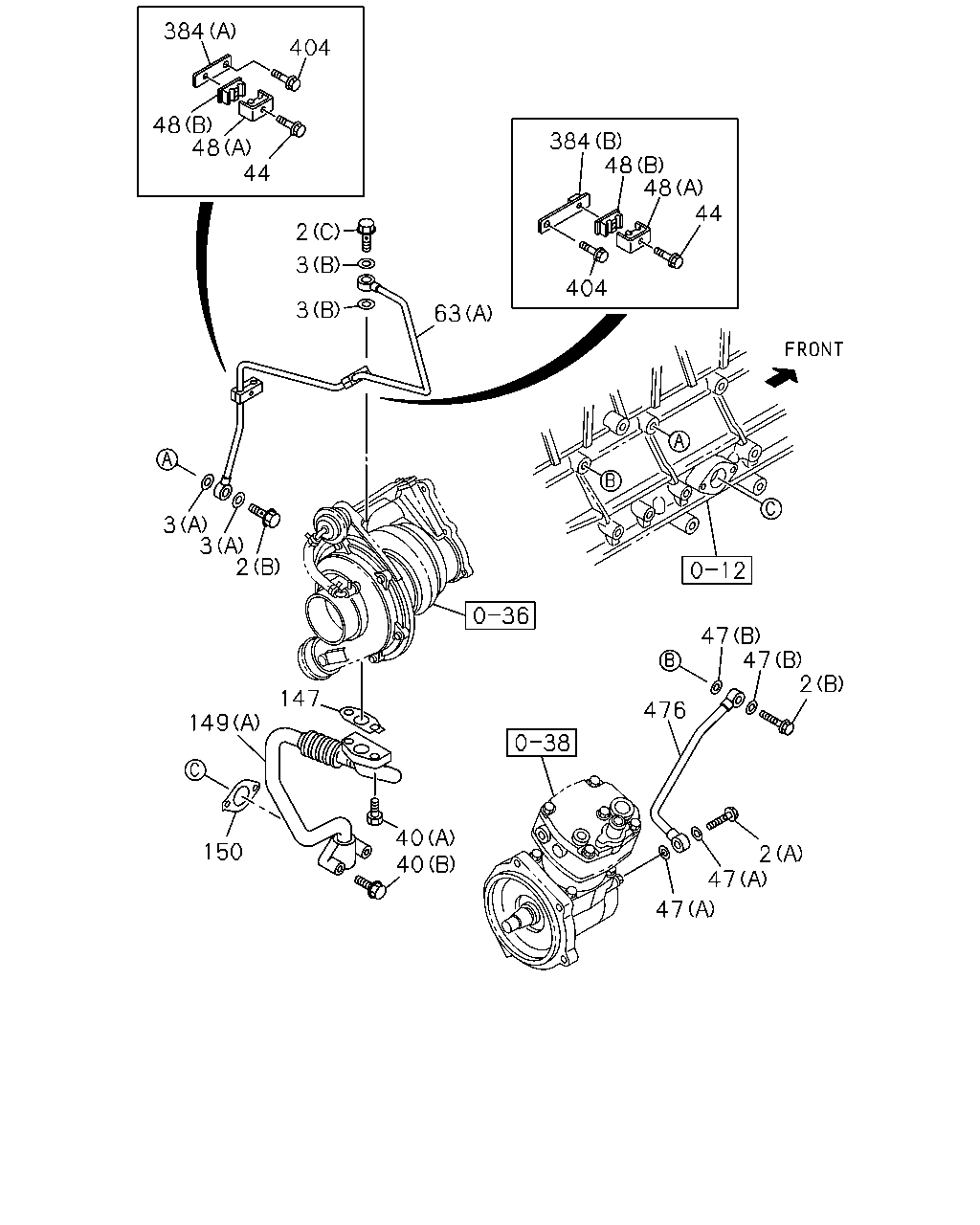

384 404 48 48 384 48 48 44 44 2 3 404 3 63 3 3 2 47 47 2 147 476 149 40 40 150 2 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0812-
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	0812-1011
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1012-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0812-
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> (D) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1012-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	02	1	0812-1011
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	1-09630-084-0	02	1	1012-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (B) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1011
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C) ID=12.6	8-97331-137-1	01	1	1012-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0812-0906
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-1011
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (C) M8X30 FLANGE	0-28650-830-0	02	1	1012-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0812-1011
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1012-
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0812-1011
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<NT2> M6X30 FLANGE	0-28050-630-0	02	1	1012-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0812-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0812-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	02	1	0812-1011
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1012-
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-2	02	1	0812-1011
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1012-
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-98074-254-0	01	1	0812-1011
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2> (A)	8-98074-254-0	01	1	1012-
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> (B)	8-97606-204-0	01	1	1012-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0812-1011
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1012-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>	8-94390-641-1	01	1	1012-
149	PIPE; OIL RETURN,TURBOCHARGER (A)	8-94394-196-1	01	1	0812-0906
149	PIPE; OIL RETURN,TURBOCHARGER (A)	8-98147-092-0	01	1	0907-1011
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	8-98147-092-0	01	1	1012-
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> (B)	8-97606-205-3	01	1	1012-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0812-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13319-020-0	01	1	0812-1011
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	1-13319-020-0	01	1	1012-
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13319-041-0	01	1	0812-1011
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (B)	1-13319-041-0	01	1	1012-
404	BOLT; BRKT M8X15	1-09000-114-0	02	1	0812-1011
404	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X15	1-09000-114-0	02	1	1012-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0812-
