◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#4827) — 837 parça

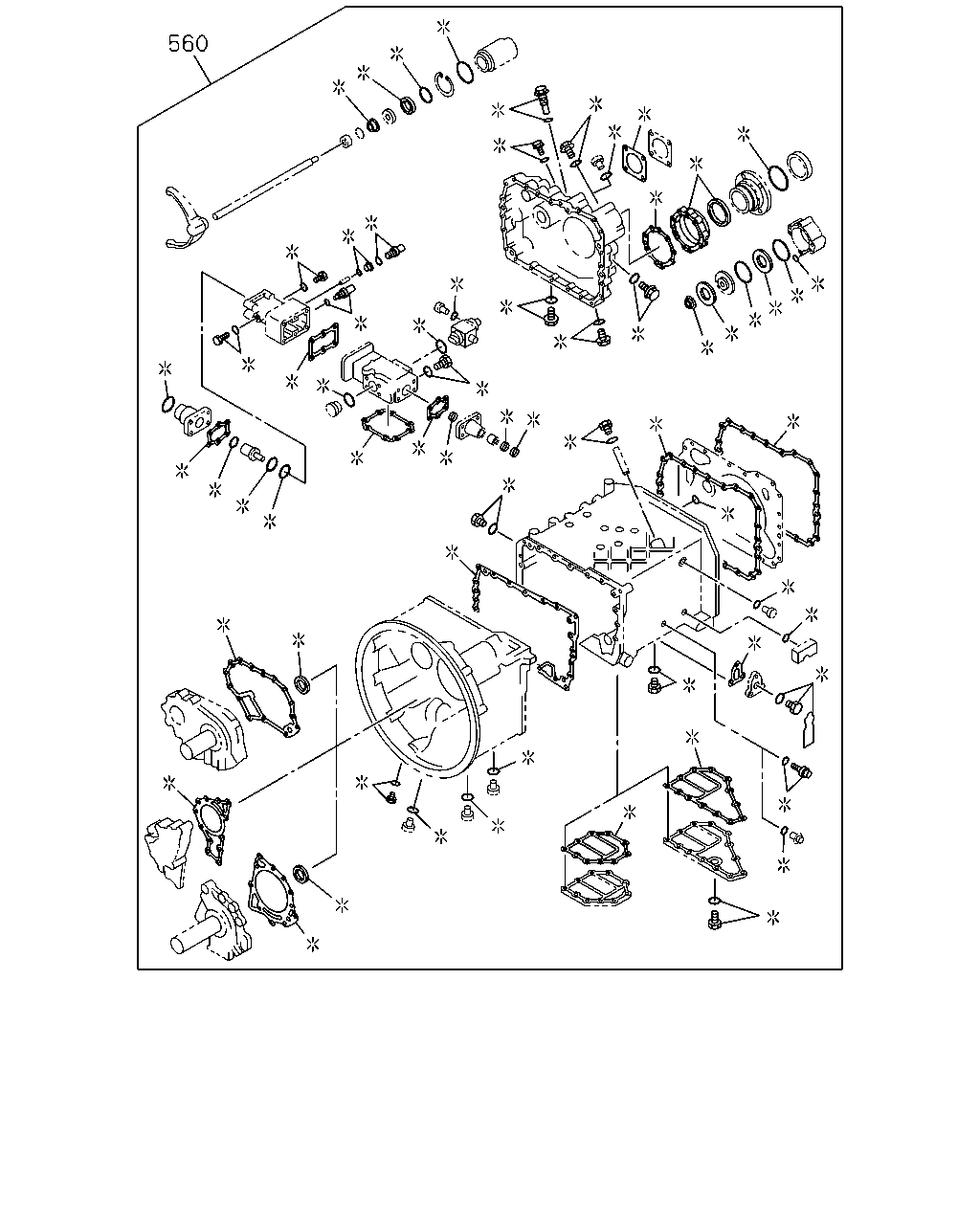

çizim 6133
560
BalonParca AdiParca NoAdetTipApplied Date A B
560 REPAIR KIT; CONT VLV 1-33739-922-0 01 1 9601-9707 ●

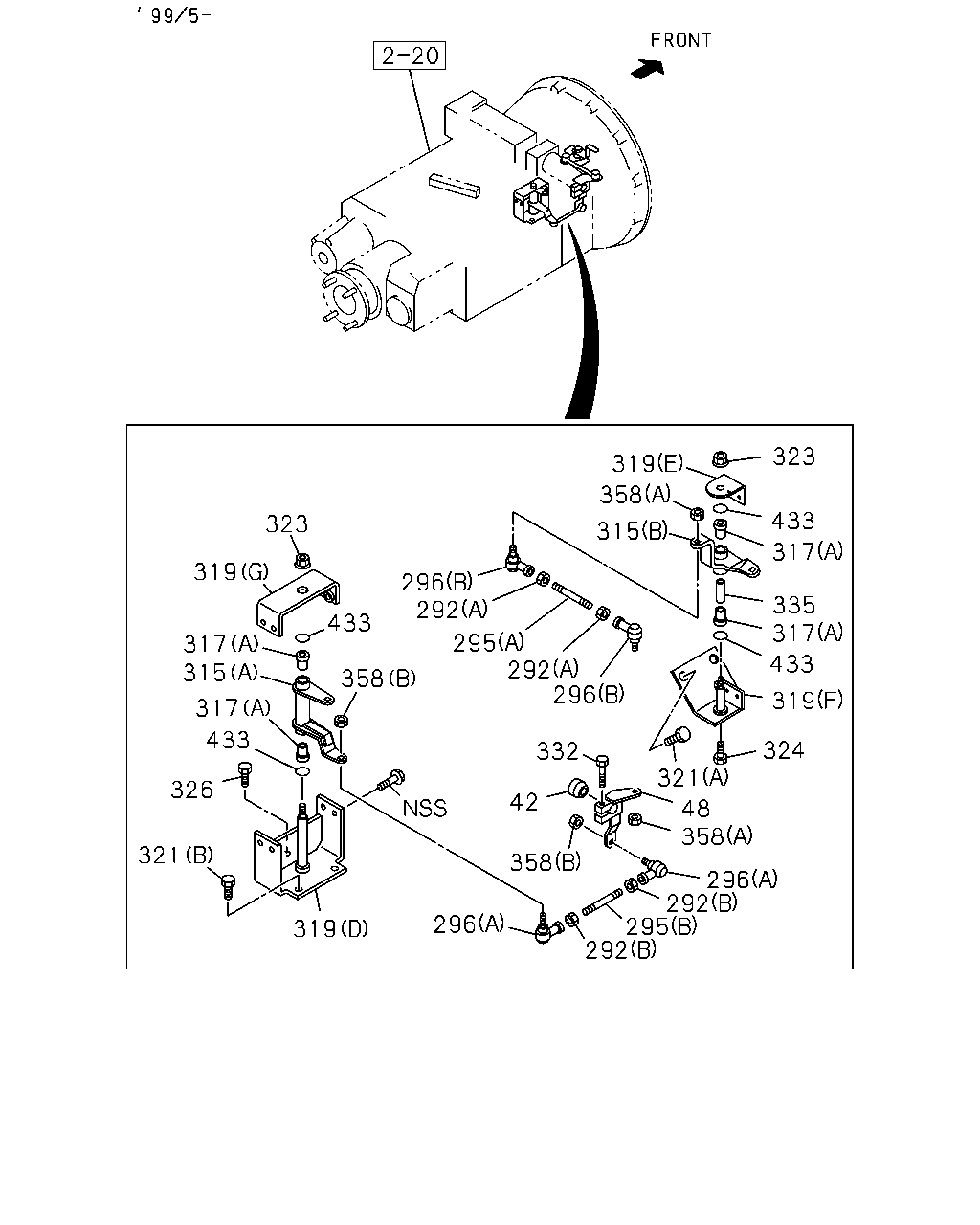

çizim 7707
323 319 358 433 323 315 317 319 296 292 335 317 433 295 317 315 433 292 296 358 319 317 433 324 332 321 326 42 48 358 321 358 296 292 295 292 296 319
BalonParca AdiParca NoAdetTipApplied Date A B
42 CAP; QUAD BOX 1-33549-111-0 01 1 9601- ●
48 LEVER; 4TH,SHIFT 1-33651-639-0 01 1 9601-9906 ●
48 LEVER; 4TH,SHIFT 1-33651-639-0 01 1 9907- ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9810 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9811-9904 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005- ● ●
292 NUT; LINK ROD
(B) M10 		9-09111-410-0 02 1 9601-9906 ●
292 NUT; LINK ROD
(B) M10 		9-09111-410-0 02 1 9907- ● ●
295 ROD; LINK,RELAY LEVER
(A) M8 L=50 		9-08400-805-0 01 1 9601-9906 ●
295 ROD; LINK,RELAY LEVER
(A) M8 L=50 		9-08400-805-0 01 1 9907- ● ●
295 ROD; LINK,RELAY LEVER
(B) M8 L=90 		9-08401-009-0 01 1 9601-9906 ●
295 ROD; LINK,RELAY LEVER
(B) M8 L=90 		9-08401-009-0 01 1 9907- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9601-9810 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9811-9904 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907-0004 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0005- ● ●
296 ROD END
(B) 		1-09760-110-0 02 1 9601-9710 ●
296 ROD END
(B) 		1-09760-124-0 02 1 9711-9906 ●
296 ROD END
(B) 		1-09760-124-0 02 1 9907- ● ●
315 LEVER; SELECT
(A) 		1-33651-672-0 01 1 9601-9904 ●
315 LEVER; SELECT
(A) 		1-33651-743-0 01 1 9905-9906 ●
315 LEVER; SELECT
(A) 		1-33651-743-0 01 1 9907- ● ●
315 LEVER; SELECT
10PE1S(60L) (B) 		1-33651-673-0 01 1 9601-9807 ●
315 LEVER; SELECT
10PE1S(60L) (B) 		1-33651-720-0 01 1 9808-9904 ●
315 LEVER; SELECT
V TYPE ENG<91L> (B) 		1-33651-745-0 01 1 9905- ● ●
315 LEVER; SELECT
6WA1 TC-S(56L) (B) 		1-33651-676-0 01 1 9601-9807 ●
315 LEVER; SELECT
6WA1 TC-S(56L) (B) 		1-33651-721-0 01 1 9808-9810 ●
315 LEVER; SELECT
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-33651-721-0 01 1 9811-9904 ●
315 LEVER; SELECT
L TYPE ENG<90L> (B) 		1-33651-744-0 01 1 9905- ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ●
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 9905- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-635-2 01 1 9601-9810 ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-728-0 01 1 9811-9904 ●
319 BRACKET; SELECT LEVER
(E) 		1-33657-718-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(E) 		1-33657-718-0 01 1 9907- ● ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-636-0 01 1 9601-9904 ●
319 BRACKET; SELECT LEVER
(F) 		1-33657-717-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(F) 		1-33657-717-0 01 1 9907- ● ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-637-1 01 1 9601-9807 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-698-0 01 1 9808-9810 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-731-0 01 1 9811-9904 ●
319 BRACKET; SELECT LEVER
(G) 		1-33657-741-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(G) 		1-33657-741-0 01 1 9907- ● ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-742-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-742-0 01 1 9907- ● ●
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 		0-28781-230-0 03 1 9601-9906 ●
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 		0-28781-230-0 03 1 9907- ● ●
321 BOLT; BRKT,RELAY LEVER
(A) M16X25 FLANGE 		0-28881-625-0 02 1 9601-9604 ●
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28881-630-0 02 1 9605-9906 ●
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28881-630-0 02 1 9907- ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-9904 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0004 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0004 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0005- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0005- ● ●
324 BOLT; SHAFT
M10X80 FLANGE 		0-28081-080-0 01 1 9905-9906 ●
324 BOLT; SHAFT
M10X80 FLANGE 		0-28081-080-0 01 1 9907- ● ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 02 1 9601-9904 ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 04 1 9905-9906 ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 04 1 9907- ● ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 02 1 9905-9906 ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 02 1 9907- ● ●
332 BOLT; 4TH,SHIFT LEVER
M8X35 W/LK WASHER 		0-50040-835-0 01 1 9601-9606 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9607-9906 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9907- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-221-0 01 1 9905-9906 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-221-0 01 1 9907- ● ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9906 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9907- ● ●
358 NUT; SHIFT ROD
(B) M10 T=10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
358 NUT; SHIFT ROD
(B) M10 T=11 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
358 NUT; SHIFT ROD
(B) M10 T=11.5 FLANGE M10 FLANGE 		1-09440-061-0 02 1 9803-9906 ●
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 9907- ● ●
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 9601- ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9601-9904 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0004 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0004 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0005- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0005- ● ●

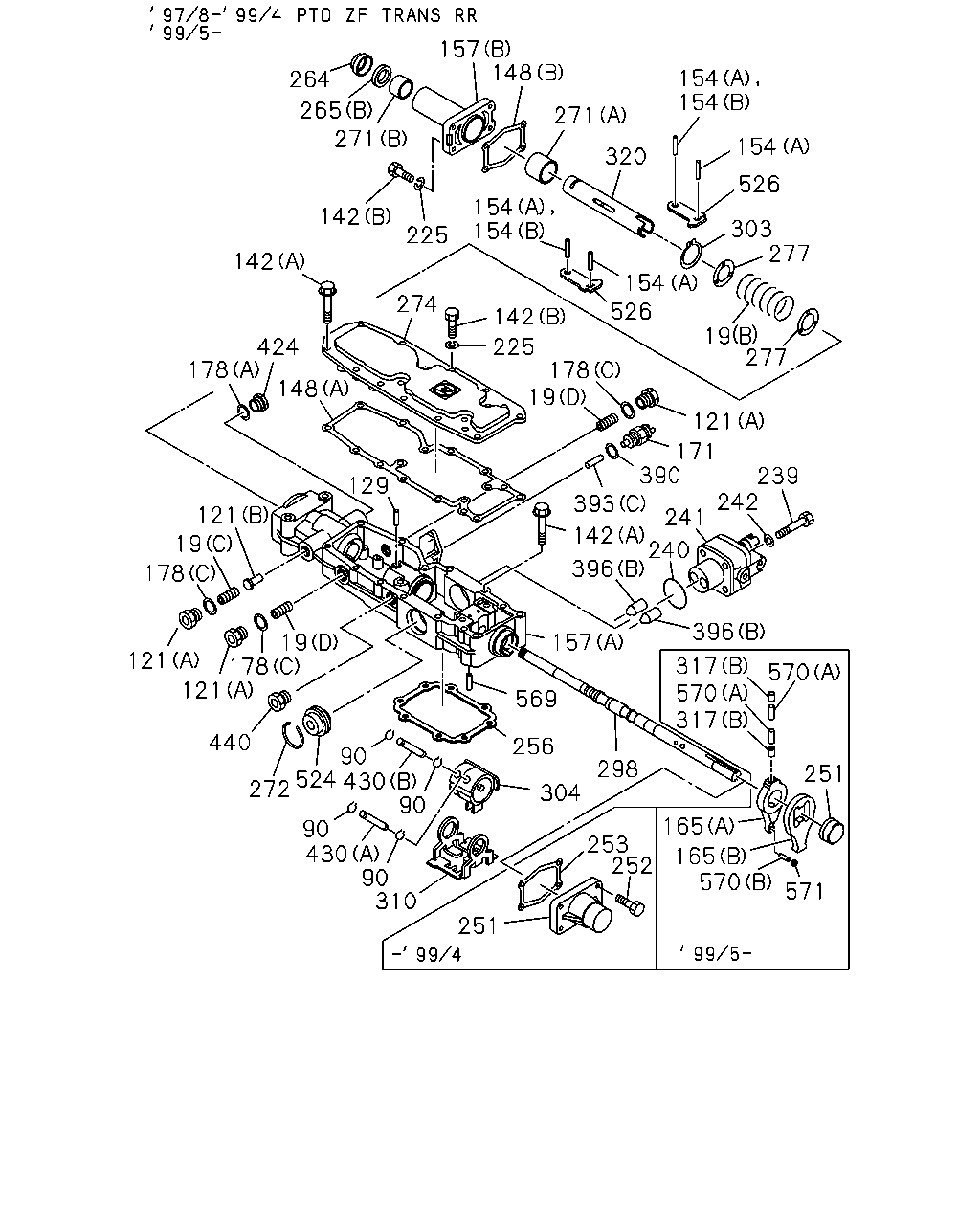

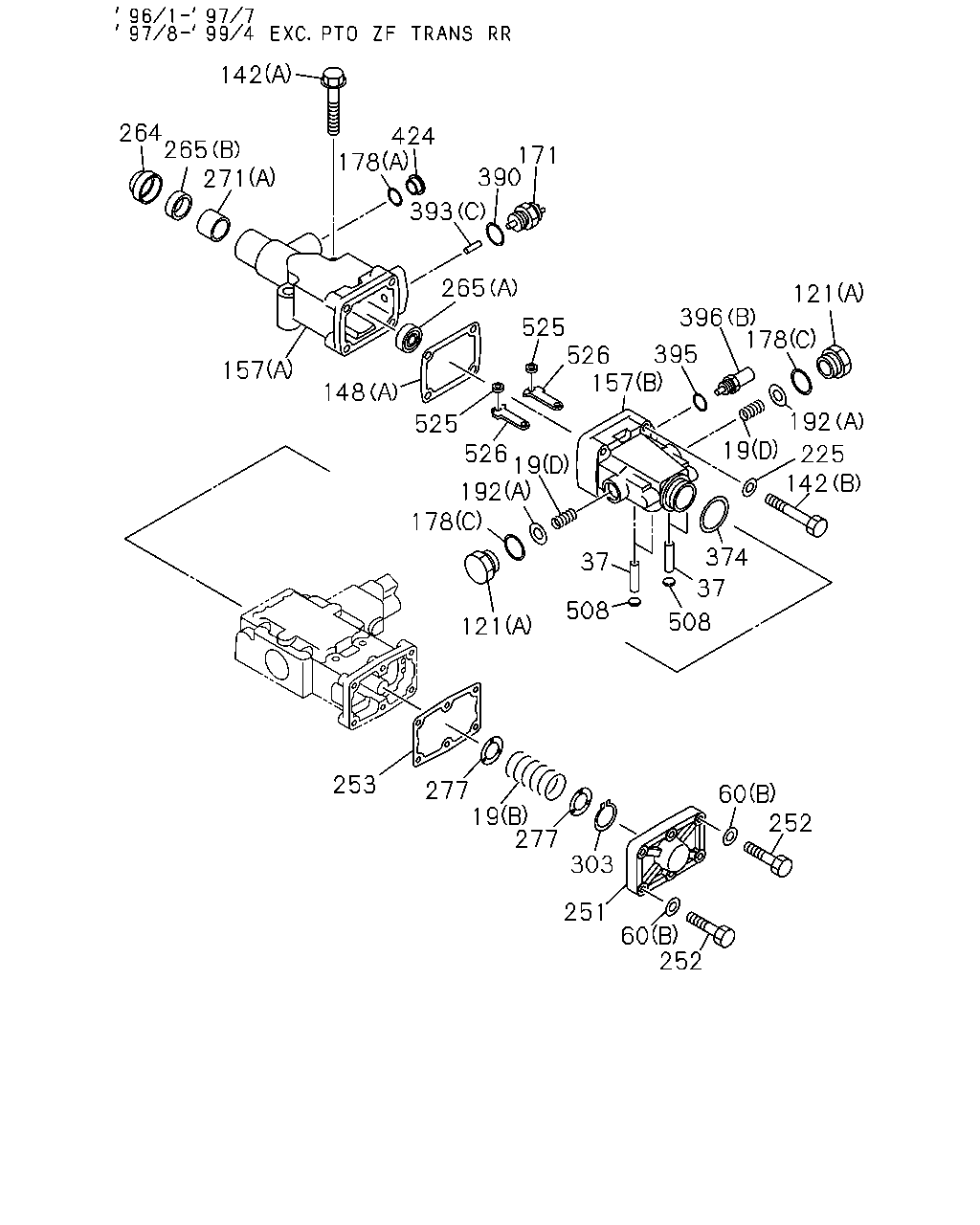

çizim 7763
157 148 154 154 264 265 271 271 154 320 526 154 154 142 303 277 225 142 154 142 274 526 19 277 225 424 178 178 19 148 121 171 390 393 129 239 242 121 241 142 240 396 19 178 396 19 178 121 157 121 317 570 317 570 569 440 256 90 272 90 298 251 304 165 90 430 90 310 253 252 165 570 571 251 524 430
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 9601- ●
19 SPRING; COIL COMP
(D) 		1-33539-022-0 02 1 9601-9707 ●
19 SPRING; COIL COMP
(D) 		1-33549-189-0 02 1 9708-9904 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (D) 		1-33539-022-0 02 1 9905- ●
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 9601- ●
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 9601- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (D) 		1-33549-189-0 02 1 9905- ●
90 RING; SNAP,SHIFT ROD 1-33529-109-0 04 1 9905- ●
121 PLUG; DETENT SPR
(A) 		1-33549-194-0 03 1 9601- ●
121 PLUG; DETENT SPR
PTO ZF TRANS RR(BDM) (B) 		1-33549-305-0 01 1 9708-9904 ●
121 PLUG; DETENT SPR
(B) 		1-33549-305-0 01 1 9905- ●
129 PIN; SPR,SHIFT 1-33529-107-0 01 1 9905- ●
142 BOLT; QUAD BOX
(B) 		1-33549-185-0 04 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-185-0 04 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) 		1-33549-193-0 10 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-193-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (B) M8X30 		1-33549-172-0 11 1 9708-9904 ●
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 9905- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) M8X80 		1-33549-256-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 9905- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-055-0 01 1 9601-9707 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (A) 		1-33542-055-0 01 1 9708-9904 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (B) 		1-33544-044-0 01 1 9708-9904 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33544-044-0 01 1 9905- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (A) 		1-33549-299-0 01 1 9708-9904 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-319-0 01 1 9905- ●
154 PIN; SELECT LEVER
PTO ZF TRANS RR(BDM) (A) 		1-33529-040-0 02 1 9708-9904 ●
154 PIN; SELECT LEVER
(A) 		1-33529-040-0 04 1 9905- ●
154 PIN; SELECT LEVER
PTO ZF TRANS RR(BDM) (B) 		1-33529-064-0 02 1 9708-9904 ●
157 BOX; QUAD,TRANS
(B) 		1-33541-475-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33541-475-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-476-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33541-476-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-498-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33541-498-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) (A) 		1-33549-292-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(A) 		1-33549-313-0 01 1 9905- ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33549-306-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-326-0 01 1 9905- ●
165 LEVER; SHIFT
(A) 		1-33549-321-0 01 1 9905- ●
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 9905- ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9601-9707 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 04 1 9708-9904 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9905- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 03 1 9708-9904 ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 04 1 9601-9707 ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 11 1 9708-9904 ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 09 1 9905- ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9601-9707 ●
239 BOLT; CUT OFF VALVE
PTO ZF TRANS RR(BDM) 		1-33549-302-0 04 1 9708-9904 ●
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 9905- ●
239 BOLT; CUT OFF VALVE
EXC. PTO ZF TRANS RR(BDM) 		1-33549-301-0 04 1 9708-9904 ●
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 9601- ●
241 VALVE; CUT OFF 1-33549-199-0 01 1 9601-9904 ●
241 VALVE; CUT OFF 1-33549-334-0 01 1 9905- ●
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 9601- ●
251 COVER; SIDE 1-33543-044-0 01 1 9601-9707 ●
251 COVER; SIDE
EXC. PTO ZF TRANS RR(BDM) 		1-33543-044-0 01 1 9708-9904 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) 		1-33549-309-0 01 1 9708-9904 ●
251 COVER; SIDE 1-33549-330-0 01 1 9905- ●
252 BOLT; SIDE COVER
M8X35 		1-33119-271-0 06 1 9601-9707 ●
252 BOLT; SIDE COVER
EXC. PTO ZF TRANS RR(BDM) M8X35 		1-33119-271-0 06 1 9708-9904 ●
252 BOLT; SIDE COVER
PTO ZF TRANS RR(BDM) M8X30 		1-33549-172-0 04 1 9708-9904 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-045-0 01 1 9601-9707 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) 		1-33544-045-0 01 1 9708-9904 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) 		1-33544-044-0 01 1 9708-9904 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-057-0 01 1 9601- ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9601-9904 ●
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 9905- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-118-0 01 1 9601-9904 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33549-120-0 01 1 9601-9810 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-120-0 01 1 9811-9904 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33549-328-0 01 1 9905- ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9601-9904 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-318-0 01 1 9905- ●
271 BUSHING; QUAD BOX
(B) 		1-33549-190-0 01 1 9601-9707 ●
271 BUSHING; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-190-0 01 1 9708-9904 ●
271 BUSHING; QUAD BOX
PTO ZF TRANS RR(BDM) (B) 		1-33549-297-0 01 1 9708-9904 ●
271 BUSHING; QUAD BOX
(B) 		1-33549-329-0 01 1 9905- ●
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 9601- ●
274 COVER; SHAFT,QUAD BOX
PTO ZF TRANS RR(BDM) 		1-33549-300-0 01 1 9708-9904 ●
274 COVER; SHAFT,QUAD BOX 1-33549-320-0 01 1 9905- ●
277 PLATE; SPRING SEAT 1-33539-039-0 02 1 9601- ●
298 SHAFT; SHIFT LEVER 1-33522-151-0 01 1 9601-9707 ●
298 SHAFT; SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33522-151-0 01 1 9708-9904 ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-33549-293-0 01 1 9708-9904 ●
298 SHAFT; SHIFT LEVER 1-33549-314-0 01 1 9905- ●
303 RING; SNAP,SHAFT 1-33539-040-0 01 1 9601- ●
304 BLOCK; SHIFT SHAFT 1-33529-078-0 01 1 9601-9707 ●
304 BLOCK; SHIFT SHAFT 1-33549-294-0 01 1 9708-9904 ●
304 BLOCK; SHIFT SHAFT 1-33549-315-0 01 1 9905- ●
310 PLATE; LOCK,SHIFT LEVER 1-33529-081-0 01 1 9601-9707 ●
310 PLATE; LOCK,SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33529-081-0 01 1 9708-9904 ●
310 PLATE; LOCK,SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-33549-295-0 01 1 9708-9904 ●
310 PLATE; LOCK,SHIFT LEVER 1-33549-316-0 01 1 9905- ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ●
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 9905- ●
320 SHAFT; LEVER 1-33529-082-0 01 1 9601-9707 ●
320 SHAFT; LEVER
PTO ZF TRANS RR(BDM) 		1-33549-296-0 01 1 9708-9904 ●
320 SHAFT; LEVER 1-33549-317-0 01 1 9905- ●
320 SHAFT; LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33529-105-0 01 1 9708-9904 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9601- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9601- ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9601- ●
393 PIN; SW
(C) 		1-33549-066-0 01 1 9601-9904 ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9905- ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR(BDM) (B) 		1-33529-085-0 02 1 9601-9904 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9905- ●
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33529-067-0 01 1 9601-9904 ●
424 PLUG; NEUTRAL SW HOLE 1-33119-171-0 01 1 9601- ●
430 PIN; SPR,SHIFT ROD
(A) 		1-33529-079-0 02 1 9601-9904 ●
430 PIN; SPR,SHIFT ROD
(B) 		1-33529-080-0 02 1 9601-9904 ●
430 PIN; SPR,SHIFT ROD
(C) 		1-33529-083-0 01 1 9601-9904 ●
430 PIN; SPR,SHIFT ROD
(D) 		1-33529-084-0 01 1 9601-9707 ●
430 PIN; SPR,SHIFT ROD
EXC. PTO ZF TRANS RR(BDM) (D) 		1-33529-084-0 01 1 9708-9904 ●
430 PIN; SPR,SHIFT ROD
(D) 		1-33529-108-0 02 1 9905- ●
440 PLUG; OIL
PTO ZF TRANS RR(BDM) 		1-34139-032-0 01 1 9708-9904 ●
524 DETENT; QUAD BOX 1-33549-197-0 01 1 9601- ●
526 LEVER; DETENT 1-33549-187-0 02 1 9601-9707 ●
526 LEVER; DETENT
PTO ZF TRANS RR(BDM) 		1-33549-298-0 02 1 9708-9904 ●
526 LEVER; DETENT 1-33549-298-0 02 1 9905- ●
526 LEVER; DETENT
EXC. PTO ZF TRANS RR(BDM) 		1-33549-310-0 02 1 9708-9904 ●
569 PIN; QUADRANT BOX 1-33529-106-0 01 1 9905- ●
570 PIN; SHIFT LEVER
(A) 		1-33529-110-0 02 1 9905- ●
570 PIN; SHIFT LEVER
(B) 		1-33529-111-0 01 1 9905- ●
571 ROLLER; LEVER 1-33549-324-0 01 1 9905- ●
çizim 8962
142 264 265 271 424 171 390 178 393 265 121 396 178 525 526 395 157 157 148 192 525 526 19 19 225 142 192 178 374 37 37 508 508 121 253 277 19 277 60 252 303 251 60 252
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 9601- ●
19 SPRING; COIL COMP
(D) 		1-33539-022-0 02 1 9601-9707 ●
19 SPRING; COIL COMP
(D) 		1-33549-189-0 02 1 9708-9904 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (D) 		1-33539-022-0 02 1 9905- ●
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 9601- ●
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 9601- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (D) 		1-33549-189-0 02 1 9905- ●
37 PIN; STOPPER ARM
EXC. PTO ZF TRANS RR(BDM) 		1-33529-064-0 04 1 9601-9904 ●
60 WASHER; LK
(A) 		1-33519-059-0 02 1 9601-9707 ●
60 WASHER; LK
PTO ZF TRANS RR(BDM) (A) 		1-33519-059-0 01 1 9708-9904 ●
60 WASHER; LK
(A) 		1-33519-059-0 02 1 9905- ●
60 WASHER; LK
(B) 		1-33549-159-0 06 1 9601-9707 ●
60 WASHER; LK
PTO ZF TRANS RR(BDM) (B) 		1-33549-159-0 04 1 9708-9904 ●
60 WASHER; LK
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33519-059-0 02 1 9708-9904 ●
121 PLUG; DETENT SPR
(A) 		1-33549-194-0 03 1 9601- ●
121 PLUG; DETENT SPR
PTO ZF TRANS RR(BDM) (B) 		1-33549-305-0 01 1 9708-9904 ●
121 PLUG; DETENT SPR
(B) 		1-33549-305-0 01 1 9905- ●
142 BOLT; QUAD BOX
(B) 		1-33549-185-0 04 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-185-0 04 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) 		1-33549-193-0 10 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-193-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (B) M8X30 		1-33549-172-0 11 1 9708-9904 ●
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 9905- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) M8X80 		1-33549-256-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 9905- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33542-055-0 01 1 9601-9707 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (A) 		1-33542-055-0 01 1 9708-9904 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (B) 		1-33544-044-0 01 1 9708-9904 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33544-044-0 01 1 9905- ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (A) 		1-33549-299-0 01 1 9708-9904 ●
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-319-0 01 1 9905- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-475-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33541-475-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-476-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33541-476-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-498-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33541-498-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) (A) 		1-33549-292-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(A) 		1-33549-313-0 01 1 9905- ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33549-306-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-326-0 01 1 9905- ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9601-9707 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 04 1 9708-9904 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9905- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 03 1 9708-9904 ●
192 WASHER; PL
(B) 		9-09160-714-0 02 1 9601-9904 ●
192 WASHER; PL
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-188-0 02 1 9601-9904 ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 04 1 9601-9707 ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 11 1 9708-9904 ●
225 WASHER; LK,QUAD BOX 1-33549-159-0 09 1 9905- ●
251 COVER; SIDE 1-33543-044-0 01 1 9601-9707 ●
251 COVER; SIDE
EXC. PTO ZF TRANS RR(BDM) 		1-33543-044-0 01 1 9708-9904 ●
251 COVER; SIDE
PTO ZF TRANS RR(BDM) 		1-33549-309-0 01 1 9708-9904 ●
251 COVER; SIDE 1-33549-330-0 01 1 9905- ●
252 BOLT; SIDE COVER
M8X35 		1-33119-271-0 06 1 9601-9707 ●
252 BOLT; SIDE COVER
EXC. PTO ZF TRANS RR(BDM) M8X35 		1-33119-271-0 06 1 9708-9904 ●
252 BOLT; SIDE COVER
PTO ZF TRANS RR(BDM) M8X30 		1-33549-172-0 04 1 9708-9904 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-045-0 01 1 9601-9707 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) 		1-33544-045-0 01 1 9708-9904 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) 		1-33544-044-0 01 1 9708-9904 ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9601-9904 ●
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 9905- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-118-0 01 1 9601-9904 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33549-120-0 01 1 9601-9810 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-120-0 01 1 9811-9904 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33549-328-0 01 1 9905- ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9601-9904 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-318-0 01 1 9905- ●
271 BUSHING; QUAD BOX
(B) 		1-33549-190-0 01 1 9601-9707 ●
271 BUSHING; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-190-0 01 1 9708-9904 ●
271 BUSHING; QUAD BOX
PTO ZF TRANS RR(BDM) (B) 		1-33549-297-0 01 1 9708-9904 ●
271 BUSHING; QUAD BOX
(B) 		1-33549-329-0 01 1 9905- ●
277 PLATE; SPRING SEAT 1-33539-039-0 02 1 9601- ●
303 RING; SNAP,SHAFT 1-33539-040-0 01 1 9601- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-056-0 01 1 9601-9707 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) 		1-33542-056-0 01 1 9708-9904 ●
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9601- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9601- ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9601- ●
393 PIN; SW
(C) 		1-33549-066-0 01 1 9601-9904 ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9905- ●
395 GASKET; PLUNGER
T=2.80 		1-33529-068-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.80 		1-33529-068-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.70 		1-33529-069-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.70 		1-33529-069-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.60 		1-33529-070-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.60 		1-33529-070-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.50 		1-33529-071-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.50 		1-33529-071-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.40 		1-33529-072-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.40 		1-33529-072-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.30 		1-33529-073-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.30 		1-33529-073-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.20 		1-33529-074-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.20 		1-33529-074-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.10 		1-33529-075-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.10 		1-33529-075-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.00 		1-33529-076-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.00 		1-33529-076-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=1.90 		1-33529-077-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=1.90 		1-33529-077-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.30 		1-33529-100-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.30 		1-33529-100-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.20 		1-33529-101-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.20 		1-33529-101-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.10 		1-33529-102-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.10 		1-33529-102-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.00 		1-33529-103-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.00 		1-33529-103-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.90 		1-33529-104-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.90 		1-33529-104-0 01 1 9708-9904 ●
395 GASKET; PLUNGER 1-33549-167-0 02 1 9601- ●
395 GASKET; PLUNGER
PTO ZF TRANS RR(BDM) 16X22 		1-36289-021-0 01 1 9708-9904 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR(BDM) (B) 		1-33529-085-0 02 1 9601-9904 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9905- ●
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33529-067-0 01 1 9601-9904 ●
424 PLUG; NEUTRAL SW HOLE 1-33119-171-0 01 1 9601- ●
508 CUP; SEALING 1-33529-065-0 04 1 9601-9707 ●
508 CUP; SEALING
EXC. PTO ZF TRANS RR(BDM) 		1-33529-065-0 04 1 9708-9904 ●
525 RING; DETENT 1-33549-186-0 02 1 9601-9707 ●
525 RING; DETENT
EXC. PTO ZF TRANS RR(BDM) 		1-33549-186-0 02 1 9708-9904 ●
526 LEVER; DETENT 1-33549-187-0 02 1 9601-9707 ●
526 LEVER; DETENT
PTO ZF TRANS RR(BDM) 		1-33549-298-0 02 1 9708-9904 ●
526 LEVER; DETENT 1-33549-298-0 02 1 9905- ●
526 LEVER; DETENT
EXC. PTO ZF TRANS RR(BDM) 		1-33549-310-0 02 1 9708-9904 ●

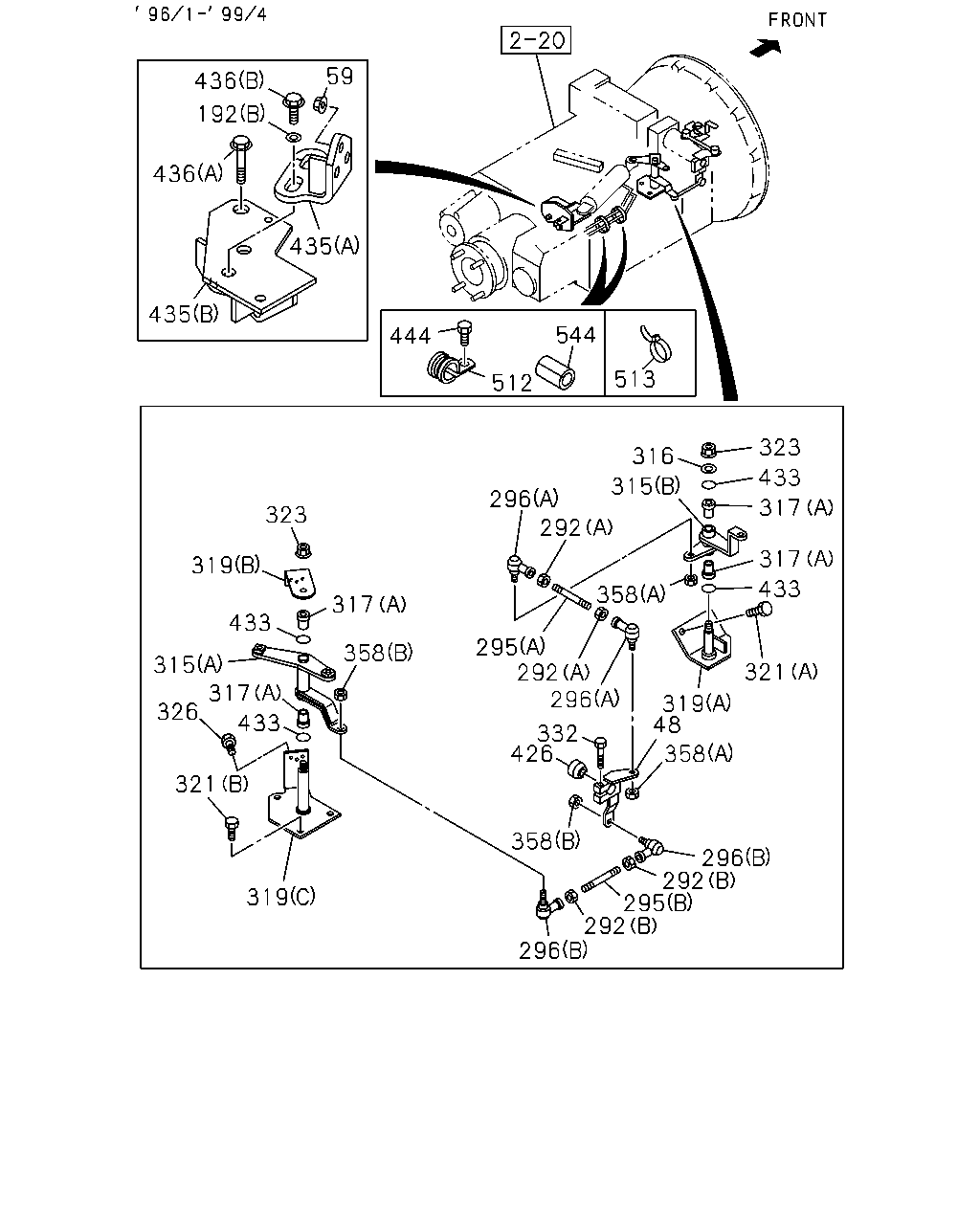

çizim 9258
59 436 192 436 435 435 544 444 513 512 323 316 433 315 296 292 317 323 317 319 433 358 317 433 295 292 296 358 315 321 317 319 48 326 433 332 426 358 321 358 296 292 295 292 296 319
BalonParca AdiParca NoAdetTipApplied Date A B
48 LEVER; 4TH,SHIFT 1-33651-639-0 01 1 9601-9906 ●
48 LEVER; 4TH,SHIFT 1-33651-639-0 01 1 9907- ● ●
59 NUT 1-33739-440-0 03 1 9601-9904 ●
192 WASHER; PL
(B) 		9-09160-714-0 02 1 9601-9904 ●
192 WASHER; PL
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-188-0 02 1 9601-9904 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9810 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9811-9904 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906 ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005- ● ●
292 NUT; LINK ROD
(B) M10 		9-09111-410-0 02 1 9601-9906 ●
292 NUT; LINK ROD
(B) M10 		9-09111-410-0 02 1 9907- ● ●
295 ROD; LINK,RELAY LEVER
(A) M8 L=50 		9-08400-805-0 01 1 9601-9906 ●
295 ROD; LINK,RELAY LEVER
(A) M8 L=50 		9-08400-805-0 01 1 9907- ● ●
295 ROD; LINK,RELAY LEVER
(B) M8 L=90 		9-08401-009-0 01 1 9601-9906 ●
295 ROD; LINK,RELAY LEVER
(B) M8 L=90 		9-08401-009-0 01 1 9907- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9601-9810 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9811-9904 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906 ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907-0004 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0005- ● ●
296 ROD END
(B) 		1-09760-110-0 02 1 9601-9710 ●
296 ROD END
(B) 		1-09760-124-0 02 1 9711-9906 ●
296 ROD END
(B) 		1-09760-124-0 02 1 9907- ● ●
315 LEVER; SELECT
(A) 		1-33651-672-0 01 1 9601-9904 ●
315 LEVER; SELECT
(A) 		1-33651-743-0 01 1 9905-9906 ●
315 LEVER; SELECT
(A) 		1-33651-743-0 01 1 9907- ● ●
315 LEVER; SELECT
10PE1S(60L) (B) 		1-33651-673-0 01 1 9601-9807 ●
315 LEVER; SELECT
10PE1S(60L) (B) 		1-33651-720-0 01 1 9808-9904 ●
315 LEVER; SELECT
V TYPE ENG<91L> (B) 		1-33651-745-0 01 1 9905- ● ●
315 LEVER; SELECT
6WA1 TC-S(56L) (B) 		1-33651-676-0 01 1 9601-9807 ●
315 LEVER; SELECT
6WA1 TC-S(56L) (B) 		1-33651-721-0 01 1 9808-9810 ●
315 LEVER; SELECT
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-33651-721-0 01 1 9811-9904 ●
315 LEVER; SELECT
L TYPE ENG<90L> (B) 		1-33651-744-0 01 1 9905- ●
316 WASHER; PL,LEVER
ID=10.5 OD=26 		9-09160-710-0 01 1 9601-9904 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ●
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 9905- ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-635-2 01 1 9601-9810 ●
319 BRACKET; SELECT LEVER
(B) 		1-33657-728-0 01 1 9811-9904 ●
319 BRACKET; SELECT LEVER
(E) 		1-33657-718-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(E) 		1-33657-718-0 01 1 9907- ● ●
319 BRACKET; SELECT LEVER
(A) 		1-33657-636-0 01 1 9601-9904 ●
319 BRACKET; SELECT LEVER
(F) 		1-33657-717-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(F) 		1-33657-717-0 01 1 9907- ● ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-637-1 01 1 9601-9807 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-698-0 01 1 9808-9810 ●
319 BRACKET; SELECT LEVER
(C) 		1-33657-731-0 01 1 9811-9904 ●
319 BRACKET; SELECT LEVER
(G) 		1-33657-741-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(G) 		1-33657-741-0 01 1 9907- ● ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-742-0 01 1 9905-9906 ●
319 BRACKET; SELECT LEVER
(D) 		1-33657-742-0 01 1 9907- ● ●
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 		0-28781-230-0 03 1 9601-9906 ●
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 		0-28781-230-0 03 1 9907- ● ●
321 BOLT; BRKT,RELAY LEVER
(A) M16X25 FLANGE 		0-28881-625-0 02 1 9601-9604 ●
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28881-630-0 02 1 9605-9906 ●
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28881-630-0 02 1 9907- ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-9904 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0004 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0004 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0005- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0005- ● ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 02 1 9601-9904 ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 04 1 9905-9906 ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 04 1 9907- ● ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 02 1 9905-9906 ●
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 02 1 9907- ● ●
332 BOLT; 4TH,SHIFT LEVER
M8X35 W/LK WASHER 		0-50040-835-0 01 1 9601-9606 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9607-9906 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9907- ● ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9906 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9907- ● ●
358 NUT; SHIFT ROD
(B) M10 T=10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
358 NUT; SHIFT ROD
(B) M10 T=11 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
358 NUT; SHIFT ROD
(B) M10 T=11.5 FLANGE M10 FLANGE 		1-09440-061-0 02 1 9803-9906 ●
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 9907- ● ●
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 9601- ●
426 CAP; POWER CYL 1-33549-111-0 01 1 9601-9701 ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9601-9904 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0004 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0004 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0005- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0005- ● ●
435 BRACKET; POWER CYL
(A) 		1-33657-650-0 01 1 9601-9904 ●
435 BRACKET; POWER CYL
(B) 		1-33657-651-1 01 1 9601-9601 ●
435 BRACKET; POWER CYL
(B) 		1-33657-659-1 01 1 9602-9606 ●
435 BRACKET; POWER CYL
(B) 		1-33657-665-0 01 1 9607-9706 ●
435 BRACKET; POWER CYL
(B) 		1-33657-688-0 01 1 9707-9802 ●
435 BRACKET; POWER CYL
(B) 		1-33657-699-0 01 1 9803-9904 ●
436 BOLT; BRKT,POWER CYL
(B) M14X40 FLANGE 		0-28681-440-0 02 1 9601-9904 ●
436 BOLT; BRKT,POWER CYL
(A) M16X25 FLANGE 		0-28881-625-0 01 1 9601-9904 ●
444 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 9601-9904 ●
512 CLIP; PIPE
ID=21 L=24 		8-94176-807-1 01 1 9601-9904 ●
513 CLIP; BAND
L=140 		5-09707-031-1 03 1 9601-9904 ●
513 CLIP; BAND
L=250 		5-09707-030-1 01 1 9905-9906 ●
513 CLIP; BAND
L=250 		5-09707-030-1 01 1 9907-0004 ● ●
544 RUBBER
ID=14 OD=18 L=60 		1-09337-030-0 01 1 9601-9601 ●

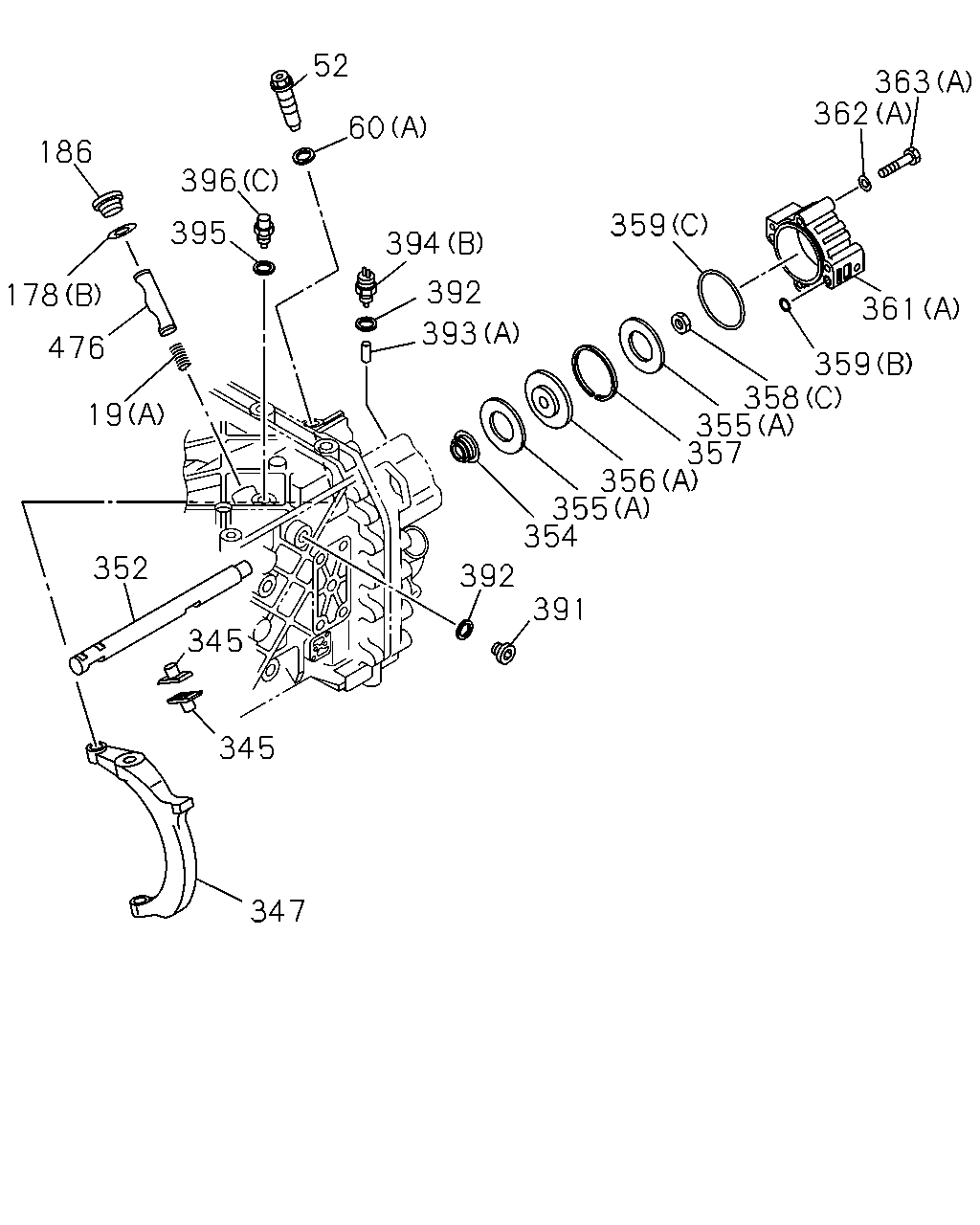

çizim 41162
52 363 362 60 186 396 359 395 394 392 178 361 393 476 359 358 355 357 19 356 355 354 352 392 391 345 345 347
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 9601- ●
19 SPRING; COIL COMP
(D) 		1-33539-022-0 02 1 9601-9707 ●
19 SPRING; COIL COMP
(D) 		1-33549-189-0 02 1 9708-9904 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (D) 		1-33539-022-0 02 1 9905- ●
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 9601- ●
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 9601- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (D) 		1-33549-189-0 02 1 9905- ●
52 BOLT; SHIFT ARM 1-33519-058-0 02 1 9601-9707 ●
52 BOLT; SHIFT ARM
PTO ZF TRANS RR(BDM) 		1-33519-058-0 01 1 9708-9904 ●
52 BOLT; SHIFT ARM 1-33519-058-0 02 1 9905- ●
52 BOLT; SHIFT ARM
EXC. PTO ZF TRANS RR(BDM) 		1-33519-058-0 02 1 9708-9904 ●
60 WASHER; LK
(A) 		1-33519-059-0 02 1 9601-9707 ●
60 WASHER; LK
PTO ZF TRANS RR(BDM) (A) 		1-33519-059-0 01 1 9708-9904 ●
60 WASHER; LK
(A) 		1-33519-059-0 02 1 9905- ●
60 WASHER; LK
(B) 		1-33549-159-0 06 1 9601-9707 ●
60 WASHER; LK
PTO ZF TRANS RR(BDM) (B) 		1-33549-159-0 04 1 9708-9904 ●
60 WASHER; LK
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33519-059-0 02 1 9708-9904 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9601-9707 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 04 1 9708-9904 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9905- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 03 1 9708-9904 ●
186 PLUG; SHIFTER ROD 1-33519-056-0 01 1 9601- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-037-0 02 1 9601- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-566-0 01 1 9601- ●
352 ROD; SHIFT,RANGE CHANGE 1-33511-524-0 01 1 9601- ●
354 SEAL; AIR CYL 1-33519-068-0 02 1 9601- ●
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 9601- ●
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 9601- ●
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 9601- ●
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 9601- ●
357 RING; GUIDE,AIR CYL 1-33519-032-0 01 1 9601- ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9906 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9907- ● ●
358 NUT; SHIFT ROD
(B) M10 T=10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
358 NUT; SHIFT ROD
(B) M10 T=11 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
358 NUT; SHIFT ROD
(B) M10 T=11.5 FLANGE M10 FLANGE 		1-09440-061-0 02 1 9803-9906 ●
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 9907- ● ●
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 9601- ●
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 9601- ●
359 GASKET; AIR CYL
(B) 		1-33519-034-0 04 1 9601-9904 ●
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 9601- ●
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 9601- ●
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 9905- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-117-0 01 1 9601- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-120-0 01 1 9601-9904 ●
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 9905- ●
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 9601- ●
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 9601- ●
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 9601- ●
363 BOLT; AIR CYL
(B) 		1-33519-075-0 02 1 9601-9707 ●
363 BOLT; AIR CYL
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33519-075-0 02 1 9708-9904 ●
363 BOLT; AIR CYL
PTO ZF TRANS RR(BDM) (B) 		1-33519-128-0 02 1 9708-9904 ●
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 9905- ●
391 PLUG; SW HOLE 1-33119-171-0 01 1 9601-9707 ●
391 PLUG; SW HOLE 1-33119-171-0 02 1 9708- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 9601-9707 ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 04 1 9708- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9601- ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9601- ●
393 PIN; SW
(C) 		1-33549-066-0 01 1 9601-9904 ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9905- ●
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 9601- ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 9601-9707 ●
394 SWITCH; RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM) (B) 		1-82440-095-0 01 1 9708-9904 ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 9905- ●
395 GASKET; PLUNGER
T=2.80 		1-33529-068-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.80 		1-33529-068-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.70 		1-33529-069-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.70 		1-33529-069-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.60 		1-33529-070-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.60 		1-33529-070-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.50 		1-33529-071-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.50 		1-33529-071-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.40 		1-33529-072-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.40 		1-33529-072-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.30 		1-33529-073-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.30 		1-33529-073-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.20 		1-33529-074-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.20 		1-33529-074-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.10 		1-33529-075-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.10 		1-33529-075-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.00 		1-33529-076-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.00 		1-33529-076-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=1.90 		1-33529-077-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=1.90 		1-33529-077-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.30 		1-33529-100-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.30 		1-33529-100-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.20 		1-33529-101-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.20 		1-33529-101-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.10 		1-33529-102-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.10 		1-33529-102-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.00 		1-33529-103-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.00 		1-33529-103-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.90 		1-33529-104-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.90 		1-33529-104-0 01 1 9708-9904 ●
395 GASKET; PLUNGER 1-33549-167-0 02 1 9601- ●
395 GASKET; PLUNGER
PTO ZF TRANS RR(BDM) 16X22 		1-36289-021-0 01 1 9708-9904 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR(BDM) (B) 		1-33529-085-0 02 1 9601-9904 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9905- ●
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33529-067-0 01 1 9601-9904 ●
476 PIN; SHIFT ROD 1-33519-040-0 01 1 9601- ●

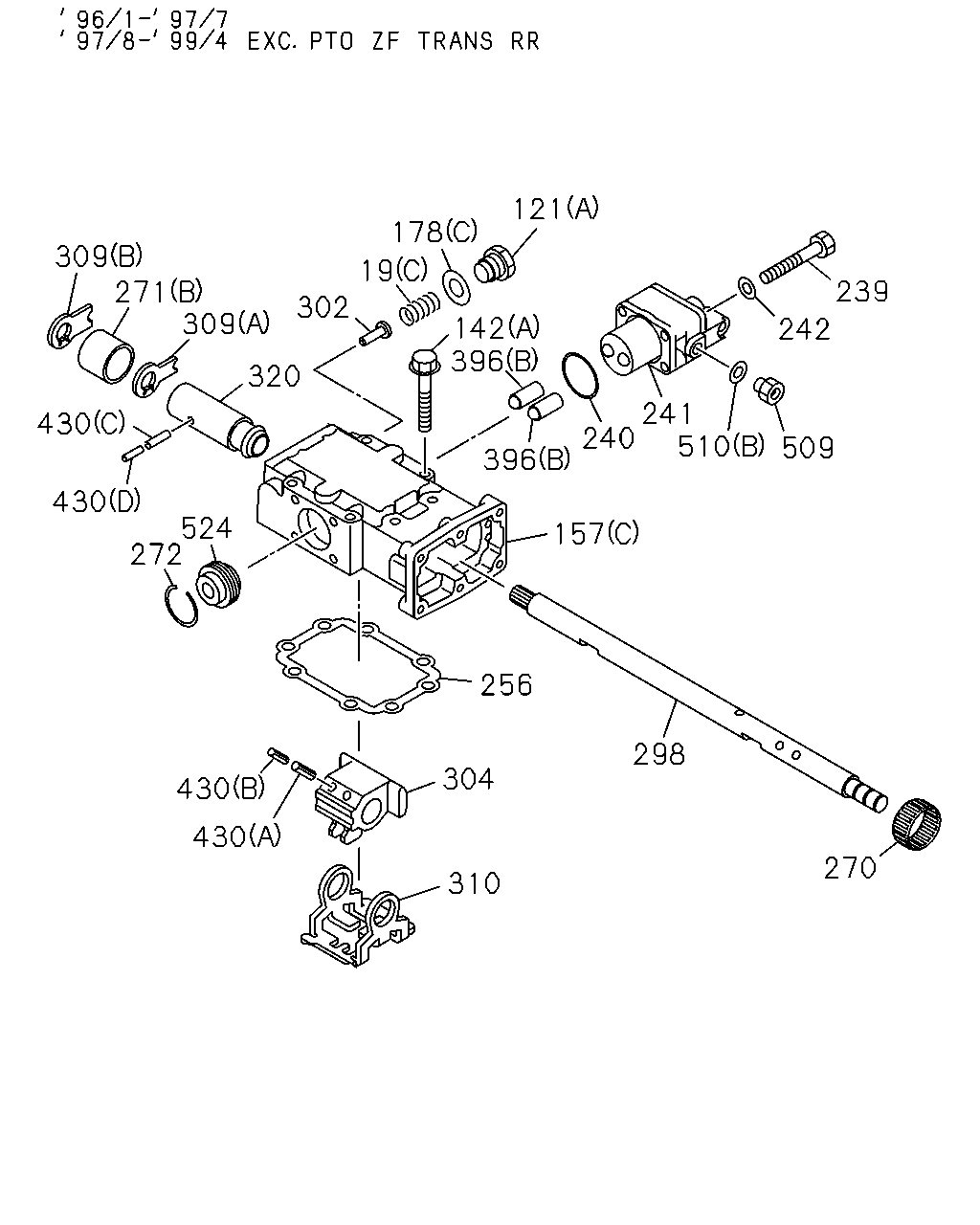

çizim 41369
121 178 309 271 19 239 309 302 142 396 242 320 241 240 510 430 396 509 430 524 272 157 256 298 304 430 430 270 310
BalonParca AdiParca NoAdetTipApplied Date A B
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 9601- ●
19 SPRING; COIL COMP
(D) 		1-33539-022-0 02 1 9601-9707 ●
19 SPRING; COIL COMP
(D) 		1-33549-189-0 02 1 9708-9904 ●
19 SPRING; COIL COMP
PTO ZF TRANS RR(BDM) (D) 		1-33539-022-0 02 1 9905- ●
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 9601- ●
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 9601- ●
19 SPRING; COIL COMP
EXC. PTO ZF TRANS RR(BDM) (D) 		1-33549-189-0 02 1 9905- ●
121 PLUG; DETENT SPR
(A) 		1-33549-194-0 03 1 9601- ●
121 PLUG; DETENT SPR
PTO ZF TRANS RR(BDM) (B) 		1-33549-305-0 01 1 9708-9904 ●
121 PLUG; DETENT SPR
(B) 		1-33549-305-0 01 1 9905- ●
142 BOLT; QUAD BOX
(B) 		1-33549-185-0 04 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-185-0 04 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) 		1-33549-193-0 10 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-193-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (B) M8X30 		1-33549-172-0 11 1 9708-9904 ●
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 9905- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) M8X80 		1-33549-256-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 9905- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-475-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33541-475-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-476-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (C) 		1-33541-476-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-498-0 01 1 9601-9707 ●
157 BOX; QUAD,TRANS
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33541-498-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) (A) 		1-33549-292-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(A) 		1-33549-313-0 01 1 9905- ●
157 BOX; QUAD,TRANS
PTO ZF TRANS RR(BDM) (B) 		1-33549-306-0 01 1 9708-9904 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-326-0 01 1 9905- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 9601- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9601-9707 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 04 1 9708-9904 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 9905- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). EXC. PTO ZF TRANS RR(BDM) (C) 		1-33549-195-0 03 1 9708-9904 ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9601-9707 ●
239 BOLT; CUT OFF VALVE
PTO ZF TRANS RR(BDM) 		1-33549-302-0 04 1 9708-9904 ●
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 9905- ●
239 BOLT; CUT OFF VALVE
EXC. PTO ZF TRANS RR(BDM) 		1-33549-301-0 04 1 9708-9904 ●
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 9601- ●
241 VALVE; CUT OFF 1-33549-199-0 01 1 9601-9904 ●
241 VALVE; CUT OFF 1-33549-334-0 01 1 9905- ●
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 9601- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-057-0 01 1 9601- ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 01 1 9601-9810 ●
270 BEARING; NEEDLE,QUAD BOX
EXC. PTO ZF TRANS RR(BDM) 		1-33549-162-0 01 1 9708-9904 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9601-9904 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-318-0 01 1 9905- ●
271 BUSHING; QUAD BOX
(B) 		1-33549-190-0 01 1 9601-9707 ●
271 BUSHING; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-190-0 01 1 9708-9904 ●
271 BUSHING; QUAD BOX
PTO ZF TRANS RR(BDM) (B) 		1-33549-297-0 01 1 9708-9904 ●
271 BUSHING; QUAD BOX
(B) 		1-33549-329-0 01 1 9905- ●
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 9601- ●
298 SHAFT; SHIFT LEVER 1-33522-151-0 01 1 9601-9707 ●
298 SHAFT; SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33522-151-0 01 1 9708-9904 ●
298 SHAFT; SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-33549-293-0 01 1 9708-9904 ●
298 SHAFT; SHIFT LEVER 1-33549-314-0 01 1 9905- ●
302 BOLT; LEVER SHAFT
EXC. PTO ZF TRANS RR(BDM) 		1-33549-288-0 01 1 9601-9904 ●
304 BLOCK; SHIFT SHAFT 1-33529-078-0 01 1 9601-9707 ●
304 BLOCK; SHIFT SHAFT 1-33549-294-0 01 1 9708-9904 ●
304 BLOCK; SHIFT SHAFT 1-33549-315-0 01 1 9905- ●
309 PLATE; SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-191-0 01 1 9601-9810 ●
309 PLATE; SHIFT LEVER
(A) 		1-33549-191-0 01 1 9708-9904 ●
309 PLATE; SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-192-0 01 1 9601-9810 ●
309 PLATE; SHIFT LEVER
(B) 		1-33549-192-0 01 1 9708-9904 ●
310 PLATE; LOCK,SHIFT LEVER 1-33529-081-0 01 1 9601-9707 ●
310 PLATE; LOCK,SHIFT LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33529-081-0 01 1 9708-9904 ●
310 PLATE; LOCK,SHIFT LEVER
PTO ZF TRANS RR(BDM) 		1-33549-295-0 01 1 9708-9904 ●
310 PLATE; LOCK,SHIFT LEVER 1-33549-316-0 01 1 9905- ●
320 SHAFT; LEVER 1-33529-082-0 01 1 9601-9707 ●
320 SHAFT; LEVER
PTO ZF TRANS RR(BDM) 		1-33549-296-0 01 1 9708-9904 ●
320 SHAFT; LEVER 1-33549-317-0 01 1 9905- ●
320 SHAFT; LEVER
EXC. PTO ZF TRANS RR(BDM) 		1-33529-105-0 01 1 9708-9904 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR(BDM) (B) 		1-33529-085-0 02 1 9601-9904 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9905- ●
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33529-067-0 01 1 9601-9904 ●
430 PIN; SPR,SHIFT ROD
(A) 		1-33529-079-0 02 1 9601-9904 ●
430 PIN; SPR,SHIFT ROD
(B) 		1-33529-080-0 02 1 9601-9904 ●
430 PIN; SPR,SHIFT ROD
(C) 		1-33529-083-0 01 1 9601-9904 ●
430 PIN; SPR,SHIFT ROD
(D) 		1-33529-084-0 01 1 9601-9707 ●
430 PIN; SPR,SHIFT ROD
EXC. PTO ZF TRANS RR(BDM) (D) 		1-33529-084-0 01 1 9708-9904 ●
430 PIN; SPR,SHIFT ROD
(D) 		1-33529-108-0 02 1 9905- ●
509 ADAPTER 1-33549-169-0 01 1 9601-9904 ●
510 GASKET; ADAPTER
(A) 		1-33119-249-0 01 1 9601-9707 ●
510 GASKET; ADAPTER
(A) T=2.0 		1-82449-010-0 01 1 9708- ●
510 GASKET; ADAPTER
(B) 		1-33549-250-0 01 1 9601-9707 ●
510 GASKET; ADAPTER
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-250-0 01 1 9708-9904 ●
510 GASKET; ADAPTER
PTO ZF TRANS RR(BDM) (B) 		1-33549-307-0 01 1 9708-9904 ●
524 DETENT; QUAD BOX 1-33549-197-0 01 1 9601- ●
çizim 41472
361 359 529 359 358 355 356 354 90 373 368 350 359 365 370 362 370 393 395 363 392 394 350 396
BalonParca AdiParca NoAdetTipApplied Date A B
90 RING; SNAP,SHIFT ROD 1-33529-109-0 04 1 9905- ●
350 SCREW; SHIFT ARM 1-33519-065-0 02 1 9601- ●
354 SEAL; AIR CYL 1-33519-068-0 02 1 9601- ●
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 9601- ●
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 9601- ●
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 9601- ●
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 9601- ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9906 ●
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9907- ● ●
358 NUT; SHIFT ROD
(B) M10 T=10 FLANGE 		1-09440-050-0 02 1 9601-9710 ●
358 NUT; SHIFT ROD
(B) M10 T=11 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
358 NUT; SHIFT ROD
(B) M10 T=11.5 FLANGE M10 FLANGE 		1-09440-061-0 02 1 9803-9906 ●
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 9907- ● ●
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 9601- ●
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 9601- ●
359 GASKET; AIR CYL
(B) 		1-33519-034-0 04 1 9601-9904 ●
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 9601- ●
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 9601- ●
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 9905- ●
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-117-0 01 1 9601- ●
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-120-0 01 1 9601-9904 ●
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 9905- ●
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 9601- ●
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 9601- ●
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 9601- ●
363 BOLT; AIR CYL
(B) 		1-33519-075-0 02 1 9601-9707 ●
363 BOLT; AIR CYL
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33519-075-0 02 1 9708-9904 ●
363 BOLT; AIR CYL
PTO ZF TRANS RR(BDM) (B) 		1-33519-128-0 02 1 9708-9904 ●
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 9905- ●
365 VALVE; AIR CYL 1-33519-074-0 01 1 9601- ●
368 ARM; SHIFT,SPLITTER GEAR 1-33511-508-0 01 1 9601- ●
370 BLOCK; SHIFT,SPLITTER GEAR 1-33519-053-0 02 1 9601- ●
373 ROD; SHIFT,SPLITTER GEAR 1-33531-450-0 01 1 9601- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 9601-9707 ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 04 1 9708- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9601- ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9601- ●
393 PIN; SW
(C) 		1-33549-066-0 01 1 9601-9904 ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9905- ●
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 9601- ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 9601-9707 ●
394 SWITCH; RANGE CHANGE
EXC. PTO ZF TRANS RR(BDM) (B) 		1-82440-095-0 01 1 9708-9904 ●
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 01 1 9905- ●
395 GASKET; PLUNGER
T=2.80 		1-33529-068-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.80 		1-33529-068-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.70 		1-33529-069-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.70 		1-33529-069-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.60 		1-33529-070-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.60 		1-33529-070-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.50 		1-33529-071-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.50 		1-33529-071-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.40 		1-33529-072-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.40 		1-33529-072-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.30 		1-33529-073-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.30 		1-33529-073-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.20 		1-33529-074-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.20 		1-33529-074-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.10 		1-33529-075-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.10 		1-33529-075-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.00 		1-33529-076-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.00 		1-33529-076-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=1.90 		1-33529-077-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=1.90 		1-33529-077-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.30 		1-33529-100-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.30 		1-33529-100-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.20 		1-33529-101-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.20 		1-33529-101-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.10 		1-33529-102-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.10 		1-33529-102-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=3.00 		1-33529-103-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=3.00 		1-33529-103-0 01 1 9708-9904 ●
395 GASKET; PLUNGER
T=2.90 		1-33529-104-0 01 1 9601-9707 ●
395 GASKET; PLUNGER
EXC. PTO ZF TRANS RR(BDM) T=2.90 		1-33529-104-0 01 1 9708-9904 ●
395 GASKET; PLUNGER 1-33549-167-0 02 1 9601- ●
395 GASKET; PLUNGER
PTO ZF TRANS RR(BDM) 16X22 		1-36289-021-0 01 1 9708-9904 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33519-073-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 9601- ●
396 PLUNGER; SHIFT ROD
PTO ZF TRANS RR(BDM) (B) 		1-33529-085-0 02 1 9601-9904 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9905- ●
396 PLUNGER; SHIFT ROD
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33529-067-0 01 1 9601-9904 ●
529 SPRING; AIR CYL 1-33519-078-0 01 1 9601- ●
çizim 41474
398 411 393 78 528 510 51 51 32 51 392 391 61 102 392 391 102 349 351 351 353 513 349 351 351 349 351 351 346 351 351 349 346
BalonParca AdiParca NoAdetTipApplied Date A B
32 ARM; SHIFT,1ST & 2ND 1-33511-565-0 01 1 9601- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33519-053-0 02 1 9601- ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33519-116-0 01 1 9601- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-522-0 01 1 9601- ●
78 ARM; SHIFT,REV 1-33511-523-0 01 1 9601- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33519-053-0 02 1 9601- ●
346 HOSE; AIR
(A) 		1-33549-202-0 01 1 9601-9904 ●
346 HOSE; AIR
(A) 		1-33549-336-0 01 1 9905- ●
346 HOSE; AIR
(B) 		1-33549-203-0 01 1 9601-9904 ●
346 HOSE; AIR
(B) 		1-33549-337-0 01 1 9905- ●
346 HOSE; AIR
(C) 		1-33739-798-0 01 1 9601-9904 ●
346 HOSE; AIR
(D) 		1-33739-866-0 01 1 9601-9904 ●
346 HOSE; AIR
(E) 		1-33739-867-0 01 1 9601-9904 ●
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-144-0 05 1 9601-9904 ●
349 BOLT; EYE,AIR HOSE
(C) 		1-33549-155-0 04 1 9601- ●
349 BOLT; EYE,AIR HOSE
PTO ZF TRANS RR(BDM) (B) 		1-82440-095-0 01 1 9708-9904 ●
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 9905- ●
351 GASKET; CONNECTOR
(A) 		1-33549-129-0 10 1 9601-9904 ●
351 GASKET; CONNECTOR
(A) 		1-33549-307-0 04 1 9905- ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9601-9707 ●
351 GASKET; CONNECTOR
PTO ZF TRANS RR(BDM) (B) 		1-33549-184-0 07 1 9708-9904 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9905- ●
351 GASKET; CONNECTOR
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-184-0 08 1 9708-9904 ●
353 CLIP; AIR HOSE 1-33549-142-0 03 1 9601-9904 ●
353 CLIP; AIR HOSE 1-33549-142-0 01 1 9905- ●
391 PLUG; SW HOLE 1-33119-171-0 01 1 9601-9707 ●
391 PLUG; SW HOLE 1-33119-171-0 02 1 9708- ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 9601-9707 ●
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 04 1 9708- ●
393 PIN; SW
(A) 		1-33519-029-0 02 1 9601- ●
393 PIN; SW
(B) 		1-33519-077-0 01 1 9601- ●
393 PIN; SW
(C) 		1-33549-066-0 01 1 9601-9904 ●
393 PIN; SW
(C) 		1-33549-335-0 01 1 9905- ●
398 SWITCH; REV LAMP 1-82440-095-0 01 1 9601- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). T=1.8 		1-82449-003-0 01 1 9601-9707 ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). T=2.0 		1-82449-010-0 01 1 9708- ●
510 GASKET; ADAPTER
(A) 		1-33119-249-0 01 1 9601-9707 ●
510 GASKET; ADAPTER
(A) T=2.0 		1-82449-010-0 01 1 9708- ●
510 GASKET; ADAPTER
(B) 		1-33549-250-0 01 1 9601-9707 ●
510 GASKET; ADAPTER
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-250-0 01 1 9708-9904 ●
510 GASKET; ADAPTER
PTO ZF TRANS RR(BDM) (B) 		1-33549-307-0 01 1 9708-9904 ●
513 CLIP; BAND
L=140 		5-09707-031-1 03 1 9601-9904 ●
513 CLIP; BAND
L=250 		5-09707-030-1 01 1 9905-9906 ●
513 CLIP; BAND
L=250 		5-09707-030-1 01 1 9907-0004 ● ●
528 ADAPTER; SWITCH 1-33119-278-0 01 1 9601- ●
çizim 42930
349 351 351 343 346 349 351 344 349 351 351 351 344 344 346 346 353 349 351 351 349 351 351
BalonParca AdiParca NoAdetTipApplied Date A B
343 VALVE; SHIFT CONT 1-33712-005-0 01 1 9601-9904 ●
344 NUT; SHIFT CONT VALVE 1-33739-440-0 03 1 9601-9904 ●
346 HOSE; AIR
(A) 		1-33549-202-0 01 1 9601-9904 ●
346 HOSE; AIR
(A) 		1-33549-336-0 01 1 9905- ●
346 HOSE; AIR
(B) 		1-33549-203-0 01 1 9601-9904 ●
346 HOSE; AIR
(B) 		1-33549-337-0 01 1 9905- ●
346 HOSE; AIR
(C) 		1-33739-798-0 01 1 9601-9904 ●
346 HOSE; AIR
(D) 		1-33739-866-0 01 1 9601-9904 ●
346 HOSE; AIR
(E) 		1-33739-867-0 01 1 9601-9904 ●
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-144-0 05 1 9601-9904 ●
349 BOLT; EYE,AIR HOSE
(C) 		1-33549-155-0 04 1 9601- ●
349 BOLT; EYE,AIR HOSE
PTO ZF TRANS RR(BDM) (B) 		1-82440-095-0 01 1 9708-9904 ●
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 9905- ●
351 GASKET; CONNECTOR
(A) 		1-33549-129-0 10 1 9601-9904 ●
351 GASKET; CONNECTOR
(A) 		1-33549-307-0 04 1 9905- ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9601-9707 ●
351 GASKET; CONNECTOR
PTO ZF TRANS RR(BDM) (B) 		1-33549-184-0 07 1 9708-9904 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9905- ●
351 GASKET; CONNECTOR
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-184-0 08 1 9708-9904 ●
353 CLIP; AIR HOSE 1-33549-142-0 03 1 9601-9904 ●
353 CLIP; AIR HOSE 1-33549-142-0 01 1 9905- ●
çizim 43003
349 351 351 511 351 142 348 351 573 572
BalonParca AdiParca NoAdetTipApplied Date A B
142 BOLT; QUAD BOX
(B) 		1-33549-185-0 04 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-185-0 04 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) 		1-33549-193-0 10 1 9601-9707 ●
142 BOLT; QUAD BOX
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33549-193-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (B) M8X30 		1-33549-172-0 11 1 9708-9904 ●
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 9905- ●
142 BOLT; QUAD BOX
PTO ZF TRANS RR(BDM) (A) M8X80 		1-33549-256-0 10 1 9708-9904 ●
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 9905- ●
348 CONNECTOR; AIR HOSE 1-33549-333-0 01 1 9905- ●
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-144-0 05 1 9601-9904 ●
349 BOLT; EYE,AIR HOSE
(C) 		1-33549-155-0 04 1 9601- ●
349 BOLT; EYE,AIR HOSE
PTO ZF TRANS RR(BDM) (B) 		1-82440-095-0 01 1 9708-9904 ●
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 9905- ●
351 GASKET; CONNECTOR
(A) 		1-33549-129-0 10 1 9601-9904 ●
351 GASKET; CONNECTOR
(A) 		1-33549-307-0 04 1 9905- ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9601-9707 ●
351 GASKET; CONNECTOR
PTO ZF TRANS RR(BDM) (B) 		1-33549-184-0 07 1 9708-9904 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9905- ●
351 GASKET; CONNECTOR
EXC. PTO ZF TRANS RR(BDM) (B) 		1-33549-184-0 08 1 9708-9904 ●
511 PIPE; AIR 1-33529-112-0 01 1 9905- ●
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 9905- ●
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
