0-50 — OIL COOLER AND OIL FILTER (#48268) — 116 parça

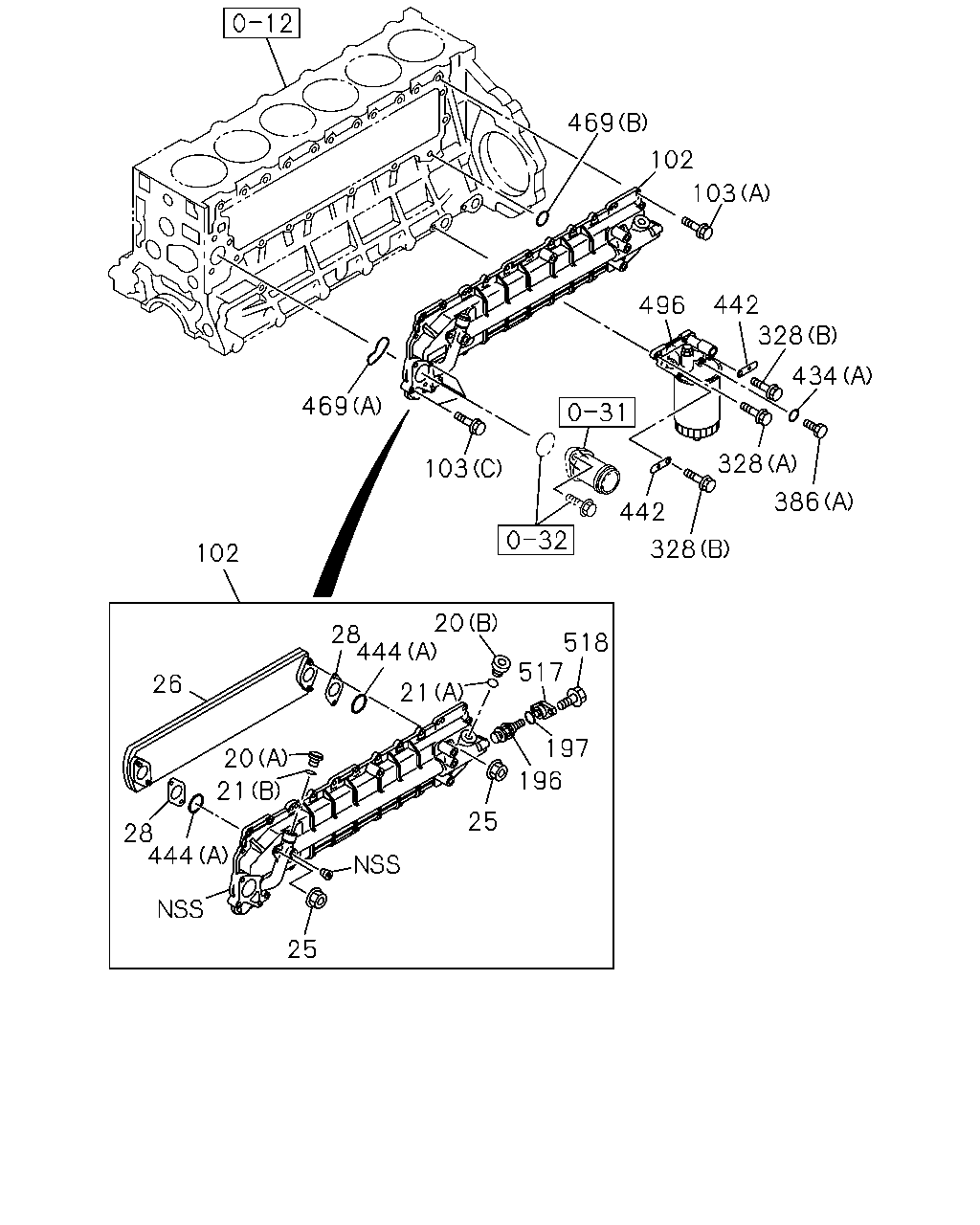

çizim 110692
469 102 103 496 442 328 434 386 328 328 442 103 469 102 28 444 21 20 517 518 197 196 25 25 444 28 21 20 26
BalonParca AdiParca NoAdetTipApplied Date
20 PLUG; COOLER BODY
(A) 		8-94393-604-0 01 1 0812-1011
20 PLUG; COOLER BODY
EURO2 SPECIFICATION<NT2> (A) 		8-94393-604-0 01 1 1012-
20 PLUG; COOLER BODY
(B) 		8-94396-753-0 01 1 0812-1011
20 PLUG; COOLER BODY
EURO2 SPECIFICATION<NT2> (B) 		8-94396-753-0 01 1 1012-
20 PLUG; COOLER BODY
EURO3 SPECIFICATION<NT3> (C) 		1-13219-240-0 02 1 1012-
20 PLUG; COOLER BODY
EURO3 SPECIFICATION<NT3> (D) 		8-97608-567-0 02 1 1012-
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0812-1011
21 GASKET; PLUG
EURO2 SPECIFICATION<NT2> (B) 		1-13219-253-0 01 1 1012-
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0812-1011
21 GASKET; PLUG
EURO2 SPECIFICATION<NT2> (A) M24 		8-94396-755-0 01 1 1012-
21 GASKET; PLUG
EURO3 SPECIFICATION<NT3> (C) ID=17.8 		8-97608-568-0 02 1 1012-
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0812-
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0812-1011
26 CORE ASM; OIL COOLER
EURO2 SPECIFICATION<NT2> 		8-94391-738-1 01 1 1012-
26 CORE ASM; OIL COOLER
EURO3 SPECIFICATION<NT3> 		8-98062-207-0 01 1 1012-
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0812-
102 COOLER ASM; OIL 8-97600-156-1 01 1 0812-1011
102 COOLER ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-97600-156-1 01 1 1012-
102 COOLER ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98130-995-0 01 1 1012-1307
102 COOLER ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98236-650-0 01 1 1308-
103 BOLT; OIL COOLER
EURO3 SPECIFICATION<NT3> (D) M8X18 FLANGE 		8-98251-758-0 04 1 1309-
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0812-1011
103 BOLT; OIL COOLER
EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE 		0-28080-822-0 24 1 1012-
103 BOLT; OIL COOLER
(C) M8X35 FLANGE 		0-28050-835-0 03 1 0812-1011
103 BOLT; OIL COOLER
EURO3 SPECIFICATION<NT3> (B) M8X30 FLANGE 		0-28650-830-0 24 1 1012-
103 BOLT; OIL COOLER
(C) M8X35 FLANGE 		0-28050-835-0 03 1 1012-
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0812-
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0812-1011
197 GASKET; THERMOSTAT
EURO2 SPECIFICATION<NT2> ID=25.7 		8-94399-279-0 01 1 1012-
197 GASKET; THERMOSTAT
EURO3 SPECIFICATION<NT3> 		8-94391-728-0 01 1 1012-
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0812-
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0812-
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1308-
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 0812-
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1308-
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0812-
442 BRACKET; HARNESS,OIL FILTER 8-97601-310-0 02 1 0812-1011
444 GASKET; ELEMENT TO BODY
EURO3 SPECIFICATION<NT3> (B) 		8-97601-801-0 02 1 1309-
444 GASKET; ELEMENT TO BODY
(A) 		8-94396-810-0 02 1 0812-1011
444 GASKET; ELEMENT TO BODY
EURO2 SPECIFICATION<NT2> (A) 		8-94396-810-0 02 1 1012-
444 GASKET; ELEMENT TO BODY
EURO3 SPECIFICATION<NT3> (A) ID=38.7 		1-09623-299-0 02 1 1012-
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0812-
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0812-
496 FILTER ASM; OIL 8-94391-015-8 01 1 0812-1307
496 FILTER ASM; OIL 8-98236-649-0 01 1 1308-
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0812-1011
517 PLUG; THERMOSTAT,OIL COOLER
EURO2 SPECIFICATION<NT2> 		8-94391-740-0 01 1 1012-
517 PLUG; THERMOSTAT,OIL COOLER
EURO3 SPECIFICATION<NT3> 		8-94391-731-0 01 1 1012-
518 BOLT; PLUG,THERMOSTAT
M8X16 FLANGE 		0-28050-816-0 02 1 0812-1011
518 BOLT; PLUG,THERMOSTAT
EURO2 SPECIFICATION<NT2> M8X16 FLANGE 		0-28050-816-0 02 1 1012-
çizim 110693
496 307 308 265 13 66 434 386 2 265 321 321 321
BalonParca AdiParca NoAdetTipApplied Date
2 ELEMENT; OIL FILTER
BEST VALUE PARTS 		1-87610-011-1 01 1 0812-1110
2 ELEMENT; OIL FILTER
BEST VALUE PARTS 		1-87610-064-0 01 1 1111-
2 ELEMENT; OIL FILTER 8-94391-049-4 01 1 0812-
13 VALVE; RELIEF 8-98238-944-0 01 1 1308-
66 SPRING; VLV 8-98238-943-0 01 1 1308-
265 BODY; OIL FILTER 8-94391-016-4 01 1 0812-1307
265 BODY; OIL FILTER 8-98238-939-0 01 1 1308-
307 VALVE; OVERFLOW 8-94395-700-0 01 1 0812-1307
308 GASKET; VLV,OVERFLOW
ID=15.8 		1-09623-163-0 01 1 0812-1307
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 0812-
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 0812-
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1308-
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 0812-
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1308-
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0812-
496 FILTER ASM; OIL 8-94391-015-8 01 1 0812-1307
496 FILTER ASM; OIL 8-98236-649-0 01 1 1308-

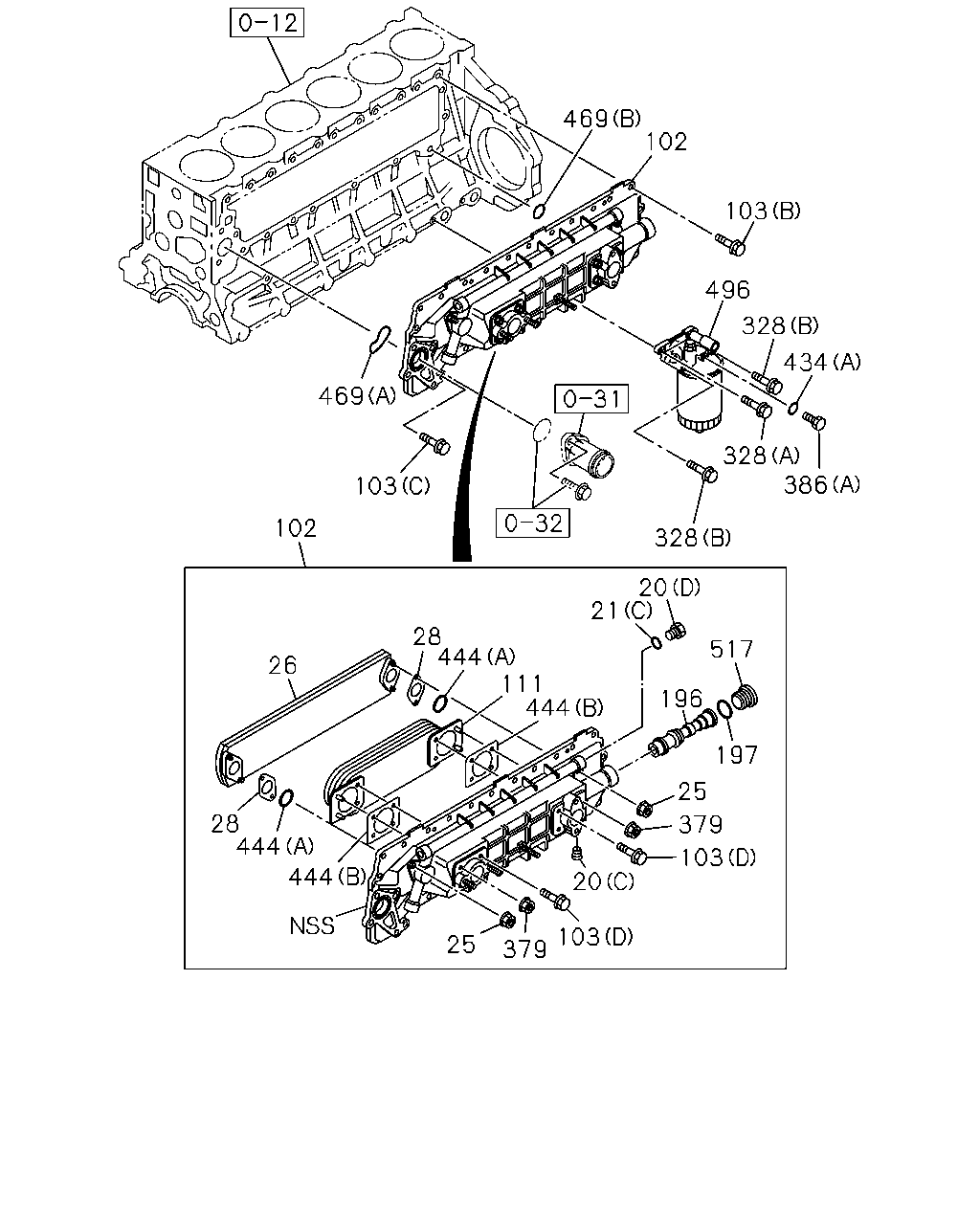

çizim 110694
469 102 103 496 328 434 386 328 328 102 103 469 21 20 517 196 197 25 379 103 20 103 379 25 444 444 28 26 28 444 111 444
BalonParca AdiParca NoAdetTipApplied Date
20 PLUG; COOLER BODY
(A) 		8-94393-604-0 01 1 0812-1011
20 PLUG; COOLER BODY
EURO2 SPECIFICATION<NT2> (A) 		8-94393-604-0 01 1 1012-
20 PLUG; COOLER BODY
(B) 		8-94396-753-0 01 1 0812-1011
20 PLUG; COOLER BODY
EURO2 SPECIFICATION<NT2> (B) 		8-94396-753-0 01 1 1012-
20 PLUG; COOLER BODY
EURO3 SPECIFICATION<NT3> (C) 		1-13219-240-0 02 1 1012-
20 PLUG; COOLER BODY
EURO3 SPECIFICATION<NT3> (D) 		8-97608-567-0 02 1 1012-
21 GASKET; PLUG
(B) 		1-13219-253-0 01 1 0812-1011
21 GASKET; PLUG
EURO2 SPECIFICATION<NT2> (B) 		1-13219-253-0 01 1 1012-
21 GASKET; PLUG
(A) M24 		8-94396-755-0 01 1 0812-1011
21 GASKET; PLUG
EURO2 SPECIFICATION<NT2> (A) M24 		8-94396-755-0 01 1 1012-
21 GASKET; PLUG
EURO3 SPECIFICATION<NT3> (C) ID=17.8 		8-97608-568-0 02 1 1012-
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 0812-
26 CORE ASM; OIL COOLER 8-94391-738-1 01 1 0812-1011
26 CORE ASM; OIL COOLER
EURO2 SPECIFICATION<NT2> 		8-94391-738-1 01 1 1012-
26 CORE ASM; OIL COOLER
EURO3 SPECIFICATION<NT3> 		8-98062-207-0 01 1 1012-
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 0812-
102 COOLER ASM; OIL 8-97600-156-1 01 1 0812-1011
102 COOLER ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-97600-156-1 01 1 1012-
102 COOLER ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98130-995-0 01 1 1012-1307
102 COOLER ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98236-650-0 01 1 1308-
103 BOLT; OIL COOLER
EURO3 SPECIFICATION<NT3> (D) M8X18 FLANGE 		8-98251-758-0 04 1 1309-
103 BOLT; OIL COOLER
(A) M8X22 FLANGE 		0-28080-822-0 24 1 0812-1011
103 BOLT; OIL COOLER
EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE 		0-28080-822-0 24 1 1012-
103 BOLT; OIL COOLER
(C) M8X35 FLANGE 		0-28050-835-0 03 1 0812-1011
103 BOLT; OIL COOLER
EURO3 SPECIFICATION<NT3> (B) M8X30 FLANGE 		0-28650-830-0 24 1 1012-
103 BOLT; OIL COOLER
(C) M8X35 FLANGE 		0-28050-835-0 03 1 1012-
111 CORE; OIL COOLER
EURO3 SPECIFICATION<NT3> 		8-98063-863-0 01 1 1309-
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 0812-
197 GASKET; THERMOSTAT
ID=25.7 		8-94399-279-0 01 1 0812-1011
197 GASKET; THERMOSTAT
EURO2 SPECIFICATION<NT2> ID=25.7 		8-94399-279-0 01 1 1012-
197 GASKET; THERMOSTAT
EURO3 SPECIFICATION<NT3> 		8-94391-728-0 01 1 1012-
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 0812-
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0812-
379 NUT; OIL COOLER
EURO3 SPECIFICATION<NT3> M8 FLANGE 		0-91180-108-0 04 1 1309-
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1308-
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 0812-
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1308-
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0812-
444 GASKET; ELEMENT TO BODY
EURO3 SPECIFICATION<NT3> (B) 		8-97601-801-0 02 1 1309-
444 GASKET; ELEMENT TO BODY
(A) 		8-94396-810-0 02 1 0812-1011
444 GASKET; ELEMENT TO BODY
EURO2 SPECIFICATION<NT2> (A) 		8-94396-810-0 02 1 1012-
444 GASKET; ELEMENT TO BODY
EURO3 SPECIFICATION<NT3> (A) ID=38.7 		1-09623-299-0 02 1 1012-
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 0812-
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 0812-
496 FILTER ASM; OIL 8-94391-015-8 01 1 0812-1307
496 FILTER ASM; OIL 8-98236-649-0 01 1 1308-
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-740-0 01 1 0812-1011
517 PLUG; THERMOSTAT,OIL COOLER
EURO2 SPECIFICATION<NT2> 		8-94391-740-0 01 1 1012-
517 PLUG; THERMOSTAT,OIL COOLER
EURO3 SPECIFICATION<NT3> 		8-94391-731-0 01 1 1012-
