Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#48266) — 73 parça

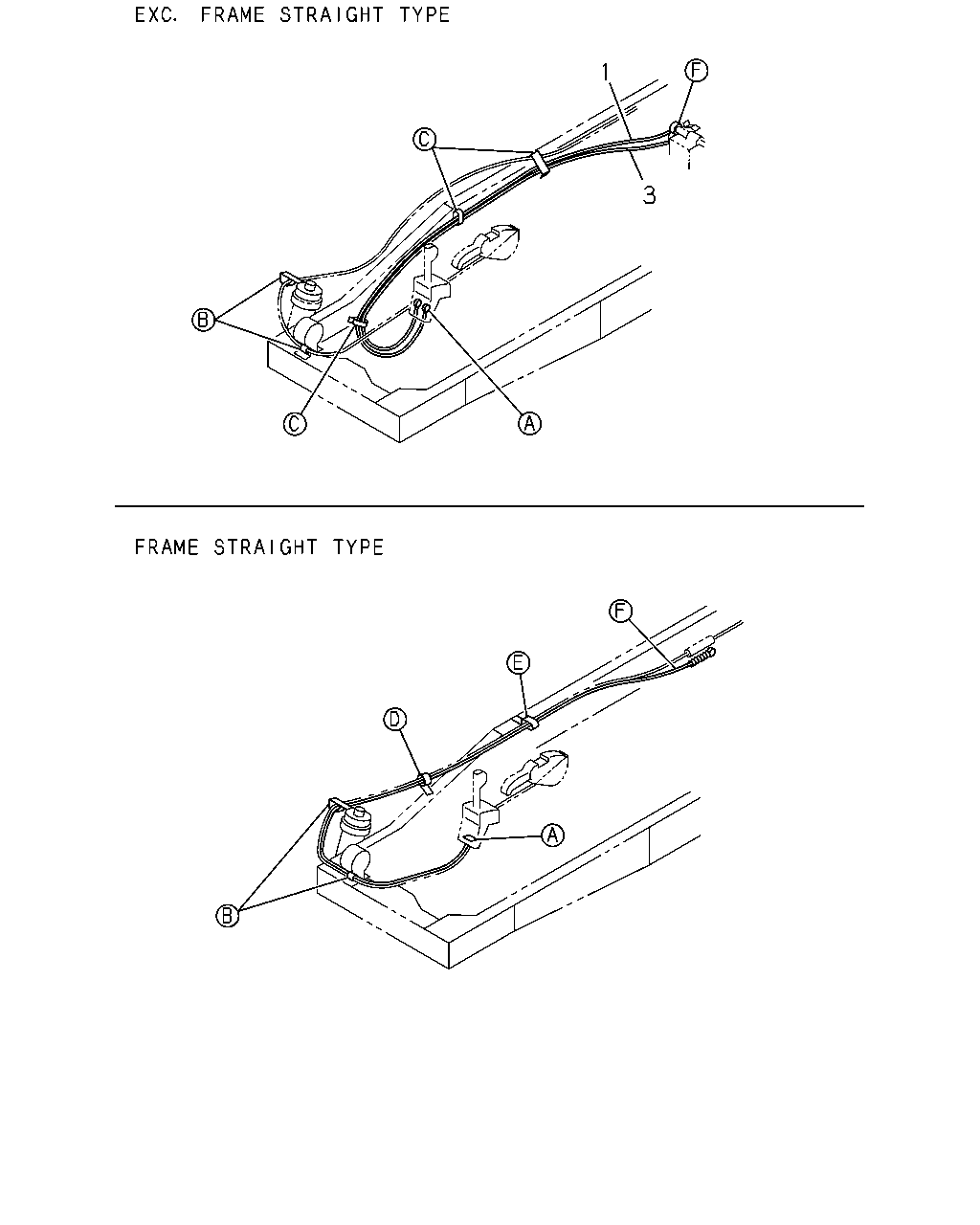

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> L=2942	8-97216-873-0	01	1	0009-	●
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745	8-97205-652-0	01	1	0009-	●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3024	8-97148-592-2	01	1	0009-0203		●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3024	8-97351-344-0	01	1	0204-		●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> L=3012	8-97216-874-0	01	1	0009-	●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800	8-97205-642-0	01	1	0009-	●
3	CABLE; SELECT,TRANS CONT 4HE1 ENG<RLY> L=3094	8-97148-588-2	01	1	0009-		●

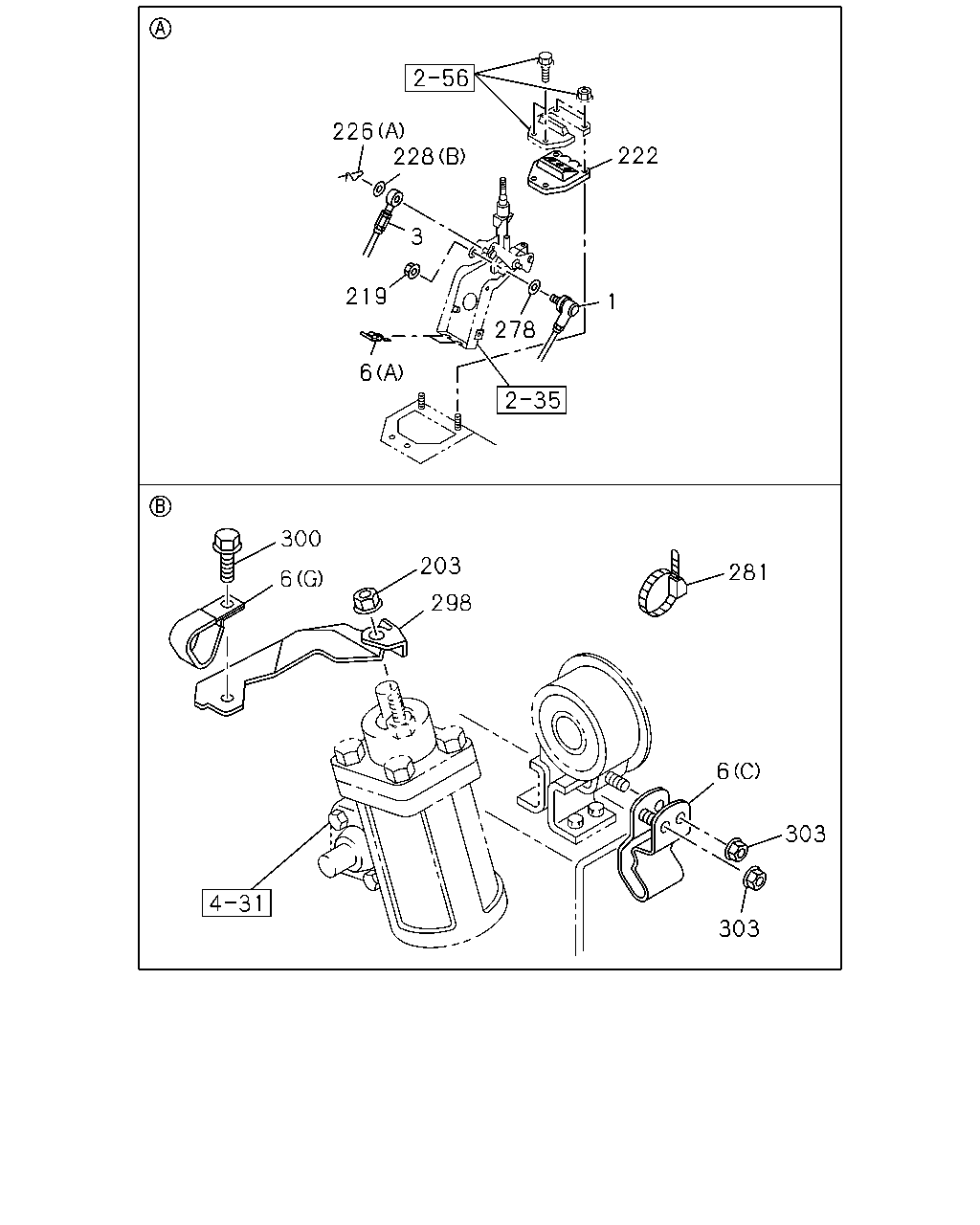

226 228 222 3 219 1 278 6 300 203 281 6 298 6 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> L=2942	8-97216-873-0	01	1	0009-	●
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745	8-97205-652-0	01	1	0009-	●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3024	8-97148-592-2	01	1	0009-0203		●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3024	8-97351-344-0	01	1	0204-		●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> L=3012	8-97216-874-0	01	1	0009-	●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800	8-97205-642-0	01	1	0009-	●
3	CABLE; SELECT,TRANS CONT 4HE1 ENG<RLY> L=3094	8-97148-588-2	01	1	0009-		●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0009-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0009-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0009-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0009-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0009-	●	●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	5-09700-341-0	01	1	0009-	●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0009-	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97147-985-0	01	1	0009-	●	●
203	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
219	NUT; FLANGE,SHAFT CABLE M8 T=8.0	8-94363-045-0	01	1	0009-	●	●
222	GROMMET; CABLE	8-97065-212-1	01	1	0009-	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0009-	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0009-	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0009-	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0009-	●	●
278	WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0009-	●	●
281	CLIP; BAND 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=250 THA	5-09707-030-1	01	1	0009-	●
298	BRACKET POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0009-	●	●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●	●
303	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	03	1	0009-0009	●	●
303	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0010-	●	●

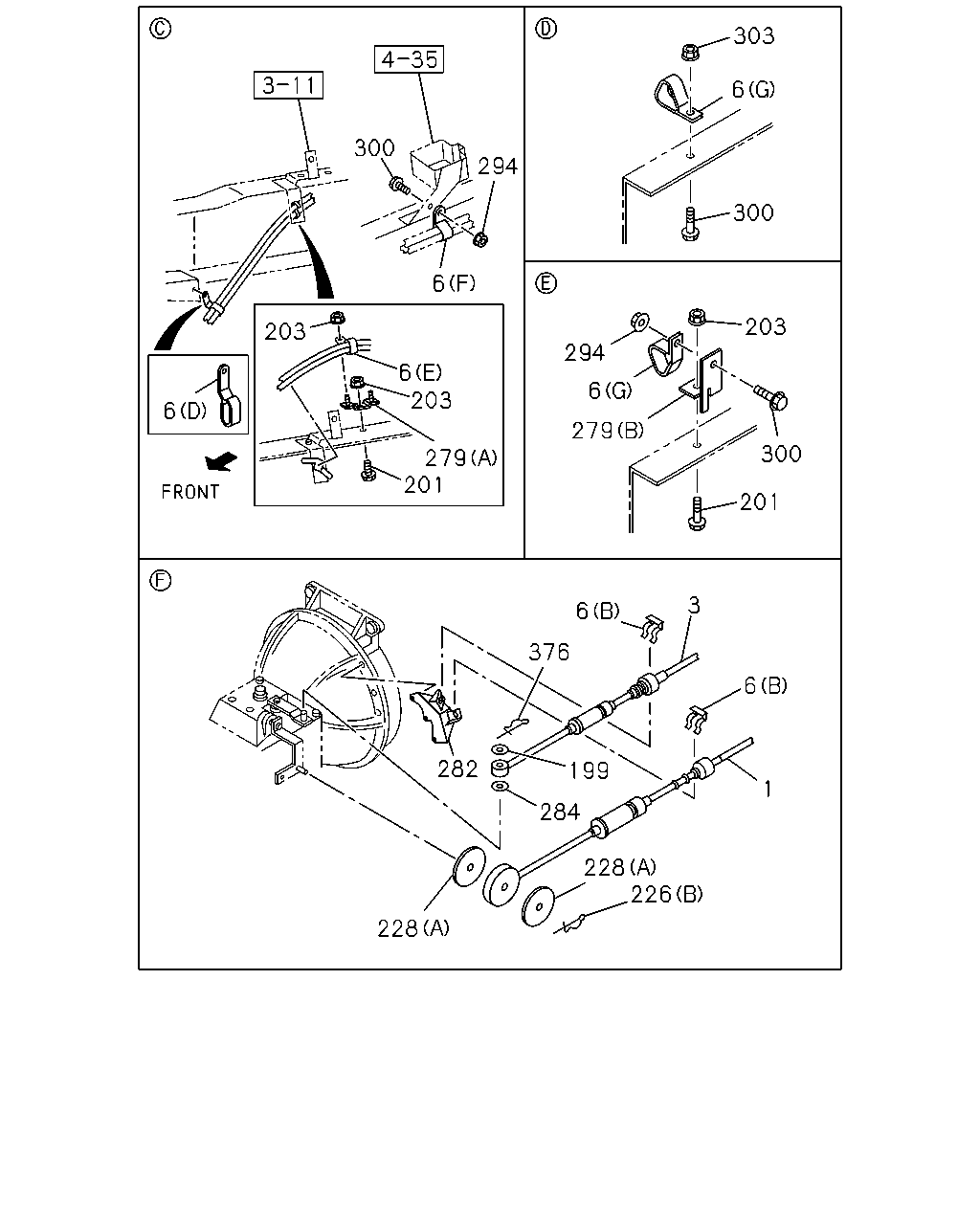

303 6 300 294 300 6 203 203 294 6 203 6 6 279 300 279 201 201 3 6 376 6 199 282 1 284 228 226 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> L=2942	8-97216-873-0	01	1	0009-	●
1	CABLE; SHIFT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2745	8-97205-652-0	01	1	0009-	●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3024	8-97148-592-2	01	1	0009-0203		●
1	CABLE; SHIFT,TRANS CONT 4HE1 ENG<RLY> L=3024	8-97351-344-0	01	1	0204-		●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> L=3012	8-97216-874-0	01	1	0009-	●
3	CABLE; SELECT,TRANS CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> L=2800	8-97205-642-0	01	1	0009-	●
3	CABLE; SELECT,TRANS CONT 4HE1 ENG<RLY> L=3094	8-97148-588-2	01	1	0009-		●
6	CLIP; CABLE (A)	8-97011-448-0	02	1	0009-	●	●
6	CLIP; CABLE (B) ID=19.2	8-97211-011-0	02	1	0009-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0009-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0009-	●	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0009-	●	●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	5-09700-341-0	01	1	0009-	●
6	CLIP; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	9-09917-171-0	01	1	0009-	●
6	CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> (C)	8-97147-985-0	01	1	0009-	●	●
199	WASHER; PL,SELECT ID=8.4	9-09160-508-0	01	1	0009-	●	●
201	BOLT; BRKT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-0009	●
201	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0010-	●	●
203	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
226	PIN; SHIFT CABLE (A) L=27.7	8-94111-137-0	01	1	0009-	●	●
226	PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0009-	●	●
228	WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0009-	●	●
228	WASHER; PL,SHIFT CABLE (B) ID=8.4	9-09164-508-0	01	1	0009-	●	●
279	BRACKET; CABLE TO FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97028-496-1	01	1	0009-	●
279	BRACKET; CABLE TO FRAME 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-065-0	01	1	0009-		●
282	BRACKET; TRANS SIDE	8-97182-260-0	01	1	0009-	●	●
284	WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0009-	●	●
294	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
300	BOLT; CLIP POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
300	BOLT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
300	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> EXC. POWER STEERING<N40> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●	●
303	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	03	1	0009-0009	●	●
303	NUT; CLIP FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0010-	●	●
376	PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0009-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
