◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#48264) — 45 parça

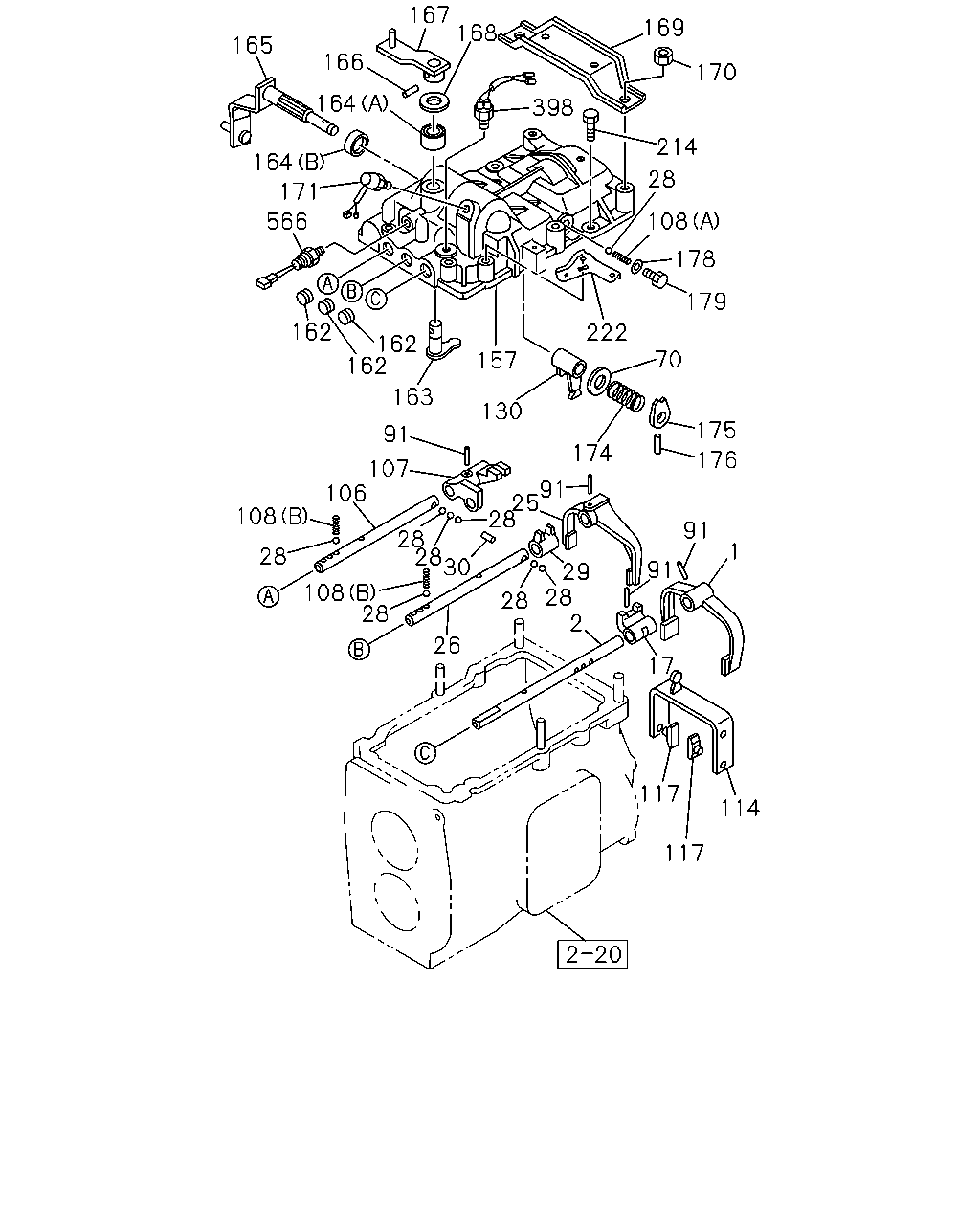

çizim 11351
167 168 169 165 166 170 164 398 214 164 28 171 108 566 178 179 162 222 162 162 70 157 163 130 175 91 174 176 107 106 91 25 28 108 91 28 28 30 1 28 91 29 28 2 108 28 28 26 17 117 114 117
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97034-825-1 01 1 0009- ● ●
2 ROD; SHIFT,1ST & REV 8-97034-820-0 01 1 0009- ● ●
17 BLOCK; SHIFT,1ST & REV 8-97034-829-1 01 1 0009- ● ●
25 ARM; SHIFT,2ND & 3RD 8-97034-826-2 01 1 0009- ● ●
26 ROD; SHIFT,2ND & 3RD 8-97129-493-0 01 1 0009- ● ●
28 BALL; INTER LK 9-00097-010-0 07 1 0009- ● ●
29 BLOCK; SHIFT,2ND & 3RD 8-97034-830-0 01 1 0009- ● ●
30 PIN; INTER LK 8-97035-041-0 01 1 0009- ● ●
70 WASHER; PL,SHIFT LEVER 8-94461-345-0 01 1 0009- ● ●
91 PIN; SPR,SHIFT ARM
L=25 OD=5 		8-94135-771-0 03 1 0009- ● ●
91 PIN; SPR,SHIFT ARM
L=32 		8-97011-596-2 02 1 0009- ● ●
106 ROD; SHIFT,OD TO TOP 8-97166-578-0 01 1 0009- ● ●
107 BLOCK; SHIFT,OD TO TOP 8-97034-832-0 01 1 0009- ● ●
108 SPRING; LOCK BALL
(A) 		8-97035-053-0 01 1 0009- ● ●
108 SPRING; LOCK BALL
(B) OD=6.8 L=31.6 		9-09740-114-0 03 1 0009- ● ●
114 ARM; SHIFT,OD TO TOP 8-97034-827-1 01 1 0009- ● ●
117 PIECE; SHIFT,OD TO TOP 8-94316-996-0 02 1 0009- ● ●
130 LEVER; SHIFT,INTERNAL 8-94340-131-2 01 1 0009- ● ●
157 BOX; QUAD,TRANS
4HG1 ENG<RJH> 		8-97249-547-0 01 1 0009- ●
157 BOX; QUAD,TRANS
4HE1 ENG<RLY> 		8-97177-066-0 01 1 0009- ●
162 COVER; SHIFT ROD,QUAD BOX 8-94101-319-0 04 1 0009- ● ●
163 LEVER; SELECT,INTERNAL
4HG1 ENG<RJH> 		8-97034-886-0 01 1 0009- ●
163 LEVER; SELECT,INTERNAL
4HE1 ENG<RLY> 		8-97177-068-1 01 1 0009- ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27 		8-94128-784-0 01 1 0009-0011 ● ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-97304-068-0 01 1 0012- ● ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32 		8-94462-019-0 01 1 0009-0011 ● ●
164 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=32 		8-97304-066-0 01 1 0012- ● ●
165 LEVER; SHIFT 8-97034-816-0 01 1 0009- ● ●
166 PIN; SPR,SELECT LEVER
L=25 OD=5 		8-94135-771-0 01 1 0009- ● ●
167 LEVER; SELECT,EXTERNAL 8-97035-558-1 01 1 0009- ● ●
168 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 0009- ● ●
169 BRACKET; ENG MTG TO TRANS
4HE1 ENG<RLY> 		8-94112-892-2 04 1 0009- ●
169 BRACKET; ENG MTG TO TRANS
4HG1 ENG<RJH> 		8-94112-892-2 02 1 0009- ●
170 NUT; CONT BOX
M12 FLANGE 		8-94249-242-0 04 1 0009- ● ●
171 SWITCH; NEUTRAL 8-97165-946-1 01 1 0009- ● ●
174 SPRING; REV 8-97035-052-0 01 1 0009- ● ●
175 RING; STOPPER,SHIFT LEVER 8-97034-819-0 01 1 0009- ● ●
176 PIN; SPR,STOPPER 9-09678-549-0 02 1 0009- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09571-612-0 01 1 0009- ● ●
179 PLUG; LOCK BALL 8-97031-668-0 01 1 0009- ● ●
214 BOLT; CONT BOX,SUB TRANS
M8X25 		8-94128-786-0 04 1 0009- ● ●
214 BOLT; CONT BOX,SUB TRANS
M8X45 		8-94132-164-0 06 1 0009- ● ●
222 BRACKET; CLIP 8-97061-051-0 01 1 0009- ● ●
398 SWITCH; REV LAMP 8-97165-947-1 01 1 0009- ● ●
566 SWITCH; SELECT,LOW REV
4HE1 ENG<RLY> 		8-97177-088-0 01 1 0009- ●
