◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#48263) — 62 parça

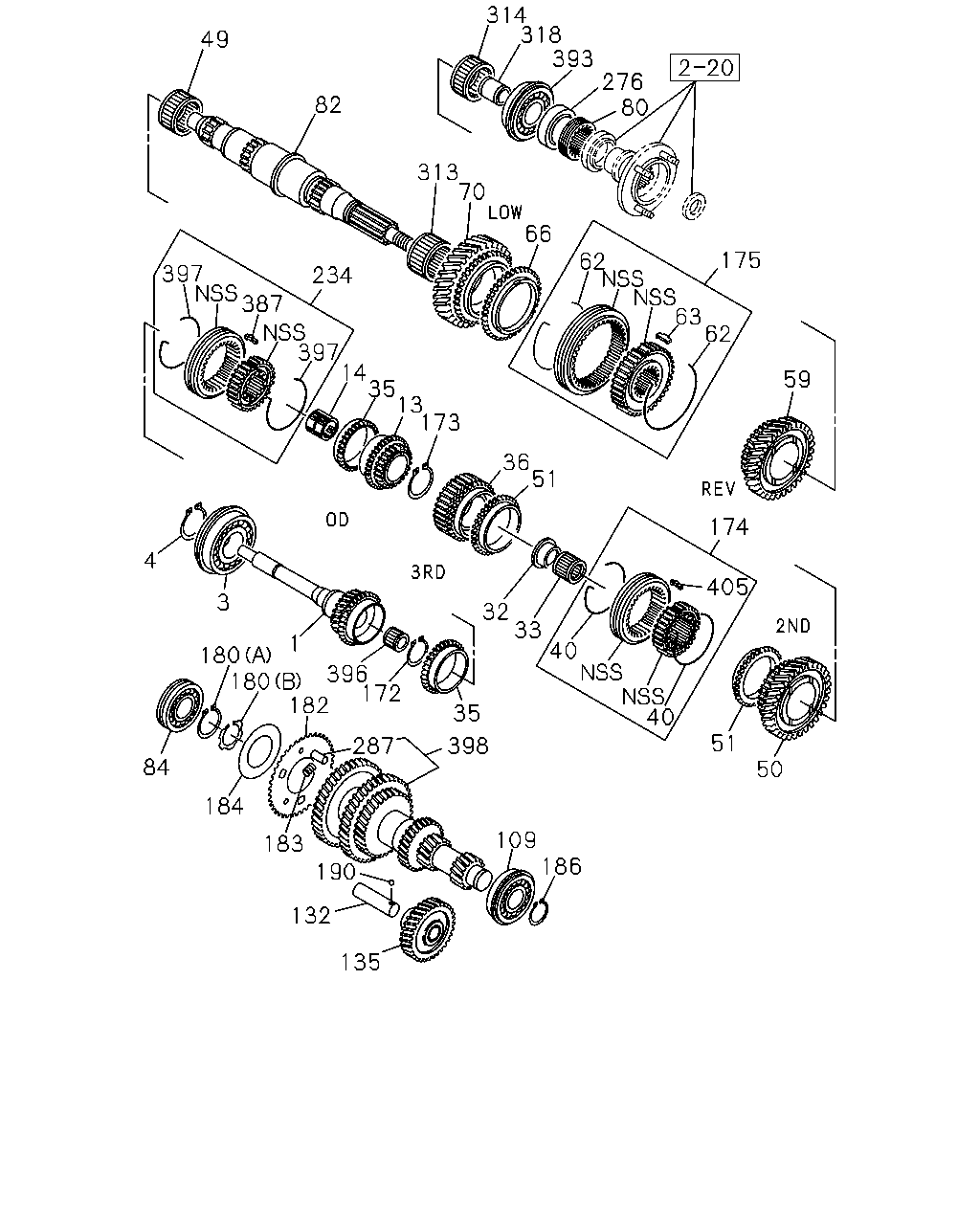

çizim 11352
314 318 393 276 80 49 82 313 70 66 175 62 63 62 397 387 234 397 14 35 13 173 59 36 51 174 4 405 3 32 33 40 40 1 180 180 182 396 172 35 51 398 287 84 50 184 109 186 183 190 132 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS
4HG1 ENG<RJH> Z=29 		8-97168-980-0 01 1 0009- ●
1 SHAFT; TOP GEAR,TRANS
4HE1 ENG<RLY> Z=29 		8-97183-680-0 01 1 0009- ●
3 BEARING; TOP GEAR SHAFT 8-97035-047-0 01 1 0009- ● ●
4 RING; SNAP,BRG TO TOP GEAR SHAFT 8-97035-040-0 01 1 0009- ● ●
13 GEAR; 5TH,MAINSHAFT
Z=23 		8-97034-856-0 01 1 0009- ● ●
14 BEARING; NEEDLE,5TH 8-97147-572-0 01 1 0009- ● ●
32 COLLAR; 3RD GEAR 8-94178-500-2 01 1 0009- ● ●
33 BEARING; NEEDLE,3RD GEAR
NTN 		8-97201-005-0 01 1 0009- ● ●
33 BEARING; NEEDLE,3RD GEAR
NSK 		9-00096-638-0 01 1 0009- ● ●
35 RING; BLOCK,4TH & 3RD
Z=36 		8-94128-775-2 02 1 0009- ● ●
36 GEAR; 3RD,MAINSHAFT
4HG1 ENG<RJH> Z=38 		8-97208-021-0 01 1 0009- ●
36 GEAR; 3RD,MAINSHAFT
4HE1 ENG<RLY> Z=38 		8-97183-678-0 01 1 0009- ●
40 SPRING; INSERT,LOW & 2ND 8-97023-708-0 02 1 0009- ● ●
49 BEARING; NEEDLE,2ND GEAR
NTN 		8-97201-005-0 01 1 0009- ● ●
49 BEARING; NEEDLE,2ND GEAR
NSK 		9-00096-638-0 01 1 0009- ● ●
50 GEAR; 2ND,MAINSHAFT
4HG1 ENG<RJH> Z=37 		8-97209-747-0 01 1 0009- ●
50 GEAR; 2ND,MAINSHAFT
4HE1 ENG<RLY> Z=37 		8-94178-506-4 01 1 0009-0105 ●
50 GEAR; 2ND,MAINSHAFT
4HE1 ENG<RLY> Z=37 		8-97315-471-0 01 1 0106- ●
51 RING; BLOCK,LOW & 2ND
Z=30 		8-97074-619-3 02 1 0009- ● ●
59 GEAR; REV MAINSHAFT
Z=40 		8-94317-146-2 01 1 0009- ● ●
62 SPRING; INSERT,REV & 5TH 8-97023-709-0 02 1 0009- ● ●
63 INSERT; SYN,REV & 5TH 9-33263-613-0 03 1 0009- ● ●
66 RING; BLOCK,SYN
Z=45 		8-97061-752-0 01 1 0009- ● ●
70 GEAR; 1ST,MAINSHAFT
4HG1 ENG<RJH> Z=44 		8-97209-749-0 01 1 0009- ●
70 GEAR; 1ST,MAINSHAFT
4HE1 ENG<RLY> Z=45 		8-97084-377-1 01 1 0009- ●
80 GEAR; SPD DRIVE
Z=4 		8-97011-348-0 01 1 0009- ● ●
82 SHAFT; MAIN,TRANS
Z=27-40-40-28 		8-97034-847-2 01 1 0009- ● ●
84 BEARING; COUNTER SHAFT,FRT
NSK 		8-97035-048-0 01 1 0009- ● ●
109 BEARING; COUNTER SHAFT,RR 8-97035-049-0 01 1 0009- ● ●
132 SHAFT; REV 8-94415-162-1 01 1 0009- ● ●
135 GEAR; REV IDLER
Z=27 		5-33361-042-2 01 1 0009- ● ●
172 RING; SNAP,CLU HUB
T=1.75 		8-94402-405-0 01 1 0009- ● ●
172 RING; SNAP,CLU HUB
T=1.80 		8-94402-406-0 01 1 0009- ● ●
172 RING; SNAP,CLU HUB
T=1.85 		8-94402-407-0 01 1 0009- ● ●
173 RING; SNAP,OVERDRIVE GEAR
T=1.85 		8-94151-522-0 01 1 0009- ● ●
173 RING; SNAP,OVERDRIVE GEAR
T=1.90 		8-94151-523-0 01 1 0009- ● ●
173 RING; SNAP,OVERDRIVE GEAR
T=1.95 		8-94151-524-0 01 1 0009- ● ●
173 RING; SNAP,OVERDRIVE GEAR
T=2.00 		8-94157-747-0 01 1 0009- ● ●
174 SYNCHRONIZER ASM; 2ND-3RD 8-97190-992-0 01 1 0009- ● ●
175 SYNCHRONIZER; LOW-REV 8-97091-434-0 01 1 0009- ● ●
180 RING; SNAP,CLUSTER GEAR
(B) ID=44.5 		5-09589-010-0 01 1 0009- ● ●
180 RING; SNAP,CLUSTER GEAR
(A) ID=32.2 		9-09180-035-0 01 1 0009- ● ●
182 PLATE; CLUSTER GEAR 8-94131-924-1 01 1 0009- ● ●
183 SPRING; PLATE,CLUSTER GEAR 8-94148-196-0 03 1 0009- ● ●
184 SPRING; CLUSTER GEAR 8-94101-320-0 01 1 0009- ● ●
186 RING; SNAP,CLUSTER GEAR
ID=32.2 		9-09180-035-0 01 1 0009- ● ●
190 BALL; LK,REV SHAFT 9-00097-509-0 01 1 0009- ● ●
234 SYNCHRONIZER ASM; 4TH TO 5TH 8-97034-841-1 01 1 0009- ● ●
276 SPACER; BRG TO DRIVE GEAR 8-97034-876-0 01 1 0009- ● ●
287 PIN; COUNTER GEAR 8-94402-462-0 03 1 0009- ● ●
313 BEARING; NEEDLE,LOW GEAR
NTN 		8-97201-005-0 01 1 0009- ● ●
313 BEARING; NEEDLE,LOW GEAR
NSK 		9-00096-638-0 01 1 0009- ● ●
314 BEARING; NEEDLE,REV GEAR
NTN 		8-97201-005-0 01 1 0009- ● ●
314 BEARING; NEEDLE,REV GEAR
NSK 		9-00096-638-0 01 1 0009- ● ●
318 COLLAR; DIST,REV GEAR 8-97076-908-0 01 1 0009- ● ●
387 INSERT; SYN,4TH & 3RD 5-33263-001-0 03 1 0009- ● ●
393 BEARING; MAINSHAFT END 8-94178-731-0 01 1 0009- ● ●
396 BEARING; NEEDLE,MAINSHAFT 8-97228-274-0 01 1 0009- ● ●
397 SPRING; INSERT,4TH & 3RD 8-97023-710-0 02 1 0009- ● ●
398 GEAR; COUNTER
4HG1 ENG<RJH> Z=45-49-35-19-13-13 		8-97209-744-0 01 1 0009- ●
398 GEAR; COUNTER
4HE1 ENG<RLY> Z=45-49-35-20-14-13 		8-97183-677-0 01 1 0009- ●
405 INSERT; SYN,LOW & 2ND 5-33263-001-0 03 1 0009- ● ●
