◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#48261) — 34 parça

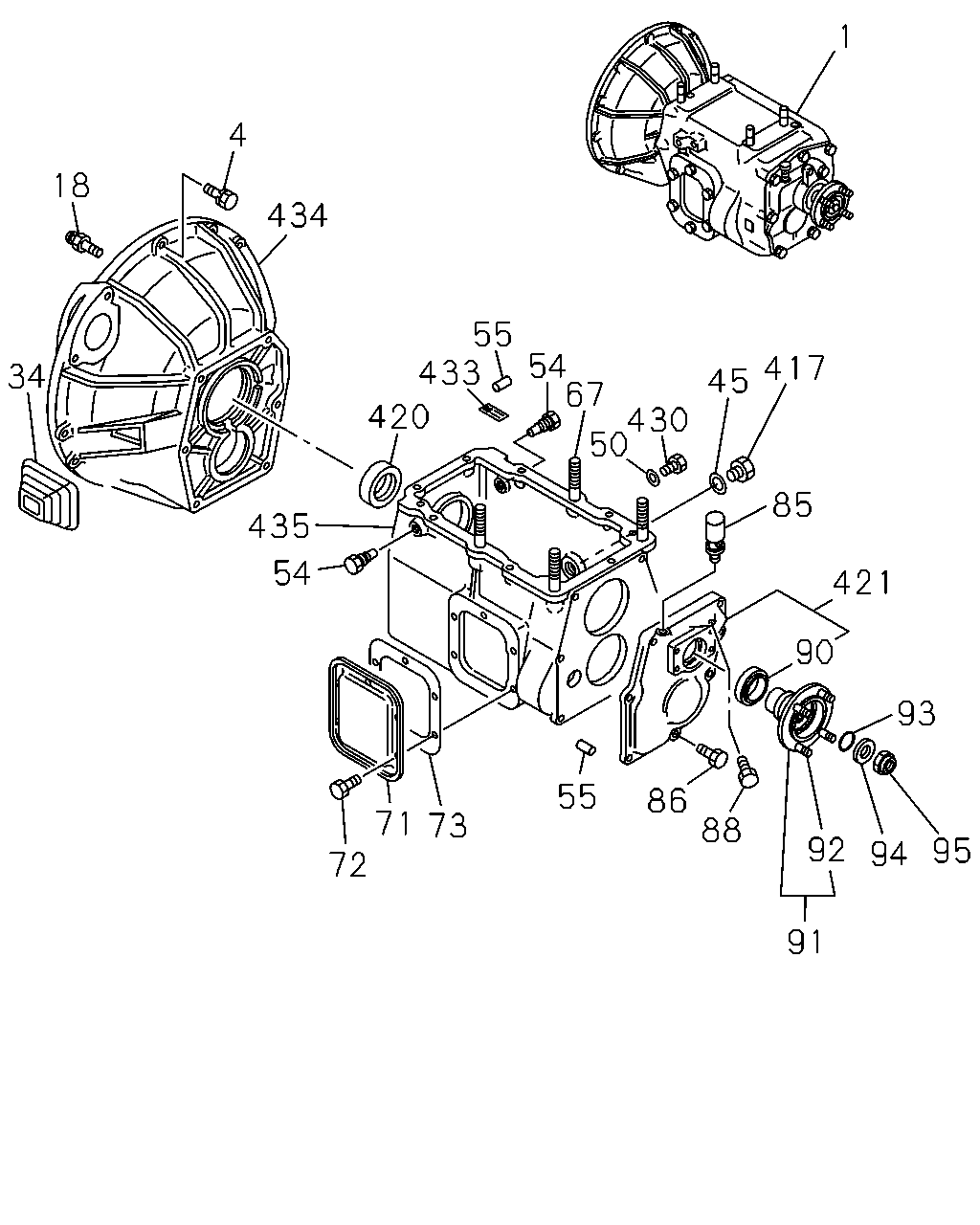

çizim 50050
1 4 18 434 55 433 54 67 417 45 34 420 430 50 85 435 54 421 90 93 55 86 88 71 72 73 92 95 94 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
4HG1 ENG<RJH> 		8-97209-739-1 01 1 0009- ●
1 TRANSMISSION ASM; MANUAL
4HE1 ENG<RLY> 		8-97183-675-1 01 1 0009- ●
4 BOLT; FLYWHEEL HSG
PTO TRANSMISSION SIDE<V66> M10X35 FLANGE 		0-28181-035-0 02 1 0009- ● ●
4 BOLT; FLYWHEEL HSG
M10X30 FLANGE 		0-28181-030-0 02 1 0009- ● ●
4 BOLT; FLYWHEEL HSG
EXC. PTO TRANSMISSION SIDE<V66> M10X30 FLANGE 		0-28181-030-0 02 1 0009- ● ●
4 BOLT; FLYWHEEL HSG
M10X35 FLANGE 		0-28181-035-0 03 1 0009- ● ●
4 BOLT; FLYWHEEL HSG
M10X55 FLANGE THA 		8-94399-863-1 02 1 0009- ● ●
18 SUPPORT; DRAW LEVER
L=47.5 		8-97225-469-1 01 1 0009- ● ●
34 COVER; DUST,SHIFT FORK 8-97017-333-0 01 1 0009- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 0009- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.3 		8-94336-511-0 01 1 0009- ● ●
54 BOLT; FULCRUM 8-97171-503-0 02 1 0009- ● ●
55 PIN; KNOCK,CASE,TRANS 9-08161-016-0 02 1 0009- ● ●
67 STUD; CASE TRANS 5-09302-011-0 04 1 0009- ● ●
71 COVER; SIDE,TRANS CASE 9-33141-601-2 01 1 0009- ● ●
72 BOLT; SIDE COVER
M10X12 FLANGE 		8-94128-791-0 06 1 0009- ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		9-33142-601-0 01 1 0009- ● ●
85 BREATHER; RR COVER 8-97165-939-0 01 1 0009- ● ●
86 BOLT; RR COVER
M10X50 		8-94318-782-0 01 1 0009- ● ●
86 BOLT; RR COVER
M10X30 FLANGE 		8-94482-338-0 06 1 0009- ● ●
88 SCREW; SPEEDOMETER BUSHING
M8X12 		8-94128-785-0 01 1 0009- ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97257-296-0 01 1 0009- ● ●
91 DRIVER; COUPLING 8-97212-108-0 01 1 0009- ● ●
92 BOLT; COUPLING DRIVER 8-97109-697-1 04 1 0009- ● ●
93 GASKET; COUPLING DRIVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-94178-725-0 01 1 0009- ● ●
94 WASHER; COUPLING DRIVER 8-94249-240-0 01 1 0009- ● ●
95 NUT; MAINSHAFT
M24 FLANGE 		8-97087-750-0 01 1 0009- ● ●
417 PLUG; OIL FILLER,TRANS
M18 		8-94337-946-1 01 1 0009- ● ●
420 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97017-350-0 01 1 0009- ● ●
421 COVER; RR,TRANS 8-97249-001-1 01 1 0009- ● ●
430 PLUG; OIL DRAIN 8-94336-512-1 01 1 0009- ● ●
433 LABEL; TRANS
4HE1 ENG<RLY> 		8-97093-114-0 01 1 0009- ●
434 HOUSING; CLU 8-97034-801-2 01 1 0009- ● ●
435 CASE; TRANS 8-97204-132-1 01 1 0009- ● ●
