◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#4826) — 802 parça

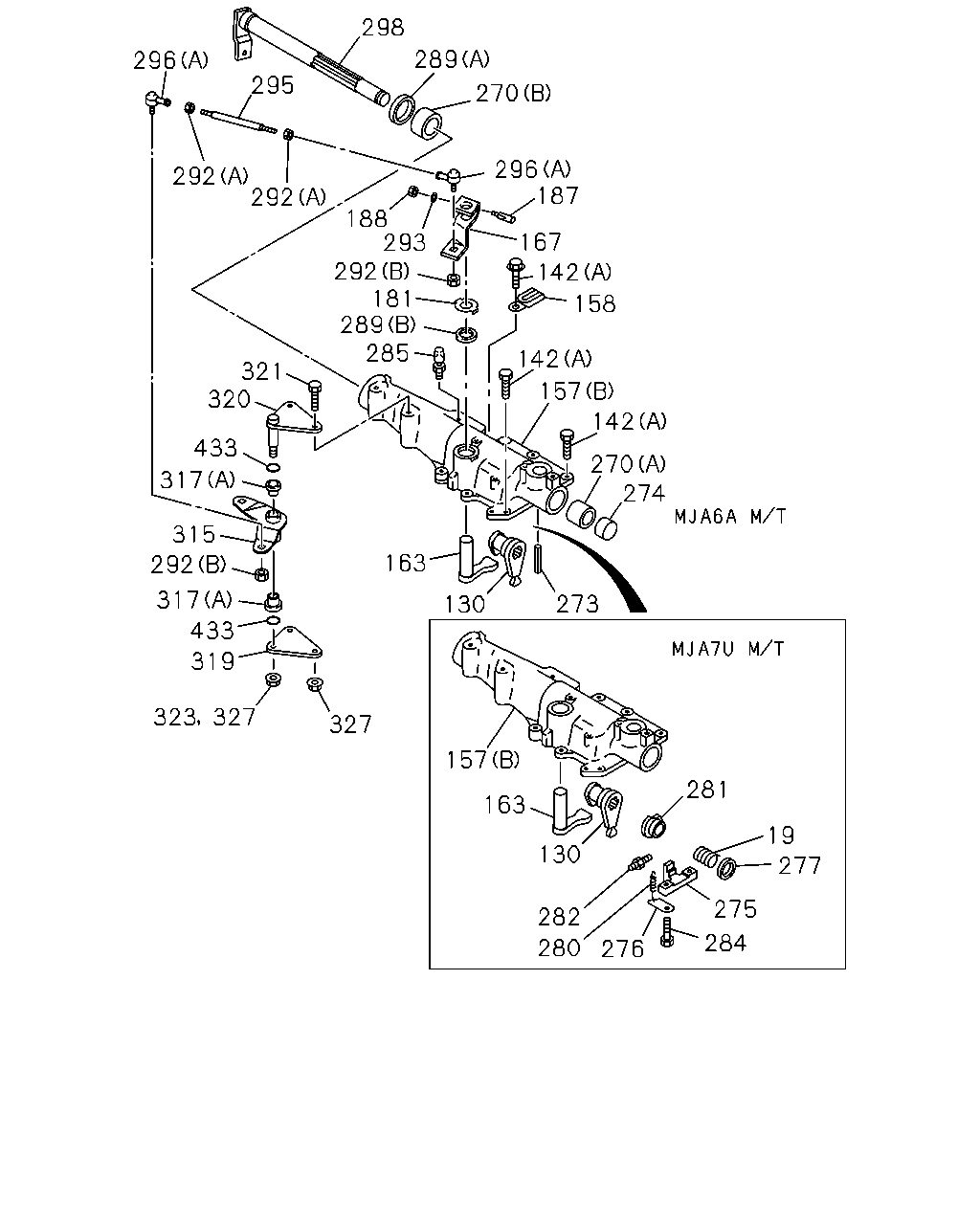

çizim 7796
298 289 296 295 270 296 187 292 292 188 293 292 181 289 285 167 142 158 142 321 320 157 142 433 270 274 317 315 163 292 317 273 130 433 319 323 327 327 157 281 163 19 130 277 275 282 284 280 276
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP 1-09580-519-0 01 1 9601- ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0005- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0005- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 9601- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 9601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0005- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 9601- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 9601-0004 ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 0005- ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-388-1 01 1 0005- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 9601- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-466-0 01 1 0005- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 9601-0004 ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0005- ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9601-9610 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9611-9904 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9905-0004 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0005- ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9601-9610 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9611-9904 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9905-0004 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0005- ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9601-9610 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9611-9904 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9905-0004 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0005- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9601-9610 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9611-9904 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9905-0004 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0005- ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9601-9804 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0004 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005- ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN 		1-09811-006-0 01 1 9601-9610 ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN 		1-09811-006-0 01 1 9611-9904 ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN 		1-09811-006-0 01 1 9905- ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK 		1-09811-057-0 01 1 9601-9610 ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK 		1-09811-057-0 01 1 9611-9904 ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK 		1-09811-057-0 01 1 9905- ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN 		1-09811-260-0 01 1 9601-9610 ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN 		1-09811-260-0 01 1 9611-9904 ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN 		1-09811-260-0 01 1 9905- ● ●
273 PIN; SPR,STOPPER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09748-016-0 01 1 9709-9904 ● ●
273 PIN; SPR,STOPPER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09748-016-0 01 1 9905- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9601-9610 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9611-9904 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9905-0004 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0005- ● ● ●
275 BLOCK; OBSTRUCT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-031-1 01 1 9601- ●
275 BLOCK; OBSTRUCT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-027-0 01 1 9601- ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 9601- ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 9601- ●
280 SPRING; COIL TENSION
ASSISTOR SHIFT CONTROL<WX8> 		1-09583-285-0 01 1 9601- ●
280 SPRING; COIL TENSION
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09583-255-0 01 1 9601- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-030-1 01 1 9601- ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 9601- ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 9601- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9601-9610 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9611-9904 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9905-0004 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9610 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9611-9904 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9905-0004 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9610 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9611-9904 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9905-0004 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005- ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9610 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9611-9804 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9905-0004 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9810 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9811-9904 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005- ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9601-9610 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9611-9904 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9905-0004 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0005- ● ● ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9601-9904 ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9905- ●
295 ROD; LINK,RELAY LEVER
V TYPE ENG<91L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9905- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9601-9904 ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9905- ● ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9601-9610 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9611-9904 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9905-0004 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0005- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9601-9810 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9811-9904 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907-0004 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0005- ● ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 9601-0004 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0005- ● ●
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 0005- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 9601- ● ●
315 LEVER; SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-643-0 01 1 9601-9807 ● ●
315 LEVER; SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9808-9904 ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9905- ●
315 LEVER; SELECT
P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9905- ●
315 LEVER; SELECT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-674-0 01 1 9601-9807 ● ●
315 LEVER; SELECT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-747-0 01 1 9808-9904 ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-747-0 01 1 9905- ● ●
315 LEVER; SELECT
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-644-0 01 1 9601-9807 ●
315 LEVER; SELECT
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 9808-9904 ●
315 LEVER; SELECT
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 9905-0004 ●
315 LEVER; SELECT
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 0005- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9810 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ● ●
319 BRACKET; SELECT LEVER
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9601-9904 ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-190-0 01 1 9601-9807 ● ●
319 BRACKET; SELECT LEVER
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 9601-9904 ●
319 BRACKET; SELECT LEVER
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 9905-0004 ●
319 BRACKET; SELECT LEVER
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0005- ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9808-9904 ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
P90 PROP SHAFT<C5T> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9905- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-527-1 01 1 9601-9807 ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-625-0 01 1 9808-9810 ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 9811- ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 9601-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0005- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9601-9610 ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9611-9904 ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9905- ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-9610 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9611-9807 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9808-9904 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0004 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0005- ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-110-0 01 1 9905- ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 9601- ● ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9601-9610 ● ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9611-9807 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9808-9904 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0004 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0005- ● ● ●

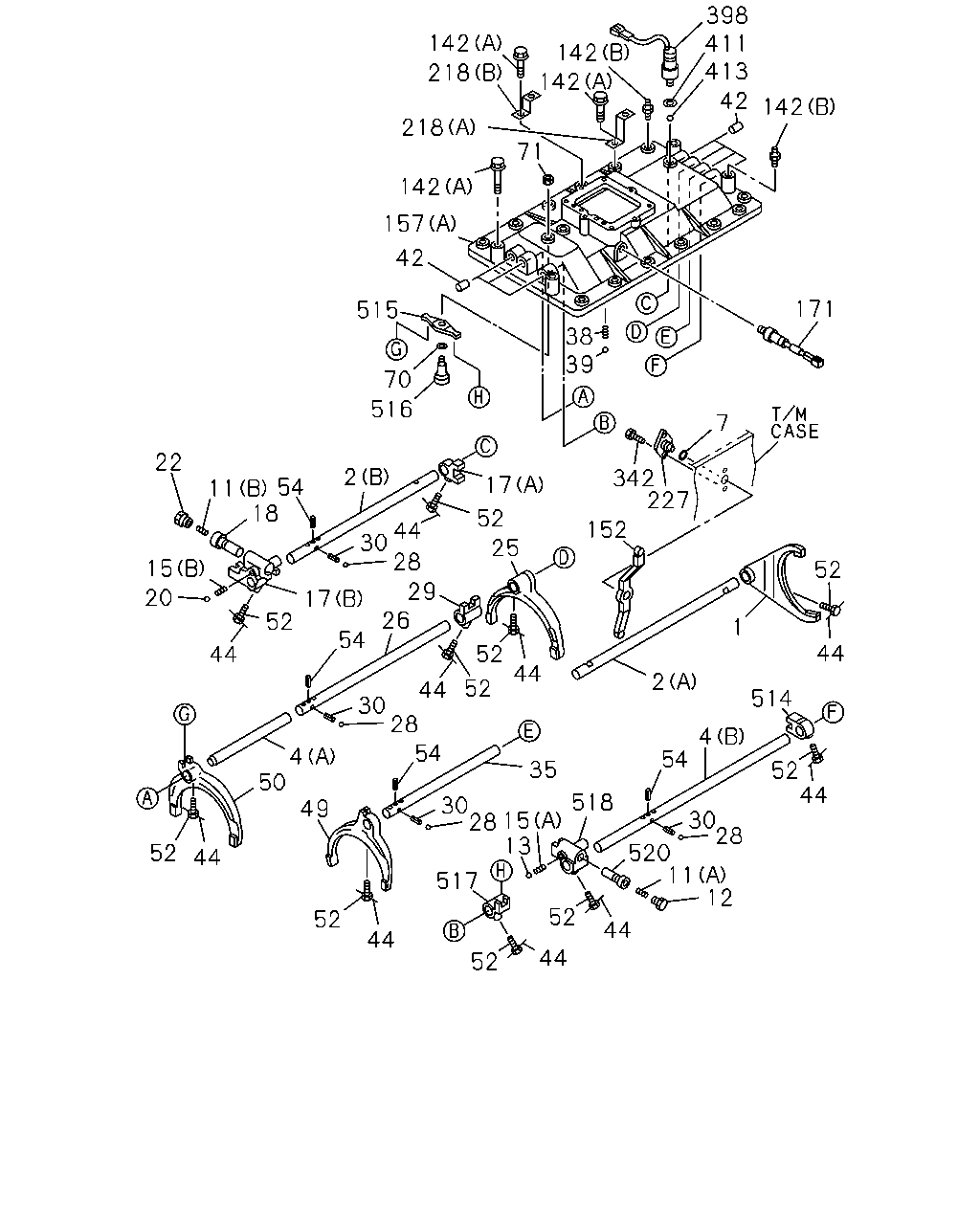

çizim 7892
398 411 413 142 142 218 142 42 142 218 71 142 157 42 38 39 171 515 70 516 7 22 2 342 227 17 18 52 152 44 30 28 25 15 52 29 26 20 17 52 1 54 44 52 44 44 2 52 44 514 30 28 4 54 4 50 54 35 52 44 518 30 13 49 30 28 520 11 12 52 44 517 52 52 44 44 44 52 11 54 18 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0005- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0005- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0005- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-421-1 01 1 0005- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-422-1 01 1 0005- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0005- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 9601-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0005- ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 9601-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0005- ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9601- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0005- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9601-0004 ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0005- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 9601-0004 ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0005- ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 9601-0004 ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0005- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 9601- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0005- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0005- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0005- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9601-0004 ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0005- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9601- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0005- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0005- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0005- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9601-0004 ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0005- ● ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0005- ●
30 PIN; INTER LK 9-33534-003-0 03 1 9601-0004 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0005- ● ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0005- ●
38 SPRING; DETENT 1-09580-379-0 04 1 9601-0004 ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0005- ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9601-0004 ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0005- ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9905-0004 ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0005- ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 9804- ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 9804-9904 ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 9905- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0005- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0005- ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0005- ●
52 BOLT; SHIFT ARM
M12X20 		1-09052-039-0 09 1 9601-9803 ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 9804- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0005- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 9601-0004 ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0005- ● ● ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0005- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0005- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0005- ● ● ●
152 LEVER; RELAY,SELECT 1-33511-428-0 01 1 0005- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 9601- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 9601-0004 ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 0005- ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-388-1 01 1 0005- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 9601- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-466-0 01 1 0005- ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9601-0004 ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0005- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 9601-0004 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0005- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 9601-0004 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0005- ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9601- ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0005- ●
342 BOLT
M14X20 		1-09044-078-0 02 1 0005- ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9601-0004 ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0005- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9601-0004 ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0005- ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9601-0004 ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0005- ● ● ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 0005- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-082-0 01 1 0005- ●
516 SPINDLE; 6TH & 7TH 1-33519-012-0 01 1 0005- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-395-1 01 1 0005- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-293-2 01 1 0005- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 0005- ●

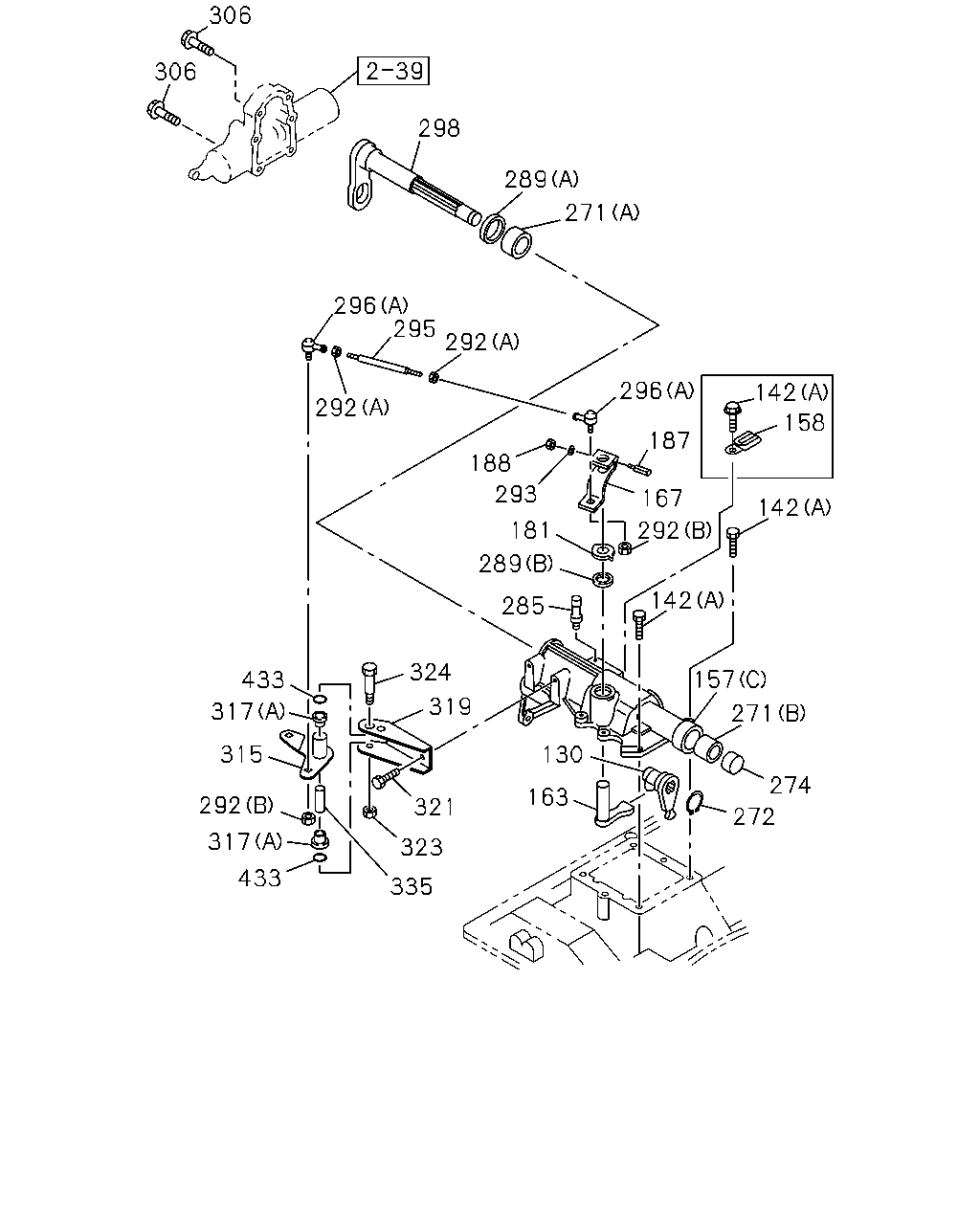

çizim 7894
306 306 298 289 271 296 295 292 296 142 292 158 187 188 293 167 142 181 292 289 142 285 324 157 433 319 317 271 130 315 274 163 292 321 272 317 323 433 335
BalonParca AdiParca NoAdetTipApplied Date A B C
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0005- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0005- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 9601- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 9601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0005- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 9601- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 9601-0004 ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 0005- ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-388-1 01 1 0005- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 9601- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-466-0 01 1 0005- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 9601-0004 ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0005- ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9601-9610 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9611-9904 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9905-0004 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0005- ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9601-9610 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9611-9904 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9905-0004 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0005- ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9601-9610 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9611-9904 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9905-0004 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0005- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9601-9610 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9611-9904 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9905-0004 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0005- ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9601-9804 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0004 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005- ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 9601-0004 ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0005- ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0005- ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 9601-0004 ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0005- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0005- ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 9601-0004 ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0005- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0005- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9601-9610 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9611-9904 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9905-0004 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0005- ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9601-9610 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9611-9904 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9905-0004 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9610 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9611-9904 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9905-0004 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9610 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9611-9904 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9905-0004 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005- ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9610 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9611-9804 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9905-0004 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9810 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9811-9904 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005- ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9601-9610 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9611-9904 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9905-0004 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0005- ● ● ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9601-9904 ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9905- ●
295 ROD; LINK,RELAY LEVER
V TYPE ENG<91L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9905- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9601-9904 ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9905- ● ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9601-9610 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9611-9904 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9905-0004 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0005- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9601-9810 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9811-9904 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907-0004 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0005- ● ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 9601-0004 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0005- ● ●
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 0005- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 9601- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 9601-0004 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0005- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0005- ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 9601-0004 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0005- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0005- ●
315 LEVER; SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-643-0 01 1 9601-9807 ● ●
315 LEVER; SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9808-9904 ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9905- ●
315 LEVER; SELECT
P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9905- ●
315 LEVER; SELECT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-674-0 01 1 9601-9807 ● ●
315 LEVER; SELECT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-747-0 01 1 9808-9904 ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-747-0 01 1 9905- ● ●
315 LEVER; SELECT
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-644-0 01 1 9601-9807 ●
315 LEVER; SELECT
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 9808-9904 ●
315 LEVER; SELECT
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 9905-0004 ●
315 LEVER; SELECT
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 0005- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9810 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ● ●
319 BRACKET; SELECT LEVER
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9601-9904 ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-190-0 01 1 9601-9807 ● ●
319 BRACKET; SELECT LEVER
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 9601-9904 ●
319 BRACKET; SELECT LEVER
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 9905-0004 ●
319 BRACKET; SELECT LEVER
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0005- ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9808-9904 ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
P90 PROP SHAFT<C5T> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9905- ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 9601-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0005- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9601-9610 ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9611-9904 ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9905- ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-9610 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9611-9807 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9808-9904 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0004 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0005- ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 		0-10811-060-0 01 1 9601-0004 ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 		0-10811-060-0 01 1 0005- ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-203-0 01 1 9601-9807 ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-217-0 01 1 9808-9810 ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 9811-0004 ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0005- ● ● ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9601-9610 ● ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9611-9807 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9808-9904 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0004 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0005- ● ● ●

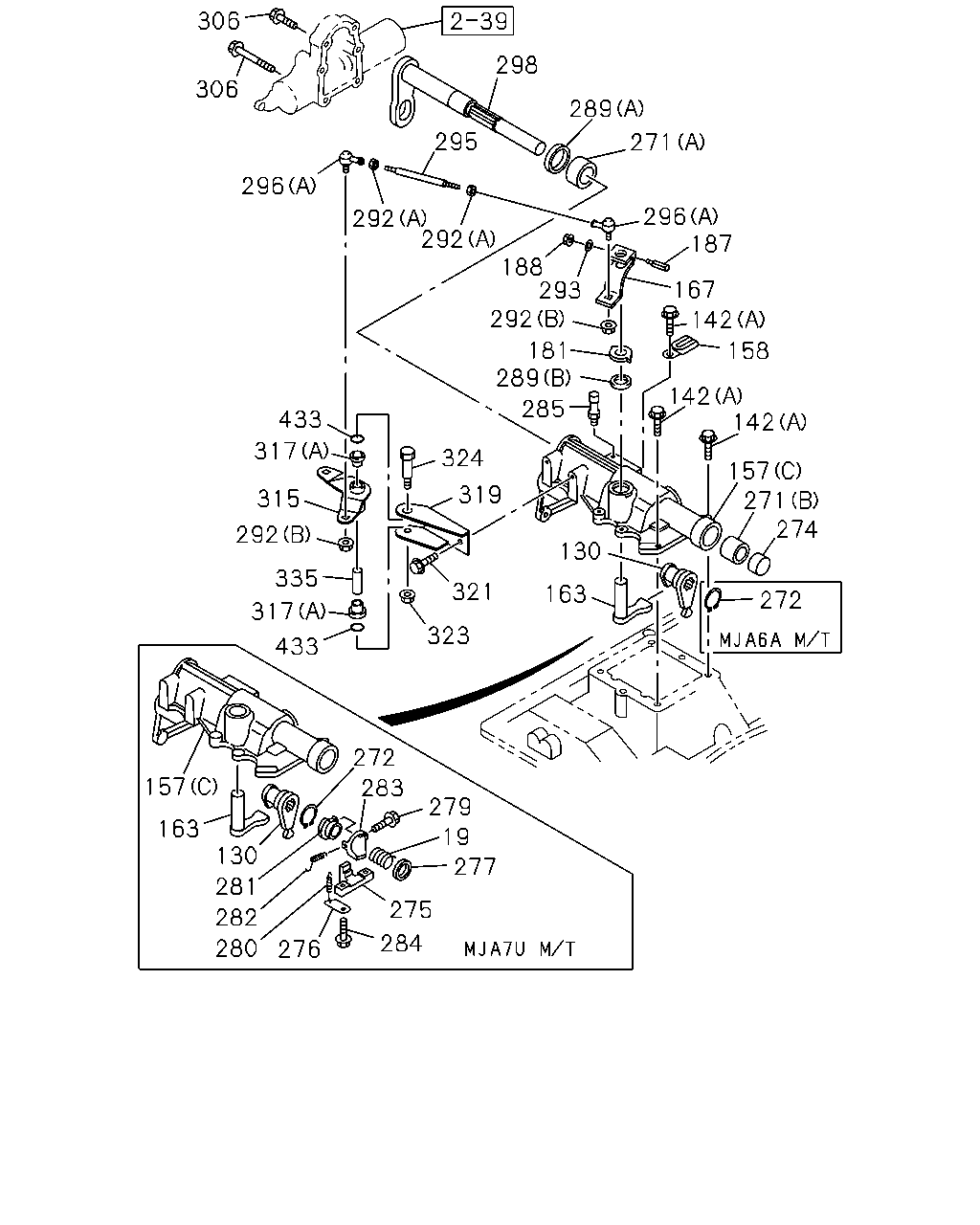

çizim 8344
306 298 306 289 295 271 296 296 187 292 292 188 293 292 167 142 181 289 158 142 142 285 433 317 324 157 319 315 271 274 292 130 335 321 163 272 317 323 433 272 157 283 279 163 19 130 277 281 275 282 284 280 276
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP 1-09580-519-0 01 1 9601- ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 9601-0004 ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0005- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 0005- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 9601- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 9601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0005- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 9601- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 9601-0004 ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 0005- ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-388-1 01 1 0005- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 9601- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-466-0 01 1 0005- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 9601-0004 ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0005- ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9601-9610 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9611-9904 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9905-0004 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0005- ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9601-9610 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9611-9904 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9905-0004 ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0005- ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9601-9610 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9611-9904 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9905-0004 ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0005- ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9601-9610 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9611-9904 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9905-0004 ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0005- ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9601-9804 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-0004 ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0005- ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 9601-0004 ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0005- ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0005- ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 9601-0004 ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0005- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0005- ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 9601-0004 ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0005- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0005- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9601-9610 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9611-9904 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9905-0004 ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0005- ● ● ●
275 BLOCK; OBSTRUCT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-031-1 01 1 9601- ●
275 BLOCK; OBSTRUCT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-027-0 01 1 9601- ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 9601- ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 9601- ●
279 BOLT; STOPPER
ASSISTOR SHIFT CONTROL<WX8> M5X8 		0-20800-508-0 01 1 9601- ●
280 SPRING; COIL TENSION
ASSISTOR SHIFT CONTROL<WX8> 		1-09583-285-0 01 1 9601- ●
280 SPRING; COIL TENSION
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09583-255-0 01 1 9601- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-030-1 01 1 9601- ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 9601- ●
283 STOPPER; SHIFT SHAFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-032-0 01 1 9601- ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 9601- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9601-9610 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9611-9904 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9905-0004 ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0005- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-9610 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9611-9904 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9905-0004 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0005- ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-9610 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9611-9904 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9905-0004 ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0005- ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9601-9610 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9611-9804 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9905-0004 ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0005- ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9601-9810 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9811-9904 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9905-9906 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9907-0004 ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0005- ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9601-9610 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9611-9904 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9905-0004 ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0005- ● ● ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9601-9904 ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9905- ●
295 ROD; LINK,RELAY LEVER
V TYPE ENG<91L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 9905- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9601-9904 ● ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 9905- ● ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9601-9610 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9611-9904 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 9905-0004 ●
295 ROD; LINK,RELAY LEVER
L TYPE ENG<90L> ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0005- ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9601-9810 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9811-9904 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9905-9906 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 9907-0004 ● ●
296 ROD END
(A) 		1-09760-108-0 02 1 0005- ● ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 9601-0004 ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0005- ● ●
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 0005- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 9601- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 9601-0004 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0005- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0005- ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 9601-0004 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0005- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0005- ●
315 LEVER; SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-643-0 01 1 9601-9807 ● ●
315 LEVER; SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9808-9904 ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9905- ●
315 LEVER; SELECT
P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-727-0 01 1 9905- ●
315 LEVER; SELECT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-674-0 01 1 9601-9807 ● ●
315 LEVER; SELECT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-747-0 01 1 9808-9904 ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-747-0 01 1 9905- ● ●
315 LEVER; SELECT
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-644-0 01 1 9601-9807 ●
315 LEVER; SELECT
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 9808-9904 ●
315 LEVER; SELECT
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 9905-0004 ●
315 LEVER; SELECT
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33651-719-0 01 1 0005- ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9810 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9601-9904 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9905-9906 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 9907-0004 ● ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0005- ● ● ●
319 BRACKET; SELECT LEVER
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9601-9904 ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-190-0 01 1 9601-9807 ● ●
319 BRACKET; SELECT LEVER
6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 9601-9904 ●
319 BRACKET; SELECT LEVER
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 9905-0004 ●
319 BRACKET; SELECT LEVER
P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0005- ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9808-9904 ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9905- ●
319 BRACKET; SELECT LEVER
P90 PROP SHAFT<C5T> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 9905- ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 9601-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0005- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9601-9610 ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9611-9904 ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 9905- ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9601-9610 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 02 1 9611-9807 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9808-9904 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9905-9906 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9907-0004 ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0005- ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 		0-10811-060-0 01 1 9601-0004 ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 		0-10811-060-0 01 1 0005- ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-203-0 01 1 9601-9807 ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-217-0 01 1 9808-9810 ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 9811-0004 ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0005- ● ● ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9601-9610 ● ●
433 GASKET; BUSHING 1-09623-594-0 04 1 9611-9807 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9808-9904 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9905-9906 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 9907-0004 ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0005- ● ● ●

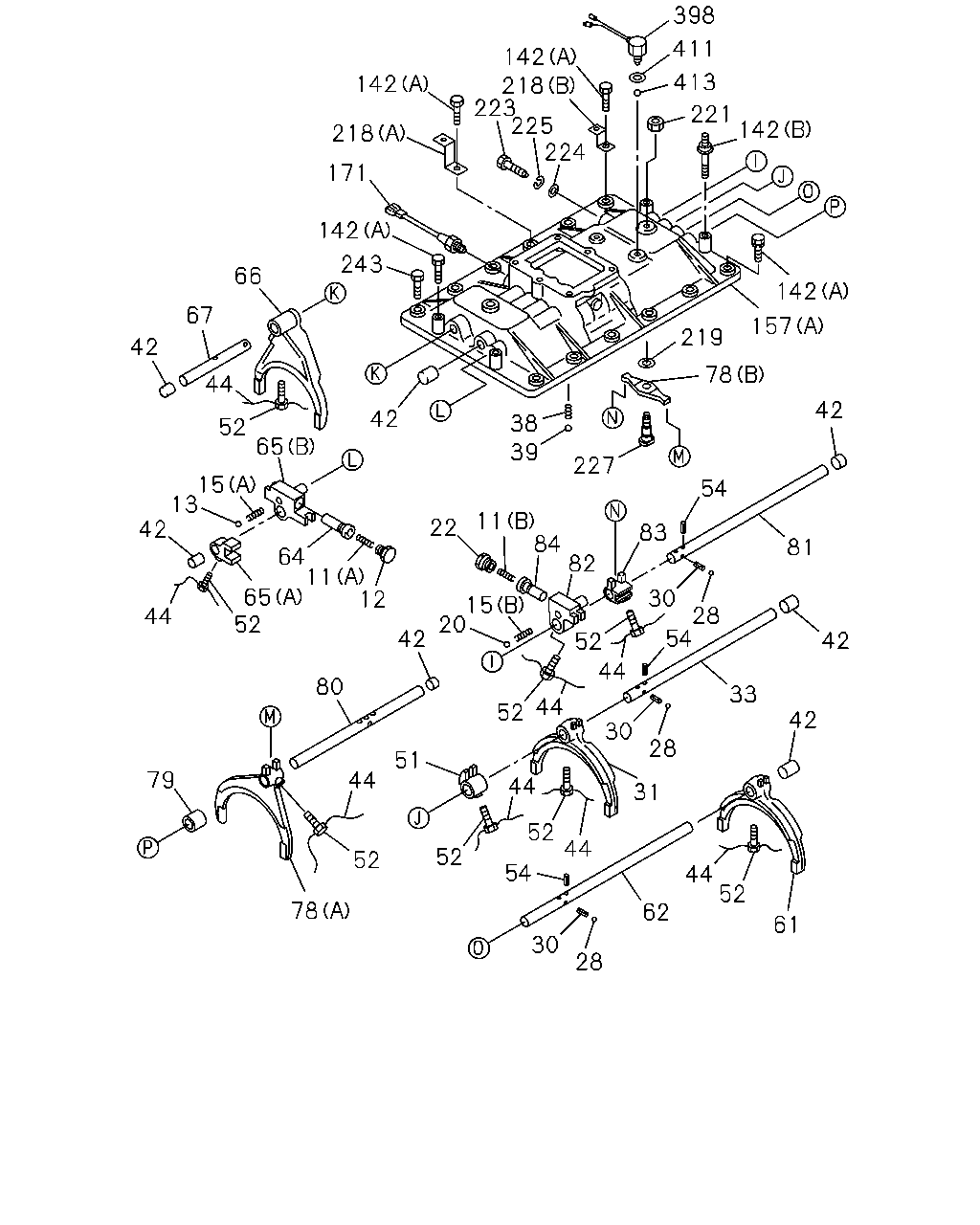

çizim 8345
398 411 142 413 142 218 223 225 224 221 142 218 171 142 243 66 142 67 157 219 42 78 44 42 42 38 52 65 39 227 15 13 42 54 11 84 82 22 83 81 64 11 12 65 52 30 15 20 28 54 44 42 42 52 44 80 33 44 52 42 30 28 51 79 44 44 31 52 44 52 52 54 44 52 78 62 61 30 28
BalonParca AdiParca NoAdetTipApplied Date A B C
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 9601-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0005- ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 9601-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0005- ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9601- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0005- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9601-0004 ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0005- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 9601-0004 ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0005- ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 9601-0004 ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0005- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 9601- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9601-0004 ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0005- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9601- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0005- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9601-0004 ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0005- ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9601-0004 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0005- ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 9601-9708 ●
31 ARM; SHIFT,LOW & 2ND 1-33511-295-1 01 1 9709-9710 ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 9711- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-291-1 01 1 9601- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-296-1 01 1 9601-9603 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-425-1 01 1 9604- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-352-0 01 1 9601-9603 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-426-1 01 1 9604- ●
38 SPRING; DETENT 1-09580-379-0 04 1 9601-0004 ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0005- ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9601-0004 ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0005- ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9905-0004 ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0005- ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 9804- ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 9804-9904 ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 9905- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0005- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-286-1 01 1 9601- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-256-2 01 1 9601-9905 ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-605-0 01 1 9906- ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33511-298-4 01 1 9601- ●
52 BOLT; SHIFT ARM
M12X20 		1-09052-039-0 09 1 9601-9803 ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 9804- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0005- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 9601-0004 ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0005- ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-315-1 01 1 9601- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-314-2 01 1 9601- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-290-1 01 1 9601-9603 ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-428-1 01 1 9604- ● ●
64 SLEEVE; SHIFT BLOCK,5TH TO 6TH 1-33516-022-1 01 1 9601- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-256-2 01 1 9601-9905 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-605-0 01 1 9906- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-293-2 01 1 9601- ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-286-1 01 1 9601- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-297-1 01 1 9601- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-273-1 01 1 9601- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-297-1 01 1 9601-9603 ●
67 ROD; SHIFT,5TH & 6TH 1-33531-430-1 01 1 9604- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-291-1 01 1 9601-9603 ●
67 ROD; SHIFT,5TH & 6TH 1-33531-429-1 01 1 9604- ●
78 ARM; SHIFT,REV
(A) 		1-33511-245-1 01 1 9601- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9601- ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-313-1 01 1 9601- ●
79 STOPPER; REV BLOCK 9-33537-018-0 01 1 9601- ●
80 ROD; SHIFT,REV ARM 1-33531-289-0 01 1 9601-9603 ●
80 ROD; SHIFT,REV ARM 1-33531-427-1 01 1 9604- ●
81 ROD; SHIFT,REV BLOCK 1-33531-295-1 01 1 9601-9603 ●
81 ROD; SHIFT,REV BLOCK 1-33531-424-1 01 1 9604- ●
82 BLOCK; SHIFT,REV 1-33511-298-4 01 1 9601- ●
83 BLOCK; SHIFT,REV LEVER 1-33511-038-2 01 1 9601- ●
84 SLEEVE; REV 1-33516-022-1 01 1 9601- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0005- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 9601- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 9601-0004 ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 0005- ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-388-1 01 1 0005- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 9601- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-466-0 01 1 0005- ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9601-0004 ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0005- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 9601-0004 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0005- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 9601-0004 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0005- ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9601- ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9601- ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9601- ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9601- ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9601- ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9601- ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0005- ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28080-610-0 01 1 9601- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9601-0004 ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0005- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9601-0004 ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0005- ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9601-0004 ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0005- ● ● ●
çizim 8346
398 411 142 413 142 218 223 225 224 221 142 218 171 6 243 52 42 142 44 157 173 88 219 42 78 87 38 39 42 33 54 42 11 55 51 227 51 22 78 15 20 31 52 44 30 54 52 44 28 52 44 62 52 44 61 42 30 42 28 65 75 54 52 67 76 44 75 30 52 15 13 28 44 77 11 12 66 14 52 44 44 52
BalonParca AdiParca NoAdetTipApplied Date A B C
6 LEVER; RELAY 1-33511-233-1 01 1 9601- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 9601-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0005- ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 9601-0004 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0005- ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9601- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0005- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9601-0004 ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0005- ● ● ●
14 STOPPER; SHIFT ROD,7TH TO RR 1-33537-019-0 01 1 9601- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 9601-0004 ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0005- ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 9601-0004 ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0005- ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 9601- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9601-0004 ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0005- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 9601- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0005- ●
28 BALL; INTER LK 9-00097-501-0 04 1 9601-0004 ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0005- ● ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 9601-0004 ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0005- ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 9601-9708 ●
31 ARM; SHIFT,LOW & 2ND 1-33511-295-1 01 1 9709-9710 ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 9711- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-291-1 01 1 9601- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-296-1 01 1 9601-9603 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-425-1 01 1 9604- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-352-0 01 1 9601-9603 ●
33 ROD; SHIFT,LOW & 2ND 1-33531-426-1 01 1 9604- ●
38 SPRING; DETENT 1-09580-379-0 04 1 9601-0004 ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0005- ● ● ●
39 BALL; DETENT 1-09843-012-0 04 1 9601-0004 ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0005- ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 9905-0004 ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0005- ● ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 9804- ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 9804-9904 ● ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 9905- ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0005- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-286-1 01 1 9601- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-256-2 01 1 9601-9905 ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-605-0 01 1 9906- ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33511-298-4 01 1 9601- ●
52 BOLT; SHIFT ARM
M12X20 		1-09052-039-0 09 1 9601-9803 ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 9804- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0005- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 9601-0004 ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0005- ● ● ●
55 SLEEVE; 1ST & 2ND 1-33516-022-1 01 1 9601- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-315-1 01 1 9601- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-314-2 01 1 9601- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-290-1 01 1 9601-9603 ● ●
62 ROD; SHIFT,3RD & 4TH 1-33531-428-1 01 1 9604- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-256-2 01 1 9601-9905 ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-605-0 01 1 9906- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-293-2 01 1 9601- ●
65 BLOCK ASM; SHIFT,5TH & 6TH 1-33511-286-1 01 1 9601- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-297-1 01 1 9601- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-273-1 01 1 9601- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-297-1 01 1 9601-9603 ●
67 ROD; SHIFT,5TH & 6TH 1-33531-430-1 01 1 9604- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-291-1 01 1 9601-9603 ●
67 ROD; SHIFT,5TH & 6TH 1-33531-429-1 01 1 9604- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-236-1 01 1 9601- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-300-4 01 1 9601- ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-294-1 01 1 9601-9603 ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-432-1 01 1 9604- ●
77 SLEEVE; REV & 7TH 1-33516-022-1 01 1 9601- ●
78 ARM; SHIFT,REV
(A) 		1-33511-245-1 01 1 9601- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 9601- ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-313-1 01 1 9601- ●
87 ARM; SHIFT,7TH 1-33511-275-1 01 1 9601- ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-285-0 01 1 9601-9603 ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-433-1 01 1 9604- ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0005- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0005- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9601-0004 ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0005- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 9601- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 9601-0004 ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33541-388-1 01 1 0005- ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-388-1 01 1 0005- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 9601- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 9601- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-466-0 01 1 0005- ●
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9601-0004 ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0005- ● ● ●
173 SCREW; SET,7TH TO REV 1-09000-446-1 01 1 9601- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 9601-0004 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0005- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 9601-0004 ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0005- ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9601- ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9601- ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9601- ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9601- ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9601- ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9601- ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0005- ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28080-610-0 01 1 9601- ● ●
398 SWITCH; REV LAMP 1-82440-083-2 01 1 9601-0004 ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0005- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 9601-0004 ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0005- ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 9601-0004 ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0005- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
