◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#48259) — 28 parça

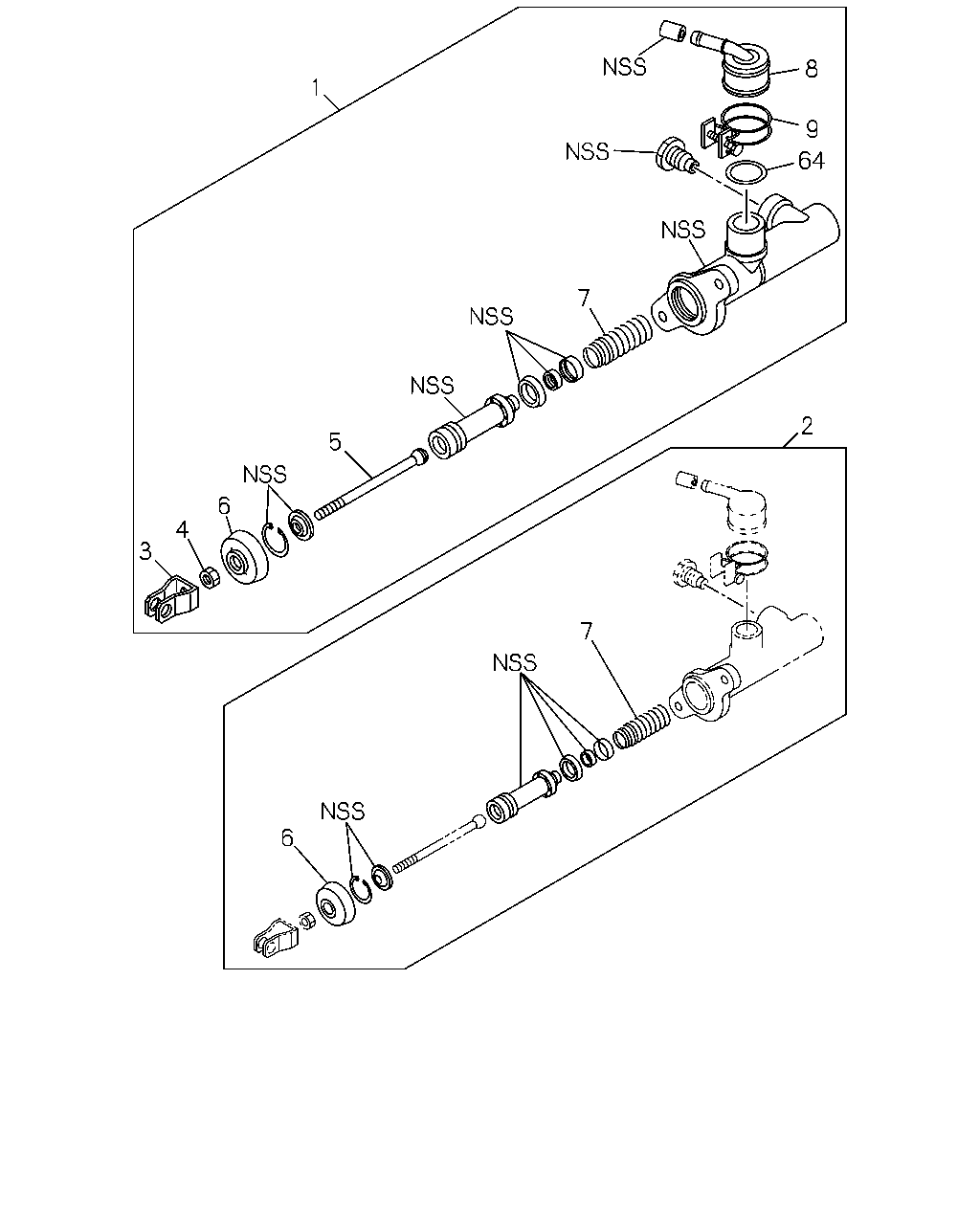

çizim 48771
8 1 9 64 7 2 5 6 4 3 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0009- ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0009- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0009- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0009- ● ●
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-770-0 01 1 0009- ● ●
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH<S2T> M8 		9-09111-408-0 01 1 0009- ● ●
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-768-0 01 1 0009- ● ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0009- ● ●
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0009- ● ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0009- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0009- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0009- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0009- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0009- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0009- ● ●
64 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-767-0 01 1 0009- ● ●
çizim 48811
2 7 1 6 8 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH<S2T> 		8-97162-963-0 01 1 0009- ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-97210-747-1 01 1 0009- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		5-87831-597-0 01 1 0009- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87831-617-0 01 1 0009- ● ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-94412-200-0 01 1 0009- ● ●
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-153-0 01 1 0009- ● ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-780-0 01 1 0009- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-148-0 01 1 0009- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97163-191-0 01 1 0009- ● ●
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-154-0 01 1 0009- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH<S2T> 		8-97167-773-0 01 1 0009- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-97163-143-0 01 1 0009- ● ●
