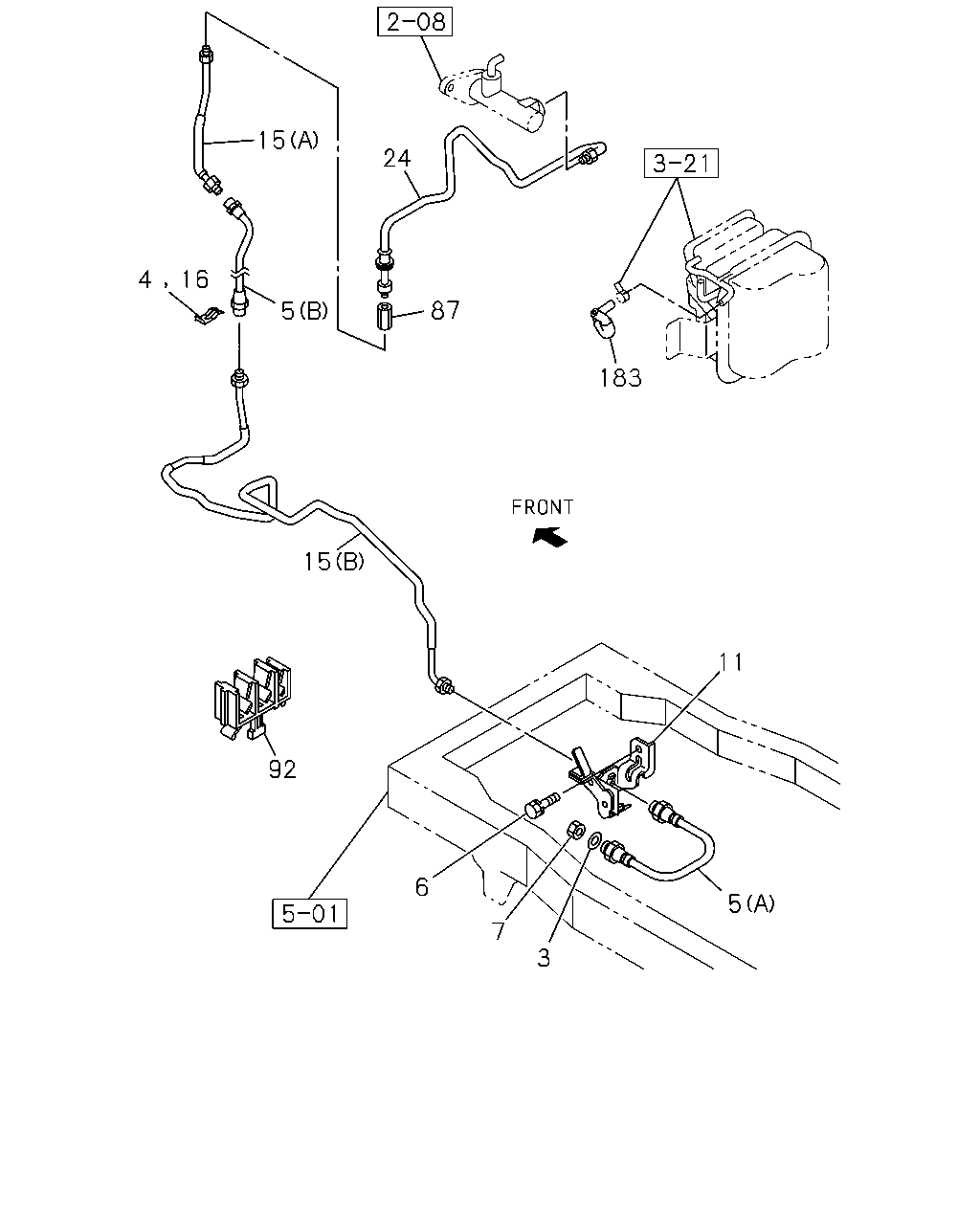

2-05 — CLUTCH PIPING (#48256) — 46 parça

15 24 16 4 87 5 183 15 11 92 6 5 7 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; FLEX HOSE,CLU	9-09920-873-1	01	1	0009-	●	●
4	CLIP; FLEX HOSE,CLU CONT	8-94167-006-0	02	1	0009-	●	●
5	HOSE; FLEX,CLU PIPE (B)	8-94248-702-2	01	1	0009-	●	●
5	HOSE; FLEX,CLU PIPE 4HG1 ENG<RJH> (A)	8-97064-108-1	01	1	0009-		●
5	HOSE; FLEX,CLU PIPE 4HE1 ENG<RLY> (A)	8-97148-640-0	01	1	0009-	●
6	BOLT; BRKT,FLEX HOSE M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
7	NUT; FLEX HOSE,CLU CONT M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
11	BRACKET; FLEX HOSE,CLU	8-97126-875-0	01	1	0009-0305	●	●
11	BRACKET; FLEX HOSE,CLU	8-97365-305-0	01	1	0306-	●	●
15	PIPE; CLU,FLEX HOSE HYDRO MASTER<7LT> (A) THA	8-97914-762-1	01	1	0009-		●
15	PIPE; CLU,FLEX HOSE EXC. HYDRO MASTER<7LT> (A) THA	8-97917-169-1	01	1	0009-	●	●
15	PIPE; CLU,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97917-170-1	01	1	0009-	●	●
15	PIPE; CLU,FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97916-849-1	01	1	0009-	●	●
16	CLIP; FLEX HOSE	8-94167-006-0	01	1	0009-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION HYDRO MASTER<7LT> THA	8-97914-767-1	01	1	0009-		●
24	PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT> THA	8-97917-183-1	01	1	0009-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>	8-97177-034-0	01	1	0009-	●	●
87	UNION; OIL PIPE HYDRO MASTER<7LT> M12 2WAY	1-09654-257-1	01	1	0009-		●
87	UNION; OIL PIPE EXC. HYDRO MASTER<7LT> M12 STRAIGHT	9-99227-006-0	01	1	0009-	●	●
92	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> ID=6.5 & 4.8X2	8-94131-710-2	02	1	0009-	●	●
183	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>	8-97129-874-0	01	1	0009-		●
183	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97129-873-0	01	1	0009-	●	●

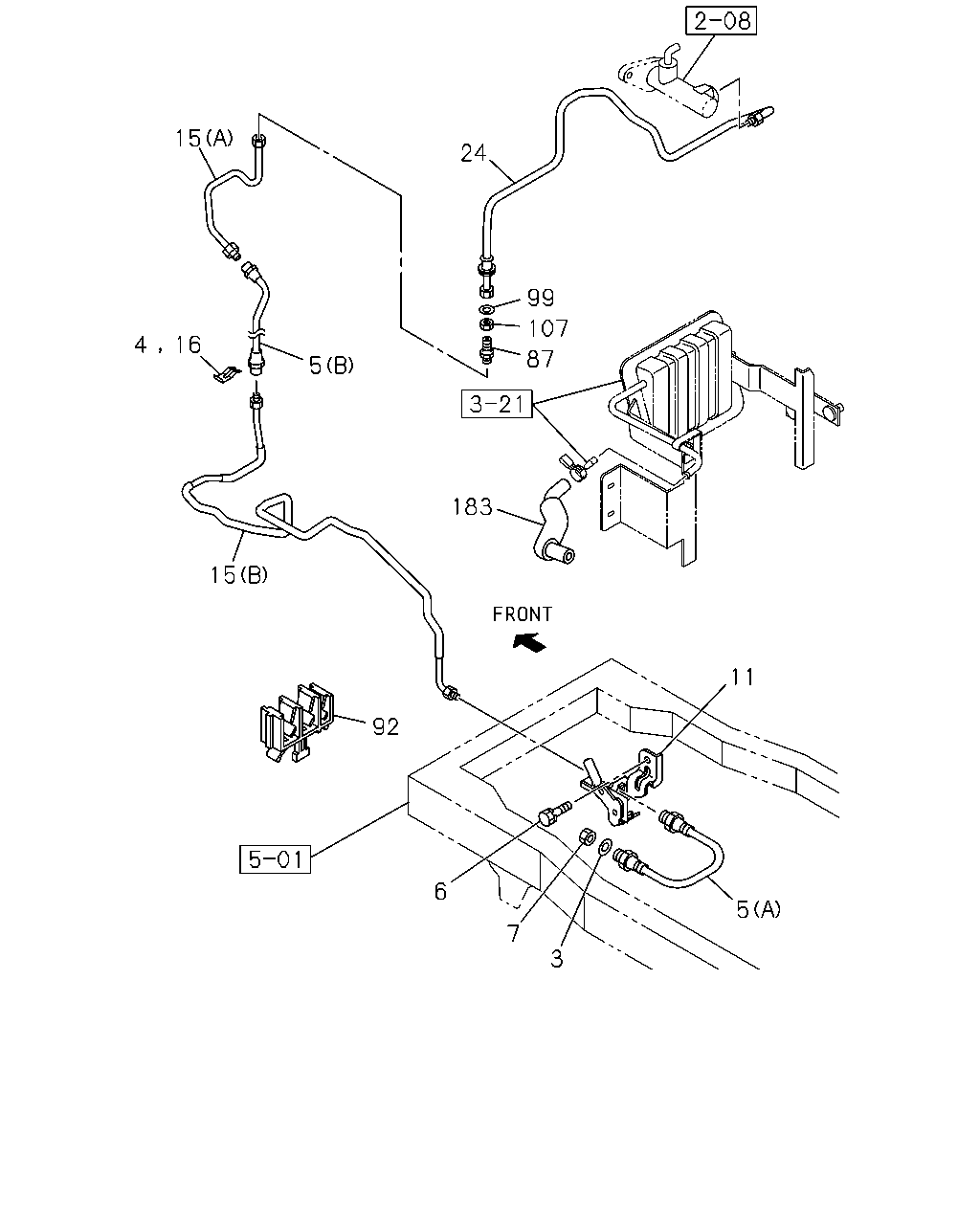

15 24 99 107 16 4 87 5 183 15 11 92 6 5 7 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GASKET; FLEX HOSE,CLU	9-09920-873-1	01	1	0009-	●	●
4	CLIP; FLEX HOSE,CLU CONT	8-94167-006-0	02	1	0009-	●	●
5	HOSE; FLEX,CLU PIPE (B)	8-94248-702-2	01	1	0009-	●	●
5	HOSE; FLEX,CLU PIPE 4HG1 ENG<RJH> (A)	8-97064-108-1	01	1	0009-		●
5	HOSE; FLEX,CLU PIPE 4HE1 ENG<RLY> (A)	8-97148-640-0	01	1	0009-	●
6	BOLT; BRKT,FLEX HOSE M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
7	NUT; FLEX HOSE,CLU CONT M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
11	BRACKET; FLEX HOSE,CLU	8-97126-875-0	01	1	0009-0305	●	●
11	BRACKET; FLEX HOSE,CLU	8-97365-305-0	01	1	0306-	●	●
15	PIPE; CLU,FLEX HOSE HYDRO MASTER<7LT> (A) THA	8-97914-762-1	01	1	0009-		●
15	PIPE; CLU,FLEX HOSE EXC. HYDRO MASTER<7LT> (A) THA	8-97917-169-1	01	1	0009-	●	●
15	PIPE; CLU,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97917-170-1	01	1	0009-	●	●
15	PIPE; CLU,FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97916-849-1	01	1	0009-	●	●
16	CLIP; FLEX HOSE	8-94167-006-0	01	1	0009-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION HYDRO MASTER<7LT> THA	8-97914-767-1	01	1	0009-		●
24	PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT> THA	8-97917-183-1	01	1	0009-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>	8-97177-034-0	01	1	0009-	●	●
87	UNION; OIL PIPE HYDRO MASTER<7LT> M12 2WAY	1-09654-257-1	01	1	0009-		●
87	UNION; OIL PIPE EXC. HYDRO MASTER<7LT> M12 STRAIGHT	9-99227-006-0	01	1	0009-	●	●
92	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> ID=6.5 & 4.8X2	8-94131-710-2	02	1	0009-	●	●
99	WASHER; LK,UNION,OIL PIPE HYDRO MASTER<7LT> ID=12.2	9-09150-512-0	01	1	0009-		●
107	NUT; UNION,OIL PIPE HYDRO MASTER<7LT> M12	9-09840-280-0	01	1	0009-		●
183	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>	8-97129-874-0	01	1	0009-		●
183	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97129-873-0	01	1	0009-	●	●
