9-01 — TOOLS (#48254) — 30 parça

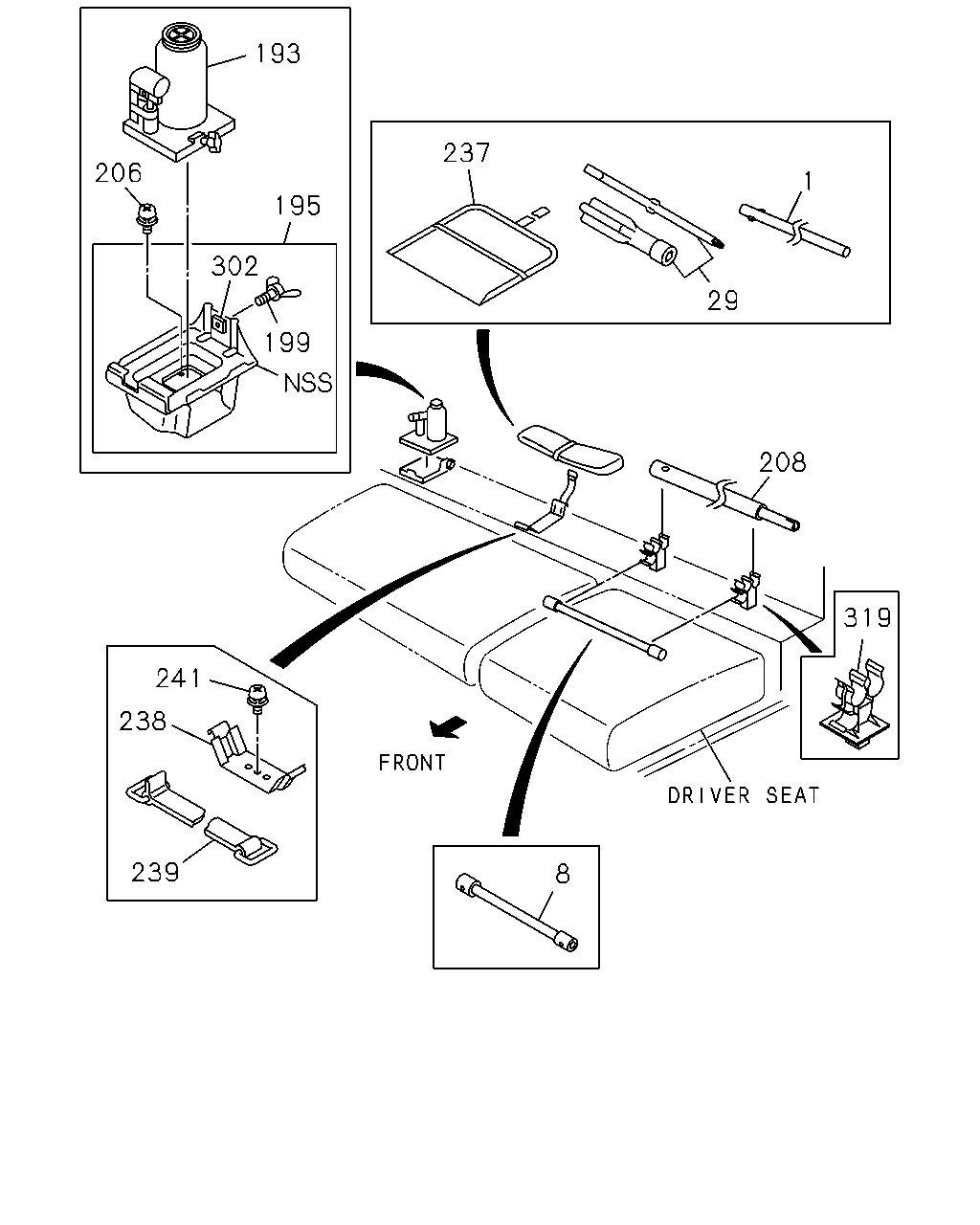

çizim 54684
193 237 206 1 195 302 29 199 208 319 241 238 239 8
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
L=280 		1-85515-007-0 01 1 0401-1108
1 HANDLE; SPARE TIRE CARRIER
L=280 		8-98181-251-0 01 1 1109-
8 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0401-
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0401-
193 JACK ASM
5TON 		8-97371-124-0 01 1 0401-0607
193 JACK ASM
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) 5TON 		8-97371-124-0 01 1 0608-0805
193 JACK ASM
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) 5TON 		8-98114-047-0 01 1 0806-0811
193 JACK ASM
5TON 		8-98114-047-0 01 1 0812-
195 BRACKET; JACK 8-97856-997-4 01 1 0401-0805
195 BRACKET; JACK
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) 		8-97856-994-3 01 1 0806-0811
195 BRACKET; JACK 8-97856-994-3 01 1 0812-
199 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0401-0805
199 BOLT; JACK
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) M8X30 WING 		8-94279-018-1 01 1 0806-0811
199 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0812-
206 SCREW; OIL JACK BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0401-0612
206 SCREW; OIL JACK BRKT
M6X16 		0-38050-616-0 01 1 0701-
208 HANDLE; JACK
L=580 		1-85515-005-1 01 1 0401-1108
208 HANDLE; JACK
L=580 		8-98181-249-0 01 1 1109-
237 BAG; TOOL 8-97130-903-1 01 1 0401-
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0401-
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0401-
241 SCREW; TOOL BAG SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0401-0612
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 0701-
302 NUT; JACK BRKT 8-94279-522-0 01 1 0401-0805
302 NUT; JACK BRKT
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUTDYNAMIC(97V) 		8-94279-522-0 01 1 0806-0811
302 NUT; JACK BRKT 8-94279-522-0 01 1 0812-
319 CLIP; TOOL BAR 8-97853-077-2 02 1 0401-
çizim 100805
280 284
BalonParca AdiParca NoAdetTipApplied Date
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0401-
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28680-825-0 04 1 0401-0512
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M8X25 FLANGE 		0-28650-825-0 04 1 0601-
