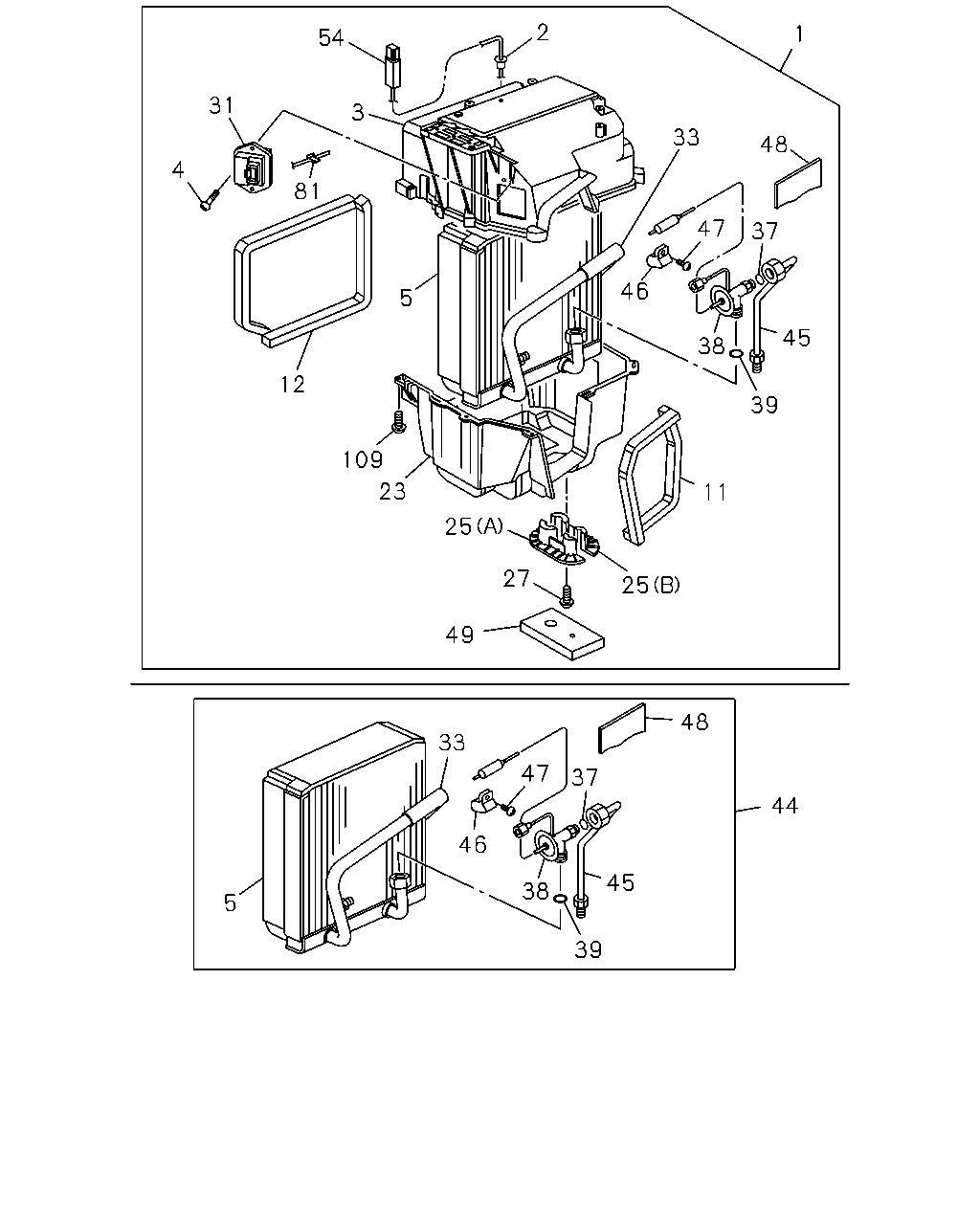

8-74 — EVAPORATOR (#48251) — 26 parça

2 1 54 31 3 33 48 4 81 47 37 46 5 45 38 12 39 109 23 11 25 27 25 49 48 33 47 37 44 46 45 38 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97073-611-1	01	1	0401-0607
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	0401-0607
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97102-597-0	01	1	0401-0607
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	02	1	0401-0607
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97102-594-1	01	1	0401-0607
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-549-0	01	1	0401-0607
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97188-565-0	01	1	0401-0607
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97102-598-1	01	1	0401-0607
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-281-0	01	1	0401-0607
25	COVER; EVAP PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-282-0	01	1	0401-0607
27	SCREW; COVER AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	01	1	0401-0607
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97234-546-0	01	1	0401-0607
33	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97085-278-2	01	1	0401-0607
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=4.5	8-94248-212-0	01	1	0401-0607
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	0401-0607
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	0401-0607
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	0401-0607
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97114-546-0	01	1	0401-0607
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97102-595-0	01	1	0401-0607
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	1-83574-214-0	01	1	0401-0607
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	0401-0607
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	1-83579-784-0	01	1	0401-0607
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	0401-0607
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97302-052-0	01	1	0401-0607
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	0401-0607
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	05	1	0401-0607
