◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶

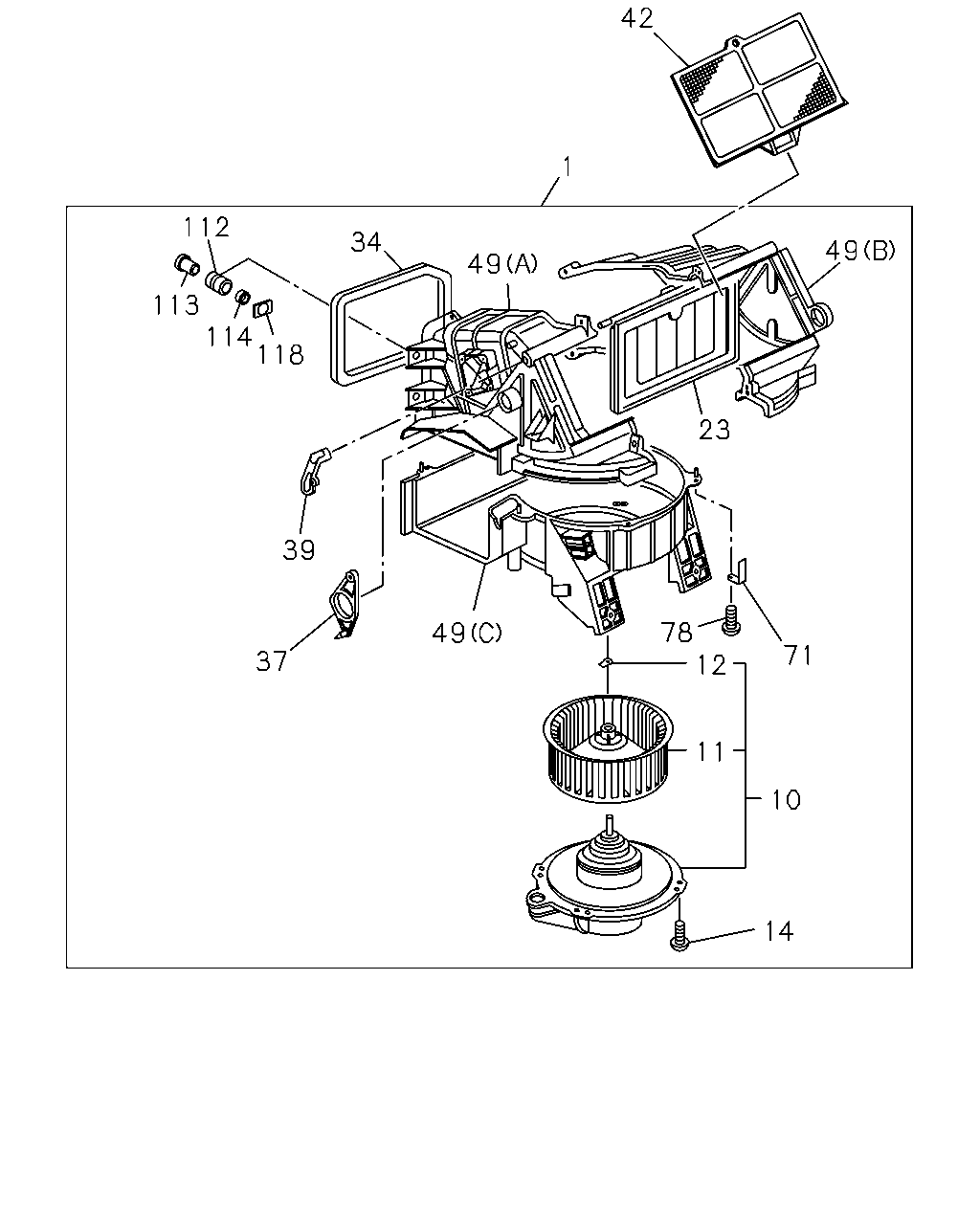

8-73 — BLOWER UNIT (#48250) — 19 parça
çizim 54775
42 1 112 34 49 49 113 114 118 23 39 78 12 49 71 37 11 10 14
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 8-97288-168-0 01 1 0401-
10 MOTOR ASM; FAN,BLOWER UNIT 8-97211-954-0 01 1 0401-
11 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 0401-
12 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 0401-
14 SCREW; COVER TO CASE
M5X20 		9-09829-324-1 04 1 0401-
23 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 0401-
34 LINING; BLOWER UNIT 8-97085-612-1 01 1 0401-
37 LEVER; MODE LEVER 8-97101-667-1 01 1 0401-
39 LEVER; SHUTTER,BLOWER UNIT 8-97101-666-1 01 1 0401-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97288-163-0 01 1 0401-0607
49 CASE; BLOWER UNIT
(A) 		8-97101-647-3 01 1 0401-
49 CASE; BLOWER UNIT
(B) 		8-97101-648-1 01 1 0401-
49 CASE; BLOWER UNIT
(C) 		8-97101-649-0 01 1 0401-
71 CLIP; HARNESS 8-94158-260-0 01 1 0401-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 08 1 0401-
112 ISOLATOR; CASE 8-97096-641-0 02 1 0401-
113 BUSHING; ISOLATOR 8-97096-642-0 02 1 0401-
114 NUT; ISOLATOR
M8 FLANGE 		5-09440-005-0 02 1 0401-
118 BRACKET; BUSHING 8-97107-979-0 01 1 0401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
