◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#48248) — 67 parça

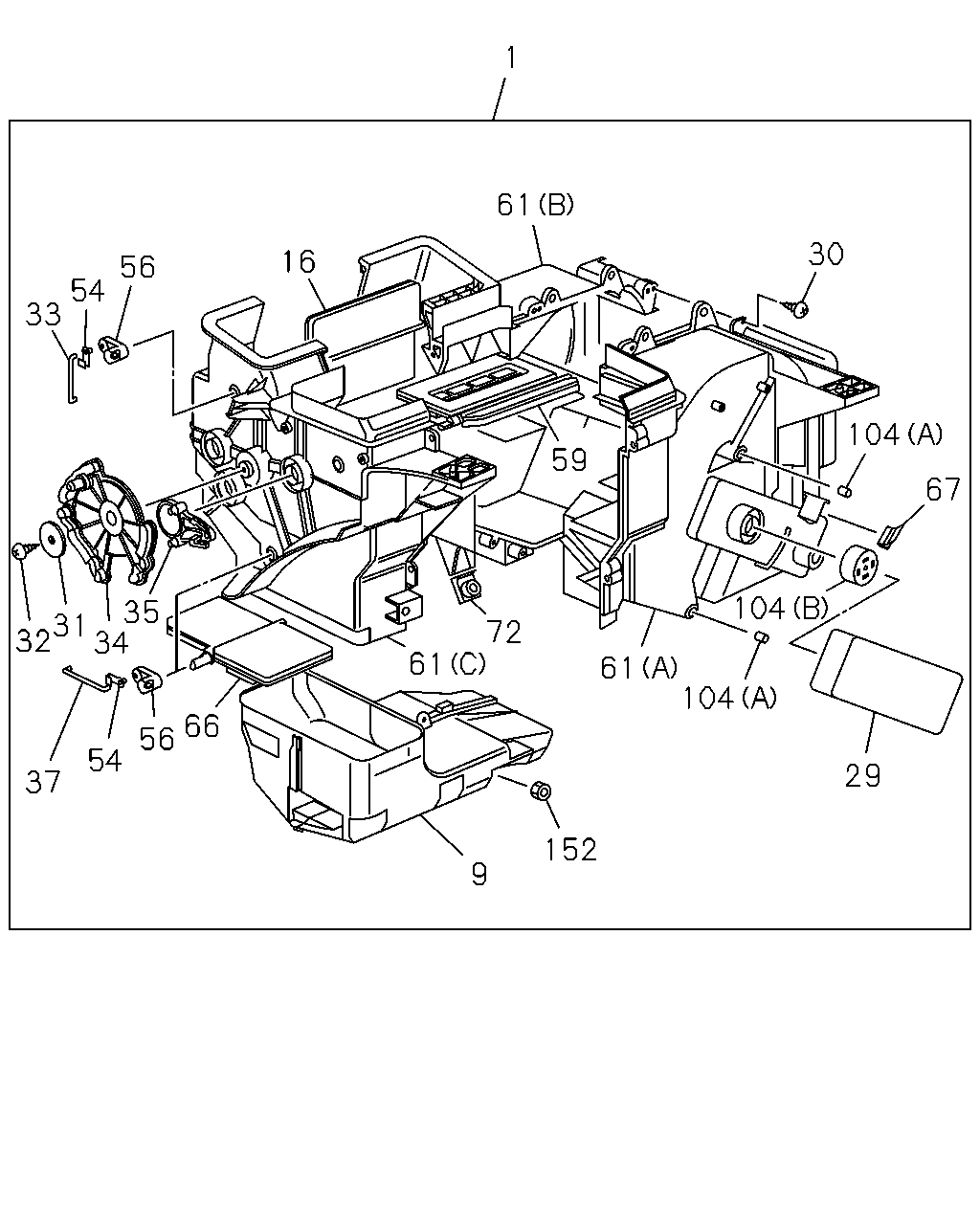

çizim 55157
1 61 30 16 56 54 33 104 59 67 104 35 31 72 61 61 104 66 56 54 29 37 152 9 32 34
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0401-1408
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98238-500-0 01 1 1409-
1 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97071-697-3 01 1 0401-
9 DUCT; HTR UNIT 8-97101-638-0 01 1 0401-
16 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0401-
29 COVER; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97102-661-0 01 1 0401-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-94324-850-0 11 1 0401-
30 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) M4X16 		8-94324-850-0 10 1 0401-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0401-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0401-1408
32 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) M5X20 		9-09829-324-1 01 1 1409-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 1409-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-566-0 02 1 0401-
33 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97087-566-0 01 1 0401-
34 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0401-
35 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0401-
37 ROD; LEVER 8-97101-677-2 02 1 0401-
54 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0401-
56 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0401-
59 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0401-
61 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0401-
61 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0401-
61 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0401-
66 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0401-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 02 1 0401-
67 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-94337-654-0 01 1 0401-
72 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0401-
104 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (A) 		8-94328-657-0 04 1 0401-
104 CAP; CASE,HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (B) 		8-94387-703-0 01 1 0401-
152 NUT; HTR UNIT 8-97085-613-0 01 1 0401-

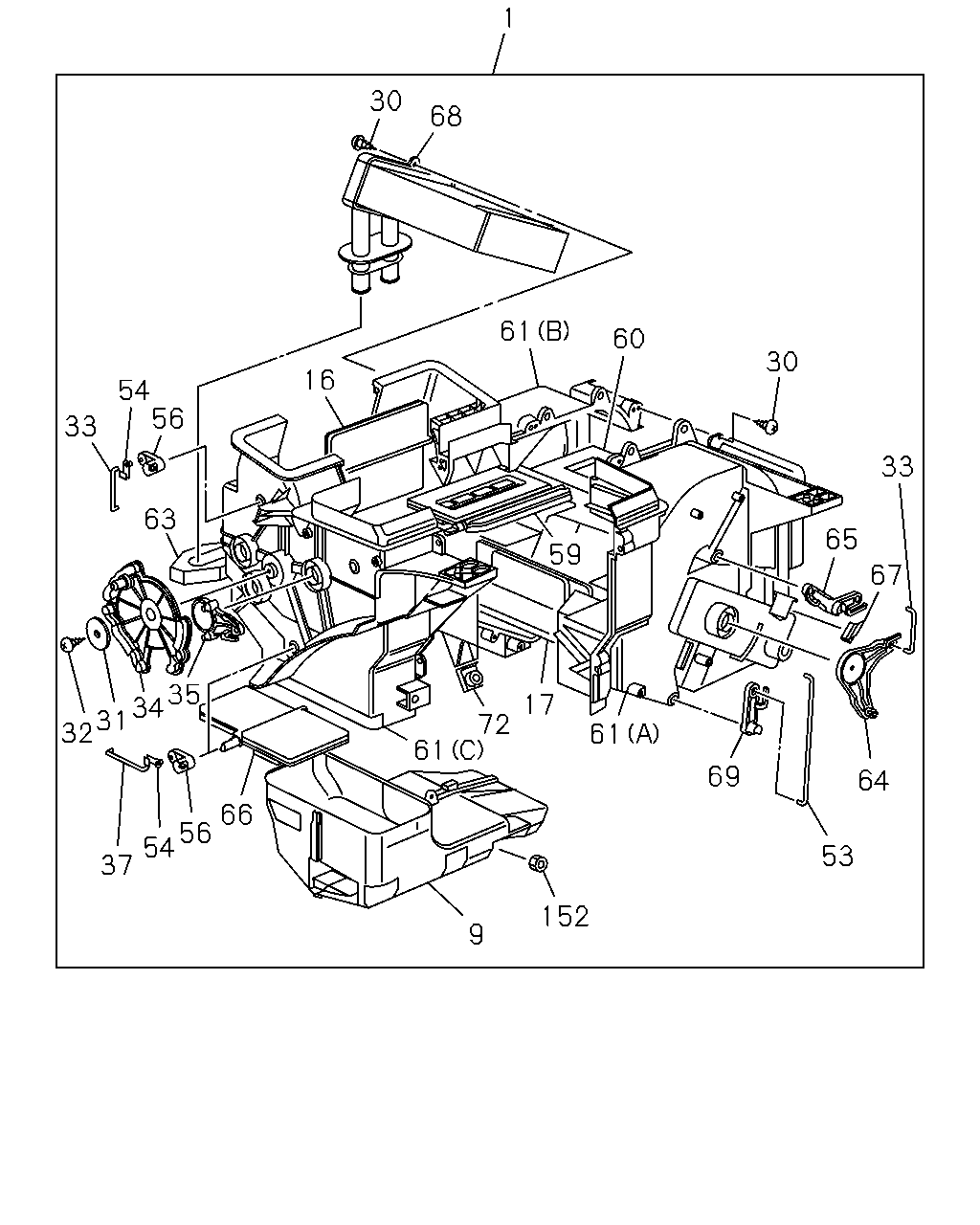

çizim 55981
1 30 68 61 60 30 16 54 56 33 33 63 65 59 67 35 34 31 32 17 72 61 61 69 64 66 56 54 37 53 152 9
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97174-733-6 01 1 0401-1408
1 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98238-500-0 01 1 1409-
1 HEATER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97071-697-3 01 1 0401-
9 DUCT; HTR UNIT 8-97101-638-0 01 1 0401-
16 SHUTTER; HTR UNIT,CENTER UPR 8-97101-642-0 01 1 0401-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-640-0 01 1 0401-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-94324-850-0 11 1 0401-
30 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) M4X16 		8-94324-850-0 10 1 0401-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0401-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0401-1408
32 SCREW; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) M5X20 		9-09829-324-1 01 1 1409-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 1409-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-566-0 02 1 0401-
33 ROD; SHUTTER LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-97087-566-0 01 1 0401-
34 LEVER; SHUTTER,HTR UNIT 8-97101-669-0 01 1 0401-
35 LEVER; SHUTTER,HTR UNIT 8-97101-673-0 03 1 0401-
37 ROD; LEVER 8-97101-677-2 02 1 0401-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-567-1 01 1 0401-
54 CLIP; SHUTTER LEVER 1-83574-136-0 03 1 0401-
56 LEVER; SHUTTER,HTR UNIT 8-97096-142-0 03 1 0401-
59 SHUTTER; HTR UNIT,SIDE 8-97101-641-0 01 1 0401-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97087-556-1 01 1 0401-
61 CASE; HTR UNIT
(A) 		8-97101-634-4 01 1 0401-
61 CASE; HTR UNIT
(B) 		8-97101-635-4 01 1 0401-
61 CASE; HTR UNIT
(C) 		8-97101-636-4 01 1 0401-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-580-0 01 1 0401-1408
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97131-323-0 01 1 1409-
64 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-670-1 01 1 0401-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97200-276-0 01 1 0401-
66 SHUTTER; HTR UNIT,CENTER LWR 8-97101-643-0 01 1 0401-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 02 1 0401-
67 CLIP; HTR UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) 		8-94337-654-0 01 1 0401-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97240-941-0 01 1 0401-1408
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98238-504-0 01 1 1409-
69 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97101-671-0 01 1 0401-
72 NUT; CASE,HTR UNIT 8-97085-613-0 01 1 0401-
152 NUT; HTR UNIT 8-97085-613-0 01 1 0401-
