8-50 — AIR CONDITIONING SYSTEM; FRONT (#48246) — 62 parça

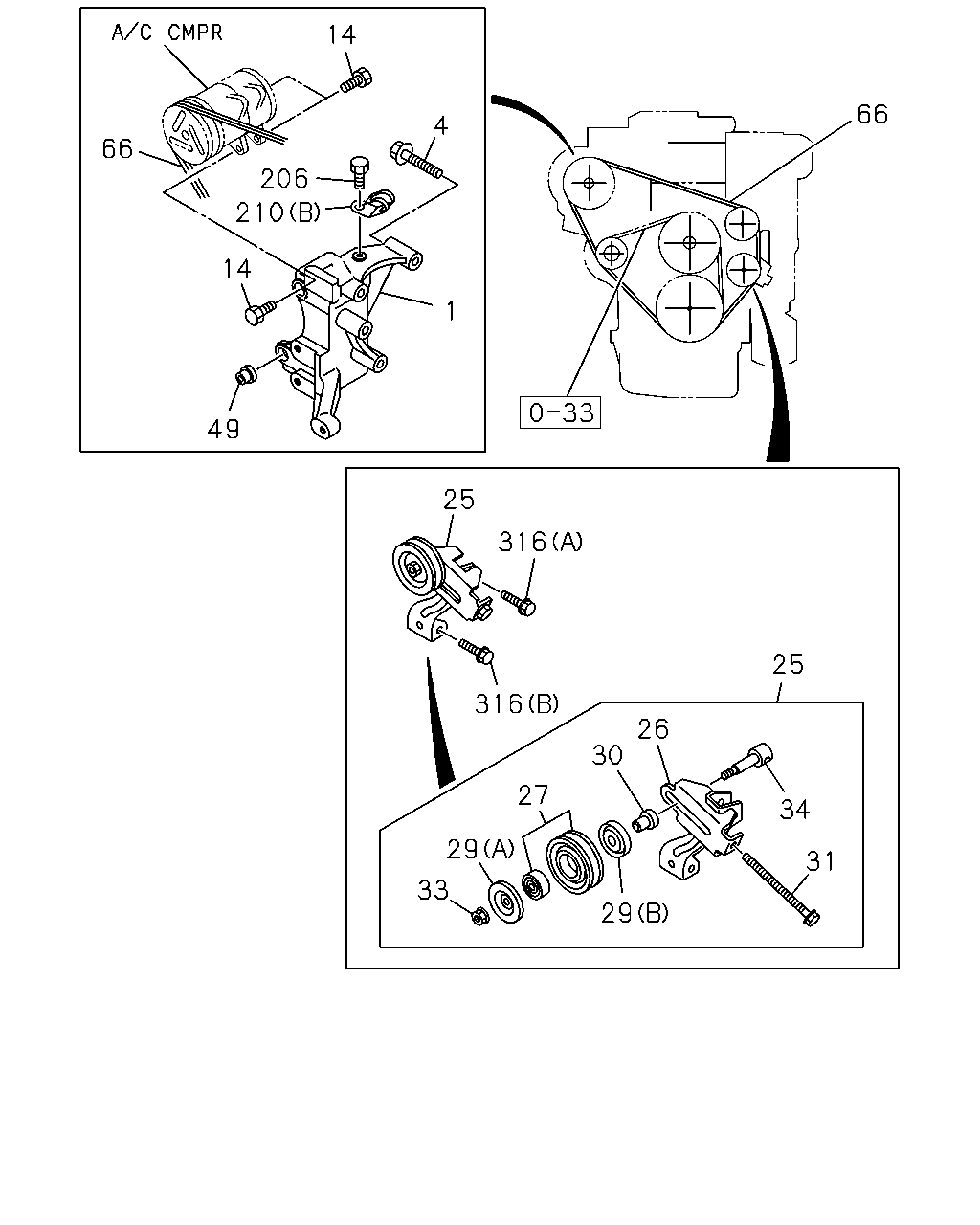

çizim 54640
14 66 4 66 206 210 14 1 49 25 316 25 316 26 30 27 34 29 31 33 29
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 0401-0607
1 BRACKET; A/C
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97116-230-2 01 1 0608-
4 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M10X85 FLANGE 		8-94397-359-1 02 1 0401-0607
4 BOLT; A/C CMPR BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X85 FLANGE 		8-94397-359-1 02 1 0608-
4 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M10X55 FLANGE 		8-94399-863-1 02 1 0401-0607
4 BOLT; A/C CMPR BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X55 FLANGE 		8-94399-863-1 02 1 0608-0805
4 BOLT; A/C CMPR BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X55 FLANGE 		8-97365-449-0 02 1 0806-
14 BOLT; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M10X40 		0-28281-040-0 04 1 0401-0512
14 BOLT; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE 		0-28251-040-0 04 1 0601-0607
14 BOLT; CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M10X40 FLANGE 		0-28251-040-0 04 1 0608-
25 PULLEY ASM; IDLER,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0401-0607
25 PULLEY ASM; IDLER,CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 0608-
26 BRACKET; IDLE PULLEY,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0401-0607
26 BRACKET; IDLE PULLEY,A/C
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 0608-
27 PULLEY; IDLE,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0401-0607
27 PULLEY; IDLE,A/C
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 0608-
29 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0401-0607
29 COVER; DUST,IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0608-
29 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0401-0607
29 COVER; DUST,IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0608-
30 COLLAR; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0401-0607
30 COLLAR; IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 0608-
31 BOLT; ADJ,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0401-0607
31 BOLT; ADJ,IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0608-
33 NUT; IDLER PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0401-0607
33 NUT; IDLER PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0608-
34 SHAFT; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0401-0607
34 SHAFT; IDLE PULLEY
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 0608-
49 COLLAR; BRKT,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 0401-0607
49 COLLAR; BRKT,CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 0608-
66 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0401-0607
66 BELT; A/C CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 0608-
66 BELT; A/C CMPR
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 0608-
206 BOLT; CLIP BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28280-612-0 01 1 0401-0512
206 BOLT; CLIP BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28250-612-0 01 1 0601-0607
206 BOLT; CLIP BRKT
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE 		0-28250-612-0 01 1 0608-
210 CLIP; HARNESS
4HE1 ENG(RLY) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0401-0607
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0608-0801
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
210 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0401-0607
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0608-
316 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28080-850-0 01 1 0401-0512
316 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0601-0607
316 BOLT; BRKT FIX
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 0608-
316 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0401-0607
316 BOLT; BRKT FIX
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 0608-

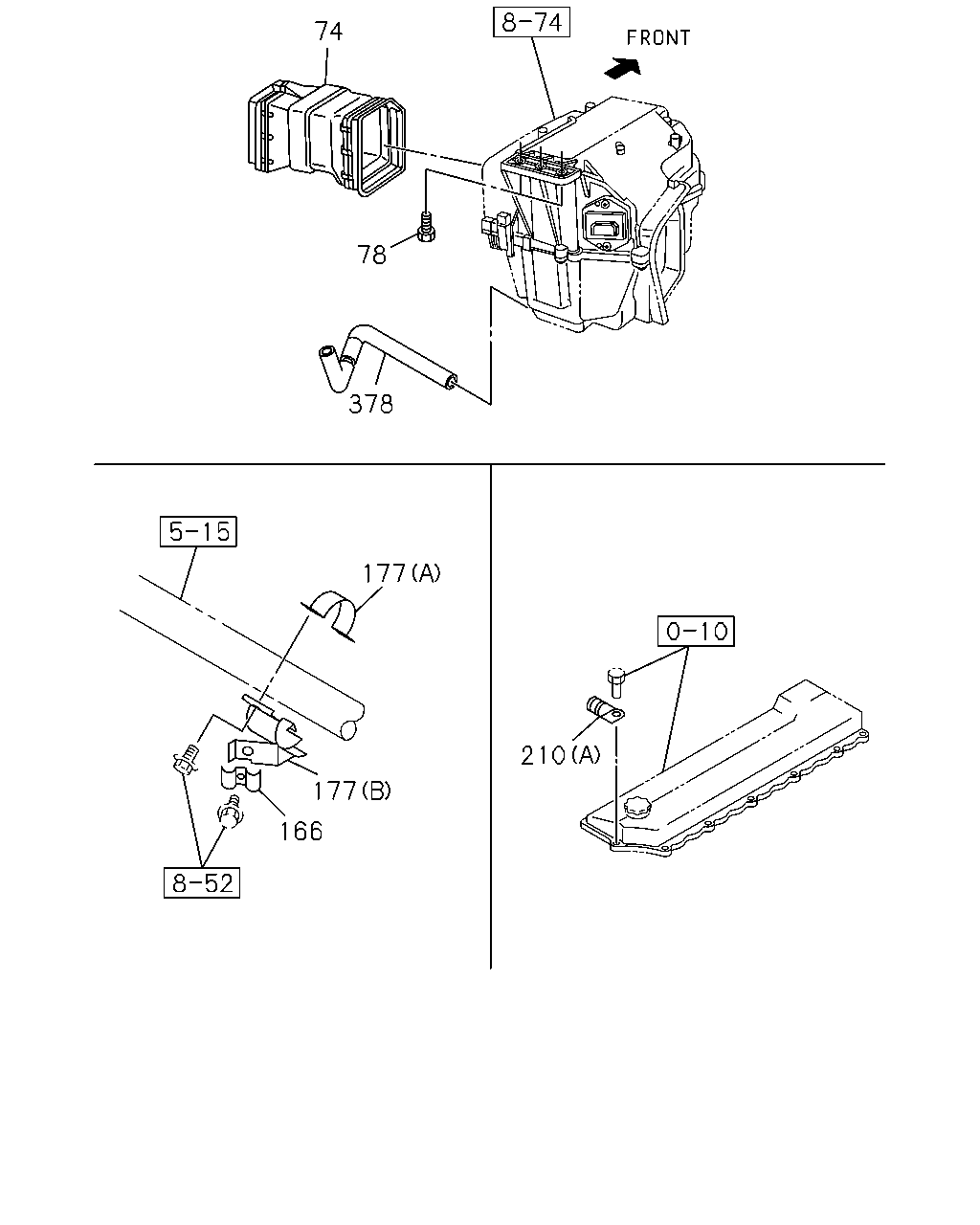

çizim 55089
74 78 378 177 210 177 166
BalonParca AdiParca NoAdetTipApplied Date
74 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-806-0 01 1 0401-0607
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE 		0-28680-620-0 02 1 0401-0512
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE 		0-28650-620-0 02 1 0601-0607
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE 		0-28680-820-0 01 1 0401-0512
78 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0607
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 		8-97090-310-1 01 1 0401-0607
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97087-192-0 01 1 0401-0404
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97358-576-0 01 1 0405-0607
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-771-0 01 1 0401-0404
177 BRACKET; PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97358-577-0 01 1 0405-0607
210 CLIP; HARNESS
4HE1 ENG(RLY) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0401-0607
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0608-0801
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802-
210 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0401-0607
210 CLIP; HARNESS
4HE1-TCN ENG(RDR) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0608-
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97096-815-0 01 1 0401-0607
