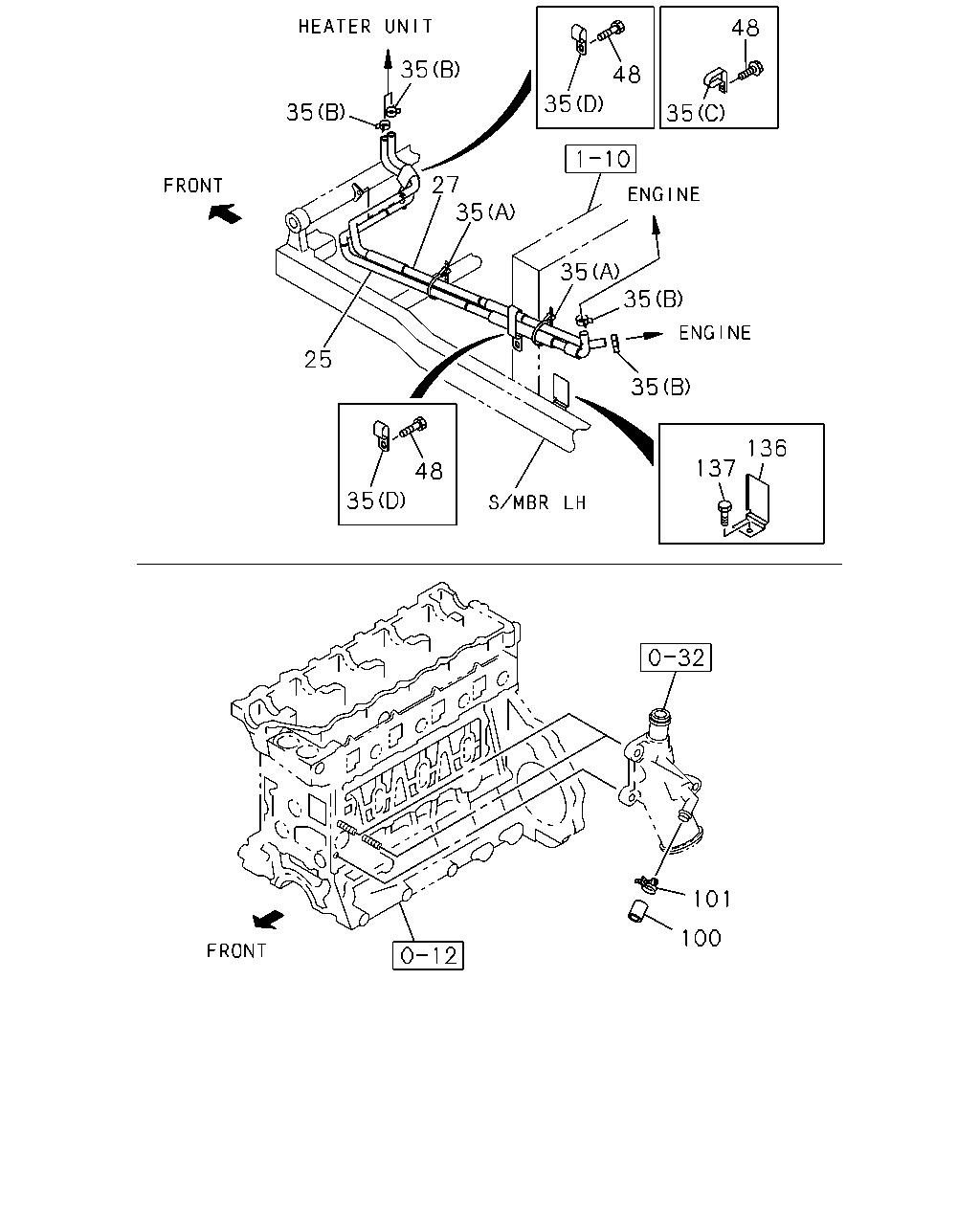

8-45 — HEATER PIPING (#48245) — 32 parça

48 35 48 35 35 35 27 35 35 35 25 35 136 137 48 35 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97148-860-3	01	1	0401-0607
25	HOSE; WATER,ENG TO HTR UNIT 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)	8-97148-860-3	01	1	0608-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97148-861-2	01	1	0401-0607
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)	8-97148-861-2	01	1	0608-
35	CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	04	1	0401-0607
35	CLIP; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-1	02	1	0608-
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	5-83574-006-0	01	1	0401-0610
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	0611-
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) B=18	9-83651-948-1	01	1	0401-0607
35	CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) B=18	9-83651-948-1	01	1	0401-0607
35	CLIP; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (D) B=18	9-83651-948-1	01	1	0608-0610
35	CLIP; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) B=18	9-83651-948-1	01	1	0608-0610
35	CLIP; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (D) B=18	8-97359-144-0	01	1	0611-1205
35	CLIP; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) B=18	8-97359-144-0	01	1	0611-1205
35	CLIP; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) (D) B=18	8-98166-023-0	01	1	1206-
35	CLIP; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) B=18	8-98166-023-0	01	1	1206-
35	CLIP; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-1	02	1	0401-0607
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	04	1	0608-0610
35	CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98029-677-0	01	1	0611-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	02	1	0401-0512
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28050-612-0	02	1	0601-
48	BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X10 FLANGE	0-28080-610-0	01	1	0401-0512
48	BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X10 FLANGE	0-28050-610-0	01	1	0601-0607
48	BOLT; CLIP FIX 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) M6X10 FLANGE	0-28050-610-0	01	1	0608-
100	CAP; RUBBER,WATER PIPE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41)	8-94107-793-0	01	1	0401-0607
101	CLIP; CAP,WATER PIPE 4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) ID=25	8-94233-115-0	01	1	0401-0607
136	GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97183-818-2	01	1	0401-0502
136	GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98011-924-0	01	1	0503-0607
136	GUIDE; WATER HOSE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41)	8-98011-924-0	01	1	0608-
137	BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	01	1	0401-0512
137	BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28050-816-0	01	1	0601-0607
137	BOLT; GUIDE 4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) M8X16 FLANGE	0-28050-816-0	01	1	0608-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
