8-40 — HEATER SYSTEM
(#48244) — 39 parça
◀

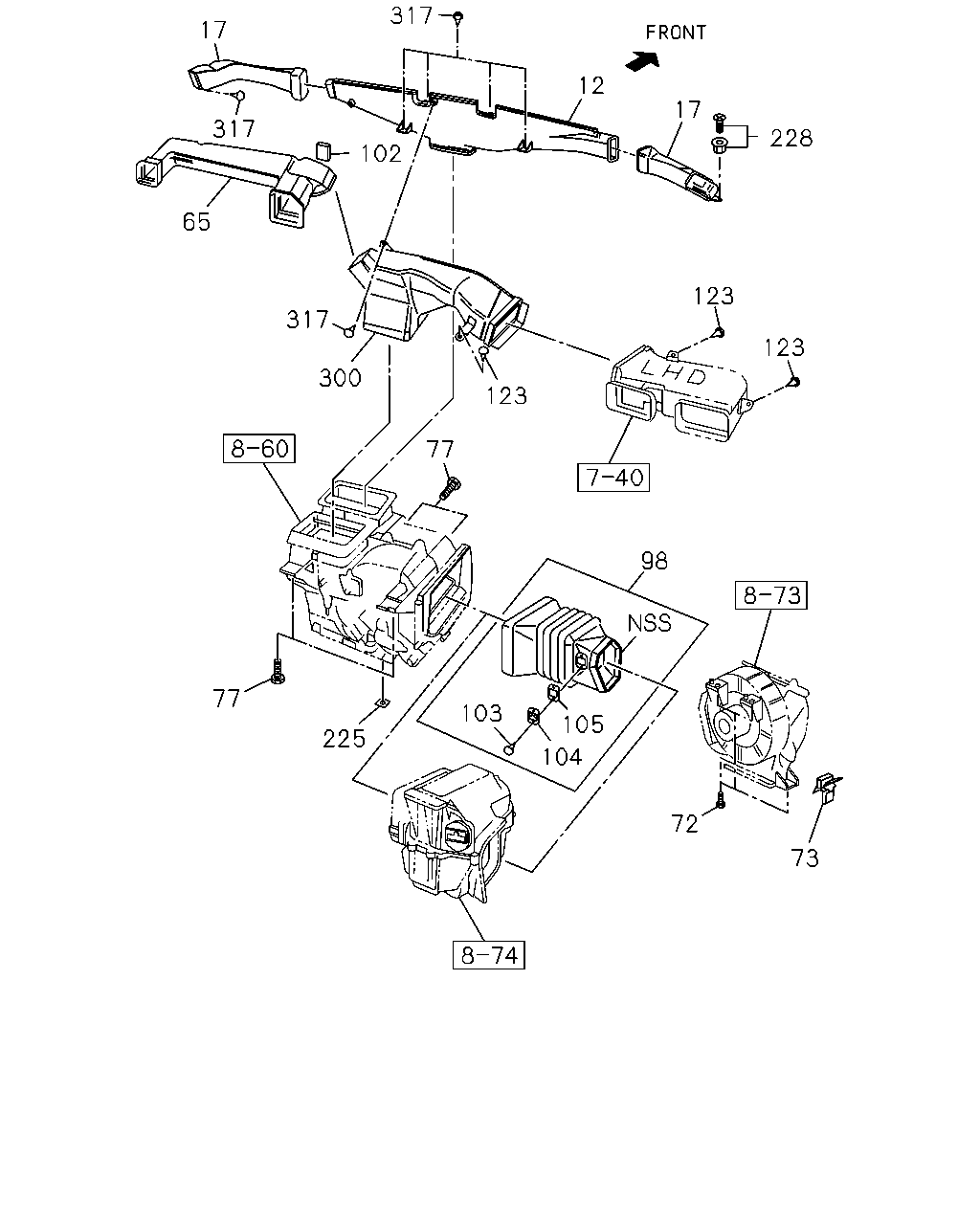

[840A] NO.1 (29 parça)
[840A] NO.2 (4 parça)
[840A] NO.3 (2 parça)
[840A] NO.4 (2 parça)
[840A] NO.5 (2 parça)
▶
317
17
12
17
317
228
102
65
123
317
123
300
123
77
98
77
103
105
225
104
72
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
8-97069-818-0
01
1
0401-
17
NOZZLE; DEFROSTER,SIDE
8-97262-693-0
01
1
0401-
17
NOZZLE; DEFROSTER,SIDE
8-97262-700-0
01
1
0401-
65
DUCT; VENT,DRIVER SIDE
8-97262-696-0
01
1
0401-
72
BOLT; BLOWER UNIT
M6X20 FLANGE
0-28680-620-0
02
1
0401-0512
72
BOLT; BLOWER UNIT
M6X20 FLANGE
0-28650-620-0
02
1
0601-
72
BOLT; BLOWER UNIT
M8X35
8-97103-452-0
02
1
0401-
73
CLIP; HARNESS TO BLOWER UNIT
8-94337-654-0
01
1
0401-
77
BOLT; HTR UNIT
M6X20 FLANGE
0-28680-620-0
02
1
0401-0512
77
BOLT; HTR UNIT
M6X20 FLANGE
0-28650-620-0
02
1
0601-
77
BOLT; HTR UNIT
M8X25
8-97103-451-0
02
1
0401-
98
DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97262-810-0
01
1
0401-0607
98
DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97374-887-0
01
1
0608-
102
LINING; HTR DUCT
8-97145-038-0
01
1
0401-0607
102
LINING; HTR DUCT
8-97145-038-0
01
1
0608-
103
SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING
1-83579-114-0
02
1
0401-
104
RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97358-389-0
01
1
0608-
104
RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97234-546-0
01
1
0401-0607
105
PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97020-761-0
01
1
0401-
123
SCREW; DUCT
M5X12 W/PL WASHER
8-97147-069-0
02
1
0401-0607
123
SCREW; DUCT
M5X12 W/PL WASHER
8-97147-069-0
02
1
0608-0612
123
SCREW; DUCT
T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
02
1
0701-
225
SEAL; WATER
8-97856-616-0
04
1
0401-
228
CLIP; DEFROSTER
D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0401-0607
228
CLIP; DEFROSTER
D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0608-
300
DUCT; VENT,CENTER
8-97262-697-0
01
1
0401-
317
SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER
8-97147-069-0
06
1
0401-0607
317
SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER
8-97147-069-0
06
1
0608-0612
317
SCREW; DEFROSTER NOZZLE
T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
06
1
0701-

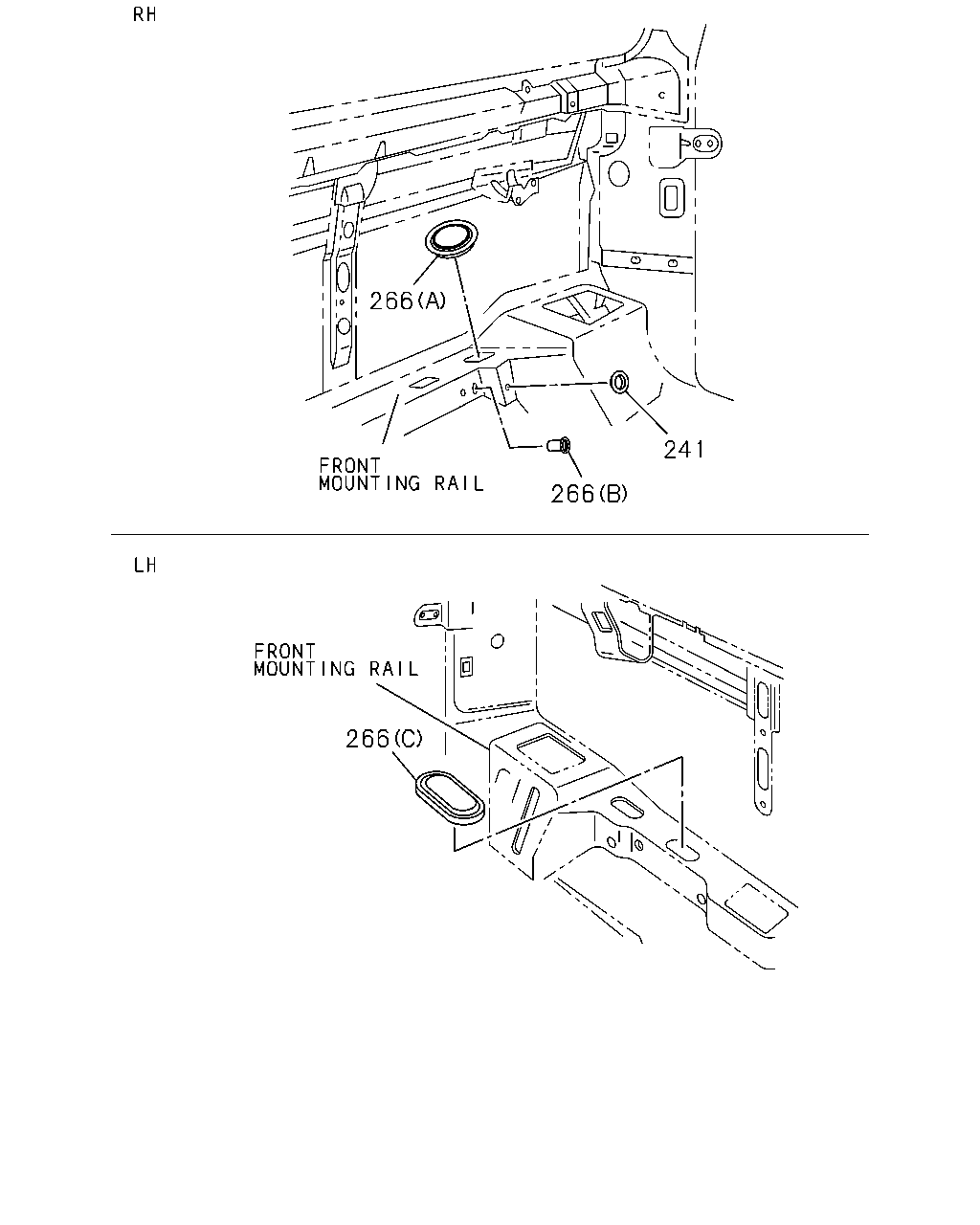

266
241
266
266
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97037-392-0
01
1
0401-
266
PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37
8-97036-019-0
01
1
0401-
266
PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=13
9-09756-019-0
01
1
0401-
266
PLUG; HTR HOLE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONT(C60) (C) H=69.5 B=29.5
8-97036-020-0
01
1
0401-
371
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
370
PLATE; BAFFLE,BLOWER UNIT
8-97856-617-1
01
1
0401-
371
FASTENER; BAFFLE PLATE
D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
01
1
0401-

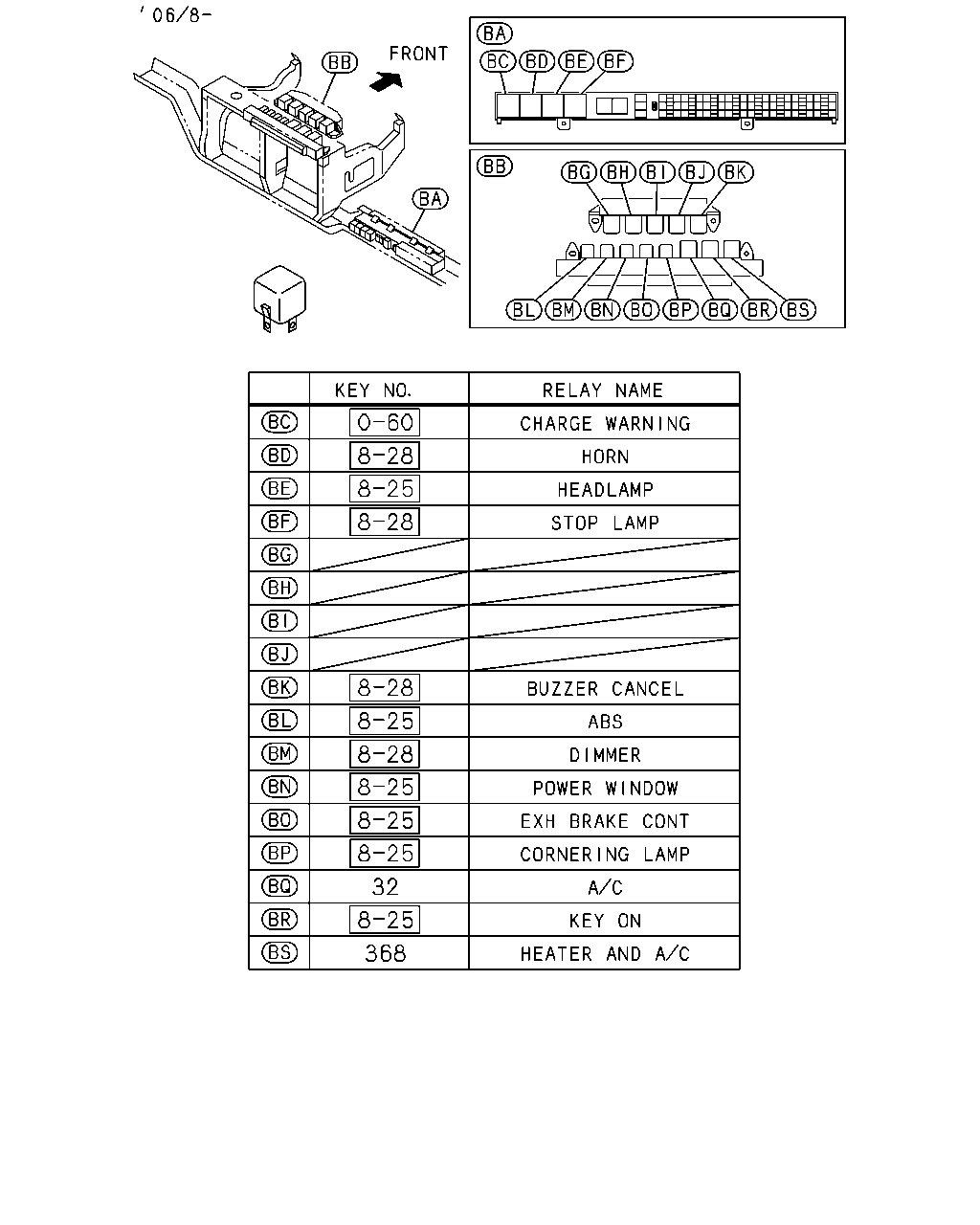

368
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0401-
368
RELAY; HEATER AND A/C
24V 12.5A PANASONIC
8-97262-933-0
01
1
0401-
32
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0401-
368
RELAY; HEATER AND A/C
24V 12.5A PANASONIC
8-97262-933-0
01
1
0401-
