◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#48240) — 75 parça

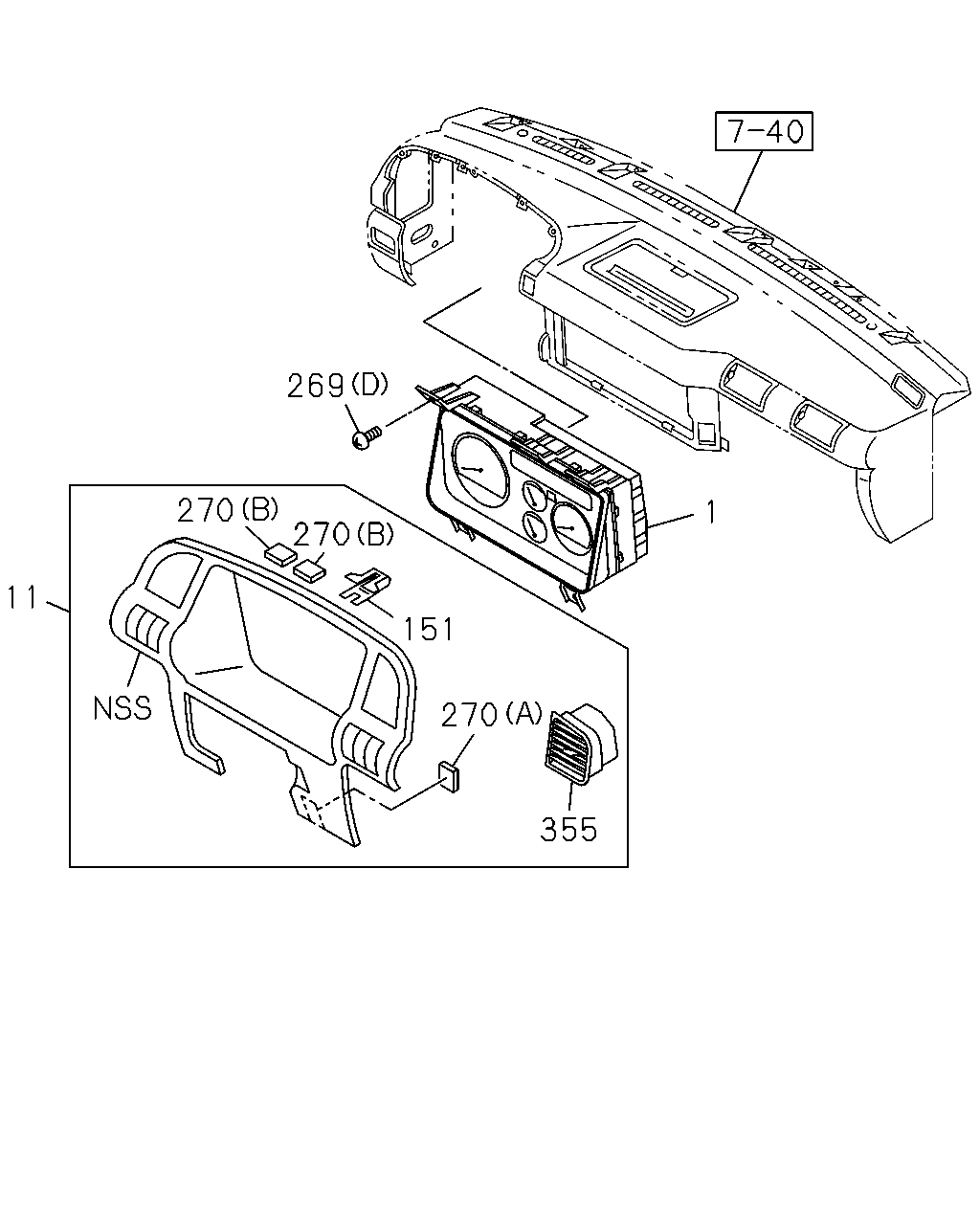

çizim 54630
270 1 11 151 355 269 270 270
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97217-065-0 01 1 0401-0607
1 METER COMPL; CLUSTER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-97383-490-0 01 1 0608-
1 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0401-0607
1 METER COMPL; CLUSTER
4HE1-TCN ENG(RDR) TACHOMETER<U16> 		8-97385-410-1 01 1 0608-
11 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0401-
151 CLIP; METER CLUSTER 8-97217-066-0 07 1 0401-
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 AR 1 0401-1210
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 AR 1 1211-
269 SCREW; METER CLUSTER
(B) 		8-97185-523-0 AR 1 0401-
269 SCREW; METER CLUSTER
(E) 		8-97185-524-0 AR 1 0401-
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 AR 1 0401-
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 AR 1 0401-
270 CUSHION; METER CLUSTER
(A) 15X30 T=5 		8-94270-366-2 01 1 0401-
270 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0401-
355 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0401-
355 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0401-

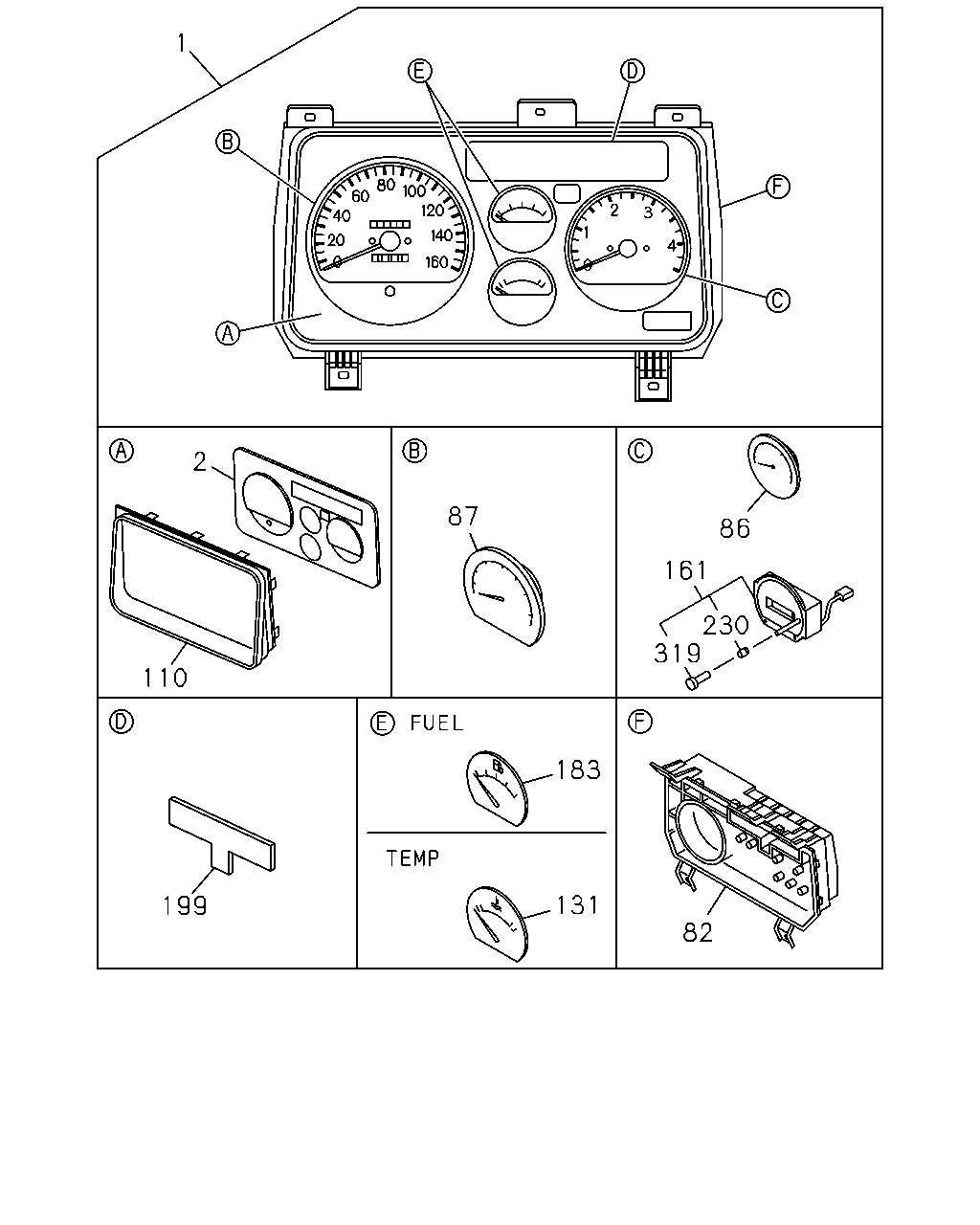

çizim 55124
1 2 87 86 161 230 319 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97217-065-0 01 1 0401-0607
1 METER COMPL; CLUSTER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-97383-490-0 01 1 0608-
1 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0401-0607
1 METER COMPL; CLUSTER
4HE1-TCN ENG(RDR) TACHOMETER<U16> 		8-97385-410-1 01 1 0608-
2 PANEL; CLUSTER
4HE1 ENG(RLY) 		8-97185-443-0 01 1 0401-0607
2 PANEL; CLUSTER
4HE1-TCN ENG(RDR) 		8-97185-443-0 01 1 0608-
82 CASE ASM; CLUSTER METER
4HE1 ENG(RLY) 		8-97185-448-0 01 1 0401-0607
82 CASE ASM; CLUSTER METER
4HE1-TCN ENG(RDR) 		8-97185-448-0 01 1 0608-
86 TACHOMETER; CLUSTER METER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97218-460-0 01 1 0401-0607
86 TACHOMETER; CLUSTER METER
4HE1-TCN ENG(RDR) TACHOMETER<U16> 		8-98002-113-0 01 1 0608-
87 SPEEDOMETER
4HE1 ENG(RLY) 		8-97185-457-0 01 1 0401-0607
87 SPEEDOMETER
4HE1-TCN ENG(RDR) 		8-98002-108-0 01 1 0608-
110 GLASS; CLUSTER METER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97185-452-0 01 1 0401-0607
110 GLASS; CLUSTER METER
4HE1-TCN ENG(RDR) TACHOMETER<U16> 		8-97185-452-0 01 1 0608-
110 GLASS; CLUSTER METER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0401-0607
110 GLASS; CLUSTER METER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-97185-451-0 01 1 0608-
131 GAUGE; TEMP,CLUSTER METER
4HE1 ENG(RLY) 		8-97185-475-0 01 1 0401-0607
131 GAUGE; TEMP,CLUSTER METER
4HE1-TCN ENG(RDR) 		8-98002-121-0 01 1 0608-
161 CLOCK; CLUSTER METER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97185-462-0 01 1 0401-0607
161 CLOCK; CLUSTER METER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-98002-110-0 01 1 0608-
183 GAUGE; FUEL
4HE1 ENG(RLY) 		8-97185-473-0 01 1 0401-0607
183 GAUGE; FUEL
4HE1-TCN ENG(RDR) 		8-98002-118-0 01 1 0608-
199 LENS; WARNING LAMP
4HE1 ENG(RLY) 		8-97185-481-0 01 1 0401-0607
199 LENS; WARNING LAMP
4HE1-TCN ENG(RDR) 		8-98002-124-0 01 1 0608-
230 KNOB; DIGITAL CLOCK,SUB METER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0401-0607
230 KNOB; DIGITAL CLOCK,SUB METER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-97185-644-0 01 1 0608-
319 SCREW; KNOB,CLUSTER METER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0401-0607
319 SCREW; KNOB,CLUSTER METER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-97185-522-0 01 1 0608-

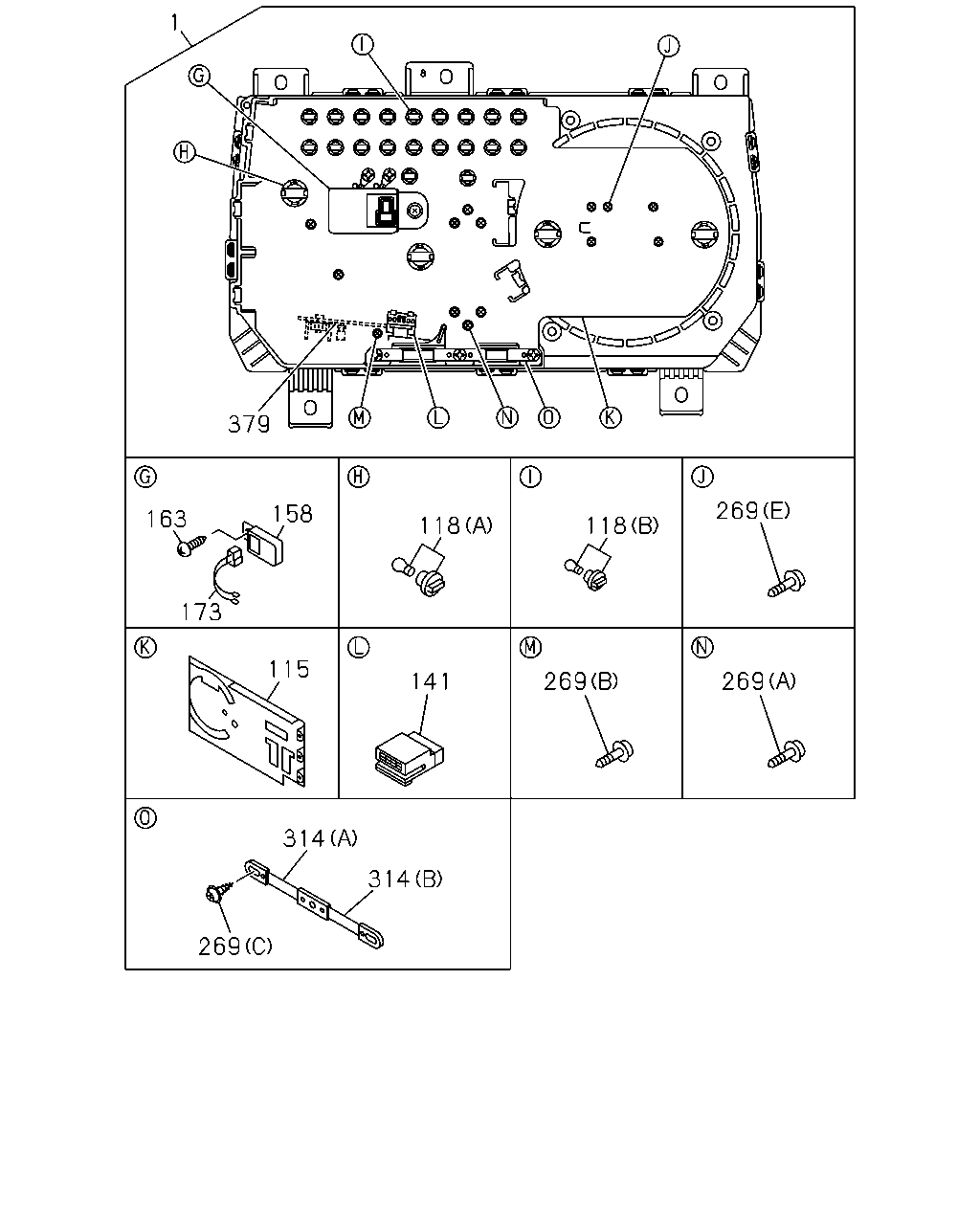

çizim 100778
1 379 269 158 163 118 118 173 115 269 269 141 314 314 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97217-065-0 01 1 0401-0607
1 METER COMPL; CLUSTER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-97383-490-0 01 1 0608-
1 METER COMPL; CLUSTER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97170-596-2 01 1 0401-0607
1 METER COMPL; CLUSTER
4HE1-TCN ENG(RDR) TACHOMETER<U16> 		8-97385-410-1 01 1 0608-
115 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) TACHOMETER<U16> 		8-97185-507-0 01 1 0401-0607
115 CIRCUIT; PRINTED,CLUSTER METER
4HE1-TCN ENG(RDR) TACHOMETER<U16> 		8-97185-493-0 01 1 0608-
115 CIRCUIT; PRINTED,CLUSTER METER
4HE1 ENG(RLY) EXC. TACHOMETER<U16> 		8-97185-489-0 01 1 0401-0607
115 CIRCUIT; PRINTED,CLUSTER METER
4HE1-TCN ENG(RDR) EXC. TACHOMETER<U16> 		8-97185-489-0 01 1 0608-
118 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 AR 1 0401-
118 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 AR 1 0401-
118 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 AR 1 0401-
141 CONNECTOR; CLUSTER METER
4HE1 ENG(RLY) 		8-97185-513-0 01 1 0401-0607
141 CONNECTOR; CLUSTER METER
4HE1-TCN ENG(RDR) 		8-97185-513-0 01 1 0608-
158 BUZZER; VAC WARNING
4HE1 ENG(RLY) 24V 		8-97185-519-0 01 1 0401-0607
158 BUZZER; VAC WARNING
4HE1-TCN ENG(RDR) 24V 		8-97185-519-0 01 1 0608-
163 SCREW; BUZZER
4HE1 ENG(RLY) 		8-97185-527-0 01 1 0401-0607
163 SCREW; BUZZER
4HE1-TCN ENG(RDR) 		8-97185-527-0 01 1 0608-
173 WIRE; LEAD
4HE1 ENG(RLY) 		8-97185-643-0 01 1 0401-0607
173 WIRE; LEAD
4HE1-TCN ENG(RDR) 		8-97185-643-0 01 1 0608-
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 AR 1 0401-1210
269 SCREW; METER CLUSTER
(D) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 AR 1 1211-
269 SCREW; METER CLUSTER
(B) 		8-97185-523-0 AR 1 0401-
269 SCREW; METER CLUSTER
(E) 		8-97185-524-0 AR 1 0401-
269 SCREW; METER CLUSTER
(A) 		8-97185-525-0 AR 1 0401-
269 SCREW; METER CLUSTER
(C) 		8-97185-528-0 AR 1 0401-
314 RESISTOR; COMB METER,CLUSTER METER
4HE1 ENG(RLY) (A) 		8-97185-515-0 01 1 0401-0607
314 RESISTOR; COMB METER,CLUSTER METER
4HE1-TCN ENG(RDR) (A) 		8-97185-515-0 01 1 0608-
314 RESISTOR; COMB METER,CLUSTER METER
4HE1 ENG(RLY) (B) 		8-97185-516-0 01 1 0401-0607
314 RESISTOR; COMB METER,CLUSTER METER
4HE1-TCN ENG(RDR) (B) 		8-97185-516-0 01 1 0608-
379 CIRCUIT; DROP
4HE1 ENG(RLY) 		8-97185-512-0 01 1 0401-0607
379 CIRCUIT; DROP
4HE1-TCN ENG(RDR) 		8-97185-512-0 01 1 0608-
