◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#48239) — 154 parça

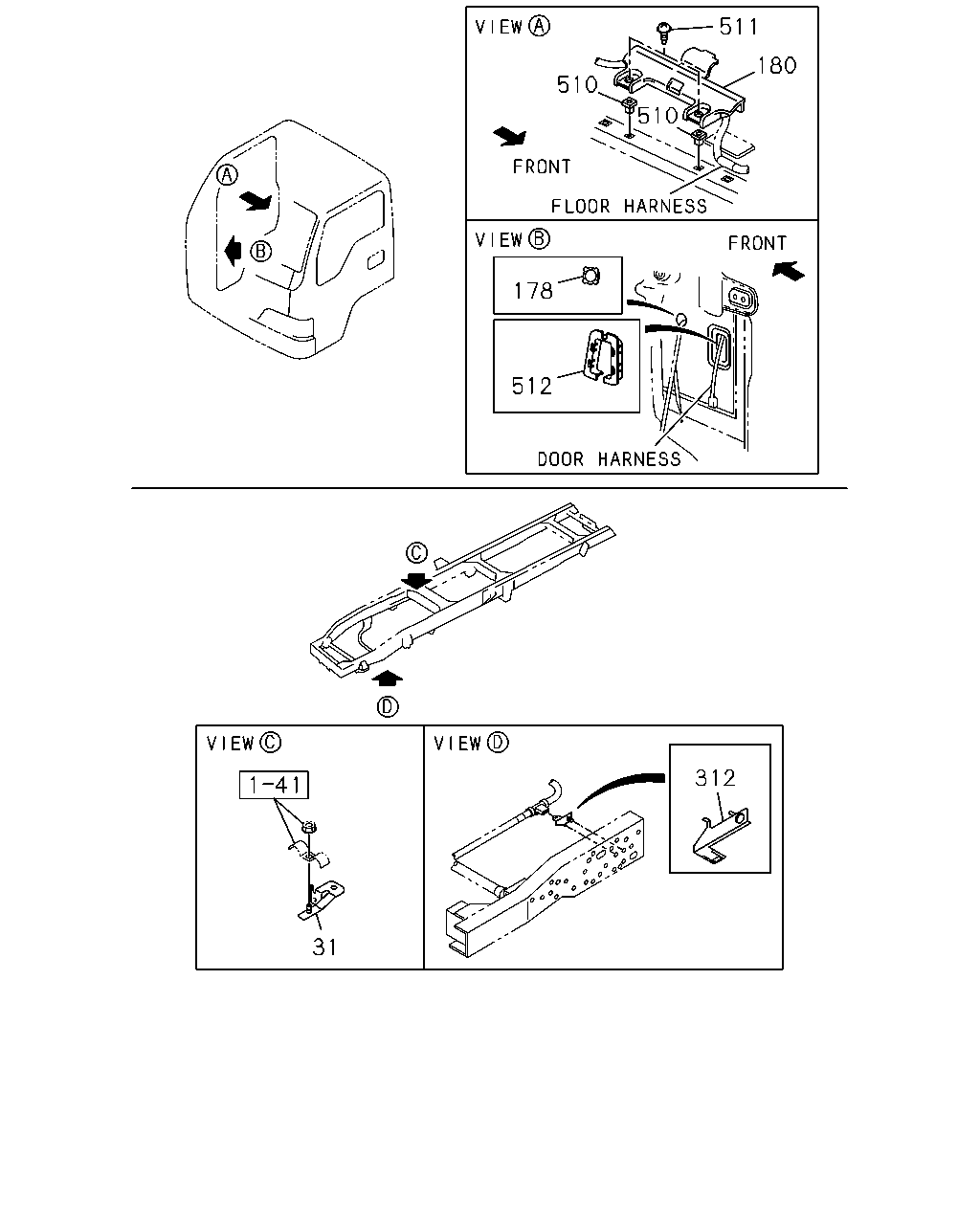

çizim 54629
511 180 510 510 178 512 312 31
BalonParca AdiParca NoAdetTipApplied Date
31 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) L=47 		8-97042-635-0 01 1 0401-0607
31 BRACKET; HARNESS CLIP,PIPE
4HE1-TCN ENG(RDR) L=47 		8-97042-635-0 01 1 0608-
31 BRACKET; HARNESS CLIP,PIPE
4HE1 ENG(RLY) L=73 		8-97077-845-0 02 1 0401-0607
31 BRACKET; HARNESS CLIP,PIPE
4HE1-TCN ENG(RDR) L=73 		8-97077-845-0 02 1 0608-
178 GROMMET; HARNESS
ID=47 		8-94279-735-0 01 1 0401-
180 COVER; HARNESS 8-97856-130-4 02 1 0401-
312 BRACKET; CLIP HARNESS
4HE1 ENG(RLY) 		8-97017-072-2 01 1 0401-0607
312 BRACKET; CLIP HARNESS 8-97017-072-2 01 1 0608-
510 GROMMET; SCREW
H=15 		8-94463-268-1 04 1 0401-
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0401-0604
511 SCREW; HARNESS COVER
M5X14 TAPPING W/PL WASHER 		0-74160-514-0 04 1 0605-0702
511 SCREW; HARNESS COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 0703-
512 PROTECTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0401-
512 PROTECTOR; HARNESS
POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0401-
512 PROTECTOR; HARNESS
ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97072-950-0 02 1 0401-
512 PROTECTOR; HARNESS
RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-97072-950-0 02 1 0401-
çizim 54668
16 48 220 483 48 488 16 205 48 142 16 16 48 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0401-
16 CLIP; HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 0401-
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 AR 1 0401-
16 CLIP; HARNESS
(D) L=100 		8-94327-067-1 AR 1 0401-
16 CLIP; HARNESS
(E) ID=10 & 16 		8-94413-325-0 AR 1 0401-
16 CLIP; HARNESS
(C) ID=22 & 22 		8-94464-837-0 AR 1 0401-
16 CLIP; HARNESS
(F) ID=6 & 10-13 		8-97069-515-0 AR 1 0401-
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0401-
16 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0401-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 AR 1 0502-
16 CLIP; HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
16 CLIP; HARNESS
(L) T=4.5 & 9 		5-09709-023-0 AR 1 0911-
16 CLIP; HARNESS
(M) T=6.0 		5-09709-024-0 AR 1 0911-
48 CLIP; FRAME HARNESS
4HE1-TCN ENG(RDR) GENERATOR 24V80A(7YN) (L) L=250 		5-09707-030-1 AR 1 1008-
48 CLIP; FRAME HARNESS
(G) ID=32 L=75 		1-09700-702-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(A) ID=31 L=30 		1-09700-969-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(H) ID=14 L=47 		5-09700-319-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(B) L=140 		5-09707-031-1 AR 1 0401-
48 CLIP; FRAME HARNESS
(D) T=4.5 & 9 		5-09709-023-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0401-
48 CLIP; FRAME HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0608-
142 CLIP; HARNESS,ENG
(A) L=170.3 		1-09987-182-0 01 1 0401-
142 CLIP; HARNESS,ENG
4HE1 ENG(RLY) (B) 		8-97101-436-0 01 1 0401-0607
142 CLIP; HARNESS,ENG
4HE1-TCN ENG(RDR) (B) 		8-97101-436-0 01 1 0608-
205 CLIP; BACK LAMP HARNESS
L=135 		1-09987-143-1 01 1 0401-
220 CLIP; HARNESS TO CABLE
4HE1 ENG(RLY) L=140 		5-09707-031-1 01 1 0401-0607
220 CLIP; HARNESS TO CABLE
4HE1-TCN ENG(RDR) L=140 		5-09707-031-1 01 1 0608-
483 CLIP; ENG HARNESS
4HE1 ENG(RLY) L=140 		5-09707-031-1 02 1 0401-0607
483 CLIP; ENG HARNESS
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) L=140 		5-09707-031-1 02 1 0608-
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0401-
çizim 54703
16 264 16 264 16 48 16 48 48 16 48 16 48 16 48 48 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) 1 SET=5 PIECE 		1-09987-214-0 AR 1 0401-
16 CLIP; HARNESS
(B) ID=14 L=47 		5-09700-319-0 AR 1 0401-
16 CLIP; HARNESS
(H) L=140 		5-09707-031-1 AR 1 0401-
16 CLIP; HARNESS
(D) L=100 		8-94327-067-1 AR 1 0401-
16 CLIP; HARNESS
(E) ID=10 & 16 		8-94413-325-0 AR 1 0401-
16 CLIP; HARNESS
(C) ID=22 & 22 		8-94464-837-0 AR 1 0401-
16 CLIP; HARNESS
(F) ID=6 & 10-13 		8-97069-515-0 AR 1 0401-
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 AR 1 0401-
16 CLIP; HARNESS
(G) ID=15-32 		8-97174-404-0 AR 1 0401-
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 AR 1 0502-
16 CLIP; HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
16 CLIP; HARNESS
(L) T=4.5 & 9 		5-09709-023-0 AR 1 0911-
16 CLIP; HARNESS
(M) T=6.0 		5-09709-024-0 AR 1 0911-
48 CLIP; FRAME HARNESS
4HE1-TCN ENG(RDR) GENERATOR 24V80A(7YN) (L) L=250 		5-09707-030-1 AR 1 1008-
48 CLIP; FRAME HARNESS
(G) ID=32 L=75 		1-09700-702-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(C) ID=33 L=63 		1-09700-807-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(A) ID=31 L=30 		1-09700-969-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(E) L=170.3 		1-09987-182-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(H) ID=14 L=47 		5-09700-319-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(B) L=140 		5-09707-031-1 AR 1 0401-
48 CLIP; FRAME HARNESS
(D) T=4.5 & 9 		5-09709-023-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(I) ID=9 		8-97063-874-0 AR 1 0401-
48 CLIP; FRAME HARNESS
(F) ID=30 W/STUD 		8-97078-642-2 AR 1 0401-
48 CLIP; FRAME HARNESS
(K) ID=27 		5-09700-323-0 AR 1 0911-
48 CLIP; FRAME HARNESS
(J) T=6.0 		5-09709-024-0 AR 1 0608-
264 CLIP; HARNESS,HEADLAMP
(A) ID=10 & 16 		8-94413-325-0 02 1 0401-0607
264 CLIP; HARNESS,HEADLAMP
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0401-
çizim 55059
386 8 386 139 377 377 386 386 19 38 239 38 8 239 219 294 219 294 515 294 469 515 519 525 7 53 53 412 504 514
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-97094-992-1 01 1 0401-
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0401-0512
8 BOLT; BRKT,CONNECTOR
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0401-1210
8 BOLT; BRKT,CONNECTOR
(A) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 03 1 1211-
19 BOLT; PROTECTOR
4HE1 ENG(RLY) M10X35 FLANGE 		0-28681-035-0 01 1 0401-0512
19 BOLT; PROTECTOR
4HE1 ENG(RLY) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0607
19 BOLT; PROTECTOR
M10X35 FLANGE 		0-28651-035-0 01 1 0608-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0401-0512
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (A) M8X25 FLANGE 		0-28680-825-0 01 1 0401-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0401-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0607
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0607
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0607
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0608-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0608-
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (B) M8X30 FLANGE 		0-28680-830-0 01 1 0401-0512
38 BOLT; CLIP,HARNESS
4HE1 ENG(RLY) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0607
38 BOLT; CLIP,HARNESS
4HE1-TCN ENG(RDR) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0608-
53 BRACKET; HARNESS
(B) 		8-98003-050-0 01 1 0608-
53 BRACKET; HARNESS
4HE1 ENG(RLY) (A) 		8-97352-527-0 01 1 0401-0607
53 BRACKET; HARNESS
(A) 		8-97352-527-0 01 1 0608-
139 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 03 1 0401-0512
139 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 03 1 0601-
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0401-0602
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91150-108-0 01 1 0401-0602
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91150-108-0 01 1 0401-0602
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0401-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0607
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0607
219 NUT
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0607
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0607
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0608-
219 NUT
4HE1-TCN ENG(RDR) (B) M8 FLANGE 		0-91180-108-0 01 1 0608-
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0608-
219 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91150-106-0 02 1 0401-0602
219 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91180-106-0 02 1 0603-0607
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 0608-
239 BOLT; GRAND
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0401-1004
239 BOLT; GRAND
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
294 NUT
(C) M8 FLANGE 		0-91150-108-0 02 1 0401-0602
294 NUT
(C) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 0401-0602
294 NUT
(B) M10 FLANGE 		0-91180-110-0 01 1 0603-
294 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91150-106-0 01 1 0401-0602
294 NUT
4HE1 ENG(RLY) (A) M6 FLANGE 		0-91180-106-0 01 1 0603-0607
377 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0401-1004
377 BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-
386 BOLT; GRAND HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (D) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1112-
386 BOLT; GRAND HARNESS
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0401-0607
386 BOLT; GRAND HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0608-1004
386 BOLT; GRAND HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-
412 BRACKET; HARNESS,TRANS 8-97324-451-1 01 1 0401-
469 NUT; PROTECTOR
4HE1 ENG(RLY) M10 FLANGE 		0-91150-110-0 01 1 0401-0602
469 NUT; PROTECTOR
4HE1 ENG(RLY) M10 FLANGE 		0-91180-110-0 01 1 0603-0607
469 NUT; PROTECTOR
M10 FLANGE 		0-91180-110-0 01 1 0608-
504 PROTECTOR; HARNESS
L=200 		8-97096-423-0 01 1 0401-
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 0401-0607
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 01 1 0608-
514 FINISHER; HARNESS
L=120 SERVICED BY L=2040 		1-71997-513-1 03 1 0401-0607
514 FINISHER; HARNESS
L=120 SERVICED BY L=500 		1-79937-746-0 03 1 0608-
514 FINISHER; HARNESS
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0401-0607
514 FINISHER; HARNESS
4HE1-TCN ENG(RDR) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0608-
514 FINISHER; HARNESS
4HE1 ENG(RLY) L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0401-0503
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 0504-1508
514 FINISHER; HARNESS
L=290 SERVICED BY L=500 		1-79937-746-0 01 1 1509-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 0608-
515 NUT; BRKT
4HE1 ENG(RLY) (A) M8 FLANGE 		0-91150-108-0 01 1 0401-0602
515 NUT; BRKT
4HE1 ENG(RLY) (A) M8 FLANGE 		0-91180-108-0 01 1 0603-0607
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0608-
515 NUT; BRKT
EXC. TOOL & STORAGE BOX<VK2> (A) M8 FLANGE 		0-91180-108-0 01 1 0608-
519 NUT; EARTH CABLE
4HE1 ENG(RLY) M10 FLANGE 		0-91150-110-0 01 1 0401-0602
519 NUT; EARTH CABLE
4HE1 ENG(RLY) M10 FLANGE 		0-91180-110-0 01 1 0603-0607
519 NUT; EARTH CABLE
4HE1-TCN ENG(RDR) M10 FLANGE 		0-91180-110-0 01 1 0608-
525 NUT; CLIP
4HE1 ENG(RLY) M10 FLANGE 		0-91150-110-0 01 1 0401-0602
525 NUT; CLIP
4HE1 ENG(RLY) M10 FLANGE 		0-91180-110-0 01 1 0603-0607
525 NUT; CLIP
4HE1-TCN ENG(RDR) M10 FLANGE 		0-91180-110-0 01 1 0608-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
