Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

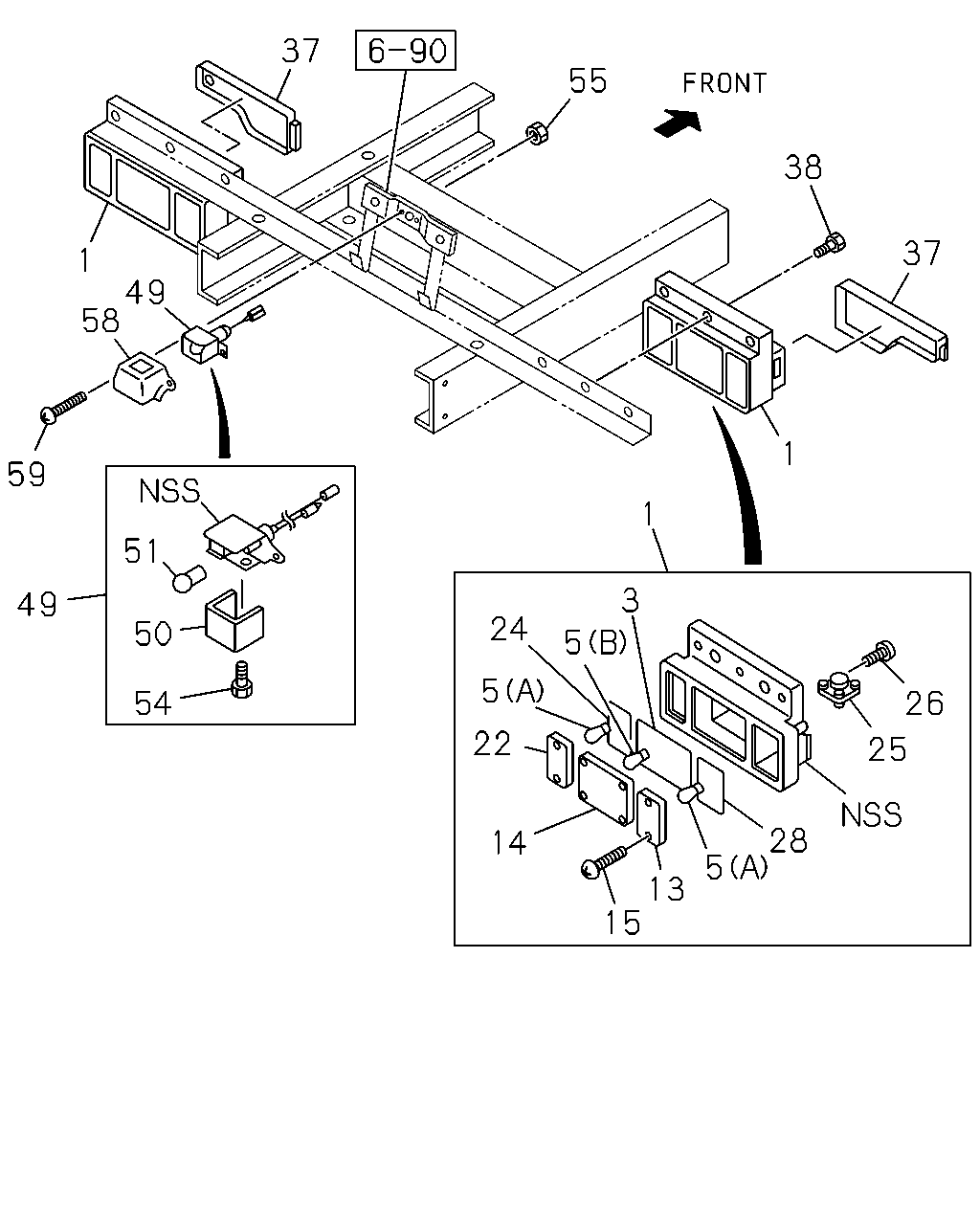

8-03 — LAMP; REAR AND REAR SIDE
(#48237) — 35 parça
37
55
38
37
1
49
58
1
59
1
51
3
49
24
50
5
5
54
26
22
25
28
14
5
13
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; RR COMB
8-97213-369-0
01
1
0401-
1
LAMP ASM; RR COMB
BACK BUZZER<YM9>
8-97213-370-0
01
1
0401-
1
LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>
8-97213-368-0
01
1
0401-
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0401-
3
GASKET; RR COMB LAMP
8-94257-505-0
01
1
0401-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0401-
5
BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0401-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0401-
5
BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0401-
13
LENS; TURN SIGNAL
8-94174-639-0
01
1
0401-
13
LENS; TURN SIGNAL
8-94174-638-0
01
1
0401-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
0401-
14
LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
0401-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0401-
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0401-
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0401-
22
LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0401-
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0401-
24
GASKET; BACK,LAMP
8-94257-506-0
01
1
0401-
25
HORN ASM; BACK
BACK BUZZER<YM9>
8-94257-518-0
01
1
0401-
26
SCREW; BACK HORN
M4X14 TAPPING
9-07076-414-0
01
1
0401-
26
SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING
9-07076-412-0
02
1
0401-
26
SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING
9-07076-412-0
01
1
0401-
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0401-
28
GASKET; TURN,LAMP
8-94257-507-0
01
1
0401-
37
COVER; RR COMB LAMP
8-94129-274-4
01
1
0401-
37
COVER; RR COMB LAMP
8-94128-858-4
01
1
0401-
38
BOLT; LAMP,RR COMB
M6X20
8-94402-623-0
06
1
0401-
49
LAMP; LICENSE PLATE
24V 12W
5-82120-021-1
01
1
0401-
50
LENS; LICENSE PLATE LAMP
5-82125-004-0
01
1
0401-
51
BULB; LICENSE PLATE LAMP
24V 12W
1-82194-004-0
01
1
0401-
54
SCREW; LICENSE PLATE LAMP
M4X8
8-94419-312-0
01
1
0401-
55
NUT; LICENSE PLATE LAMP
M5 FLANGE
8-94153-039-0
02
1
0401-
58
COVER; LICENSE PLATE LAMP
8-97076-590-1
01
1
0401-
59
SCREW; TAP,LICENSE LAMP BODY
M5X20
9-93490-520-0
02
1
0401-
