◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#48234) — 109 parça
çizim 54567
1 17 99 2 18 19 12 24 228 13 15 69 382 71 63
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-616-2 01 1 0401-0607
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-676-3 01 1 0608-
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-596-2 01 1 0401-0607
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-476-3 01 1 0608-
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-592-2 01 1 0401-0607
1 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-365-3 01 1 0608-
1 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-604-2 01 1 0401-0607
1 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-377-3 01 1 0608-
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-608-2 01 1 0401-0607
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-484-3 01 1 0608-
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-620-2 01 1 0401-0607
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-678-3 01 1 0608-
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-617-1 01 1 0401-0607
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-677-2 01 1 0608-
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-597-1 01 1 0401-0607
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-477-2 01 1 0608-
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-593-1 01 1 0401-0607
2 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-366-2 01 1 0608-
2 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-605-1 01 1 0401-0607
2 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-378-2 01 1 0608-
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-609-1 01 1 0401-0607
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-485-2 01 1 0608-
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-621-1 01 1 0401-0607
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-679-2 01 1 0608-
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-618-1 01 1 0401-0607
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-100-1 01 1 0608-
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-598-1 01 1 0401-0607
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-478-1 01 1 0608-
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-594-0 01 1 0401-0607
12 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-367-1 01 1 0608-
12 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-606-0 01 1 0401-0607
12 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-375-1 01 1 0608-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-610-1 01 1 0401-0607
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-482-1 01 1 0608-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-622-1 01 1 0401-0607
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-093-1 01 1 0608-
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-619-1 01 1 0401-0607
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-101-1 01 1 0608-
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-599-1 01 1 0401-0607
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-479-1 01 1 0608-
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-595-0 01 1 0401-0607
13 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-368-1 01 1 0608-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-607-0 01 1 0401-0607
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-376-1 01 1 0608-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97394-611-1 01 1 0401-0607
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-483-1 01 1 0608-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-623-1 01 1 0401-0607
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-094-1 01 1 0608-
15 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0401-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0401-
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0401-0607
18 COVER; RECLINING
DARK GRAY 		8-97400-095-0 01 1 0608-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0401-0604
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97859-019-0 01 1 0401-0607
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97400-096-0 01 1 0608-0804
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-446-0 01 1 0805-
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-3 01 1 0401-
63 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> 		8-97854-670-3 01 1 0401-
63 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0401-
69 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 0401-
71 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0401-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0401-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0401-
382 WASHER; PL,DRIVER SEAT
ID=8.4 OD=22 		8-94127-883-1 02 1 0401-

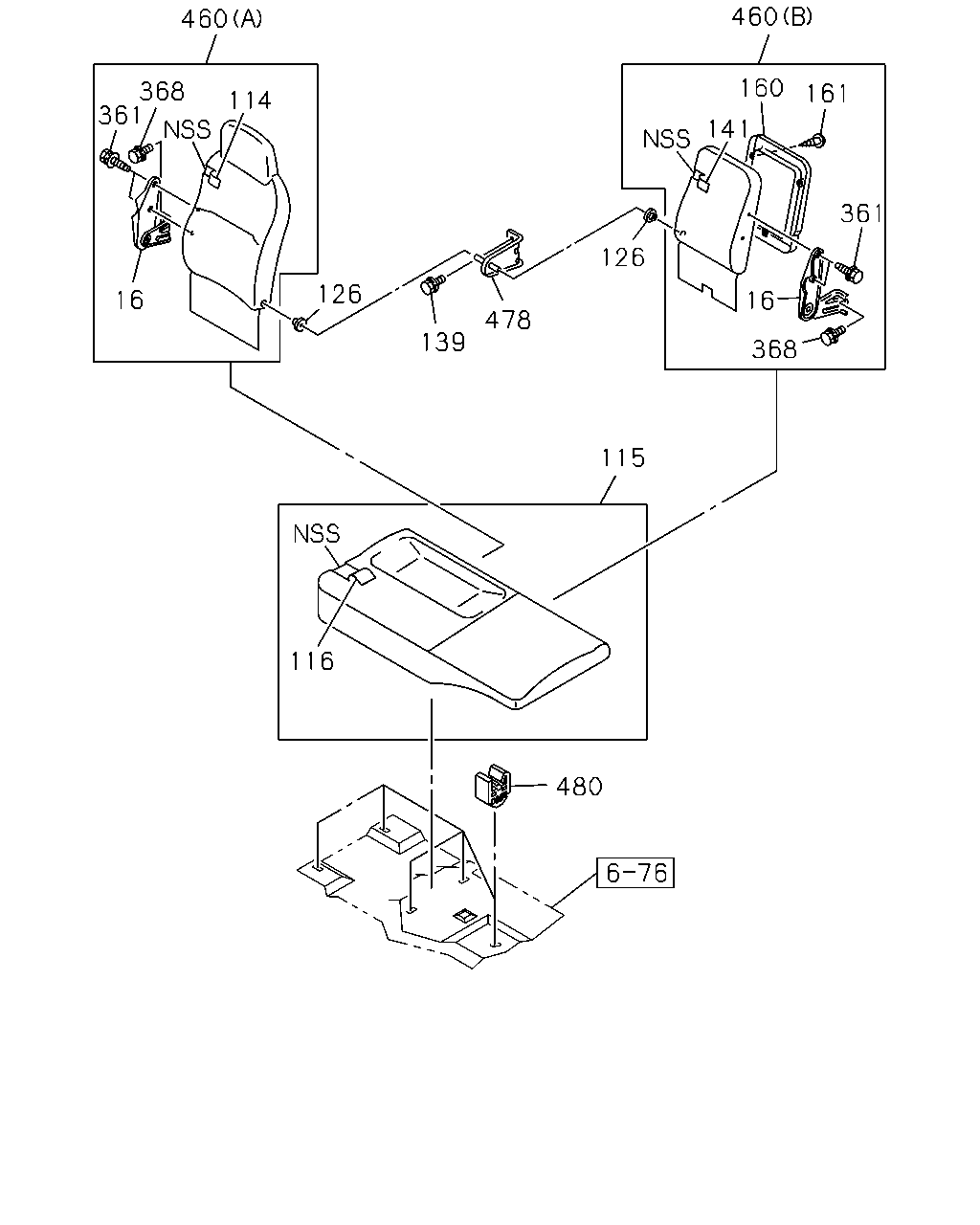

çizim 54671
460 460 160 368 361 161 114 141 361 126 126 16 16 478 139 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
BLACK 		8-97859-273-3 01 1 0401-
16 ADJUSTER ASM; RECLINING
BLACK 		8-97859-274-3 01 1 0401-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97394-630-1 01 1 0401-0607
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-693-2 01 1 0608-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-629-1 01 1 0401-0607
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-692-2 01 1 0608-
115 CUSHION ASM; PASSENGER SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-584-2 01 1 0401-0607
115 CUSHION ASM; PASSENGER SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-666-3 01 1 0608-
115 CUSHION ASM; PASSENGER SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-585-1 01 1 0401-0607
115 CUSHION ASM; PASSENGER SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-667-3 01 1 0608-
115 CUSHION ASM; PASSENGER SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-581-1 01 1 0401-0607
115 CUSHION ASM; PASSENGER SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-663-2 01 1 0608-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-582-2 01 1 0401-0607
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-664-2 01 1 0608-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97394-642-2 01 1 0401-0607
116 COVER; TRIM,PASSENGER SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> DARK GRAY 		8-97400-109-1 01 1 0608-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-643-1 01 1 0401-0607
116 COVER; TRIM,PASSENGER SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-705-1 01 1 0608-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97394-639-1 01 1 0401-0607
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-703-1 01 1 0608-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-640-2 01 1 0401-0607
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-107-1 01 1 0608-
126 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0401-0804
126 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805-
139 BOLT; PASSENGER SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0401-
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97394-637-1 01 1 0401-0607
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-105-1 01 1 0608-
141 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97394-636-1 01 1 0401-0607
141 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-698-2 01 1 0608-
160 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97393-932-1 01 1 0401-0607
160 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0608-
161 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0401-
361 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0401-
368 BOLT; SEAT
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0401-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97394-569-3 01 1 0401-0607
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-653-3 01 1 0608-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97394-578-2 01 1 0401-0607
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-075-3 01 1 0608-
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97394-568-3 01 1 0401-0607
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-652-3 01 1 0608-
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97394-577-2 01 1 0401-0607
460 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-658-4 01 1 0608-
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-185-0 01 1 0401-
480 CLIP; CUSHION 8-94279-977-0 05 1 0401-
