Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-41 - UNDER COVER; INSTRUMENT
▶

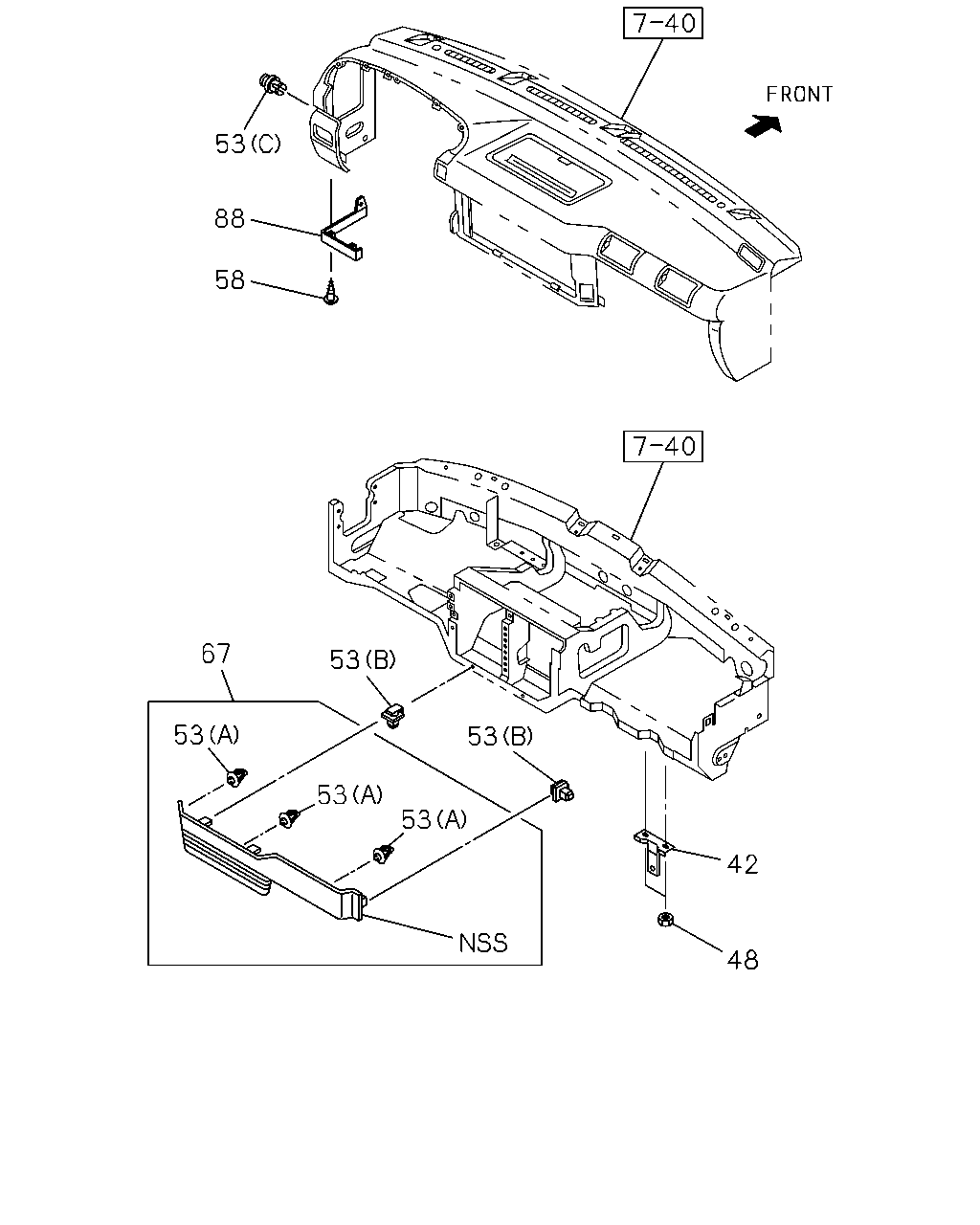

7-41 — UNDER COVER; INSTRUMENT
(#48230) — 12 parça
53
88
58
67
53
53
53
53
53
42
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
BRACKET; UNDER COVER
8-97217-299-1
01
1
0401-
48
NUT; UNDER COVER
M6 FLANGE
0-91150-106-0
02
1
0401-0602
48
NUT; UNDER COVER
M6 FLANGE
0-91180-106-0
02
1
0603-
53
CLIP; UNDER COVER
(A)
8-97853-169-0
04
1
0401-
53
CLIP; UNDER COVER
(B)
8-97853-249-5
03
1
0401-
53
CLIP; UNDER COVER
(C) DARK GRAY
8-97857-542-0
01
1
0401-0603
53
CLIP; UNDER COVER
(C) DARK GRAY
8-97582-246-0
01
1
0604-
58
SCREW; UNDER COVER
M5X14
8-94279-325-0
02
1
0401-0612
58
SCREW; UNDER COVER
M5X14 TAPPING W/TORQUES
8-98061-856-0
02
1
0701-
67
COVER; UNDER,INST PNL
8-97857-188-3
01
1
0401-
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97857-539-1
01
1
0401-0607
88
COVER; UNDER,INST PNL SIDE
DARK GRAY
8-97585-432-1
01
1
0608-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
