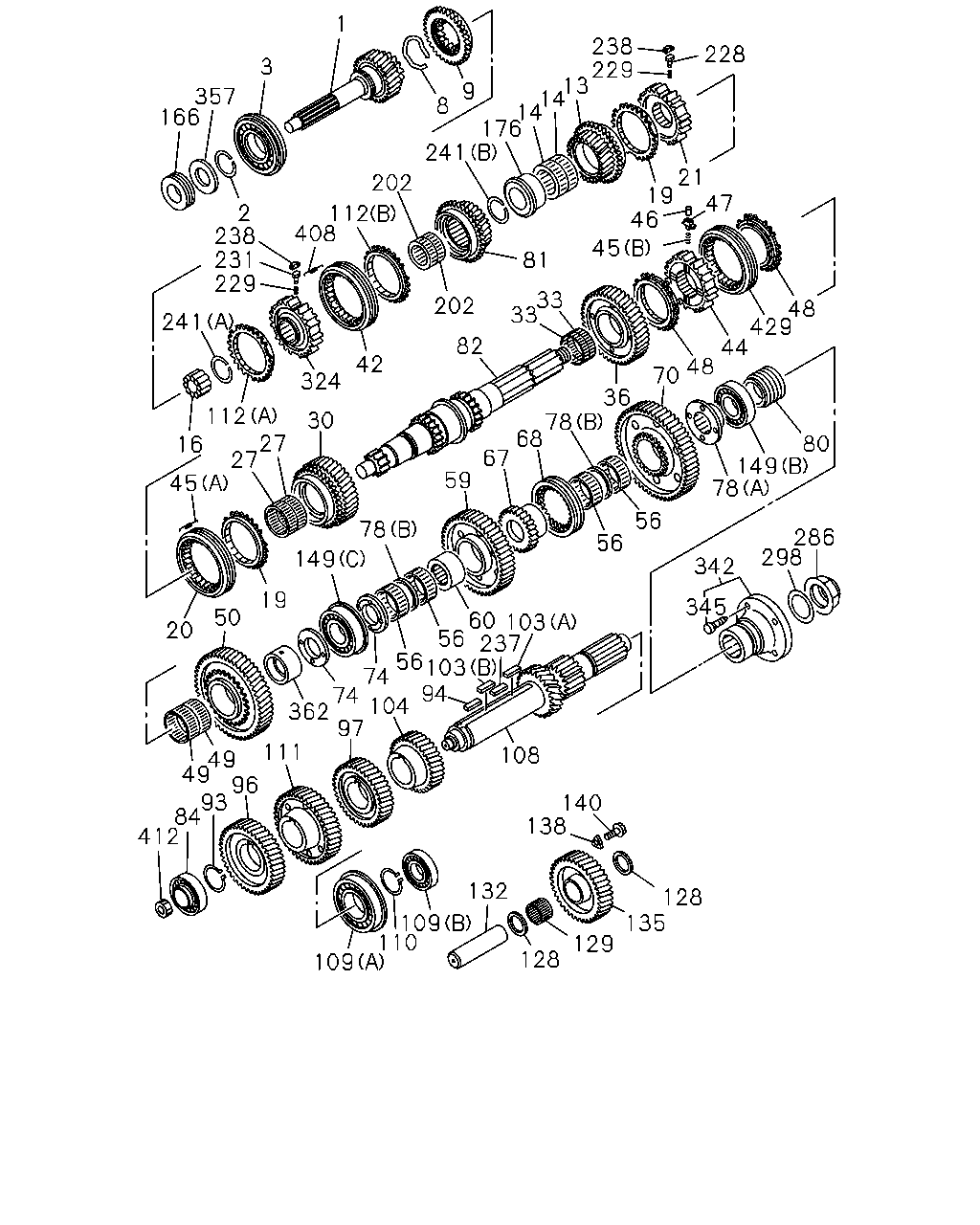

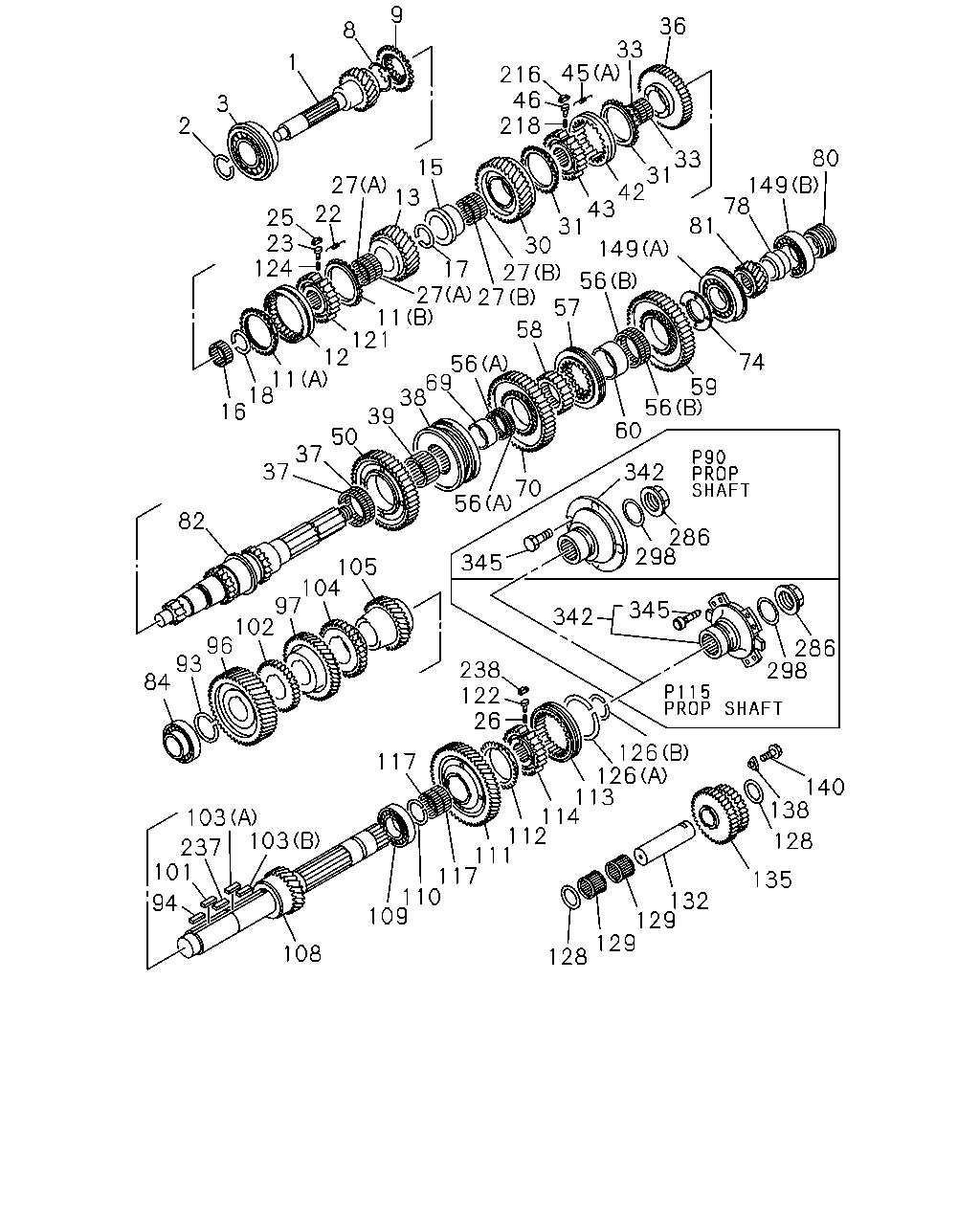

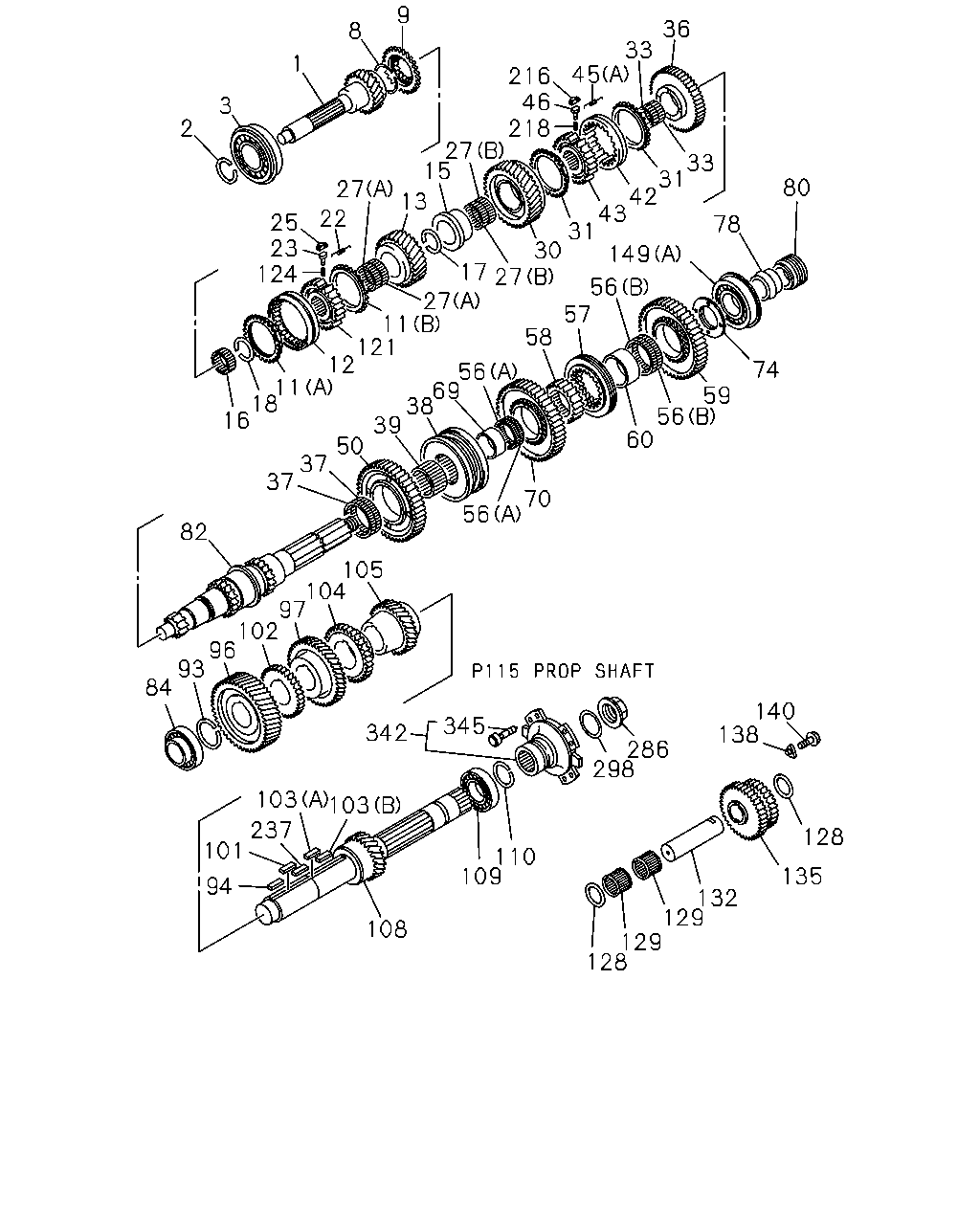

2-26A — MANUAL TRANSMISSION GEAR (#4823) — 539 parça

9 36 8 33 1 45 216 46 218 3 2 80 149 78 33 31 42 43 31 30 17 27 27 27 11 121 12 15 27 13 22 25 23 124 81 149 56 57 58 74 56 69 38 39 50 37 37 11 18 16 59 56 60 342 70 56 82 286 298 345 105 104 97 102 96 93 84 345 342 286 298 238 122 26 126 126 113 114 112 111 117 110 109 117 140 138 103 103 128 237 101 135 132 129 129 94 108 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9601-	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9601-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0005-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9601-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9601-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0005-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0005-			●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9601-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0005-			●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9601-	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0005-			●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9601-	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9601-9908	●	●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9601-	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9601-	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9601-		●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-705-0	01	1	0005-			●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9601-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9601-0004	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0005-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0005-			●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9601-	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9601-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9601-	●	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9601-		●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9601-9711	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	9712-	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9601-	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9601-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	0005-			●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	0005-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9601-9705	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	9706-	●	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-559-1	01	1	0005-			●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-376-3	02	1	9601-9608	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-429-0	02	1	9609-9908	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	9909-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9601-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	9712-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0005-			●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0005-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9601-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0005-			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9601-9711	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	9712-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9601-	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9601-	●	●
42	SLEEVE	1-33262-133-2	01	1	9601-0004	●	●
42	SLEEVE	1-33262-133-2	01	1	0005-0010	●	●	●
42	SLEEVE	1-33262-222-0	01	1	0011-	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9601-9608	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	9609-	●	●
45	SPRING; BLOCK INSERT (A)	1-09583-171-0	03	1	9601-0004	●	●
45	SPRING; BLOCK INSERT (A)	1-09583-171-0	03	1	0005-	●	●	●
45	SPRING; BLOCK INSERT (B) D=3.8	1-09580-395-0	06	1	0005-			●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9601-	●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0005-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9601-9711	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9601-9711	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0005-			●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0005-			●
57	SLEEVE; REV	1-33262-112-1	01	1	9601-	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9601-	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9601-	●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0005-			●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9601-	●	●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0005-			●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9601-	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9601-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0005-			●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9601-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0005-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9601-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9601-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0005-			●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0005-			●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9601-0004	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0005-	●	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9601-		●
81	GEAR; 7TH,MAIN Z=23-66	1-33253-531-0	01	1	0005-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9601-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9601-		●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0005-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9601-9901	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-0004	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0005-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9601-0004	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0005-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9601-0004	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0005-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9601-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0005-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9601-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9601-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-219-0	01	1	0005-0101			●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0102-			●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9601-	●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9601-		●
97	GEAR; 5TH,COUNTER Z=37	1-33338-362-0	01	1	0005-0101			●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	0102-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9601-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0005-			●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0005-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9601-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-284-2	01	1	0005-0006			●
104	GEAR; 4TH,COUNTER Z=36	1-33338-381-0	01	1	0007-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9601-	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9601-	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9601-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9601-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9601-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0005-			●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9601-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0005-			●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9601-		●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-364-0	01	1	0005-0101			●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	0102-			●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9601-		●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-4	01	1	0005-			●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0005-			●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9601-		●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9601-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9601-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-390-0	02	1	9601-9601		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9602-		●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9601-	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9601-	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9601-		●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9601-0004	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0005-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9601-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0005-			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0005-			●
132	SHAFT; REV	1-33351-016-2	01	1	9601-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0005-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9601-	●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0005-			●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9601-0004	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0005-	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9601-0004	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0005-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9601-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9601-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9601-0004		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0005-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9601-0004		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0005-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-203-0	01	1	0005-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-204-0	01	1	0005-			●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9601-	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	9601-	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9601-	●	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0005-			●
238	INSERT	1-33263-025-2	03	1	9601-		●
238	INSERT	1-33263-025-2	06	1	0005-			●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9601-0004	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0005-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9601-0004	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0005-	●	●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X>	1-37243-203-0	01	1	9601-0004	●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X>	1-37243-203-0	01	1	0005-	●	●	●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T>	1-37243-171-4	01	1	9601-		●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9601-0004	●	●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	0005-	●	●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9601-		●

1 238 229 13 14 14 176 241 228 3 9 357 166 8 21 19 47 46 202 2 238 231 229 112 408 45 81 33 33 202 48 429 44 48 70 241 82 42 324 36 78 68 67 112 27 27 30 80 149 78 16 59 45 56 78 286 298 56 149 342 19 345 50 56 237 56 103 74 74 94 104 362 97 20 111 108 49 49 96 93 84 412 140 138 132 128 135 109 110 129 128 109 60 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9601-	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9601-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0005-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9601-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9601-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0005-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0005-			●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9601-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0005-			●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9601-	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0005-			●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9601-	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9601-		●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-705-0	01	1	0005-			●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0005-			●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0005-			●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9601-0004	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0005-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0005-			●
19	RING; BLOCK,4TH & 5TH Z=66	1-33265-545-0	02	1	0005-			●
20	SLEEVE	1-33262-133-2	01	1	0005-0010			●
20	SLEEVE	1-33262-222-0	01	1	0011-			●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0005-			●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9601-9711	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	9712-	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9601-	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9601-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	0005-			●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	0005-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9601-9705	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	9706-	●	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-559-1	01	1	0005-			●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9601-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	9712-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0005-			●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0005-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9601-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0005-			●
42	SLEEVE	1-33262-133-2	01	1	9601-0004	●	●
42	SLEEVE	1-33262-133-2	01	1	0005-0010	●	●	●
42	SLEEVE	1-33262-222-0	01	1	0011-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0005-			●
45	SPRING; BLOCK INSERT (A)	1-09583-171-0	03	1	9601-0004	●	●
45	SPRING; BLOCK INSERT (A)	1-09583-171-0	03	1	0005-	●	●	●
45	SPRING; BLOCK INSERT (B) D=3.8	1-09580-395-0	06	1	0005-			●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-			●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0005-			●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0005-			●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0005-			●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0005-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9601-	●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0005-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9601-9711	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9601-9711	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0005-			●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0005-			●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9601-	●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0005-			●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9601-	●	●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0005-			●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0005-			●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0005-			●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9601-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0005-			●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9601-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0005-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9601-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9601-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0005-			●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0005-			●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9601-0004	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0005-	●	●	●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9601-		●
81	GEAR; 7TH,MAIN Z=23-66	1-33253-531-0	01	1	0005-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9601-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9601-		●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0005-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9601-9901	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-0004	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0005-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9601-0004	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0005-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9601-0004	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0005-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9601-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0005-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9601-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9601-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-219-0	01	1	0005-0101			●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0102-			●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9601-	●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9601-		●
97	GEAR; 5TH,COUNTER Z=37	1-33338-362-0	01	1	0005-0101			●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	0102-			●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0005-			●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0005-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9601-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-284-2	01	1	0005-0006			●
104	GEAR; 4TH,COUNTER Z=36	1-33338-381-0	01	1	0007-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9601-	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9601-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9601-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9601-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0005-			●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9601-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0005-			●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9601-		●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-364-0	01	1	0005-0101			●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	0102-			●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9601-		●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-4	01	1	0005-			●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0005-			●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9601-0004	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0005-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9601-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0005-			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0005-			●
132	SHAFT; REV	1-33351-016-2	01	1	9601-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0005-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9601-	●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0005-			●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9601-0004	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0005-	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9601-0004	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0005-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9601-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9601-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9601-0004		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0005-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9601-0004		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0005-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-203-0	01	1	0005-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-204-0	01	1	0005-			●
166	PIECE; DIST	1-33363-032-1	01	1	0005-			●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0005-			●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0005-			●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0005-			●
228	PLUNGER; SYN	1-33263-020-0	03	1	0005-			●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0005-			●
231	PLUNGER	1-33263-020-0	03	1	0005-			●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9601-	●	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0005-			●
238	INSERT	1-33263-025-2	03	1	9601-		●
238	INSERT	1-33263-025-2	06	1	0005-			●
241	RING; SNAP (A)	1-09588-185-0	01	1	0005-			●
241	RING; SNAP (B)	1-09588-189-0	01	1	0005-			●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9601-0004	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0005-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9601-0004	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0005-	●	●	●
324	HUB; CLU	1-33261-238-0	01	1	0005-			●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X>	1-37243-203-0	01	1	9601-0004	●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X>	1-37243-203-0	01	1	0005-	●	●	●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T>	1-37243-171-4	01	1	9601-		●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9601-0004	●	●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	0005-	●	●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9601-		●
357	RING	1-31349-015-0	01	1	0005-			●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0005-			●
408	SPRING	1-09583-171-0	03	1	0005-			●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0005-			●
429	SLEEVE; 2ND & 3RD	1-33262-184-3	01	1	0005-0010			●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0011-			●

9 36 8 33 1 45 216 46 218 27 15 3 2 33 31 42 43 31 30 17 27 80 27 13 22 25 23 124 78 149 56 57 27 11 121 12 58 74 56 69 38 39 50 37 37 11 18 16 59 56 60 70 56 82 105 104 97 102 96 93 84 140 138 345 342 286 298 103 103 237 128 101 110 109 135 94 132 129 129 128 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9601-	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9601-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-833-2	01	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9601-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0005-			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0005-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9601-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9601-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0005-			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0005-			●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9601-	●	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0005-			●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9601-	●	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0005-			●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9601-	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9601-9908	●	●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9601-	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9601-	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9601-		●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-705-0	01	1	0005-			●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9601-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9601-0004	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0005-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0005-			●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	9601-	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9601-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9601-	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9601-9711	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	9712-	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9601-	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9601-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-376-0	02	1	0005-			●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	0005-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9601-9705	●	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	9706-	●	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-559-1	01	1	0005-			●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-376-3	02	1	9601-9608	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-429-0	02	1	9609-9908	●	●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	9909-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9601-9711	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	9712-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0005-			●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0005-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9601-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0005-			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9601-9711	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	9712-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9601-	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9601-	●	●
42	SLEEVE	1-33262-133-2	01	1	9601-0004	●	●
42	SLEEVE	1-33262-133-2	01	1	0005-0010	●	●	●
42	SLEEVE	1-33262-222-0	01	1	0011-	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9601-9608	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	9609-	●	●
45	SPRING; BLOCK INSERT (A)	1-09583-171-0	03	1	9601-0004	●	●
45	SPRING; BLOCK INSERT (A)	1-09583-171-0	03	1	0005-	●	●	●
45	SPRING; BLOCK INSERT (B) D=3.8	1-09580-395-0	06	1	0005-			●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0005-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9601-	●	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0005-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9601-9711	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9601-9711	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	9712-	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-376-0	04	1	0005-			●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	0005-			●
57	SLEEVE; REV	1-33262-112-1	01	1	9601-	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9601-	●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9601-	●	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0005-			●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9601-	●	●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0005-			●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9601-	●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9601-	●	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0005-			●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9601-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0005-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9601-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9601-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0005-			●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0005-			●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	9601-0004	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0005-	●	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	9601-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	9601-		●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-278-0	01	1	0005-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9601-9901	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-0004	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0005-	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9601-0004	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0005-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	9601-0004	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0005-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9601-	●	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0005-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9601-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9601-		●
96	GEAR; COUNTER DRIVE Z=43	1-33331-219-0	01	1	0005-0101			●
96	GEAR; COUNTER DRIVE Z=43	1-33331-268-0	01	1	0102-			●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9601-	●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9601-		●
97	GEAR; 5TH,COUNTER Z=37	1-33338-362-0	01	1	0005-0101			●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	0102-			●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9601-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9601-	●	●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0005-			●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0005-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9601-	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-284-2	01	1	0005-0006			●
104	GEAR; 4TH,COUNTER Z=36	1-33338-381-0	01	1	0007-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9601-	●	●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9601-	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9601-		●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9601-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9601-	●	●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0005-			●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0005-			●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9601-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0005-			●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9601-	●	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9601-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9601-0004	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0005-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9601-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0005-			●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0005-			●
132	SHAFT; REV	1-33351-016-2	01	1	9601-	●	●
132	SHAFT; REV	1-33351-025-4	01	1	0005-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9601-	●	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0005-			●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9601-0004	●	●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0005-	●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9601-0004	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0005-	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9601-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9601-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9601-0004		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0005-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9601-0004		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0005-		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NSK	1-09810-203-0	01	1	0005-			●
149	BEARING; NEEDLE,MAINSHAFT,RR (C) NTN	1-09810-204-0	01	1	0005-			●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9601-	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	9601-	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9601-	●	●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0005-			●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9601-0004	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0005-	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9601-0004	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0005-	●	●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X>	1-37243-203-0	01	1	9601-0004	●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X>	1-37243-203-0	01	1	0005-	●	●	●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T>	1-37243-171-4	01	1	9601-		●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9601-0004	●	●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	0005-	●	●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
