7-40 — INSTRUMENT PANEL AND BOX (#48229) — 113 parça

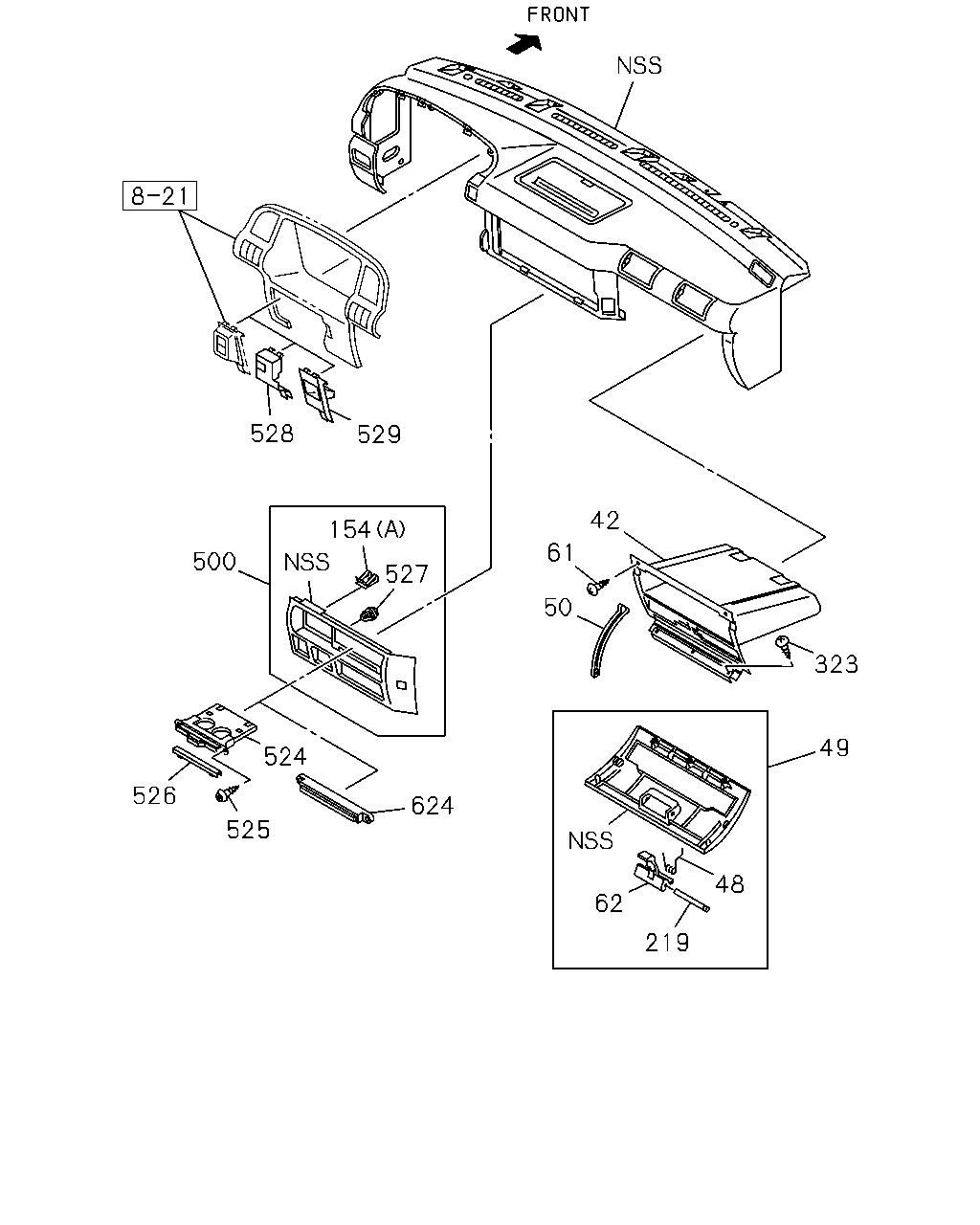

çizim 54669
528 529 42 154 61 500 527 50 323 524 49 526 624 525 48 62 219
BalonParca AdiParca NoAdetTipApplied Date
42 BOX; GLOVE,INST PNL 8-97853-281-6 01 1 0401-
48 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0401-
49 LID; GLOVE BOX
DARK GRAY 		8-97857-496-4 01 1 0401-0607
49 LID; GLOVE BOX
DARK GRAY 		8-97582-808-4 01 1 0608-
50 STOPPER; LID,GLOVE BOX,INST CLUSTER 8-97853-152-0 02 1 0401-
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0401-0604
61 SCREW; GLOVE BOX
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605-0612
61 SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0701-1101
61 SCREW; GLOVE BOX
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
61 SCREW; GLOVE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 0401-0607
62 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0608-
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0401-
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 0401-
219 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0401-
323 SCREW; GLOVE BOX LK
M5X14 		8-94279-325-0 03 1 0401-0612
323 SCREW; GLOVE BOX LK
M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
500 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-902-6 01 1 0401-0607
500 CLUSTER; INST CENTER
DARK GRAY 		8-97585-434-8 01 1 0608-
500 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-501-8 01 1 0401-0607
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0401-
525 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0401-0612
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101
525 SCREW; CUP STAND
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
526 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97857-503-1 01 1 0401-0607
526 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0608-
527 CLIP; INST CLUSTER 8-97853-169-0 04 1 0401-
528 COVER; PTO LEVER
PTO TRANSMISSION SIDE(V66) BLACK 		8-97868-448-0 01 1 0401-
529 POCKET; COIN
EXC. PTO TRANSMISSION SIDE(V66) BLACK 		8-97867-543-5 01 1 0401-
624 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0401-

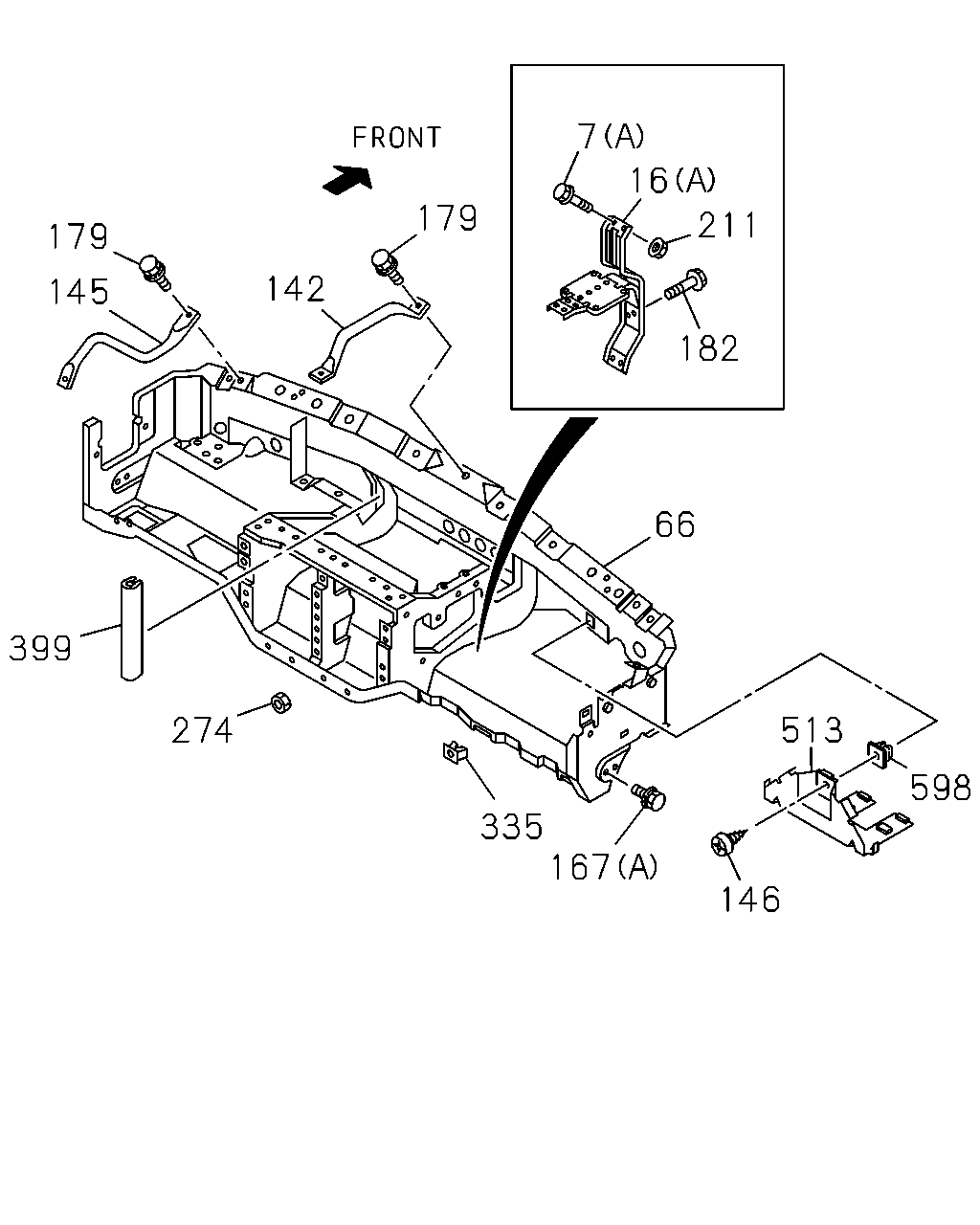

çizim 100725
7 16 179 211 179 142 145 182 66 399 513 274 598 335 167 146
BalonParca AdiParca NoAdetTipApplied Date
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0401-0512
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0401-
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0401-
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0401-
16 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0401-0607
16 BRACKET; INST PNL
4HE1-TCN ENG(RDR) (A) 		8-97853-306-7 01 1 0608-
66 REINFORCEMENT; INST PANEL 8-97898-465-5 01 1 0401-0506
66 REINFORCEMENT; INST PANEL 8-98021-525-0 01 1 0507-0507
66 REINFORCEMENT; INST PANEL 8-98021-526-1 01 1 0508-
142 STAY; INST PANEL 8-97856-460-2 01 1 0401-
145 STAY; INST PANEL SIDE 8-97856-461-3 01 1 0401-
146 SCREW; TAP
4HE1 ENG(RLY) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0401-0604
146 SCREW; TAP
4HE1 ENG(RLY) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-0607
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0401-
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0401-
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0401-0512
179 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0601-
182 BOLT; BRKT,INST PANEL
M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0401-
211 NUT; BRKT TO INST
M6 FLANGE 		0-91150-106-0 02 1 0401-0602
211 NUT; BRKT TO INST
M6 FLANGE 		0-91180-106-0 02 1 0603-
274 NUT; GLOVE BOX
M5 SPIRE NUT 		8-94279-051-0 02 1 0401-
335 GROMMET; GLOVE BOX LK
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0401-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0401-
513 BRACKET; RELAY
4HE1 ENG(RLY) 		8-97859-391-2 01 1 0401-0607
598 GROMMET; SCREW
4HE1 ENG(RLY) D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0401-0607

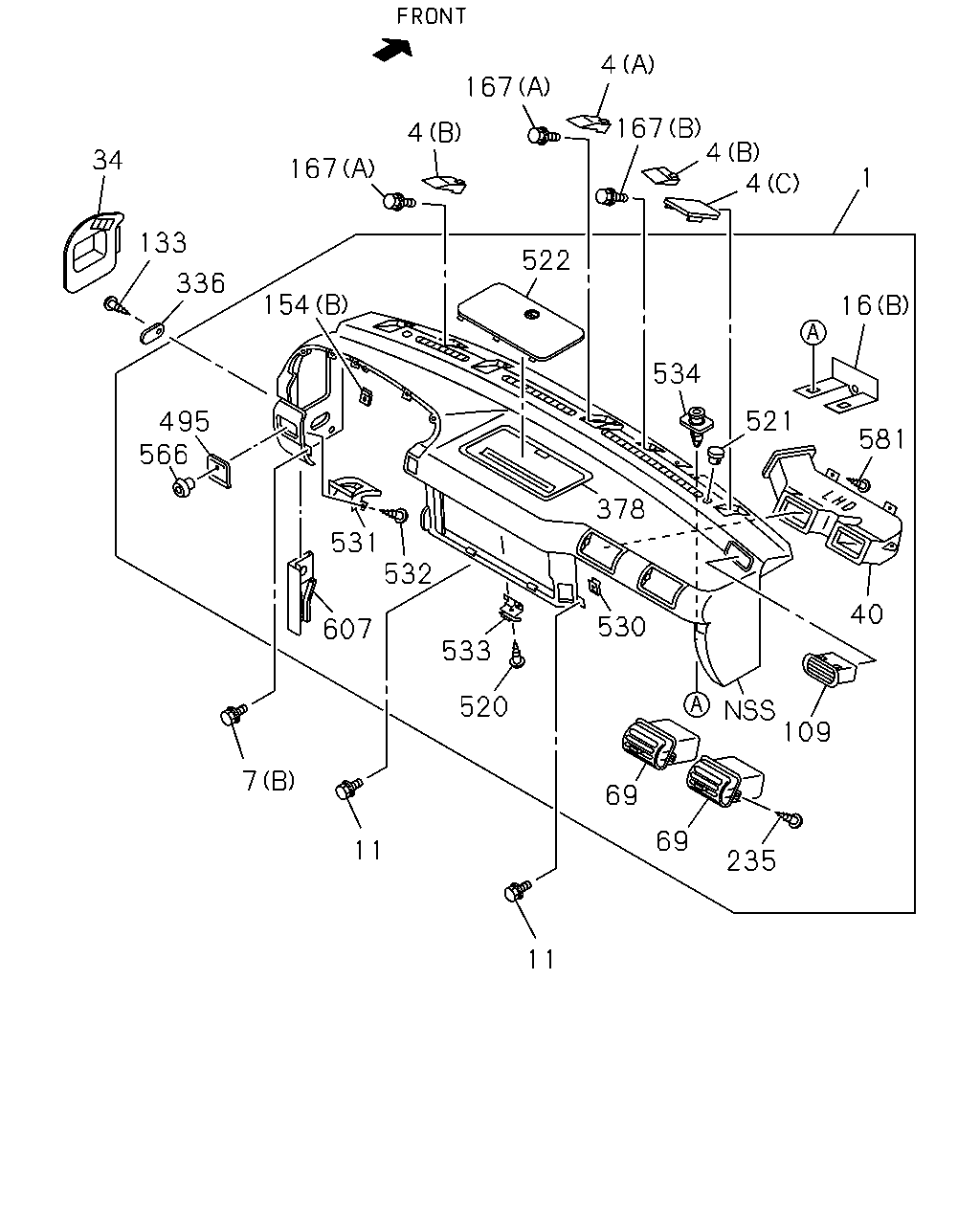

çizim 100726
4 167 167 4 4 4 34 167 1 133 522 336 154 16 534 521 495 566 581 378 531 532 40 530 607 533 520 109 7 69 69 11 235 11
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
DARK GRAY 		8-97195-962-1 01 1 0401-0607
1 PANEL; INST
DARK GRAY 		8-97585-435-1 01 1 0608-
4 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 0401-0607
4 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0608-
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 0401-0607
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0608-
4 COVER; INST PNL
(C) DARK GRAY 		8-97857-527-1 01 1 0401-0607
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-813-1 01 1 0608-
4 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 0401-0607
4 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0608-
4 COVER; INST PNL
(C) DARK GRAY 		8-97857-526-1 01 1 0401-0607
4 COVER; INST PNL
(C) DARK GRAY 		8-97582-812-1 01 1 0608-
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0401-0512
7 BOLT; SUPPORT,INST PNL
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
7 BOLT; SUPPORT,INST PNL
(B) M8X23 FLANGE 		8-97264-766-0 04 1 0401-
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0401-1210
11 BOLT; INST PNL
M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1211-
16 BRACKET; INST PNL
(B) 		8-97856-132-0 01 1 0401-
16 BRACKET; INST PNL
(B) 		8-97856-131-0 01 1 0401-
16 BRACKET; INST PNL
4HE1 ENG(RLY) (A) 		8-97853-306-7 01 1 0401-0607
16 BRACKET; INST PNL
4HE1-TCN ENG(RDR) (A) 		8-97853-306-7 01 1 0608-
34 LID; OIL TANK
DARK GRAY 		8-97857-499-5 01 1 0401-0607
34 LID; OIL TANK
DARK GRAY 		8-97585-433-5 01 1 0608-
40 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-699-0 01 1 0401-
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0401-0607
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0608-
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97857-530-0 01 1 0401-0607
109 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97585-436-0 01 1 0608-
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 0401-0604
133 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0605-0612
133 SCREW; COVER,INST PNL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-
154 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 0401-
154 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 03 1 0401-
167 BOLT; REINF TO INST
(A) M6X25 		8-94279-204-0 04 1 0401-
167 BOLT; REINF TO INST
(B) M6X24 FLANGE 		8-94279-231-1 02 1 0401-
235 SCREW; GRILLE
M5X14 		8-94279-325-0 04 1 0401-
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 0401-0607
336 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0608-
378 SEAL; INST PANEL 8-97209-399-0 01 1 0401-
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 0401-0607
495 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0608-
520 SCREW; CLIP,SPRING
M5X14 		8-94279-325-0 03 1 0401-
521 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 0401-0607
521 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0608-
522 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 0401-0607
522 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0608-
530 CLIP; GLOVE BOX 8-97856-135-0 01 1 0401-
531 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0401-
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 		8-94279-325-0 02 1 0401-0612
532 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0401-
534 CLIP; BRKT 8-97856-276-0 04 1 0401-
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 0401-0607
566 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0608-
581 SCREW
M5X14 		8-94279-325-0 03 1 0401-
607 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 0401-
