Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

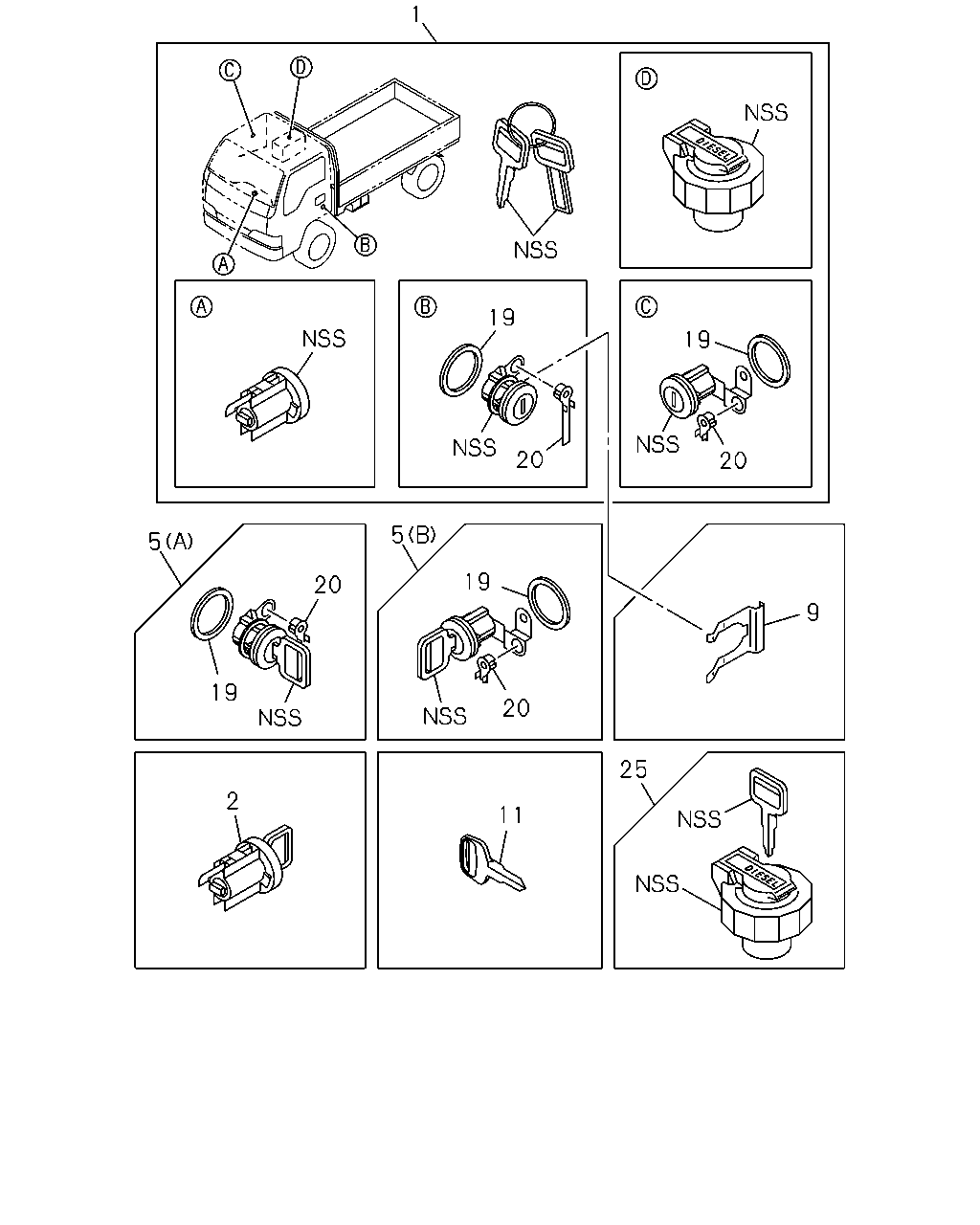

7-30 — LOCK CYLINDER SET
(#48228) — 12 parça
1
19
19
20
20
5
5
19
20
9
19
20
25
2
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05>
8-97035-294-1
01
1
0401-
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>
8-97035-293-1
01
1
0401-
2
BARREL ASM; W/KEY,STRG LOCK
8-97095-682-2
01
1
0401-
5
CYLINDER ASM; DOOR LOCK
(A)
8-97095-685-2
01
1
0401-
5
CYLINDER ASM; DOOR LOCK
(B)
8-97095-684-2
01
1
0401-
9
CLIP; DOOR LOCK
8-97898-277-0
02
1
0401-0610
9
CLIP; DOOR LOCK
8-97410-786-0
02
1
0611-
11
KEY; BLANK
WO/NOTCH
8-97076-337-0
AR
1
0401-
19
GASKET; DOOR LOCK CYL
8-94128-739-0
02
1
0401-
20
SNAP; DOOR LOCK CYL
YELLOW
8-97040-452-0
01
1
0401-
20
SNAP; DOOR LOCK CYL
BROWN
8-97040-453-0
01
1
0401-
25
CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05>
8-97095-686-2
01
1
0401-
