◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#48227) — 256 parça

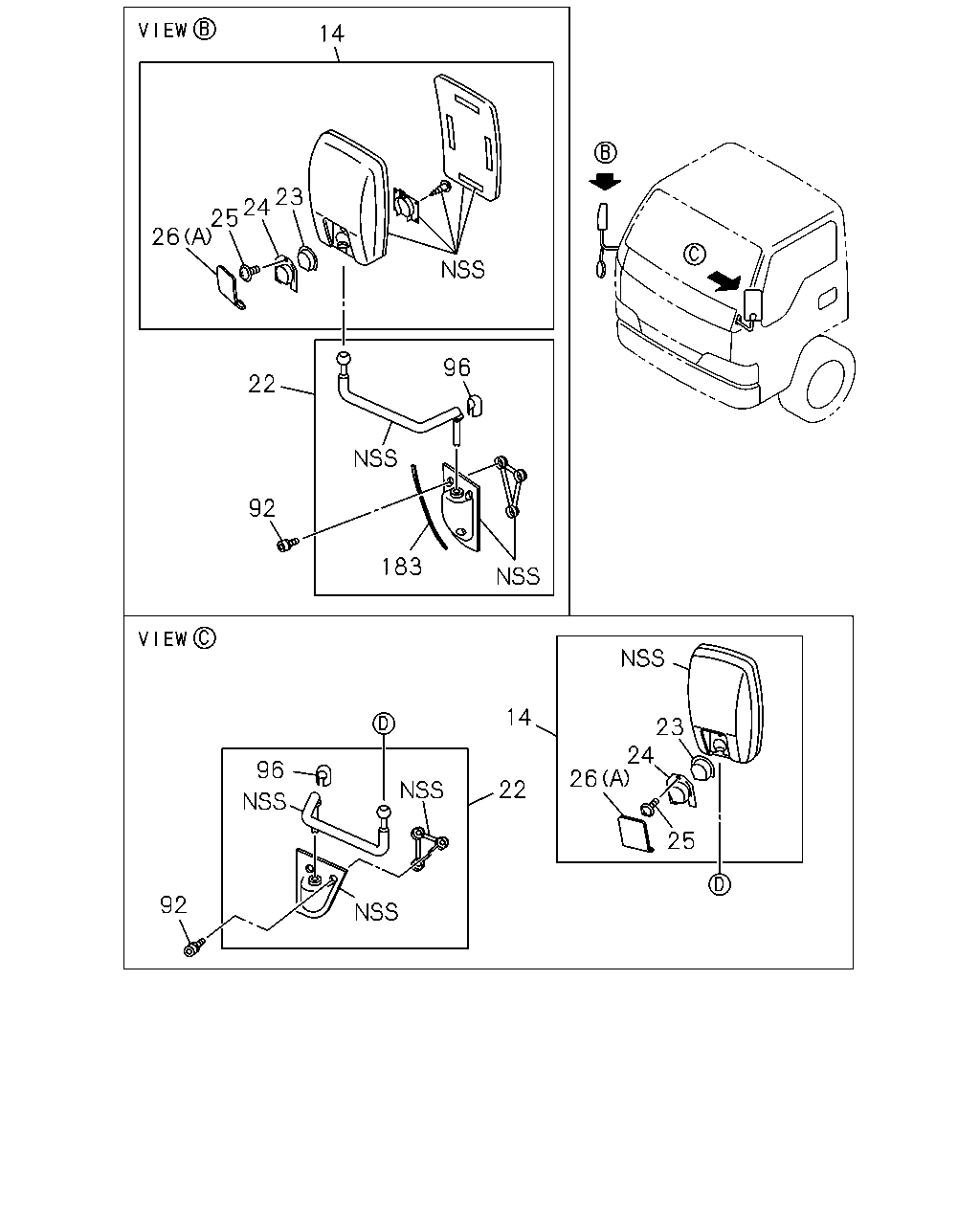

çizim 54530
14 23 24 25 26 96 22 92 183 14 23 24 96 26 22 25 92
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
22 STAY; OUTSIDE MIRROR 8-97856-269-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR 8-97582-991-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97866-940-0 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97582-988-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98039-573-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97856-558-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97582-987-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98039-572-1 01 1 0702-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-166-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-159-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-168-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-161-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-167-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-160-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-833-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0810-
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0401-0607
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 10 1 0608-0611
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 0612-
96 CAP; MIRROR STAY
OD=40 		8-97853-206-2 01 1 0401-0607
96 CAP; MIRROR STAY 8-97581-631-2 02 1 0608-
183 FINISHER; MIRROR 8-97857-925-0 01 1 0401-0607
çizim 54704
4 162 2 159 3 158 1
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97868-633-1 01 1 0401-0607
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97582-241-1 01 1 0608-0610
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-215-1 01 1 0611-
1 MIRROR; ROOM
EXC. TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97868-351-2 01 1 0401-0607
1 MIRROR; ROOM
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97582-242-2 01 1 0608-
2 SCREW; MIRROR TO BODY
M5X20 		5-09981-059-0 02 1 0401-0405
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0406-0612
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-0702
2 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> M5X20 		5-09981-059-0 02 1 0703-
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 		8-94279-341-0 02 1 0406-0612
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES 		8-98061-741-0 02 1 0701-0702
2 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 		8-94279-341-0 02 1 0703-
3 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35 		8-97867-849-0 01 1 0401-
3 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26 		8-97853-263-1 01 1 0401-
3 STOPPER; RR VIEW MIRROR
EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31 		8-97859-098-2 01 1 0401-
3 STOPPER; RR VIEW MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40 		8-94273-036-3 01 1 0401-
4 GROMMET; SCREW,ROOM MIRROR 8-94279-039-0 01 1 0401-0405
4 GROMMET; SCREW,ROOM MIRROR
TRAY ROOF HEAD<7EJ> 		8-94279-039-0 01 1 0406-
158 LENS; ROOM LAMP 5-73117-108-1 01 1 0401-
159 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 0401-
162 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> 		8-97856-532-0 01 1 0401-

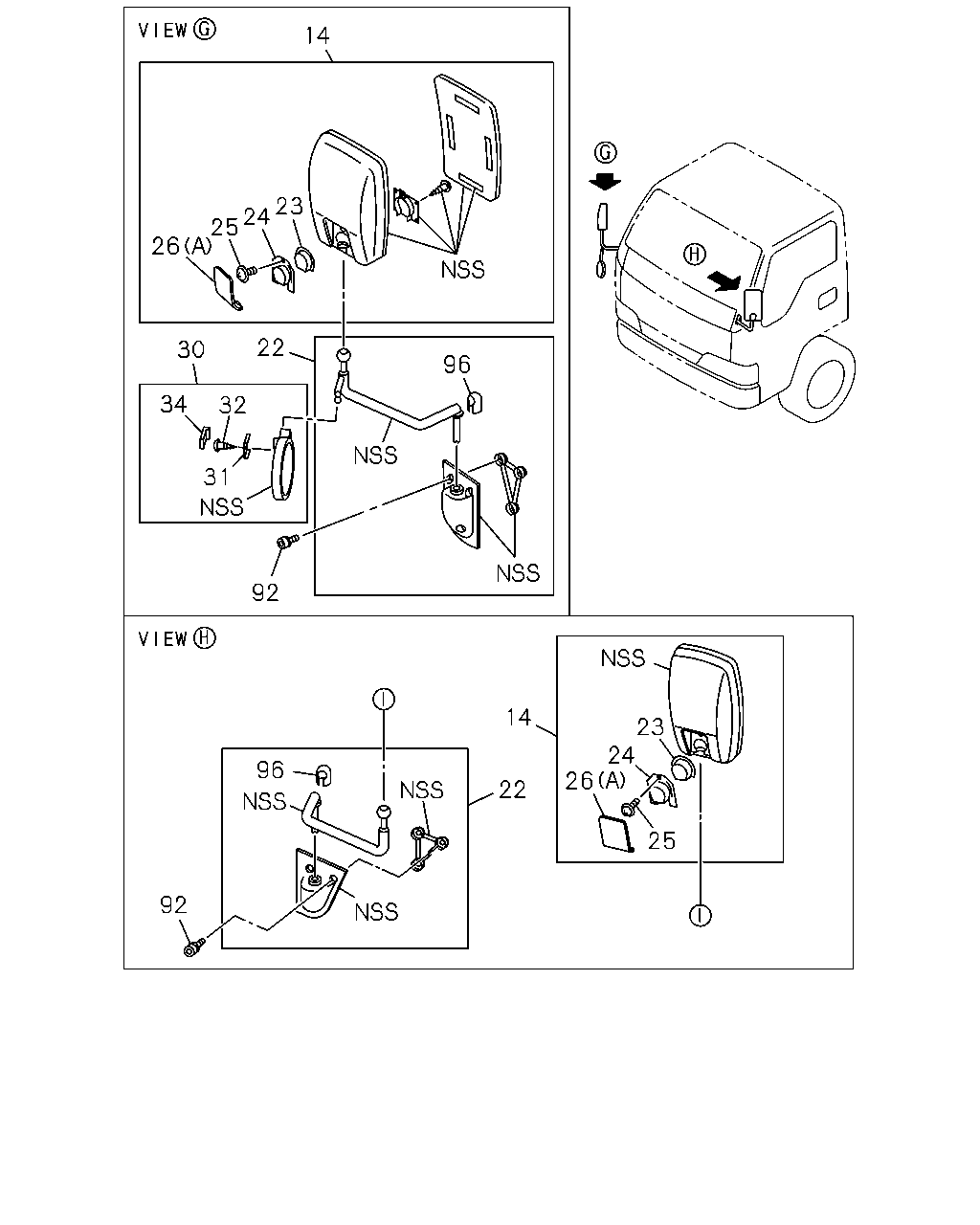

çizim 54711
14 23 24 25 26 22 30 96 34 32 31 92 14 23 24 26 96 22 25 92
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
22 STAY; OUTSIDE MIRROR 8-97856-269-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR 8-97582-991-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97866-940-0 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97582-988-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98039-573-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97856-558-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97582-987-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98039-572-1 01 1 0702-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-166-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-159-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-168-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-161-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-167-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-160-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-833-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0810-
30 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 0401-
31 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 0401-
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 0401-
34 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 0401-
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0401-0607
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 10 1 0608-0611
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 0612-
96 CAP; MIRROR STAY
OD=40 		8-97853-206-2 01 1 0401-0607
96 CAP; MIRROR STAY 8-97581-631-2 02 1 0608-

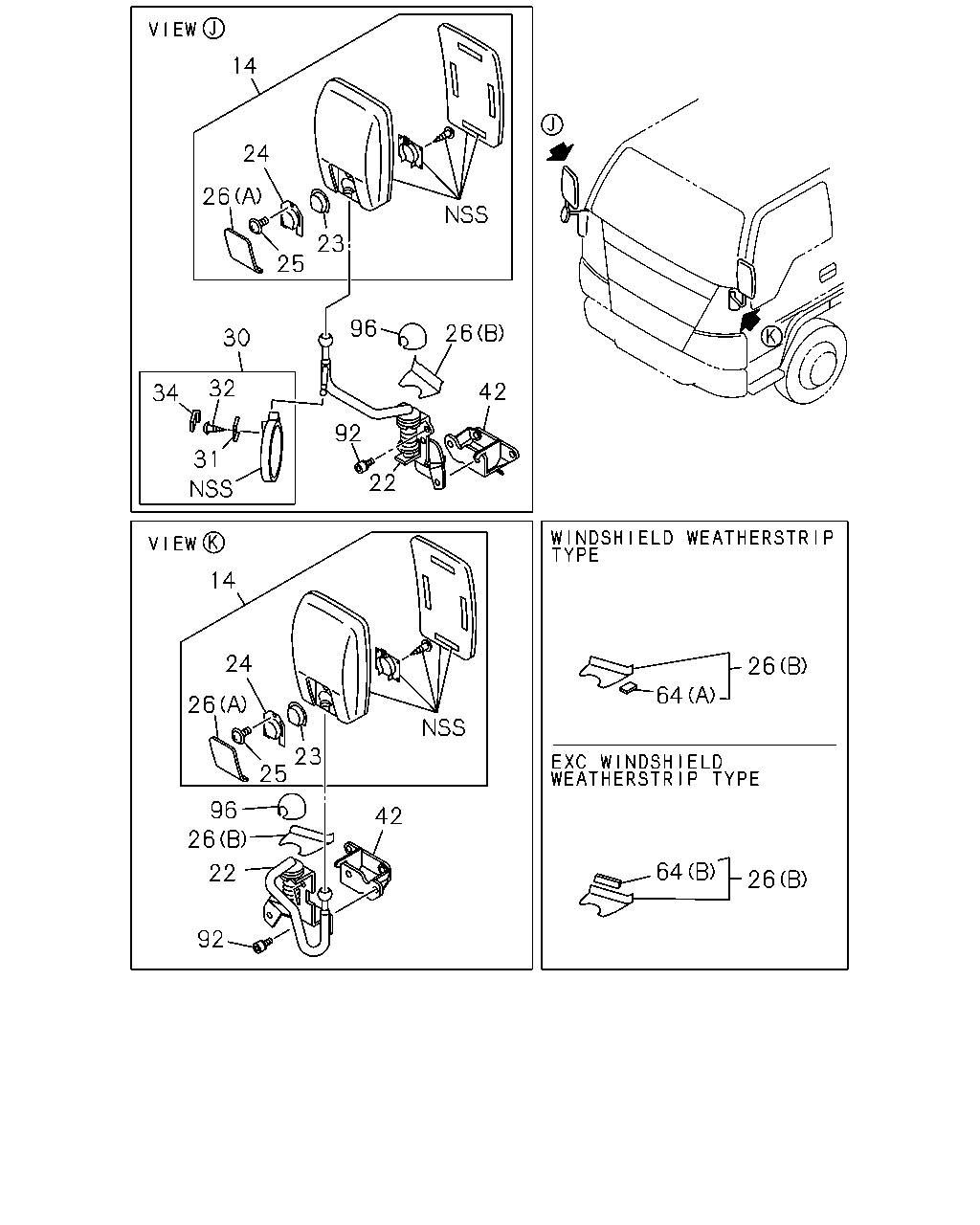

çizim 54839
14 24 26 23 25 96 26 30 32 42 34 92 31 22 14 24 26 64 26 23 25 96 42 26 64 22 26 92
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
22 STAY; OUTSIDE MIRROR 8-97856-269-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR 8-97582-991-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97866-940-0 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97582-988-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98039-573-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97856-558-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97582-987-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98039-572-1 01 1 0702-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-166-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-159-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-168-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-161-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-167-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-160-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-833-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0810-
30 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 0401-
31 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 0401-
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 0401-
34 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 0401-
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-755-2 01 1 0608-
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-625-2 01 1 0608-
64 SEAL; MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-98015-058-0 02 1 0608-
64 SEAL; MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0608-0807
64 SEAL; MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0808-
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0401-0607
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 10 1 0608-0611
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 0612-
96 CAP; MIRROR STAY
OD=40 		8-97853-206-2 01 1 0401-0607
96 CAP; MIRROR STAY 8-97581-631-2 02 1 0608-

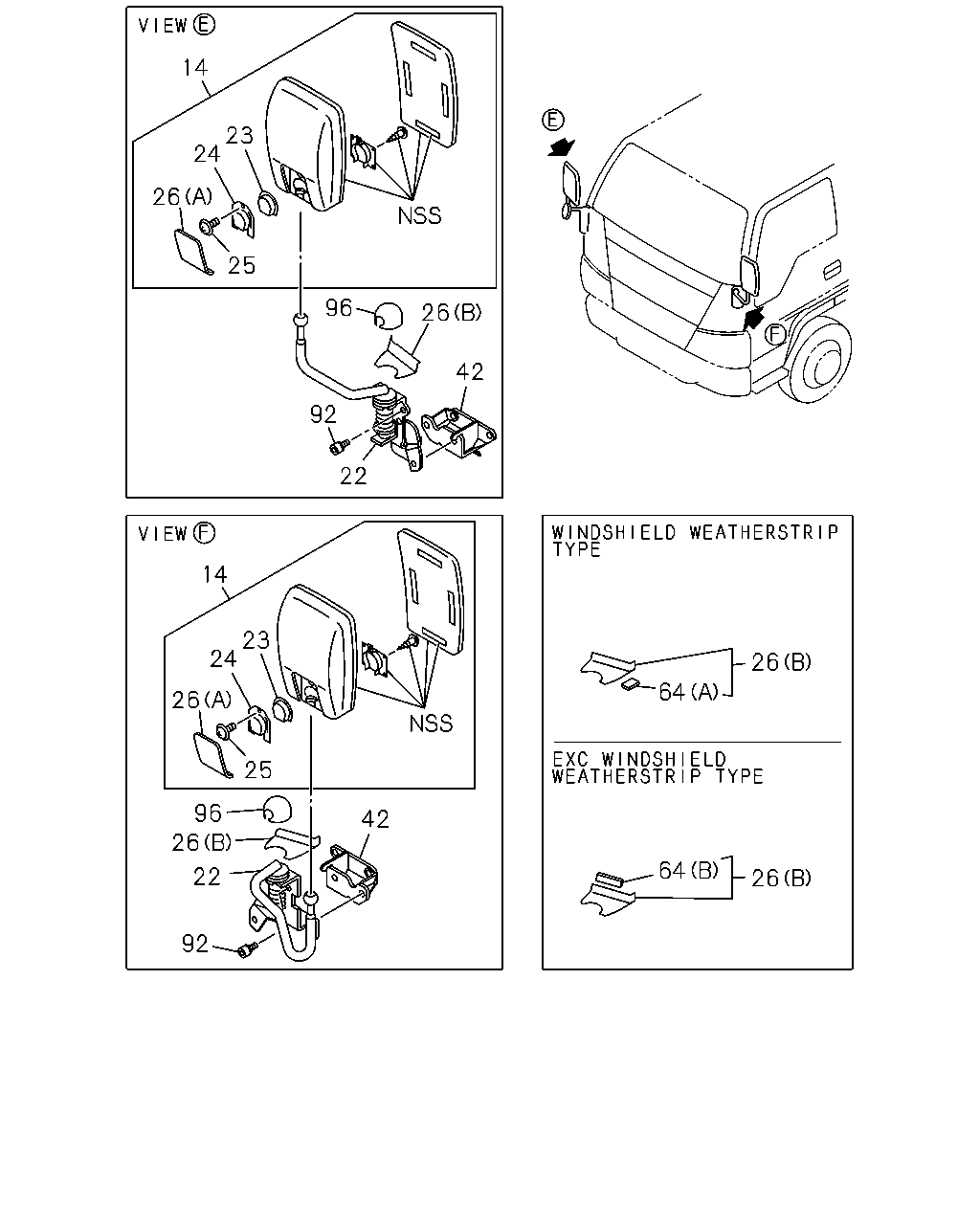

çizim 55058
14 23 24 26 25 96 26 42 92 22 14 23 24 26 64 26 25 96 26 42 64 22 26 92
BalonParca AdiParca NoAdetTipApplied Date
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
14 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0401-
22 STAY; OUTSIDE MIRROR 8-97856-269-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR 8-97582-991-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97866-940-0 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97582-988-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98039-573-1 01 1 0702-
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97856-558-7 01 1 0401-0607
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97582-987-3 01 1 0608-0701
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98039-572-1 01 1 0702-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0401-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-166-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-159-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-168-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-161-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-167-0 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97589-160-1 01 1 0608-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-842-4 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0608-0807
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0808-0809
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) SILVER 		8-97582-833-5 01 1 0810-
26 COVER; OUTSIDE MIRROR
BODY COLOR POLAR SILVER MET(845) KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) SILVER 		8-97582-833-5 01 1 0810-
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-755-2 01 1 0608-
42 ATTACHMENT; OUTSIDE MIRROR 8-97581-625-2 01 1 0608-
64 SEAL; MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-98015-058-0 02 1 0608-
64 SEAL; MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0608-0807
64 SEAL; MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0808-
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0401-0607
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 10 1 0608-0611
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 0612-
96 CAP; MIRROR STAY
OD=40 		8-97853-206-2 01 1 0401-0607
96 CAP; MIRROR STAY 8-97581-631-2 02 1 0608-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
