◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#48226) — 22 parça

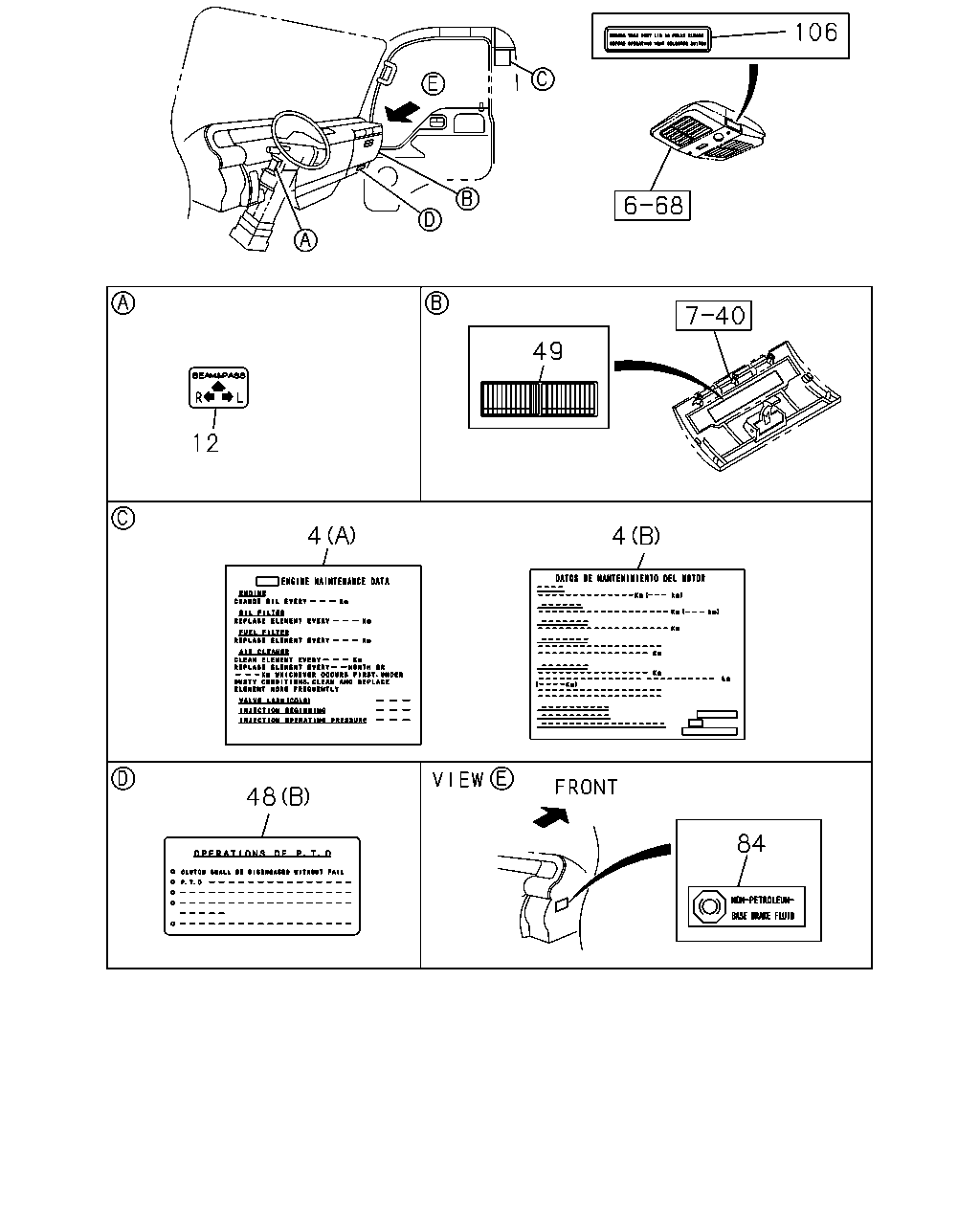

çizim 100722
106 49 12 4 4 48 84
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-97189-406-0 01 1 0401-
4 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-97189-405-0 01 1 0401-
12 LABEL; TURN 8-94273-445-0 01 1 0401-
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0401-0708
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0401-
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0401-
49 PLATE; CAUTION,FUSE BOX 8-97215-898-0 01 1 0401-0607
49 PLATE; CAUTION,FUSE BOX
4HE1-TCN ENG(RDR) 		8-97377-715-0 01 1 0608-
84 PLATE; CAUTION,BRAKE FLUID
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> 		8-97062-755-2 01 1 0911-
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0401-
106 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0401-

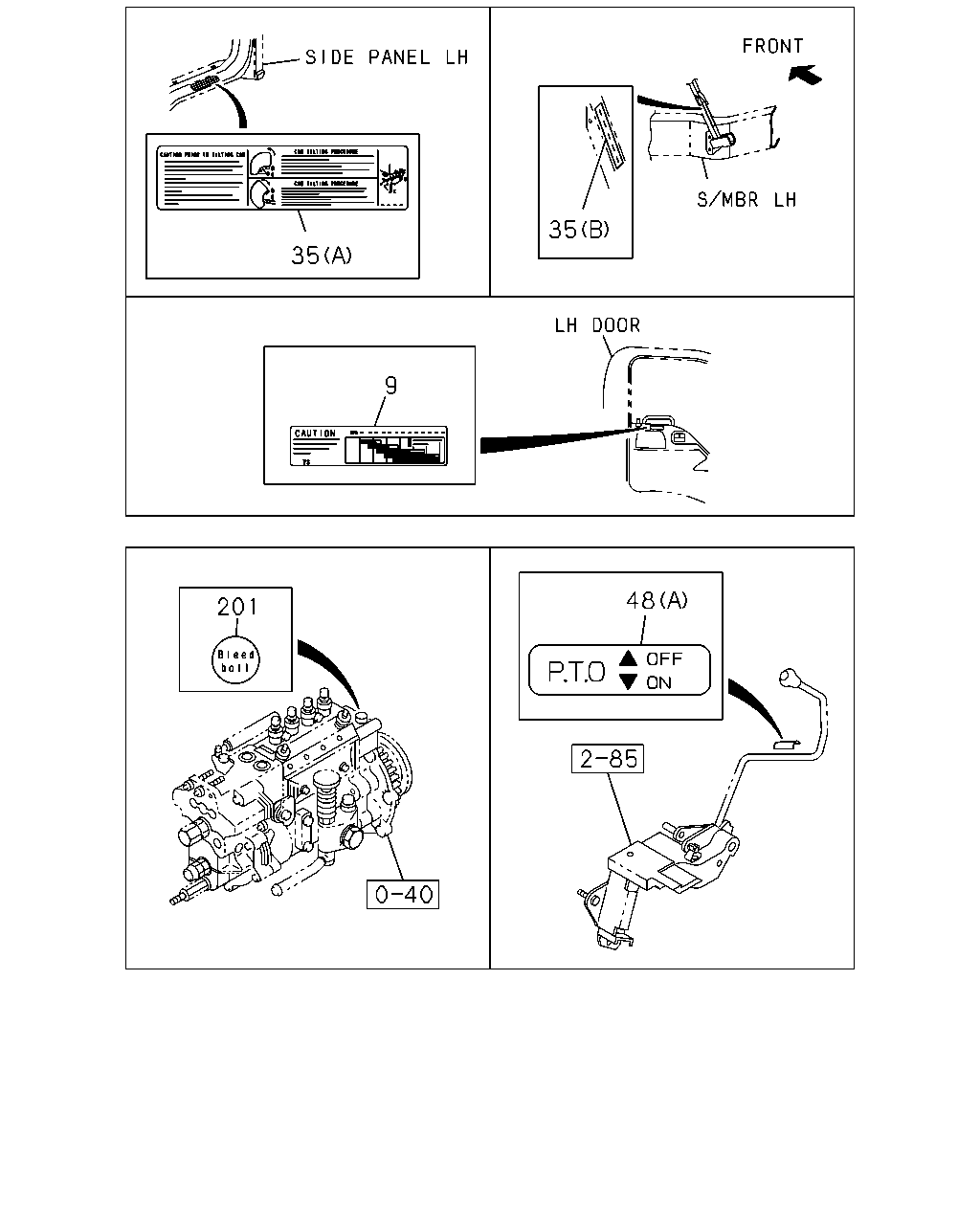

çizim 100723
35 35 9 48 201
BalonParca AdiParca NoAdetTipApplied Date
9 PLATE; NAME,SPD RANGE
EXC. TACHOMETER<U16> 		8-97229-102-0 01 1 0401-
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0401-1005
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-98070-512-0 01 1 1006-
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0401-
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0401-1005
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-98067-809-0 01 1 1006-
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) (A) 		8-97116-561-0 01 1 0401-0708
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> (B) 		8-94313-054-0 01 1 0401-
48 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) EXC. CAUTION SPANISH<YN1> (B) 		8-94469-277-0 01 1 0401-
201 PLATE; CAUTION,BLEED BOLT
4HE1 ENG(RLY) 		8-97192-288-0 01 1 0401-0607
201 PLATE; CAUTION,BLEED BOLT
4HE1-TCN ENG(RDR) HEATER & DEFROSTER(C41) 		8-97192-288-0 01 1 0608-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
