◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50980 - NPR(IRAN) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#48222) — 8 parça

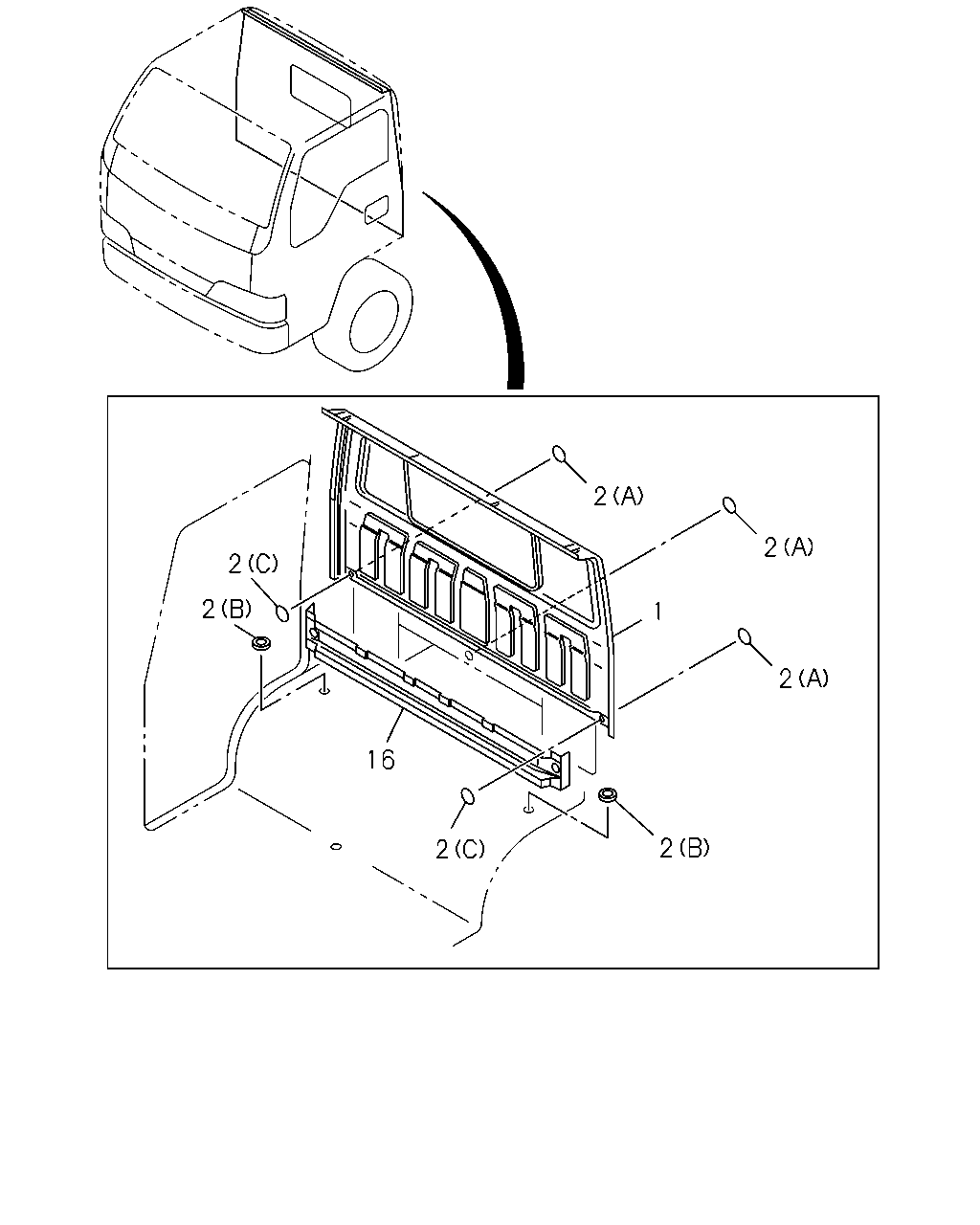

çizim 54538
2 2 2 2 1 2 16 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; BACK OUTER 8-97859-127-0 01 1 0401-
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0401-0710
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=32 BLACK 		8-98031-126-0 02 1 0711-
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=16.2 		8-94492-493-0 02 1 0401-0512
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=15.0 		8-94279-040-0 02 1 0601-
2 GROMMET; LOCATION HOLE,BACK PANEL
MANUAL TILT CAB<RWZ> (A) OD=25 BLACK 		1-76798-019-0 05 1 0401-
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. MANUAL TILT CAB<RWZ> (A) OD=25 BLACK 		1-76798-019-0 04 1 0401-
16 REINFORCEMENT; BACK OUTER PNL 8-97890-837-1 01 1 0401-
