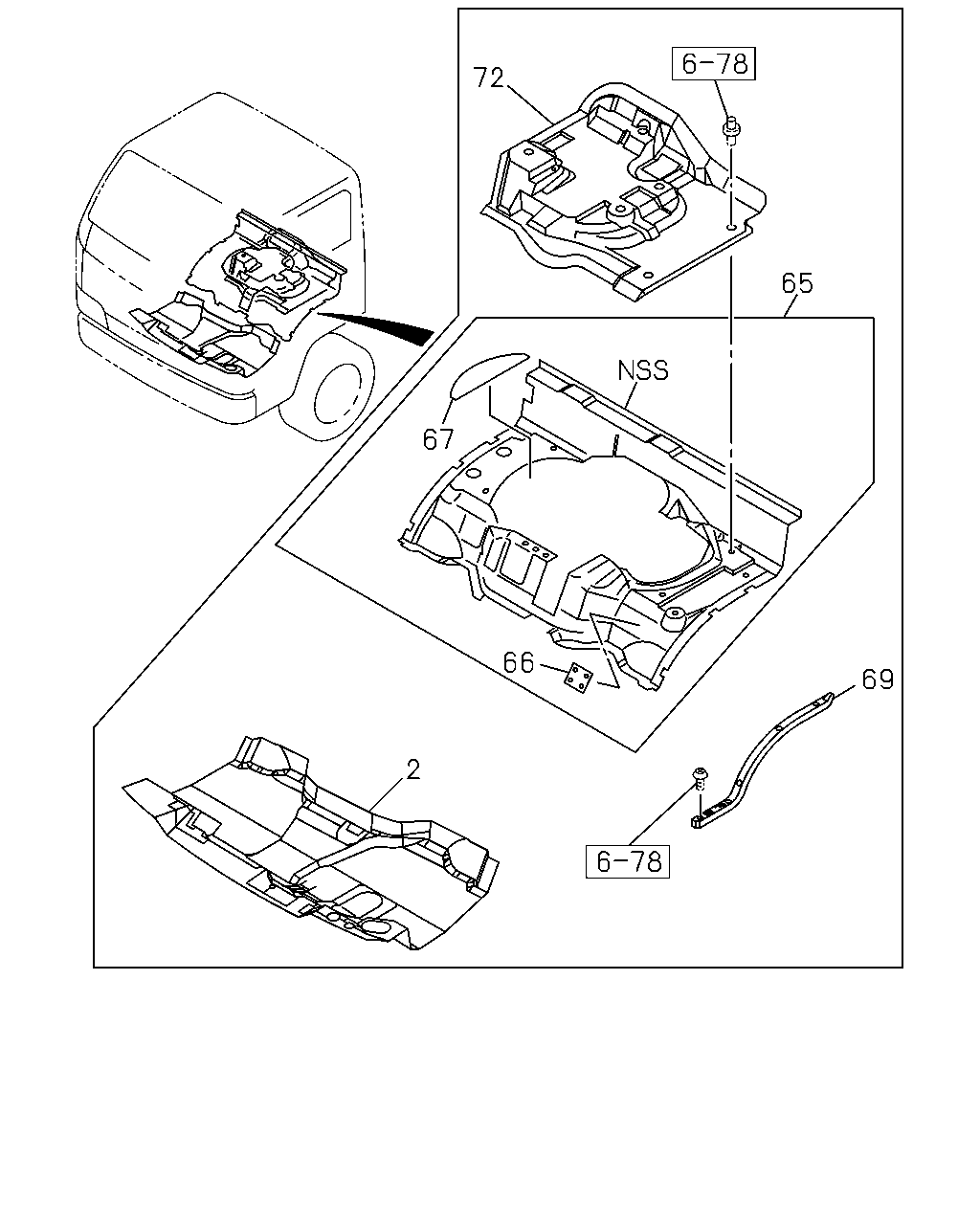

6-75 — MAT AND CARPET (#48219) — 20 parça

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97581-122-2	01	1	0401-0607
2	MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97588-993-3	01	1	0608-
2	MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97581-123-2	01	1	0401-0607
2	MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY	8-97588-994-3	01	1	0608-
65	MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-864-1	01	1	0401-0607
65	MAT ASM; SILENCER,CAB FLOOR MANUAL TILT CAB<RWZ> GRAY	8-97589-113-2	01	1	0608-
65	MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-702-1	01	1	0401-0607
65	MAT ASM; SILENCER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ> GRAY	8-97589-102-1	01	1	0608-
66	HOOK; COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-582-0	02	1	0401-0607
66	HOOK; COVER EXC. MANUAL TILT CAB<RWZ> GRAY	8-97583-948-0	02	1	0608-
67	LID; COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97997-588-0	01	1	0401-0607
67	LID; COVER EXC. MANUAL TILT CAB<RWZ> GRAY	8-97587-505-0	01	1	0608-
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-1	01	1	0401-0607
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-229-1	01	1	0608-0702
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-479-0	01	1	0703-
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-1	01	1	0401-0607
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97582-228-1	01	1	0608-0702
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97409-478-0	01	1	0703-
72	MAT; SILENCER,ENG COVER EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97996-766-1	01	1	0401-0607
72	MAT; SILENCER,ENG COVER EXC. MANUAL TILT CAB<RWZ> GRAY	8-97589-119-1	01	1	0608-
