Isuzu WW
▶
TRUCKS
▶
NPR
▶
50980 - NPR(IRAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

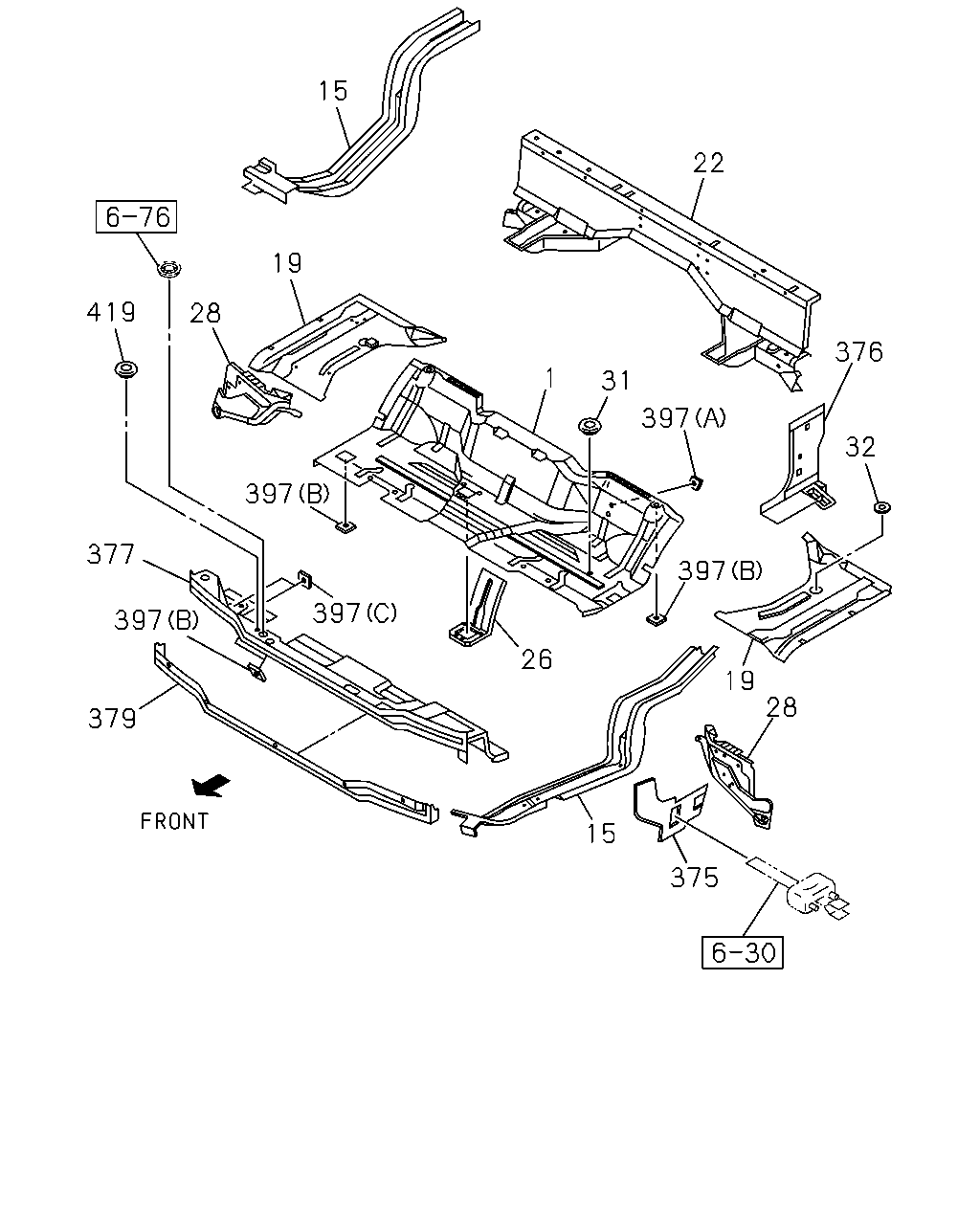

6-70 — FLOOR PANEL
(#48218) — 43 parça
◀

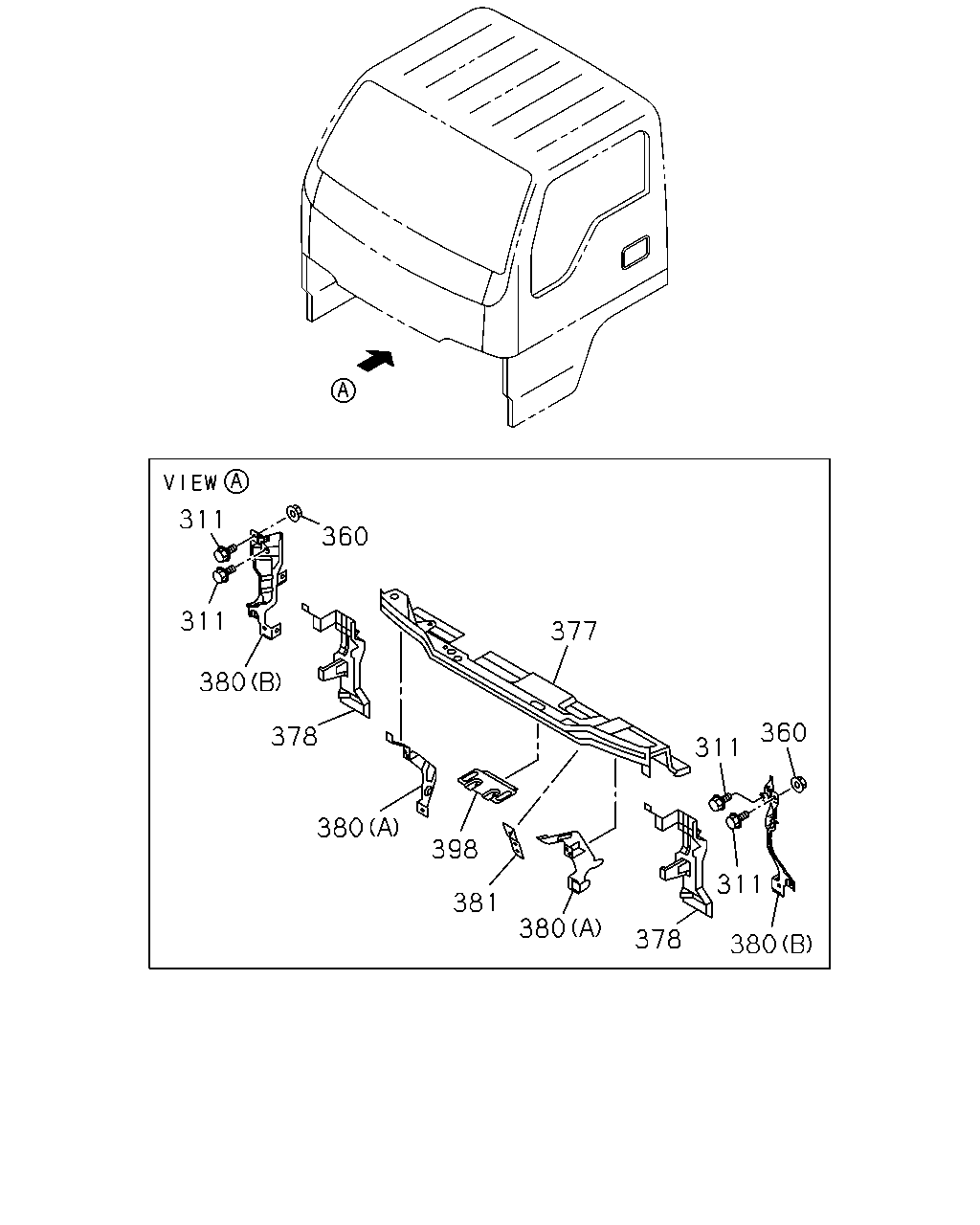

[670A] NO.2 (13 parça)
[670A] NO.1 (30 parça)
▶
311
360
311
377
380
360
378
311
380
398
311
381
380
378
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
311
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0608-0804
311
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
04
1
0805-
360
NUT; BRKT
M6 POP NUT
8-94279-537-0
02
1
0608-0805
360
NUT; BRKT
M6 POP NUT
8-98013-752-0
02
1
0806-
377
RAIL ASM; MTG,FRT
8-97850-776-2
01
1
0401-
378
GASSET; LWR
8-97581-828-2
01
1
0401-
378
GASSET; LWR
8-97581-827-2
01
1
0401-
380
BRACKET; HEAD LAMP
(A)
8-97850-359-1
01
1
0401-
380
BRACKET; HEAD LAMP
(A)
8-97850-704-0
01
1
0401-
380
BRACKET; HEAD LAMP
(B)
8-98006-088-0
01
1
0608-
380
BRACKET; HEAD LAMP
(B)
8-98006-087-0
01
1
0608-
381
BRACKET; AIR INTAKE DUCT,FRT
8-97850-352-1
01
1
0401-
398
BRACKET; PIPE SUPPORT
8-97850-318-1
01
1
0401-
15
22
19
419
28
376
1
31
397
32
397
377
397
397
397
26
19
28
379
15
375
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
8-97850-402-6
01
1
0401-
15
FRAME; UNDER
8-97850-060-9
01
1
0401-
15
FRAME; UNDER
8-97850-059-9
01
1
0401-0505
15
FRAME; UNDER
8-98013-405-0
01
1
0506-
19
PANEL; FLOOR SIDE,REAR
8-97850-405-9
01
1
0401-1106
19
PANEL; FLOOR SIDE,REAR
8-97840-393-0
01
1
1107-
19
PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ>
8-97850-456-4
01
1
0401-
19
PANEL; FLOOR SIDE,REAR
EXC. MANUAL TILT CAB<RWZ>
8-97850-335-5
01
1
0401-
22
FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ>
8-97997-861-7
01
1
0401-
22
FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ>
8-97850-535-9
01
1
0401-0712
22
FRAME; FLOOR REAR
EXC. MANUAL TILT CAB<RWZ>
8-98110-616-3
01
1
0801-
26
PANEL; GEAR CONT REINF
8-97850-403-0
01
1
0401-
28
GUSSET; FLOOR PANEL SIDE
8-97850-017-7
01
1
0401-1106
28
GUSSET; FLOOR PANEL SIDE
8-98170-771-0
01
1
1107-
28
GUSSET; FLOOR PANEL SIDE
8-97850-338-5
01
1
0401-1106
28
GUSSET; FLOOR PANEL SIDE
8-98170-770-0
01
1
1107-
31
GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5
8-94279-711-0
02
1
0401-
32
GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5
8-94356-253-0
02
1
0401-
375
CLOSING; PILLAR
8-97850-087-4
01
1
0401-
375
CLOSING; PILLAR
8-97850-086-5
01
1
0401-
376
CLOSING; PILLAR,LWR
8-97850-923-1
01
1
0401-
376
CLOSING; PILLAR,LWR
8-97850-320-6
01
1
0401-
377
RAIL ASM; MTG,FRT
8-97850-776-2
01
1
0401-
379
PANEL
8-97581-640-0
01
1
0401-
397
NUT; PIERCE
(C) M10
9-09114-030-0
03
1
0401-
397
NUT; PIERCE
(B) M8
9-09114-048-0
04
1
0401-
397
NUT; PIERCE
MANUAL TILT CAB<RWZ> (B) M8
9-09114-048-0
05
1
0401-
397
NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (A) M6
9-09114-046-0
04
1
0401-
397
NUT; PIERCE
EXC. MANUAL TILT CAB<RWZ> (B) M8
9-09114-048-0
03
1
0401-
419
GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE(V66) OD=36
1-09983-092-0
01
1
0401-
